dz7r aerial conductor cables
DZ7R Aerial Conductor Cables

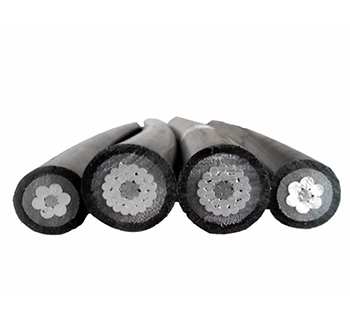

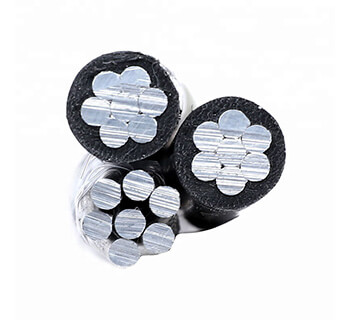

DZ7R Aerial Conductor Cables designed for overhead distribution lines. DZ7R Aerial Conductor Cables Supporting-core system consists of three phase cores of hard-drawn stranded compacted aluminum. Insulated with carbon- loaded XLPE laid up.DZ7R Aerial Conductor Cables can be used for fixed installation as overhead power lines up to 1000 V incl.
DZ7R Aerial Conductor Cables (Self Supporting & Supporting Core)
600/1000V to 12.7/22kV
Aluminium Conductors
Low Voltage ABC has a UV Stable XLPE Insulation

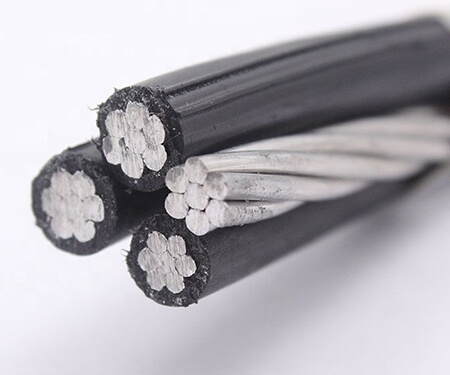

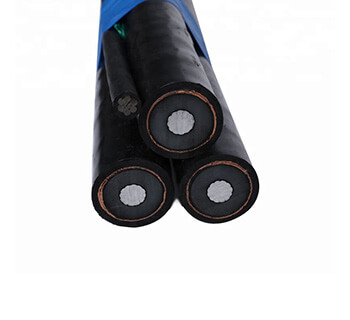

Medium Voltage ABC is Sheathed with a UV Stable PE
Made to SANS or other National or International Standards
Factory price without any third party. Email: info@qingzhou-cable.com
TY ABC (3.8/6.6kV-19/33kV)
600/1000V to 12.7/22kV
Aluminium Conductors
Low Voltage ABC has a UV Stable XLPE Insulation
Medium Voltage ABC is Sheathed with a UV Stable PE
Made to SANS or other National or International Standards
Applications:
DZ7R Aerial Conductor Cables (ABC) Cable is primarily used for overhead service applications such as street lighting. Outdoor lighting ,and temporary service for construction. To be used at voltage of 600V. Phase -to-phase or less and at conductor temperatures not to exceed 75℃ for polyethylene. Insulated conductor or 90℃ for crossliked polyethylene(XLPE) insulated conductors. The DZ Aerial Bundle Cables designed for overhead distribution lines have. All conductors made of aluminium 1350 and insulated with XLPE. Can be used for fixed installation as overhead power lines up to 1000 V incl.
DZ Aerial Bundle Conductor (ABC) Cable - Electric Cables & Wires
Aerial Bundle Cable (ABC cable) is more innovative than the conventional
Our overhead insulated cable have formed a system. Such as single core,two-core,three-core and four-core.There are conductors of aluminum,copper or aluminum conductors steel-reinforced. We can manufacture the overhead insulated cable not only in accordance with China’s standard GB12557-90 but also the other standards and special requirement by the customers
Standards
We could produce the cable according to many standards: ICEA S-76-474, ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC
we will do our best to meet your requirements
DZ Aerial Bundle Cable Specification:
1. Phase conductor: Aluminum wire, 1350-H19
2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor (AAAC)6201, Aluminum Conductor Steel Reinforced（ACSR）
3. The material of insulation: XLPE,PE,PVC
4. The Voltage: 600V-2200V
Name | Conductor | Average insulation thickness | Cable | ||||||
Sectional area | Number | Resistance | Diameter | Pulling force | Outer diameter | ||||
mm² | 20℃（Ω/km) | Min(mm) | Max(mm) | Min（daN) | (mm) | min（mm） | Max（mm） | ||
Phase Wire | 16 | 7 | 1.91 | 4.6 | 5.1 | 190 | 1.2 | 7 | 7.8 |
25 | 7 | 1.2 | 5.8 | 6.3 | 300 | 1.4 | 8.6 | 9.4 | |
35 | 7 | 0.868 | 6.8 | 7.3 | - | 1.6 | 10 | 10 | |
50 | 7 | 0.641 | 7.9 | 8.4 | - | 1.6 | 11.1 | 12 | |
70 | 12 | 0.443 | 9.7 | 10.2 | - | 1.8 | 13.3 | 14.2 | |
95 | 19 | 0.32 | 11 | 12 | - | 1.8 | 14.6 | 15.7 | |
120 | 19 | 0.253 | 12 | 13.1 | - | 1.8 | 15.6 | 16.7 | |
150 | 19 | 0.206 | 13.9 | 15 | - | 1.7 | 17.3 | 18.6 | |
Neutral Wire | 54.6 | 7 | 0.63 | 9.2 | 9.6 | 1660 | 1.6 | 12.3 | 13 |
70 | 7 | 0.5 | 10 | 10.2 | 2050 | 1.5 | 12.9 | 13.6 | |
95 | 19 | 0.343 | 12.2 | 12.2 | 2750 | 1.6 | 15.3** | 16.3** | |
Lighting wire | 1.5 | 1 | 12.1 | 1.5 | 1.2 | 3.7 | 4.2 | ||
*Provisional value | |||||||||
