PRODUCT

ACSR (Aluminium Conductor Steel Reinforced) Ungreased or Greased

Conductor: Over Head Conductor SCA(steel clad aluminum)

Construction: (1+6, 1+18, 7+6, 7+12, 7+12, 7+24, 7+30, 7+42, 7+45, 7+48, 7+54, 19+54)

Cable Type: Ungreased or (greased to case 2 or 4)

Supplier and manufacturer in China

Send E-mail Get Price Now

Application

ACSR (Aluminium Conductor Steel Reinforced) - SCA (steel clad aluminum). These conductors are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The wire(s) which form the core are made by galvanized steel and external layer(s) are of aluminum. Its characteristics are, low weight combined with its high breaking strength making them a solution for long spans.

Due to the great diameter of the conductor electric losses of Corona Effect are reduced.

Other Aluminium products:

AAC-All Aluminum Conductors

AAAC -All Aluminum Alloy Conductors

ACSR/AW -Aluminum Conductors Aluminum Clad Steel Reinforced

ACAR-All Aluminum Conductor Alloy Reinforced

AACSR-Aluminum Alloy Conductors Steel Reinforced

GSW-Zinc-Coated (Galvanized) Steel Overhead Ground Wire Strand

ACS-aluminum-clad steel conductors

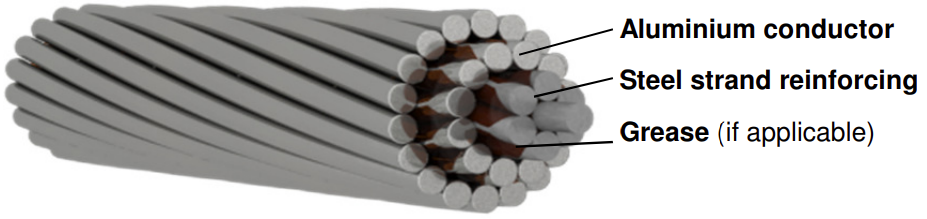

acsr cable china.png

Conductor name	Steel core				Aluminium Outer layer(s)			Total Conductor
Conductor name	Number/ Size	dia. mm	area mm²	mass kg/km	Number/ Size	area mm²	mass kg/km	dia. mm	area mm²	mass kg/km
4 Steel+ 3 Aluminium
Bantam	4/ 1.68	1.68	8.9	71	3 /1.68	6.7	18	5.04	15.52	89
Magpie	4/2.12	2.12	14.1	113	3/2.12	10.6	29	6.36	24.71	140
Shrike	4/2.67	2.67	22.4	179	3/2.67	_16.8	46	8.01	39.19	226
Snipe	4/3.37	3.87	35.7	286	3/3.37	26.8	74	10.11	62.44	360
1 steel+ 6 Aluminium
Mole	1/1.50	1.5	1.77	14	6/1.50	10.6	29	4.5	12.37	43 (Z)RH
Turkey	1/1.68	1.68	2.22	17	6 /1.68	13.3	36	5.04	15.52	53
Squirrel	1/2.11	2.11	3.5	27	6/2.11	20.98	57	6.33	24.48	85
Gopher	1/2.36	2.36	4.37	34	6/2.36	26.25	71	7.08	30.62	105
Weasel	1/ 2.59	2.59	5.27	41	612.59	31.61	85	7.77	36.88	127
Fox	1/2.79	2.79	6.11	48	6/2.79	36.68	99	8.37	42.8	149
Robin	1/3.00	3	7.07	56	6/3.00	42.41	115	9	49.48	170
Ferret	1/3.00	3	7.07	56	6/3.00	42.41	115	9	49.48	170
Rabbit	1/3.35	3.35	8.81	69	613.35	52.88	143	10.05	61.71	212
Mink	1/3.66	3.66	10.52	83	6 / 3.66	63.13	171	10.98	73.65	257
Banana	1/3.75	3.75	11.04	87	6/3.75	66.27	179	11.25	77.31	266
Quail	1/3.78	3.78	11.22	88	6/3.78	67.33	182	11.34	78.55	270
eaver	1/3.99	3.99	12.5	98	6 / 3.99	75.02	203	11.97	87.53	301
Racoon	1/ 4.09	4.09	13.14	103	6/4.09	78.83	213	12.27	91.97	316
Otter	1/4.22	4.22	13.99	110	6/ 4.22	83.92	227	12.66	97.91	337
Cat	1/4.50	4.5	15.9	125	6/4.50	95.43	258	13.5	111.33	383
Hare	1/4.72	4.72	17.5	137	6/4.72	104.98	284	14.16	122.48	427
Penguin	1/4.77	4.77	17.87	140	6/4.77	107.22	29o	14.31	125.09	430
7 Steel+6 Aluminium
Dog	7/1.57	4.79	13.6	106	6/4.72	105.0	284	14.15	118.54	397
Leopard	7/1.75	5.34	16.8	132	6/5.28	131.4	355	15.81	148.21	410
7 Steel + 7 Aluminium
Hyena	7/1.97	6.02	21.3	168	7/4.39	106.0	286	14.69	127.29	360
1 Steel + 18 Aluminium
Dingo	1/3.35	3.35	8.81	69	18/3.35	158.65	429	16.75	167.47	498
Chicadee	1/3.77	3.77	11.16	88	18/3.77	200.93	543	18.85	212.09	643
Pelican	1/4.14	4.14	13.46	106	18/4.14	242.31	655	20.7	255.77	761
Osprey	1/4.47	4.47	15.69	123	18/4.47	282.47	764	22.35	298.17	887
Kingbird	1/4.78	4.78	17.95	141	1814.78	323.01	873	23.90	340.96	1038
7 Steel+ 12 Aluminium
Petrel	7/2.34	7.02	30.1	238	12/2.34	51.61	139	11.7	81.71	377
Skunk	7/2.59	7.77	36.88	291	12/2.59	63.22	171	12.95	100.1	462
Leghorn	7/2.69	8.07	39.78	314	12/2.69	68.2	184	13.45	107.98	498
Horse	7/2.79	8.37	42.8	338	12/2.79	73.36	198	13.95116.16		536
Guinea	7/2.92	8.76	46.88	370	12/2.92	80.36	217	14.6	127.24	587
Dotterel	7/3.08	9.24	52.15	412	12/3.08	89.41	242	15.4	141.56	653
oden	7/3.52	10.56	68.12	538	12/3.52	116.78	316	17.6	184.90	853
7 Steel+ 22 Aluminium
Toucan	7 / 2.08	6.24	23.8	188	22 / 3.74	241.7	667	13.72	265.47	855
7 Steel+ 24 Aluminium
Flicker	7/2.39	7.17	31.4	248	24/3.58	241.6	653	14.33	272.99	901
Rook	7/2.76	8.28	41.9	331	24/4.14			16.56	364.95	1204
7 Steel+ 26 Aluminium
70/12	7/1.44	4.32	11.4	90	26/1.85	69.9	189	11.72	81.29	279
Dove	7/2.89	8.67	45.9	363	26/3.72	282.6	764	23.55	328.5	1126
Hawk	7/2.68	8.03	39.3	311	26/3.43	240.2	649	21.75	279.58	960
Drake	7/3.45	10.36	65.6	518	26/4.44	402.9	1089	28.13	468.51	1607
7 Steel + 30 Aluminium
Canna 147.1	7/2.25	6.75	27.83	219	30 /2.25	119.28	322	15.75	147.11	549
Tiger	7/2.36	7.08	30.62	240	30/2.36	131.23	355	16.52	161.85	606
Wolf	7/2.59	7.77	36.88	290	30/2.59	158.06	427	18.13	194.94	730
Oriole	7/2.69	8.07	39.78	312	30/2.69	170.5	461	18.83	210.28	785
Lynx	7/2.79	8.37	42.8	336	30/2.79	183.41	496	19.53	226.2	832
Panther	7/3.00	9	49.48	389	30/3.00	212.06	573	21	261.54	970
Bear	7/3.35	10.05	61.7	485	30/3.35	264.42	715	23.45	326.12	1220
Lion	7/3.18	9.54	55.6	437	30/3.18	238.27	644	22.26	293.86	1081
Goat	7/3.71	11.13	75.67	594	30/3.71	324.31	877	25.97	399.98	1500
Sheep	7/3.99	11.97	87.53	687	30/3.99	375.11	1014	27.93	462.63	1701
Deer	7/4.27	12.81	100.24	787	30/4.27	429.6	1 161	29.89	529.84	1949
Elk	7/4.5	13.5	111.33	874	30/4.50	477.13	1 290	31.5	588.46	2164
7 Steel + 54 Aluminium
Crow	7/2.92	8.76	46.88	368	54/4.27	773.28	2090	34.38	820.16	2458
Antelope	7/2.97	8.91	48.5	381	54/ 2.97	374.11	1011	26.73	422.6	1392
Bison	7/3.00	9	49.48	389	54/3.00	381.7	1032	27	431.18	1420
Zebra	7/3.18	9.54	55.6	437	54/3.18	428.88	1159	28.62	484.48	1630
Camel	7/3.35	10.05	61.7	485	54/3.35	475.96	1 287	30.15	537.66	1771
Moose	7/3.53	10.59	68.51	538	54/3.53	528.49	1428	31.77	596.99	1967
Condor	7/3.08	9.24	52.15	410	54/ 3.08	402.33	1 088	27.72	454.49	1497
Cardinal	7/3.38	10.14	62.81	493	54/3.38	484.53	1310	30.42	547.33	1803
19 Steel + 54 Aluminium
Dinosaur	19/2.37	11.85	83.82	658	54/3.95	661.73	1789	35.55	745.54	2483

ACSR conductor-BS 215-2

Code	Nominal Area				Stranding		Overall Diameter		Weight(CU)			Rated Strength	Electrical Resistance @20o
	AL		Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	Nominal	Teorical	Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	mm^2	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	mm	Kg/Km	Kg/Km	Kg/Km	KN	Ω/Km
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	1.5	4.5	29	14	43	4.14	2.706
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	2.11	6.33	57	28	85	7.88	1.368
Gopher	25	26.24	4.38	30.62	6/2.36	1/2.36	2.36	7.08	71	35	106	9.61	1.093
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	2.59	7.77	87	41	128	11.45	0.9077
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	2.79	8.37	101	48	149	13.2	0.7822
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	3	9	117	55	172	15.2	0.6766
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	3.35	10.05	145	69	214	18.35	0.5426
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	3.66	10.98	171	84	255	2.18	0.4545
Shunk	60	63.27	37.03	100.3	12/2.59	7/2.59	7.77	12.95	178	287	465	5.3	0.4567
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	3.99	11.97	203	99	302	2.57	0.3825
Horse	70	73.37	42.63	116.2	12/2.79	7/2.79	8.37	13.95	203	335	538	61.2	0.3936
Racoon	75	79.2	13.2	92.4	6/4.1	1/4.1	4.1	12.3	216	104	320	27.2	0.3622
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	4.22	13.98	226	113	339	28.8	0.3419
Cat	90	95.44	15.86	111.3	6/4.5	1/4.5	4.5	15.9	258	128	386	32.7	0.3007
Hare	100	105	17.5	122.5	6/4.72	1/4.72	4.72	17.5	284	141	425	36	0.2733
Dog	100	105	13.5	118.5	6/4.72	7/1.57	4.71	14.15	288	106	394	32.7	0.2733
Hyena	100	105.8	20.4	126.2	7/4.39	7/1.93	5.79	14.57	250	200	450	40.9	0.2712
Leoperd	125	131.3	16.8	148.1	8/5.28	7/1.75	5.25	15.81	310	182	492	40.7	0.2184
Coyotte	125	132.1	20.1	152.2	26/2.54	7/1.91	5.73	15.89	410	112	522	46.4	0.2187
Congar	125	130.3	7.2	137.5	18/3.05	1/3.05	3.05	15.25	361	58	419	29.8	0.2189
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	7.08	16.52	365	237	602	58	0.2202
Wolf	150	158.1	36.8	194.9	30/2.59	7/2.59	7.77	18.13	441	285	726	69.2	0.1828
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	3.35	16.75	437	69	506	35.7	0.1815
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	8.37	19.53	507	335	842	79.8	0.1576
Caracal	175	184.3	10.2	194.5	18/3.61	1/3.61	3.61	18.05	507	80	587	41.1	0.1563
Panther	200	212.1	49.4	261.5	30/3.00	7/3.00	9	21	586	388	974	92.25	0.1363
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	3.86	19.3	580	91	671	46.55	0.1367
Lion	225	238.5	55.7	294.2	30/3.18	7/3.18	9.54	22.26	657	438	1095	100.6	0.1212
Bear	250	264	61.6	325.6	30/3.35	7/3.35	10.05	23.45	728	485	1213	111.1	0.109
Goat	300	324.3	75.7	400	30/3.71	7/3.71	11.13	25.79	894	595	1489	135.7	0.0891
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	11.97	27.93	1031	687	1718	155.9	0.077
Antilope	350	373.1	48.4	421.5	54/2.97	7/2.97	8.91	26.73	1040	371	1411	118.2	0.0772
Bizon	350	381.8	49.5	431.3	54/3.00	7/3.00	9	27	1064	380	1444	120.9	0.7573
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	9.54	28.62	1185	436	1621	131.9	0.0674

ACSR Conductor - DIN 48204 Standard

Area				Standing and wire diameter		Overall diameter		Nominal breaking load	Maximum resistance at 20°C	Current Rating
Nominal.	Actual			Standing and wire diameter			Total.
Al/Steel--	Al	Steel	Total	Aluminum	Steel		Total.
Al/Steel--	mm2	mm2	mm2	mm	mm	mm	kg/km	daN	Ω/km	A
16/2.5	15.1515	2.22	18.1818	6/1.80	1/1.80	5.55	62	595	2.22222	105
25/4.0	24.2424	4.44	28.2828	6/2.25	1/2.5	7.77	97	920	1.11111	140
35/6.0	34.3434	6.66	40.4040	6/2.70	1/2.70	8.88	140	1265	1.11111	170
44/32.0	44.4444	32.3232	76.7676	14/2.00	7/2.40	11.1111	372	4500	1.11111	220
50/8.0	48.4848	8.88	56.5656	6/3.20	1/3.20	10.1010	196	1710	1.11111	210
50/30	51.5151	30.3030	81.8181	12/2.33	7/2.33	12.1212	378	4380	1.11111	223
70/12	70.7070	11.1111	81.8181	26/1.85	7/1.44	12.1212	284	2680	0.00000	290
95/15	94.9494	15.1515	110.110110	26/2.15	7/1.67	14.1414	383	3575	0.00000	350
95/55	96.9696	56.5656	153.153153	12/3.20	7/3.20	16.1616	712	7935	0.00000	352
105/75	106.106106	76.7676	182.182182	14/3.10	9/2.25	18.1818	891	10845	0.00000	385
120/20	121.121121	20.2020	141.141141	26/2.44	7/1.90	16.1616	494	4565	0.00000	410
120/70	122.122122	71.7171	193.193193	12/3.60	7/3.60	18.1818	90	10000	0.00000	410
125/30	128.128128	30.3030	158.158158	30/2.33	7/2.33	16.1616	591	5760	0.00000	425
150/25	149.149149	24.2424	173.173173	26/2.70	7/2.10	17.1717	605	5525	0.00000	470
170/40	172.172172	40.4040	212.212212	30/2.70	7/2.70	19.1919	794	7675	0.00000	520
185/30	184.184184	30.3030	214.214214	26/3.00	7/2.33	19.1919	746	6620	0.00000	535
210/35	209.209209	34.3434	243.243243	26/3.20	7/2.49	20.2020	850	7490	0.00000	590
210/50	212.212212	50.5050	262.262262	30/3.00	7/3.00	21.2121	981	9390	0.00000	610
230/30	231.231231	30.3030	261.261261	24/3.50	7/2.33	21.2121	877	7310	0.00000	630
240/40	243.243243	40.4040	282.282282	26/3.45	7/2.68	22.2222	987	8640	0.00000	645
265/35	264.264264	34.3434	298.298298	24/3.74	7/2.49	22.2222	1002	8305	0.00000	680
300/50	304.304304	50.5050	354.354354	26/3.86	7/3.00	24.2424	1236	10700	0.00000	740
305/40	305.305305	40.4040	344.344344	54/2.68	7/2.68	24.2424	1160	9940	0.00000	740
340/30	339.339339	30.3030	369.369369	48/3.00	7/2.33	25.2525	1180	9290	0.00000	790
380/50	382.382382	50.5050	432.432432	54/3.00	7/3.00	27.2727	1453	12310	0.00000	840
385/35	386.386386	34.3434	420.420420	48/3.20	7/2.49	27.2727	1344	10480	0.00000	850
435/55	434.434434	59.5959	491.491491	54/3.20	7/3.20	29.2929	1653	13645	0.00000	900
450/40	449.449449	40.4040	488.488488	48/3.45	7/2.68	29.2929	1561	12075	0.00000	920
490/65	490.490490	64.6464	554.554554	54/3.40	7/3.40	31.3131	1866	15310	0.00000	960
495/35	494.494494	34.3434	528.528528	45/3.74	7/2.49	30.3030	1646	12180	0.00000	968
510/45	510.510510	45.4545	556.556556	48/3.68	7/2.87	31.3131	1778	13665	0.00000	980
550/70	550.550550	71.7171	621.621621	54/3.60	7/3.60	32.3232	2092	17060	0.00000	1020
560/50	562.562562	50.5050	611.611611	48/3.86	7/3.00	32.3232	1954	14895	0.00000	1040
570/40	566.566566	40.4040	610.610610	45/4.00	7/2.68	32.3232	1888	13900	0.00000	1040
650/45	698.698698	45.4545	653.653653	45/4.30	7/2.87	34.3434	2163	15552	0.00000	1280
680/85	679.679679	86.8686	765.765765	54/4.00	19/2.40	36.3636	2570	21040	0.00000	1150
1045/45	1046.10461046	45.4545	1091.10911091	72/4.30	7/2.87	43.4343	3249	21787	0.00000	1570

ACSR conductor-IEC 61089

Code	Nominal Area			Stranding		Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
Code	AL	Steel	Total	AL	Steel	Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	Kg/Km	KN	Ω/Km	A
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934	85
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478	112
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174	150
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555	198
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869	263
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304	299
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.231	302
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.18	347
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805	351
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.144	398
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444	402
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154	458
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155	461
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917	526
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917	530
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722	607
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723	610
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642	651
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643	655
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578	693
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578	697
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516	741
560*	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516	745
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459	794
630*	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459	798
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407	851
710*	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407	856
800*	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361	910
800*	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362	912
800*	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362	916
900*	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321	972
900*	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322	974
1000*	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289	1031
1120*	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258	1096
1120*	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258	1100
1250*	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232	1165
1250*	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231	1163

Matching Products

*Describe Your Buying Requirements in Detail
