LSZH Instrumentation Cables

CU / XLPE / OS / LSZH ( PAIRS & TRIADS )

CU / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

CU / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

CU / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

Manufacturer and supplier in China

Send E-mail Get Price Now

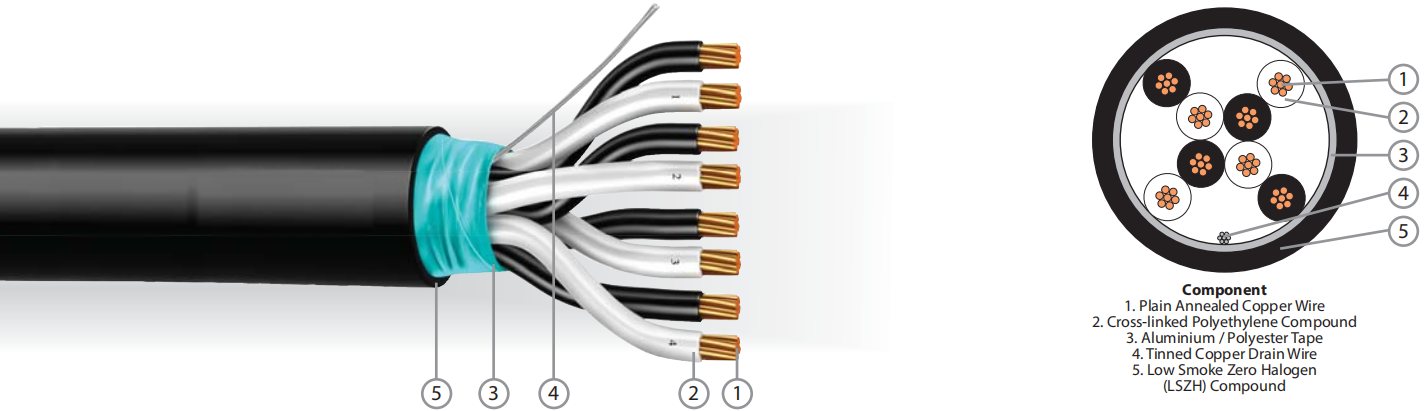

FRT-XOL

CU / XLPE / OS / LSZH ( PAIRS & TRIADS )

XLPE Insulated, Overall Aluminium Foil Screened, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

FRT-XOL cu-xlpe-os-lszh.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Black

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

FRT-XIOL

CU / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

FRT-XIOL CU-XLPE-IS-OS-LSZH.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

FRT-XOSL

CU / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

XLPE Insulated, Overall Aluminium Foil Screened, LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

FRT-XOSL cu-xlpe-os-lszh-swa-lszh.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Low Smoke Zero Halogen (LSZH) Compound

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Black

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

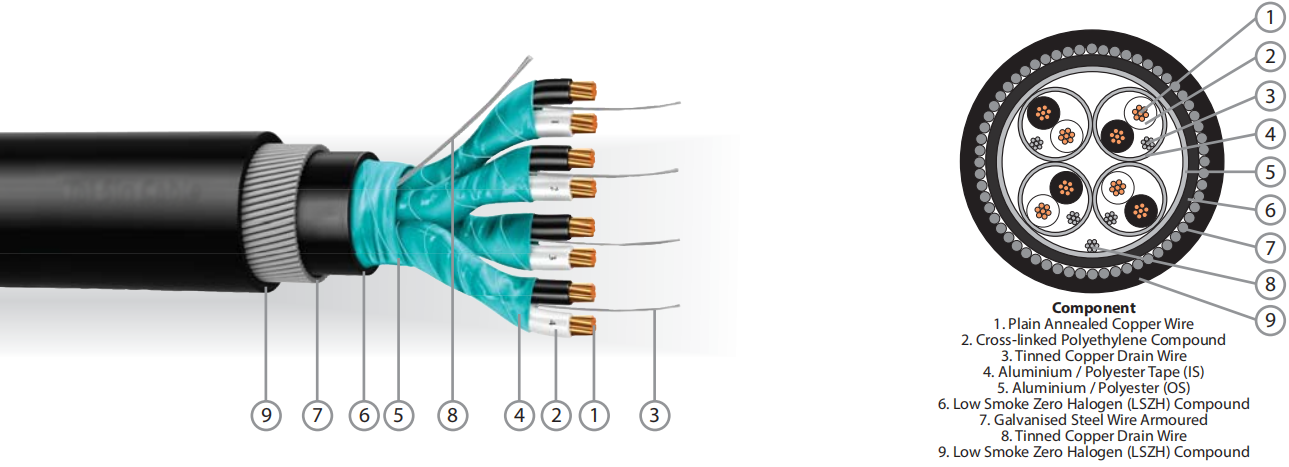

FRT-XIOSL

CU / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

FRT-XIOSL CU-XLPE-IS-OS-LSZH-SWA-LSZH.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Low Smoke Zero Halogen (LSZH) Compound

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Black

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC

Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

CU / XLPE / OS / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1P	0.5	7 / 0.3	0.6	7	57
2P (Quad)		7 / 0.3	0.6	7.9	82
2P		7 / 0.3	0.6	10.4	94
3P		7 / 0.3	0.6	11.2	121
4P		7 / 0.3	0.6	12.3	145
5P		7 / 0.3	0.6	13.4	169
6P		7 / 0.3	0.6	14.7	202
8P		7 / 0.3	0.6	16.5	249
10P		7 / 0.3	0.6	18.8	308
12P		7 / 0.3	0.6	19.5	348
16P		7 / 0.3	0.6	21.6	434
20P		7 / 0.3	0.6	24.2	535
24P		7 / 0.3	0.6	27.1	640
36P		7 / 0.3	0.6	31.2	901
1P	0.75	7 / 0.37	0.6	7.4	65
2P (Quad)		7 / 0.37	0.6	8.4	96
2P		7 / 0.37	0.6	11.4	115
3P		7 / 0.37	0.6	12.1	143
4P		7 / 0.37	0.6	13.2	173
5P		7 / 0.37	0.6	14.6	211
6P		7 / 0.37	0.6	15.9	243
8P		7 / 0.37	0.6	17.8	302
10P		7 / 0.37	0.6	20.3	375
12P		7 / 0.37	0.6	21	427
16P		7 / 0.37	0.6	23.5	549
20P		7 / 0.37	0.6	26.4	677
24P		7 / 0.37	0.6	29.5	809
36P		7 / 0.37	0.6	34	1144
1P	1	7 / 0.43	0.6	7.8	73
2P (Quad)		7 / 0.43	0.6	8.9	110
2P		7 / 0.43	0.6	12	130
3P		7 / 0.43	0.6	12.7	164
4P		7 / 0.43	0.6	13.9	200
5P		7 / 0.43	0.6	15.4	245
6P		7 / 0.43	0.6	16.8	283
8P		7 / 0.43	0.6	19.1	365
10P		7 / 0.43	0.6	21.6	440
12P		7 / 0.43	0.6	22.6	516
16P		7 / 0.43	0.6	25	651
20P		7 / 0.43	0.6	28.1	803
24P		7 / 0.43	0.6	31.4	960
36P		7 / 0.43	0.6	36.2	1368
1P	1.5	7 / 0.53	0.6	8.4	87
2P (Quad)		7 / 0.53	0.6	9.6	135
2P		7 / 0.53	0.6	13.1	159
3P		7 / 0.53	0.6	13.9	204
4P		7 / 0.53	0.6	15.4	260
5P		7 / 0.53	0.6	16.9	310
6P		7 / 0.53	0.6	18.6	370
8P		7 / 0.53	0.6	20.9	466
10P		7 / 0.53	0.6	23.9	578
12P		7 / 0.53	0.6	24.8	666
16P		7 / 0.53	0.6	27.7	861
20P		7 / 0.53	0.6	31.2	1064
24P		7 / 0.53	0.6	34.8	1271
36P		7 / 0.53	0.6	40.4	1843
1P	2.5	7 / 0.67	0.7	9.6	116
2P (Quad)		7 / 0.67	0.7	11.3	193
2P		7 / 0.67	0.7	15.5	224
3P		7 / 0.67	0.7	16.5	292
4P		7 / 0.67	0.7	18.3	375
5P		7 / 0.67	0.7	20	448
6P		7 / 0.67	0.7	22.1	535
8P		7 / 0.67	0.7	25.1	693
10P		7 / 0.67	0.7	28.8	860
12P		7 / 0.67	0.7	29.8	993
16P		7 / 0.67	0.7	33.3	1286
20P		7 / 0.67	0.7	37.5	1590
24P		7 / 0.67	0.7	41.8	1898
36P		7 / 0.67	0.7	48.5	2756

SINGLE & MULTI-TRIADS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1T	0.5	7 / 0.3	0.6	7.3	68
6T		7 / 0.3	0.6	16.7	275
16T		7 / 0.3	0.6	24.8	629
24T		7 / 0.3	0.6	31.1	927
1T	0.75	7 / 0.37	0.6	7.8	79
6T		7 / 0.37	0.6	17.9	334
16T		7 / 0.37	0.6	27	795
24T		7 / 0.37	0.6	33.9	1173
1T	1	7 / 0.43	0.6	8.2	90
6T		7 / 0.43	0.6	19.2	403
16T		7 / 0.43	0.6	28.7	946
24T		7 / 0.43	0.6	36.1	1398
1T	1.5	7 / 0.53	0.6	8.8	110
6T		7 / 0.53	0.6	21.1	516
16T		7 / 0.53	0.6	31.8	1254
24T		7 / 0.53	0.6	39.9	1854
1T	2.5	7 / 0.67	0.7	10.4	156
6T		7 / 0.67	0.7	25.2	767
16T		7 / 0.67	0.7	38.1	1873
24T		7 / 0.67	0.7	48.1	2794

CU / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1P	0.5	7 / 0.3	0.6	7.1	60
2P		7 / 0.3	0.6	11.3	123
3P		7 / 0.3	0.6	11.9	153
4P		7 / 0.3	0.6	13	186
5P		7 / 0.3	0.6	14.4	227
6P		7 / 0.3	0.6	15.6	262
8P		7 / 0.3	0.6	17.7	336
10P		7 / 0.3	0.6	20.2	416
12P		7 / 0.3	0.6	20.9	474
16P		7 / 0.3	0.6	23.1	596
20P		7 / 0.3	0.6	26	735
24P		7 / 0.3	0.6	29	878
36P		7 / 0.3	0.6	33.5	1263
1P	0.75	7 / 0.37	0.6	7.5	67
2P		7 / 0.37	0.6	12	139
3P		7 / 0.37	0.6	12.7	176
4P		7 / 0.37	0.6	14.1	223
5P		7 / 0.37	0.6	15.4	264
6P		7 / 0.37	0.6	17	315
8P		7 / 0.37	0.6	19	394
10P		7 / 0.37	0.6	21.7	487
12P		7 / 0.37	0.6	22.4	558
16P		7 / 0.37	0.6	25.1	719
20P		7 / 0.37	0.6	28.2	886
24P		7 / 0.37	0.6	31.4	1058
36P		7 / 0.37	0.6	36.4	1525
1P	1.0	7 / 0.43	0.6	7.9	75
2P		7 / 0.43	0.6	12.6	155
3P		7 / 0.43	0.6	13.6	206
4P		7 / 0.43	0.6	14.9	252
5P		7 / 0.43	0.6	16.2	299
6P		7 / 0.43	0.6	17.9	357
8P		7 / 0.43	0.6	20.3	460
10P		7 / 0.43	0.6	23	557
12P		7 / 0.43	0.6	24	652
16P		7 / 0.43	0.6	26.6	827
20P		7 / 0.43	0.6	29.9	1020
24P		7 / 0.43	0.6	33.5	1236
36P		7 / 0.43	0.6	38.6	1762
1P	1.5	7 / 0.53	0.6	8.5	90
2P		7 / 0.53	0.6	13.9	192
3P		7 / 0.53	0.6	14.8	248
4P		7 / 0.53	0.6	16.2	307
5P		7 / 0.53	0.6	17.9	377
6P		7 / 0.53	0.6	19.5	438
8P		7 / 0.53	0.6	22.1	567
10P		7 / 0.53	0.6	25.3	702
12P		7 / 0.53	0.6	26.4	223
16P		7 / 0.53	0.6	29.3	1048
20P		7 / 0.53	0.6	33.1	1311
24P		7 / 0.53	0.6	36.9	1564
36P		7 / 0.53	0.6	42.7	2262
1P	2.5	7 / 0.67	0.7	9.7	119
2P		7 / 0.67	0.7	16.3	261
3P		7 / 0.67	0.7	17.4	342
4P		7 / 0.67	0.7	19	427
5P		7 / 0.67	0.7	21.1	524
6P		7 / 0.67	0.7	23.2	623
8P		7 / 0.67	0.7	26.3	806
10P		7 / 0.67	0.7	30.1	999
12P		7 / 0.67	0.7	31.2	1154
16P		7 / 0.67	0.7	34.9	1496
20P		7 / 0.67	0.7	39.4	1867
24P		7 / 0.67	0.7	43.9	2226
36P		7 / 0.67	0.7	50.8	3225

SINGLE & MULTI-TRIADS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1T	0.5	7 / 0.3	0.6	7.4	70
6T		7 / 0.3	0.6	17.5	338
16T		7 / 0.3	0.6	26	778
24T		7 / 0.3	0.6	32.6	1146
1T	0.75	7 / 0.37	0.6	7.9	82
6T		7 / 0.37	0.6	18.8	400
16T		7 / 0.37	0.6	28.2	951
24T		7 / 0.37	0.6	35.3	1400
1T	1	7 / 0.43	0.6	8.3	92
6T		7 / 0.43	0.6	19.9	461
16T		7 / 0.43	0.6	29.9	1107
24T		7 / 0.43	0.6	37.7	1652
1T	1.5	7 / 0.53	0.6	8.9	112
6T		7 / 0.53	0.6	21.9	589
16T		7 / 0.53	0.6	33.2	1441
24T		7 / 0.53	0.6	41.6	2124
1T	2.5	7 / 0.67	0.7	10.5	159
6T		7 / 0.67	0.7	26.1	849
16T		7 / 0.67	0.7	39.5	2082
24T		7 / 0.67	0.7	49.7	3095

CU / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1P	0.5	7 / 0.3	0.6	7.2	0.9	11.9	268
2P (Quad)		7 / 0.3	0.6	8.1	0.9	12.7	312
2P		7 / 0.3	0.6	10.8	0.9	15.7	403
3P		7 / 0.3	0.6	11.4	0.9	16.3	440
4P		7 / 0.3	0.6	12.5	0.9	17.4	494
5P		7 / 0.3	0.6	13.6	0.9	18.5	547
6P		7 / 0.3	0.6	14.8	1.25	20.6	721
8P		7 / 0.3	0.6	16.6	1.25	22.4	823
10P		7 / 0.3	0.6	18.8	1.25	24.6	949
12P		7 / 0.3	0.6	19.4	1.25	25.4	1018
16P		7 / 0.3	0.6	21.6	1.25	27.6	1184
20P		7 / 0.3	0.6	24.1	1.25	30.3	1369
24P		7 / 0.3	0.6	26.8	1.25	33	1552
36P		7 / 0.3	0.6	30.8	1.25	37.2	1955
1P	0.75	7 / 0.37	0.6	7.6	0.9	12.3	284
2P (Quad)		7 / 0.37	0.6	8.6	0.9	13.2	340
2P		7 / 0.37	0.6	11.5	0.9	16.4	439
3P		7 / 0.37	0.6	12.2	0.9	17.1	483
4P		7 / 0.37	0.6	13.4	0.9	18.3	544
5P		7 / 0.37	0.6	14.6	1.25	20.4	719
6P		7 / 0.37	0.6	15.9	1.25	21.7	791
8P		7 / 0.37	0.6	17.9	1.25	23.7	916
10P		7 / 0.37	0.6	20.3	1.25	26.3	1080
12P		7 / 0.37	0.6	21	1.25	27	1149
16P		7 / 0.37	0.6	23.3	1.25	29.3	1339
20P		7 / 0.37	0.6	26.1	1.25	32.3	1562
24P		7 / 0.37	0.6	29	1.25	35.4	1790
36P		7 / 0.37	0.6	33.4	1.6	40.7	2517
1P	1	7 / 0.43	0.6	8	0.9	12.7	300
2P (Quad)		7 / 0.43	0.6	9.1	0.9	13.9	370
2P		7 / 0.43	0.6	12.2	0.9	17.1	470
3P		7 / 0.43	0.6	12.9	0.9	17.8	525
4P		7 / 0.43	0.6	14.1	1.25	19.9	701
5P		7 / 0.43	0.6	15.5	1.25	21.3	779
6P		7 / 0.43	0.6	16.9	1.25	22.7	868
8P		7 / 0.43	0.6	19	1.25	25	1020
10P		7 / 0.43	0.6	21.6	1.25	27.6	1185
12P		7 / 0.43	0.6	22.3	1.25	28.3	1276
16P		7 / 0.43	0.6	24.8	1.25	31	1508
20P		7 / 0.43	0.6	27.8	1.25	34	1741
24P		7 / 0.43	0.6	30.9	1.25	37.3	2006
36P		7 / 0.43	0.6	35.6	1.6	42.9	2822
1P	1.5	7 / 0.53	0.6	8.6	0.9	13.3	334
2P (Quad)		7 / 0.53	0.6	9.8	0.9	14.6	416
2P		7 / 0.53	0.6	13.2	0.9	18.1	526
3P		7 / 0.53	0.6	14.1	1.25	19.9	704
4P		7 / 0.53	0.6	15.4	1.25	21.2	793
5P		7 / 0.53	0.6	16.9	1.25	22.7	894
6P		7 / 0.53	0.6	18.5	1.25	24.5	1009
8P		7 / 0.53	0.6	20.8	1.25	26.8	1184
10P		7 / 0.53	0.6	23.7	1.25	29.9	1392
12P		7 / 0.53	0.6	24.5	1.25	30.7	1507
16P		7 / 0.53	0.6	27.3	1.25	33.5	1783
20P		7 / 0.53	0.6	30.6	1.25	37	2095
24P		7 / 0.53	0.6	34.1	1.6	41.4	2656
36P		7 / 0.53	0.6	39.8	1.6	47.3	3498
1P	2.5	7 / 0.67	0.7	9.8	0.9	14.7	399
2P (Quad)		7 / 0.67	0.7	11.3	0.9	16.1	504
2P		7 / 0.67	0.7	15.4	1.25	21.2	754
3P		7 / 0.67	0.7	16.5	1.25	22.3	862
4P		7 / 0.67	0.7	18.1	1.25	24.1	999
5P		7 / 0.67	0.7	19.9	1.25	25.9	1138
6P		7 / 0.67	0.7	21.8	1.25	27.8	1267
8P		7 / 0.67	0.7	24.6	1.25	30.8	1519
10P		7 / 0.67	0.7	28.1	1.25	34.5	1804
12P		7 / 0.67	0.7	29.1	1.25	35.5	1976
16P		7 / 0.67	0.7	32.5	1.6	39.8	2605
20P		7 / 0.67	0.7	36.9	1.6	44.4	3130
24P		7 / 0.67	0.7	41.2	1.6	48.9	3611
36P		7 / 0.67	0.7	47.5	2	56.2	5095

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Triads	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1T	0.5	7 / 0.3	0.6	7.5	0.9	12.2	284
6T		7 / 0.3	0.6	16.5	1.25	22.3	840
16T		7 / 0.3	0.6	24.2	1.25	30.4	1446
24T		7 / 0.3	0.6	30.1	1.25	36.5	1924
1T	0.75	7 / 0.37	0.6	8	0.9	12.7	304
6T		7 / 0.37	0.6	17.7	1.25	23.5	938
16T		7 / 0.37	0.6	26.2	1.25	32.4	1663
24T		7 / 0.37	0.6	32.7	1.6	39.8	2469
1T	1	7 / 0.43	0.6	8.4	0.9	13.1	328
6T		7 / 0.43	0.6	18.8	1.25	24.8	1048
16T		7 / 0.43	0.6	27.9	1.25	34.1	1875
24T		7 / 0.43	0.6	34.9	1.6	42.2	2795
1T	1.5	7 / 0.53	0.6	9	0.9	13.9	370
6T		7 / 0.53	0.6	20.7	1.25	26.7	1225
16T		7 / 0.53	0.6	30.8	1.25	37.2	2275
24T		7 / 0.53	0.6	38.9	1.6	46.4	3453
1T	2.5	7 / 0.67	0.7	10.4	0.9	15.3	448
6T		7 / 0.67	0.7	24.4	1.25	30.6	1583
16T		7 / 0.67	0.7	37.1	1.6	44.6	3392
24T		7 / 0.67	0.7	46.5	2	55.2	5056

CU / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1P	0.5	7 / 0.3	0.6	7.2	0.9	11.9	268
2P		7 / 0.3	0.6	11.2	0.9	16.1	433
3P		7 / 0.3	0.6	11.8	0.9	16.7	478
4P		7 / 0.3	0.6	12.9	0.9	17.8	539
5P		7 / 0.3	0.6	14.1	1.25	19.9	711
6P		7 / 0.3	0.6	15.3	1.25	21.1	783
8P		7 / 0.3	0.6	17.2	1.25	23.2	923
10P		7 / 0.3	0.6	19.5	1.25	25.5	1066
12P		7 / 0.3	0.6	20.2	1.25	26.2	1139
16P		7 / 0.3	0.6	22.4	1.25	28.6	1349
20P		7 / 0.3	0.6	25.1	1.25	31.3	1562
24P		7 / 0.3	0.6	27.9	1.25	34.3	1794
36P		7 / 0.3	0.6	32	1.6	39.3	2507
1P	0.75	7 / 0.37	0.6	7.6	0.9	12.3	284
2P		7 / 0.37	0.6	11.9	0.9	16.8	465
3P		7 / 0.37	0.6	12.6	0.9	17.5	517
4P		7 / 0.37	0.6	13.8	0.9	18.9	600
5P		7 / 0.37	0.6	15.1	1.25	20.9	774
6P		7 / 0.37	0.6	16.5	1.25	22.3	865
8P		7 / 0.37	0.6	18.5	1.25	24.5	1018
10P		7 / 0.37	0.6	21	1.25	27	1177
12P		7 / 0.37	0.6	21.7	1.25	27.9	1286
16P		7 / 0.37	0.6	24.2	1.25	30.4	1511
20P		7 / 0.37	0.6	27.1	1.25	33.5	1778
24P		7 / 0.37	0.6	30.1	1.25	36.5	2021
36P		7 / 0.37	0.6	35.1	1.6	42.6	2924
1P	1	7 / 0.43	0.6	8	0.9	12.7	300
2P		7 / 0.43	0.6	12.5	0.9	17.4	495
3P		7 / 0.43	0.6	13.3	0.9	18.2	559
4P		7 / 0.43	0.6	14.6	1.25	20.4	749
5P		7 / 0.43	0.6	15.9	1.25	21.7	834
6P		7 / 0.43	0.6	17.4	1.25	23.4	945
8P		7 / 0.43	0.6	19.6	1.25	25.6	1111
10P		7 / 0.43	0.6	22.3	1.25	28.5	1309
12P		7 / 0.43	0.6	23.1	1.25	29.3	1417
16P		7 / 0.43	0.6	25.7	1.25	31.9	1667
20P		7 / 0.43	0.6	28.8	1.25	35.2	1962
24P		7 / 0.43	0.6	32	1.6	39.3	2480
36P		7 / 0.43	0.6	37.3	1.6	44.8	3256
1P	1.5	7 / 0.53	0.6	8.6	0.9	13.3	334
2P		7 / 0.53	0.6	13.6	0.9	18.7	563
3P		7 / 0.53	0.6	14.5	1.25	20.3	744
4P		7 / 0.53	0.6	15.9	1.25	21.7	843
5P		7 / 0.53	0.6	17.4	1.25	23.4	965
6P		7 / 0.53	0 .6	19	1.25	25	1076
8P		7 / 0.53	0.6	21.4	1.25	27.6	1283
10P		7 / 0.53	0.6	24.4	1.25	30.6	1505
12P		7 / 0.53	0.6	25.3	1.25	31.5	1638
16P		7 / 0.53	0.6	28.2	1.25	34.6	1976
20P		7 / 0.53	0.6	31.6	1.6	38.9	2553
24P		7 / 0.53	0.6	35.6	1.6	43.1	2982
36P		7 / 0.53	0.6	41	1.6	48.7	3875
1P	2.5	7 / 0.67	0.7	9.8	0.9	14.7	399
2P		7 / 0.67	0.7	15.8	1.25	21.6	787
3P		7 / 0.67	0.7	16.9	1.25	22.9	917
4P		7 / 0.67	0.7	18.5	1.25	24.5	1051
5P		7 / 0.67	0.7	20.4	1.25	26.4	1200
6P		7 / 0.67	0.7	22.3	1.25	28.5	1364
8P		7 / 0.67	0.7	25.2	1.25	31.6	1637
10P		7 / 0.67	0.7	28.8	1.25	35.2	1925
12P		7 / 0.67	0.7	29.9	1.25	36.5	2136
16P		7 / 0.67	0.7	33.8	1.6	41.3	2871
20P		7 / 0.67	0.7	37.9	1.6	45.6	3384
24P		7 / 0.67	0.7	42.2	2	50.9	4252
36P		7 / 0.67	0.7	49.1	2	58.2	5632

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Triads	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1T	0.5	7 / 0.3	0.6	7.5	0.9	12.2	286
6T		7 / 0.3	0.6	17	1.25	22.8	900
16T		7 / 0.3	0.6	25.1	1.25	31.3	1605
24T		7 / 0.3	0.6	31.8	1.25	37.9	2165
1T	0.75	7 / 0.37	0.6	8	0.9	12.7	306
6T		7 / 0.37	0.6	18.3	1.25	24.3	1014
16T		7 / 0.37	0.6	27.1	1.25	33.5	1843
24T		7 / 0.37	0.6	34.2	1.6	41.7	2795
1T	1	7 / 0.43	0.6	8.4	0.9	13.1	330
6T		7 / 0.43	0.6	19.4	1.25	25.4	1112
16T		7 / 0.43	0.6	22.8	1.25	35.2	2094
24T		7 / 0.43	0.6	36.4	1.6	43.9	3108
1T	1.5	7 / 0.53	0.6	9	0.9	13.9	372
6T		7 / 0.53	0.6	21.2	1.25	27.4	1304
16T		7 / 0.53	0.6	31.7	1.6	39	2684
24T		7 / 0.53	0.6	40.1	1.6	47.8	3721
1T	2.5	7 / 0.67	0.7	10.4	0.9	15.3	449
6T		7 / 0.67	0.7	25	1.25	31.4	1668
16T		7 / 0.67	0.7	38	1.6	45.7	3601
24T		7 / 0.67	0.7	48	2	56.9	5414

Matching Products

*Describe Your Buying Requirements in Detail
