H05V-U/H05V-K/H05V-R PVC Cable
THHN/THWN/THWN-2 Nylon Cable
General Application :
Used for permanent indoor installation in conduit under plaster or exposed installation in dry location
Used for temporary indoor installation, connection in portable appliance
Used for permanent indoor or outdoor installation or laying in the ground where not sustain mechanical damage
Used for temporary indoor or outdoor installation, connection in portable appliance
Used for grounding cable or internal wiring in dry location
Construction:

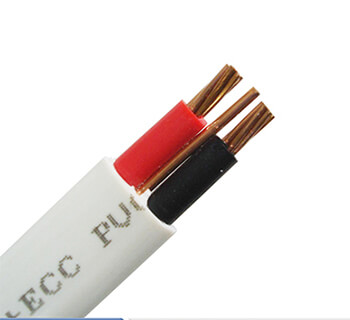

CU/PVC/PVC (NYM) ■ 300/500 VOLT
CU/PVC/PVC (NYMHY) - 300/500 VOLT
CU/PVC/PVC (NYY) - 0.6/1 kV
CU/PVC/PVC (NYYHY) - 450/750 VOLT
CU/PVC (NYA) - 450/750 VOLT
CU/PVC (NYAF) - 450/750 VOLT

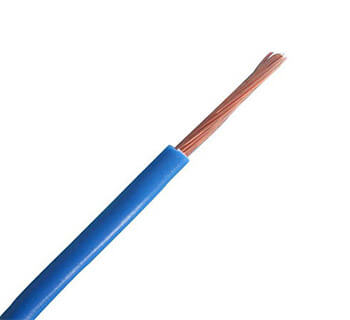

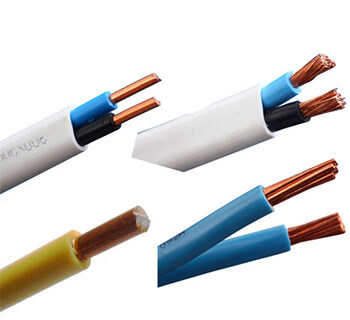

H07V-U/H07V-R/H07V-K PVC Flexible Cable

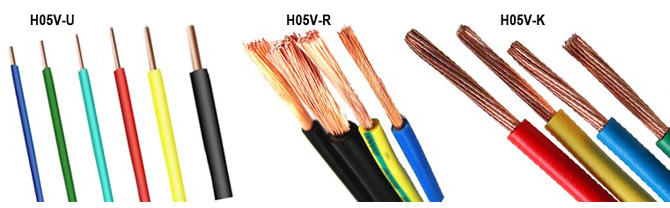

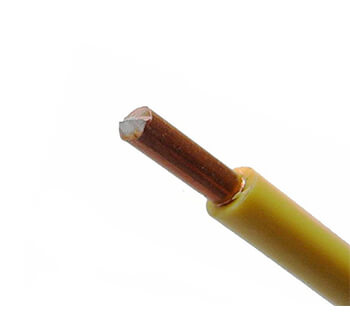

H05V-U/H05V-K/H05V-R PVC Cable

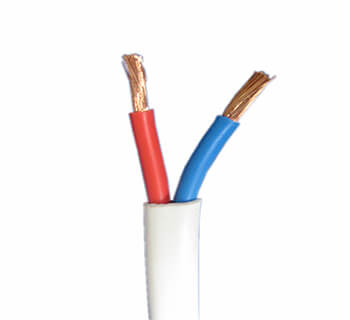

H03VV-F/H05VV-F PVC/PVC Flexible Cable
Please click or download below Building Wire Catalogue to check the parameter.
CU_PVC_PVC_300v_1000v_building_wire.pdf

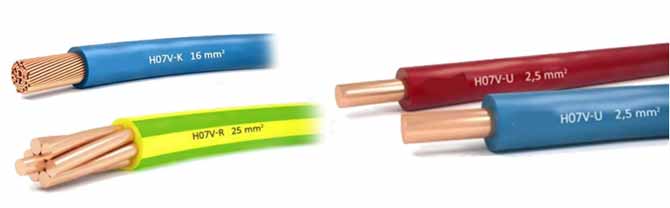

H07V-U/H07V-R/H07V-K PVC Flexible Cable
| Dimensions – conductor cross-section | Construction of individual conductor | Insulation thickness | Conductor resistance at 20 °C | Cu weight | Cable weight |
| section (mm²) | n x mm | mm | Ω/km | kg/km | kg/km |
| 1,5 | 30 x 0,25 | 0,7 | 13,3 | 14,4 | 20 |
| 2,5 | 50 x 0,25 | 0,8 | 7,98 | 24,0 | 32 |
| 4 | 56 x 0,30 | 0,8 | 4,95 | 38,4 | 46 |
| 6 | 84 x 0,30 | 0,8 | 3,30 | 57,6 | 65 |
| 10 | 80 x 0,40 | 1,0 | 1,91 | 96,0 | 115 |
| 16 | 128 x 0,40 | 1,0 | 1,21 | 153,6 | 170 |
| 25 | 200 x 0,40 | 1,2 | 0,780 | 240 | 260 |
| 35 | 280 x 0,40 | 1,2 | 0,554 | 336 | 360 |
| 50 | 400 x 0,40 | 1,4 | 0,386 | 480 | 515 |
| 70 | 356 x 0,50 | 1,4 | 0,272 | 672 |
H05V-U/H05V-K/H05V-R PVC Cable
| No. | No. of Cores x | Nominal Overall | Nominal |
| Size | Nominal Cross Sectional Area | Diameter | Copper |
| AWG | # x mm² | mm | Weight kg/Km |
| 20 | 1 x 0.5 | 2.1 | 4.8 |
| 18 | 1 x 0.75 | 2.2 | 7.2 |
| 17 | 1 x 1 | 2.4 | 9.6 |
| 16 | 1 x 1.5 | 2.9 | 14.4 |
| 14 | 1 x 2.5 | 3.5 | 24 |
| 12 | 1 x 4 | 3.9 | 38 |
| 10 | 1 x 6 | 4.5 | 58 |
| 8 | 1 x 10 | 5.7 | 96 |

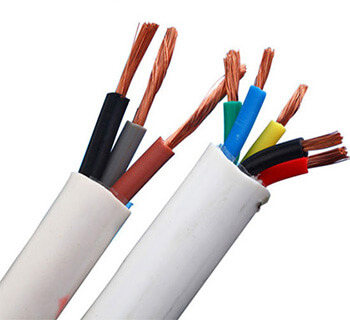

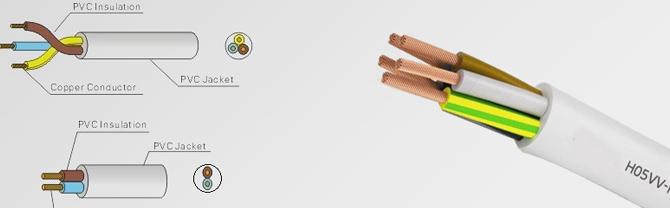

H03VV-F/H05VV-F PVC/PVC Flexible Cable
| 4G0,75 | 24 x 0,20 | 6,6 – 08,3 | 0,6 | 0,8 | 26,0 | 0,011 | 28,8 | 75 | c.100 |
| 4G1 | 32 x 0,20 | 7,1 – 09,0 | 0,6 | 0,9 | 19,5 | 0,010 | 38,4 | 92 | c.100 |
| 4G1,5 | 30 x 0,25 | 8,4 – 10,5 | 0,7 | 1,0 | 13,3 | 0,010 | 57,6 | 145 | c.100 |
| 4G2,5 | 50 x 0,25 | 10,1 – 12,5 | 0,8 | 1,1 | 7,98 | 0,0095 | 96,0 | 210 | c.100 |
| 4G4 | 56 x 0,30 | 11,5 – 14,3 | 0,8 | 1,2 | 4,95 | 0,0078 | 153,6 | 299 | CUT |
| 4G6 | 84 x 0,30 | 14,7 | – | – | 3,30 | 0,0068 | 230,4 | 480 | CUT |

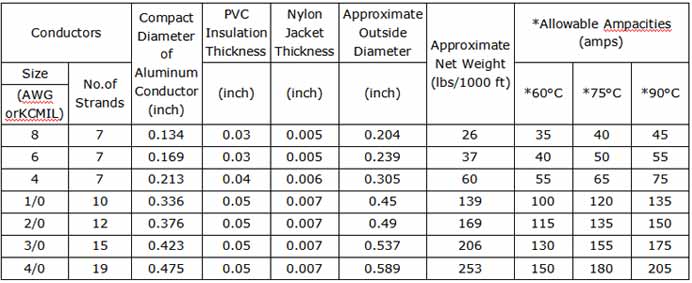

THHN/THWN/THWN-2 Nylon Cable
