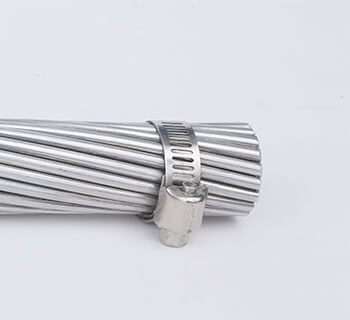

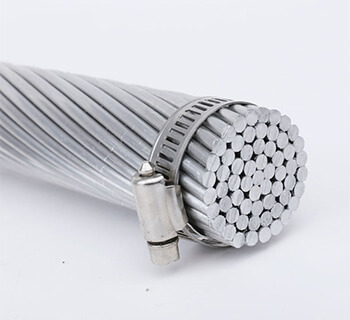

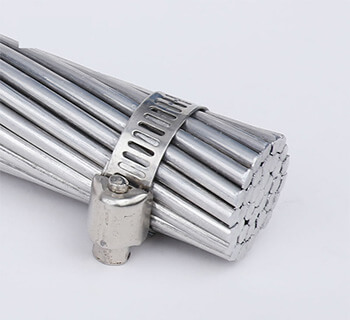

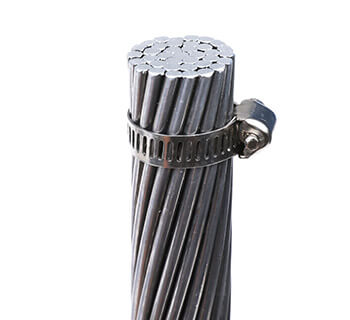

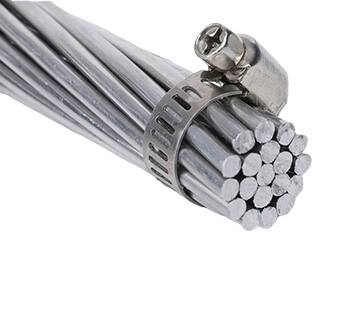

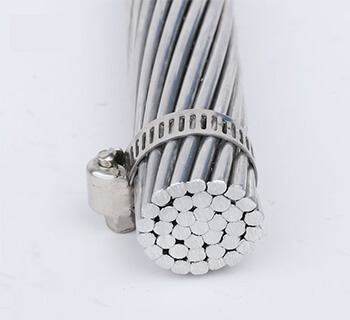

AAC Overhead Conductor

    All Aluminum Conductor (AAC) Cables bare

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.



Application

AAC-Overhead Bare Aluminum conductor is also known as aluminum stranded conductor which are used in urban areas where spans are usually short but high conductivity is required and are in common use on overhead lines for in low, medium and high voltage.

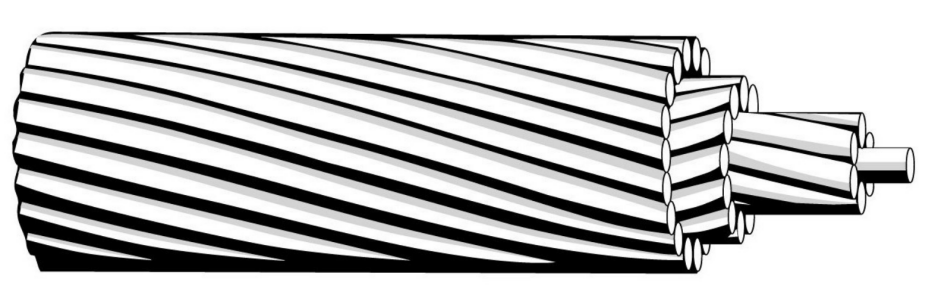

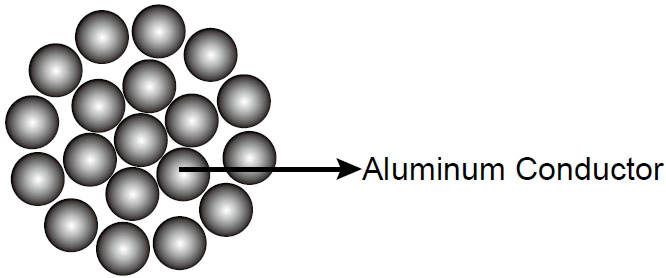

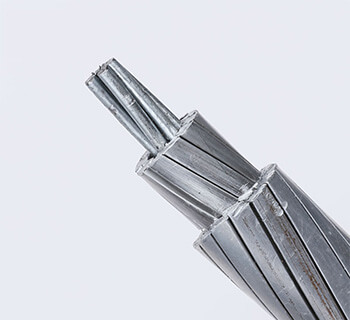

Construction

AAC overhead bare conductor manufacturer from Chinaaac overhead transmission lines conductor price

Concentric lay stranded Aluminium Conductor ( AAC) is manufactured from electrolytically refined aluminium with a minimum purity of 99.7%. and made up of one or more strands of hard drawn 1350 aluminum alloy.

ASTM - B 231

CODE

SIZE

AWG-MCM

STRANDING

N2 X Q mm

SECTION

mm2

OVERALL DIAMETER

mm

CABLE WEIGHT

kg/km

RATED STRENGTH N

ELECTRICAL RESISTANCE

CURRENT CARRYING CAPACITY

(1) A

DC

20ºC / km

AC

25ºC / km

CC

CC

PEACHBELL

6

7 x 1.55

13.21

4.65

36.6

2.5

1.1702

2.2129

2.6499

110

ROSE

4

7 x 1.96

21.12

5.88

58.3

3.92

1.3638

1.3914

1.6663

145

IRIS

2

7 x 2.47

33.54

7.41

92.7

6.01

0.0857

0.855

1.0486

195

PANSY

1

7 x 2.78

42.49

8.34

116.8

7.3

0.6801

0.6942

0.831

225

POPPY

1/0

7 x 3.12

53.52

9.36

147.5

8.86

0.539

0.5499

0.6588

260

ASTER

2/0

7 x 3.5

67.34

10.5

185.9

11.17

0.4275

0.4374

0.5226

305

PHLOX

3/0

7 x 3.93

84.91

11.79

234.4

13.35

0.3392

0.3468

0.415

350

OXLIP

4/0

7 x 4.42

107.4

13.26

295.6

17.05

0.2689

0.2747

0.3288

410

SNEEZEWORTH

250

7 x 4.8

127.6

14.4

349.3

20.12

0.2273

0.2324

0.2784

455

VALERIAN

250

17 x 2.91

126.4

14.55

349.3

20.74

0.2273

0.2324

0.2784

455

DAISY

266.8

7 x 4.96

135.3

14.88

327.8

21.5

0.2133

0.2181

0.261

475

LAUREL

266.8

19 x 3.01

135.2

15.05

327.8

22.12

0.2133

0.2181

0.261

475

PEONY

300

19 x 3.19

151.9

15.95

419.1

24.38

0.1897

0.1945

0.2324

515

TULIP

336.4

19 x 3.38

170.5

16.9

470

27.37

0.1691

0.1734

0.2076

555

DAFFODIL

350

19 x 3.45

177.6

17.25

489

28.45

0.1626

0.1666

0.1995

565

CANNA

397.5

19 x 3.68

202.1

18.4

55.4

31.64

0.1431

0.1473

0.1659

615

GOLDENTUFT

450

19 x 3.91

228.1

19.55

682.6

35.11

0.1264

0.1299

0.156

665

COSMOS

477

19 x 4.02

241.2

20.1

666.4

37.2

0.1193

0.1224

0.1467

690

SYRINGA

477

37 x 2.88

241

20.16

666.4

38.67

0.1193

0.1224

0.1467

690

ZINNIA

500

19 x 4.12

253.3

20.6

698.6

38.98

0.1138

0.1168

0.1398

715

HYACINTH

500

37 x 2.95

252.9

20.65

698.6

40.54

0.1138

0.1168

0.1398

715

DAHLIA

556.5

19 x 4.35

282.4

21.75

777.4

43.39

0.1022

0.1089

0.1262

765

MISTLETOE

556.5

37 x 3.11

281.1

21.77

777.4

44.25

0.1022

0.1089

0.1262

765

MEADOWSWEET

600

37 x 3.23

303.2

22.61

838.1

47.62

0.09482

0.0982

0.01168

800

ORCHID

636

37 x 3.33

322.2

23.31

888.4

50.73

0.08947

0.09262

0.11063

835

HEUCHERA

650

37 x 3.37

330

23.59

908.1

51.84

0.08747

0.09098

0.10853

855

VERBANA

700

37 x 3.49

354

24.43

977.9

55.63

0.08123

0.08451

0.10069

880

FLAG

700

61 x 2.72

354.5

24.48

977.9

57.42

0.08123

0.08264

0.0982

900

VIOLET

715

37 x 3.53

362.1

24.71

999.6

56.96

0.07953

0.08264

0.0982

900

NASTURTIUM

715.5

61 x 2.75

362.35

24.73

999.6

58.3

0.07953

0.08264

0.0982

900

PETUNNIA

750

37 x 3.62

380.8

25.34

1047.7

58.3

0.07587

0.07894

0.09446

922

CATTAIL

750

61 x 2.82

381

25.38

1047.7

60.08

0.07585

0.07894

0.09446

922

ARBUTIUS

795

37 x 3.72

402.1

26.04

1110.6

61.86

0.07156

0.07457

0.08888

960

ULAC

795

61 x 2.9

402.9

26.1

1110.6

63.65

0.07156

0.07457

0.08888

960

FUCHSIA

800

37 x 3.75

408.7

26.25

1115.2

62.3

0.07116

0.07421

0.08825

960

HELIOTROPE

800

61 x 2.92

408.7

26.28

1115.2

64.08

0.07116

0.07421

0.08825

960

ANEMONE

874.5

37 x 3.91

444.3

27.37

1221.8

66.75

0.06506

0.06837

0.08081

1020

CROCUS

874.5

61 x 3.04

442.8

27.36

1221.8

70.31

0.06506

0.06837

0.08081

1020

COCKCOMB

900

37 x 3.96

455.7

27.72

1257.4

68.53

0.06332

0.0665

0.07894

1040

SNAPDRAGON

900

61 x 3.09

457.4

27.81

1257.4

70.76

0.06332

0.0665

0.07894

1040

MAGNOLIA

954

37 x 4.08

483.7

28.56

1332.8

75.215

0.05965

0.06276

0.07457

1080

GOLDENROD

954

61 x 3.18

484.5

28.62

1332.8

75.215

0.05965

0.06276

0.07457

1080

HAWKWEED

1000

37 x 4.17

505.3

29.19

1397

76.54

0.05689

0.06004

0.07146

1110

CAMELLIA

1000

61 x 3.25

506

29.25

1397

78.77

0.05689

0.06004

0.07146

1110

BLUEBELL

1033.5

37 x 4.24

522.4

29.68

1443.8

78.77

0.05505

0.0583

0.06906

1135

LARKSPUR

1035.5

61 x 3.31

524.9

29.79

1443.8

81.45

0.05505

0.0583

0.06906

1135

MARIGOLD

1272

61 x 3.43

563.6

30.87

1555.2

87.67

0.05112

0.05456

0.06437

1190

HAWTHORN

1192.5

61 x 3.55

603.8

31.95

1665.3

93.9

0.0477

0.05121

0.06033

1240

NARCISSUS

1272

61 x 3.67

645.3

33.03

1776.9

97.9

0.04472

0.04816

0.05673

1290

COLIMBINE

1351.5

61 x 3.78

684.5

34.02

1888.5

104.13

0.04209

0.04560

0.05377

1340

CARNATION

1431

61 x 3.89

72

35.01

1998.6

108.14

0.03976

0.04344

0.05102

1390

GLADIOLUS

1510.5

61 x 4

766.5

36

2110.3

113.92

0.03766

0.04134

0.04852

1430

COREOPSIS

1590

61 x 4.1

805.4

36.9

2222

120.15

0.03579

0.0396

0.04636

1480

JESSANINE

1750

61 x 4.3

885.8

38.7

2445.1

132.17

0.03251

0.03642

0.04262

1565

COWSLIP

2000

91 x 3.76

1010.4

41.36

2793.3

152.19

0.02845

0.03281

0.03803

1695

SAGEBRUSH

2250

91 x 3.99

1137.8

43.89

3174.3

167.77

0.02829

0.02987

0.03449

1810

PIGWEED

2300

61 x 4.93

1164.4

44.37

3239.8

173.56

0.02473

0.02931

0.03386

1830

LUPINE

2500

91 x 4.21

1266.8

46.31

3527

186.46

0.02298

0.02791

0.03213

1920

BITTERROOT

2750

91 x 4.41

1390

48.51

3879.8

205.15

0.0207

0.02576

0.02937

2020

TRILLIUM

3000

127 x 3.9

1517

50.7

4232.4

223.84

0.01915

0.02461

0.02784

2120

BLUEBONNET

3500

127 x 4.22

1776.3

54.86

4985.4

261.22

0.01657

0.02231

0.02526

2295

ASTM - B 231

SIZE

AWG or kcmil

STRANDING

DIAMETER

ins

CROSS SECTIONAL AREA

sq ins

WEIGHT PER 1000FT

lbs

RATED STRENGTH

lbs

RESISTANCE

ohms/1000ft

ALLOWABLE AMPACITY

Amps

No. of cores

Class

Individual Wire

Complete Cable

DC

at 20ºC

DC

at 75ºC

6

7

B

0.0612

0.184

0.0206

25

583

0.658

0.805

103

4

7

B

0.0772

0.232

0.328

39

881

0.414

0.506

138

3

7

B

0.0867

0.26

0.0413

49

1090

0.328

0.401

160

2

7

B

0.0974

0.292

0.0521

62

1350

0.26

0.318

185

1

19

B

0.0664

0.332

0.0657

79

1740

0.207

0.252

214

1/0

19

B

0.0745

0.373

0.0829

99

2160

0.164

0.2

248

2/0

19

B

0.0837

0.419

0.1045

125

2670

0.13

0.159

287

3/0

19

B

0.094

0.47

0.1318

157

3310

0.103

0.126

332

4/0

19

B

0.1055

0.528

0.1662

198

4020

0.0817

0.0999

384

250

37

B

0.0822

0.575

0.1964

234

4910

0.0691

0.0846

426

300

37

B

0.09

0.63

0.2356

281

5890

0.0576

0.0706

478

350

37

B

0.0973

0.681

0.2749

328

6760

0.0494

0.0605

527

400

37

B

0.104

0.728

0.3142

375

7440

0.0432

0.053

573

450

37

B

0.1103

0.772

0.3524

422

8200

0.0384

0.0472

616

500

37

B

0.1162

0.813

0.3927

468

9110

0.0346

0.0425

658

550

61

B

0.095

0.855

0.432

516

10500

0.0314

0.0387

699

600

61

B

0.0992

0.893

0.4721

563

11500

0.0288

0.0355

738

650

61

B

0.1032

0.929

0.5105

609

11900

0.0266

0.0328

776

700

61

B

0.1071

0.964

0.5498

656

12900

0.0247

0.0305

812

750

61

B

0.1109

0.998

0.5891

703

13500

0.023

0.0286

847

800

61

B

0.1145

1.031

0.6283

750

14400

0.0216

0.0268

882

900

61

B

0.1215

1.094

0.7069

844

15900

0.0192

0.0239

948

1000

61

B

0.128

1.154

0.7854

937

17700

0.0173

0.0216

1011

1100

61

B

0.1099

1.209

0.8669

1030

20000

0.0157

0.0198

1071

1200

91

B

0.1148

1.263

0.9425

1124

21400

0.0144

0.0182

1129

1250

91

B

0.1172

1.289

0.9818

1172

22300

0.0138

0.0175

1557

1300

91

B

0.1195

1.315

1.021

1218

23200

0.0133

0.0169

1184

1400

91

B

0.124

1.364

1.1

1311

24500

0.0123

0.0158

1237

1500

91

B

0.1284

1.412

1.178

1406

26200

0.0155

0.0148

1288

2

19

C

0.0591

0.296

0.0521

62

1410

0.26

0.318

185

2/0

37

C

0.06

0.42

0.1045

125

2760

0.13

0.159

287

3/0

37

C

0.0673

0.471

0.1318

157

3.41

0.1030

0.126

332

4/0

37

C

0.0756

0.529

0.1662

198

4.23

0.0817

0.0999

384

250

61

C

0.064

0.576

0.1964

234

5.03

0.0691

0.0846

427

300

61

C

0.0701

0.631

0.2356

281

5.93

0.0576

0.0706

478

350

61

C

0.0757

0.681

0.2749

328

6.92

0.0494

0.0605

527

400

61

C

0.081

0.729

0.3142

375

7.78

0.0432

0.053

573

450

61

C

0.0859

0.773

0.3534

422

8.75

0.0384

0.0472

617

500

61

C

0.0905

0.815

0.3927

468

9.54

0.0346

0.0425

659

550

91

C

0.0777

0.855

0.432

515

10.8

0.0314

0.0387

699

600

91

C

0.0812

0.893

0.4712

562

11.5

0.0288

0.0355

738

650

91

C

0.0845

0.93

0.5105

609

12.5

0.0266

0.0328

776

700

91

C

0.0877

0.964

0.5498

656

13.5

0.0247

0.0305

812

750

91

C

0.0908

0.999

0.5891

703

14.2

0.023

0.0286

848

800

91

C

0.0938

1.032

0.6283

750

15.1

0.0216

0.0247

882

900

91

C

0.0994

1.093

0.7069

843

17.1

0.0192

0.0239

948

1000

91

C

0.1048

1.153

0.7854

937

18.2

0.0173

0.0216

1011

BS 215

CODE

SECTION

mm2

STRANDING

OVERALL DIAMETER

mm

RATED STRENGTH N

ELECTRICAL RESISTANCE

ohms/km

CONDUCTOR WEIGHT

kg/km

Nominal

Teorical

No

Q mm

MIDGE

22

23.33

7

2.06

6.18

3990

1.227

64

ANT

50

52.83

7

3.1

9.3

8280

0.5419

145

FLY

60

63.55

7

3.4

10.2

9900

0.4505

174

WASP

100

106

7

4.39

13.17

16000

0.2702

290

HORNET

150

157.6

19

3.25

16.25

25700

0.1825

434

CHARFER

200

213.2

19

3.78

18.9

35400

0.1349

587

COCKROACH

250

265.7

19

4.22

21.1

40400

0.1083

731

BUTTERFLY

300

322.7

19

4.65

23.25

48750

0.08916

888

CENTIPEDE

400

415.2

37

3.78

26.46

63100

0.06944

1145


*Describe Your Buying Requirements in Detail

Inquiry
x
Name
Phone Number
Requirement *
