Electric wire cables PVC insulated cables 450/750V and below

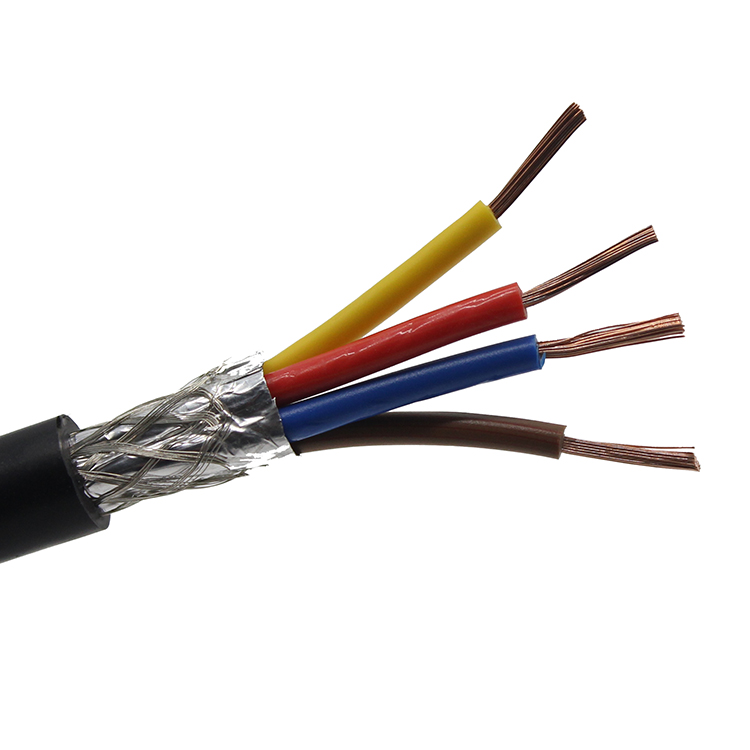

PVC insulated flexible cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Application

This product is suitable for power, household appliances, instruments, small power tools, dynamic lighting and other applications with AC rated voltage (Uo/U) of 450/750V and below

Operating characteristics

1. Laying temperature: ≥0°C

2. Cable operating temperature: except 60227IEC07 (BV-90) and 60227IEC08 (RV-90), the maximum operating temperature is 90°C [the rest are 70°C].

3. Allowable bending radius: for cables with outer diameter (D) less than 25mm, should be not less than 4D; for cables with outer diameter (D) 25mm and above, should not be less than 6D.

Table of models, names and specifications of PVC insulated cables with rated voltage of 45o/750V and below.

Model	Original mode	Product name	Specificaiton (mm2)
60227IEC01	BV	Single core hard conductor non-sheathed cable for general pupose	1 core 1.5-400
60227IEC02	RV	Single core soft conductor non-sheathed cable for general pupose	1 core 1.5-240
60227IEC05	BV	Single core solid conductor non-sheathed cable (conductor temperature of 70°C) for internal wiring	1 core 0.5-1.0
60227IEC06	RV	Single core solid conductor non-sheathed cable (conductor temperature of 70°C) for internal wiring	1 core 0.5-1.0
60227IEC07	BV-90	Single core solid conductor non-sheathed cable (conductor temperature of 90°C) for internal wiring	1 core 0.5-2.5
60227IEC08	RV-90	Single core solid conductor non-sheathed cable (conductor temperature of 90°C) for internal wiring	1 core 0.5-2.5
60227IEC10	BVV	Light PVC sheathed cable	2-5 cores 1.5-35
60227IEC43	SVR	Fleixible wire for indoor decorative lighting circuit	1 core 0.5-0.75
60227IEC52	RVV	Light PVC sheathed cable	2-3 cores 0.5-0.75
60227IEC53	RVV	Ordinary PVC sheathed flexible wire	2-5 cores 0.75-2.5
60227IEC74	RVVYP	Oil resistant PVC sheathed screened flexible cable	2-60 cores 0.5-2.5
60227IEC75	RVVY	Oil resistant PVC sheathed screened flexible cable	2-60 cores 0.5-2.5
BLV		Aluminum core PVC insulated cable	1 core 2.5-400
BVV		Aluminum core PVC insulated PVC sheathed round cable	1 core 0.75-10
BLVV		Aluminum core PVC insulated PVC sheathed round cable	1 core 2.5-10
BLVVB		Aluminum core PVC insulated and sheathed parallel cable	2-3 cores 2.5-10
BVVB		Steel core PVC insulated and sheathed round cable	2-3 cores 0.75-10
BVR		Copper core PVC insulated flexible cable	1 core 2.5-10
BVVR		Copper core PVC shielded PVC sheathed flexible cable	1-3c ores 0.5-2.5
