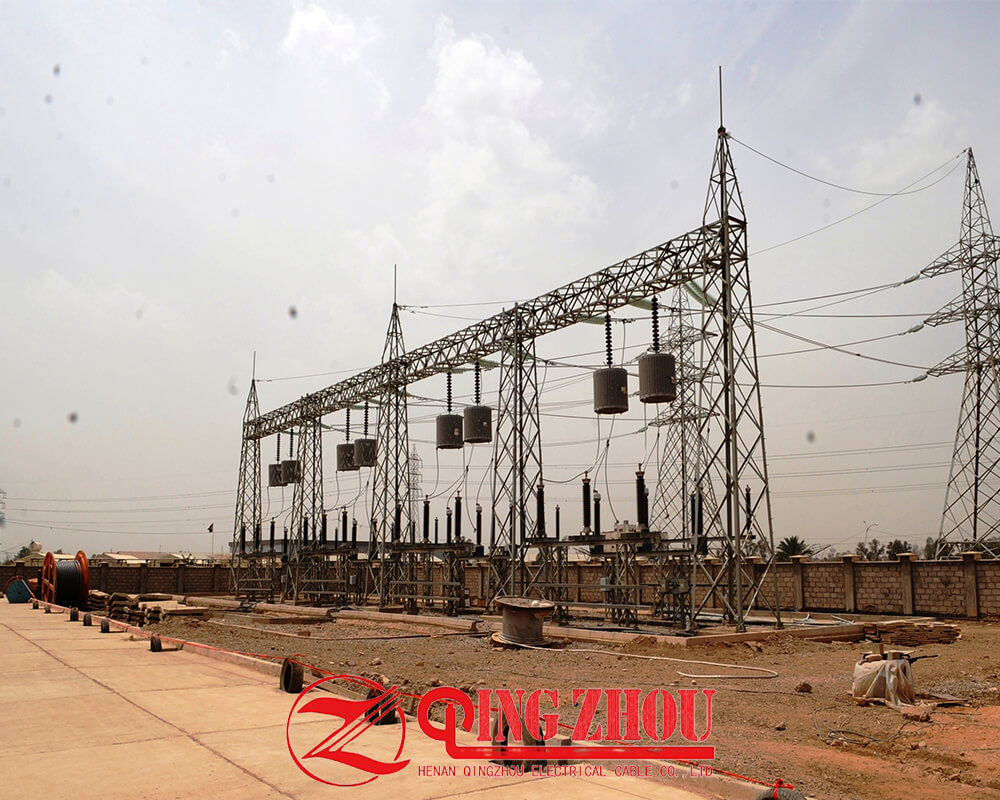

Building&Infrastructure

Project location: Kaifeng, Henan, China
Customer Name: Kaifeng City Power Supply Bureau
Completion time: July 03, 2017




Description

Description:
ACSR-Aluminium Conductor Steel Reinforced
ACSR Introduction is a kind of concentric-lay-stranded conductors made from round aluminium 1350-H19 (extra hard) wires and round, coated steel core wires.
The core can be single wire or stranded depending on the required size. Steel core is available in Class A, B or C galvanization for corrosion protection and different tensile requirements.
Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.
ACSR Features With simple structure, ACSR is easy to set up and maintain,Low cost and high transmission capacity, High mechanical strength,high tensile strength.
The principal advantage are their high tensile strength and light weight,covering longer spans with less supports. Due to the greater diameter of an ACSR conductor much
higher corona limit can be obtained, giving a big advantage on high and extra highvoltage overhead lines.
ACSR Application ACSR is available in a range of steel strengths varying from 6% up to 40% mainly for power transmission and distribution line.
The higher strength ACSR conductors are used for river crossings, overhead earth wires,and installations involving extra long spans. Against any given resistance
of conductor,ACSR conductor may be manufactured to have different tensile strengths as per requirement.
