Medium Voltage Cable: MV-90 & MV-105

    MV-90 & MV-105 POWER CABLE

    5kV - 35kV • XLP and EPR Insulations with PVC Jacket

    Wet or Dry Locations • 90°C XLP • 105°C EPR


Send E-mail Get Price Now

Medium Voltage Cable: MV-90 & MV-105

CTS, URD, and JCN Medium Voltage Cable for Industrial Power Distribution

HNQZ provides a wide range of medium voltage cables (5kV, 15kV, 25kV, 35kV) in a wide range  of industry-standard constructions for every power distribution application including industrial plants (new plants, expansions, refurbishment), mines and quarries, military bases, etc.

MV Cable: Common Constructions & Types

AttributeOptions
ConstructionsCTS (Copper Tape Shield) cable: A common power distribution cable featuring a semi-conducting layer around the conductor and a helically applied copper tape shield.

URD (Underground Residential Distribution) cable or JCN (Jacketed Concentric Neutral) cable: These terms are interchangeable and describe an electrical power distribution cable designed for underground supply (direct burial) applications. The cable has a central conductor surrounded by an insulating shield, then a layer of concentric neutral wires, and finally an outer jacket.
TypesMV-90 Cable: Rated for operation up to 194°F (90°C).

MV-105 Cable: Rated for operation up to 221°F (105°C), often used in industrial applications where machinery and other sources can result in higher temperatures.

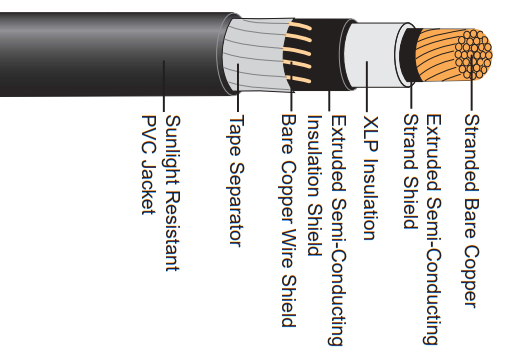

TYPE MV-90 POWER CABLE - 5kV & 35kV

XLP Insulation with PVC Jacket - Shielded

8 AWG - 1000 KCMIL • Single Conductor • 90°C Wet or Dry Location

TYPE MV-90 POWER CABLE - 5kV & 15kV.png

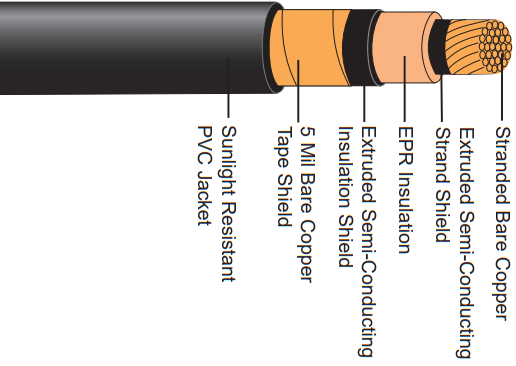

TYPE MV-105 POWER CABLE - 5kV & 35kV

EPR Insulation with PVC Jacket - Shielded

6 AWG - 1000 KCMIL • Single Conductor • 105°C Wet or Dry Locations

TYPE MV-105 POWER CABLE - 5kV & 15kV.png
