PVC & XLPE Instrumentation Cable

CU / PVC / OS / PVC ( PAIRS & TRIADS )

CU / PVC / IS / OS / PVC ( PAIRS & TRAIDS )

CU / XLPE / IS / OS / PVC ( PAIRS & TRIADS )

CU / PVC / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

CU / XLPE / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

CU / PVC / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

CU / XLPE / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

Manufacturer in China

Send E-mail Get Price Now

Application

These cables are designed to connect electrical instrument circuits and provide communication services working as signal carrier used in and around process plants ( e.g. petrochemical industry etc.).

CU / PVC / OS / PVC ( PAIRS & TRIADS )

PVC Insulated, Overall Aluminium Foil Screened, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CU / XLPE / OS / PVC ( PAIRS & TRIADS )

XLPE Insulated, Overall Aluminium Foil Screened, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: (1) Polyvinyl Chloride (PVC) Compound Type TI51 or

(2) Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Outer Sheath: Flame Retardancy Polyvinyl Chloride (PVC) Compound Type ST2 FR

Outer Sheath Colour: Black or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 70ºC (PVC Insulated) -15ºC to 90ºC (XLPE Insulated)

Final Short Circuit Temperature: 160ºC (PVC Insulated) 250ºC (XLPE Insulated)

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3

CU / PVC / IS / OS / PVC ( PAIRS & TRAIDS )

PVC Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, PVC Sheathed Cable,

300 / 500V, BS EN50288-7

CU / XLPE / IS / OS / PVC ( PAIRS & TRIADS )

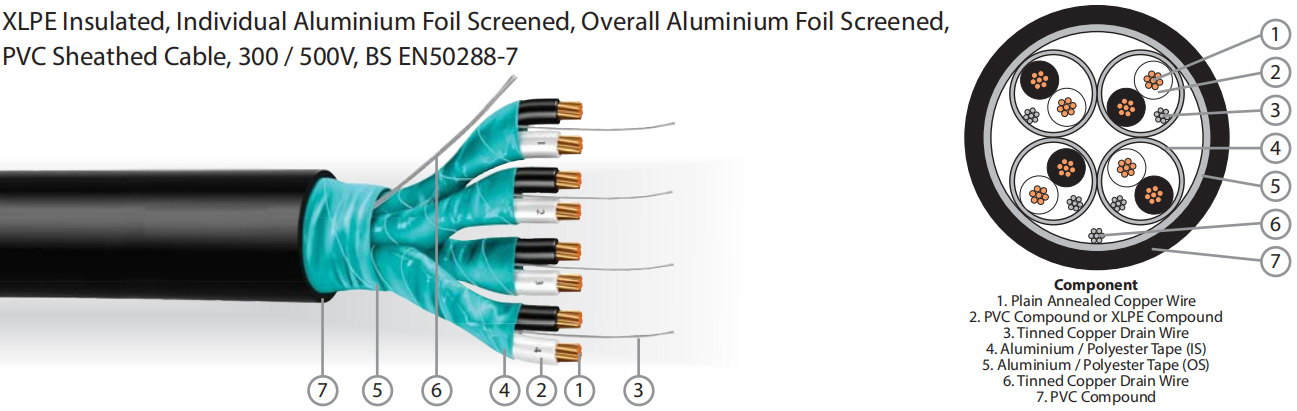

XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: (1) Polyvinyl Chloride (PVC) Compound Type TI51 or

(2) Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Outer Sheath: Flame Retardancy Polyvinyl Chloride (PVC) Compound Type ST2 FR

Outer Sheath Colour: Black or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 70ºC (PVC Insulated) -15ºC to 90ºC (XLPE Insulated)

Final Short Circuit Temperature: 160ºC (PVC Insulated) 250ºC (XLPE Insulated)

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3

CU / PVC / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

PVC Insulated, Overall Aluminium Foil Screened, PVC Bedded, Galvanised Steel Wire Armoured, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CU / XLPE / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

XLPE Insulated, Overall Aluminium Foil Screened, PVC Bedded, Galvanised Steel Wire Armoured, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: (1) Polyvinyl Chloride (PVC) Compound Type TI51 or

(2) Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings

Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Polyvinyl Chloride (PVC) Compound Type ST2

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Flame Retardancy Polyvinyl Chloride (PVC) Compound Type ST2 FR

Outer Sheath Colour: Black or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 70ºC (PVC Insulated)

-15ºC to 90ºC (XLPE Insulated)

Final Short Circuit Temperature: 160ºC (PVC Insulated)

250ºC (XLPE Insulated)

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3

CU / PVC / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

PVC Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, PVC Bedded, Galvanised Steel Wire Armoured, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CU / XLPE / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, PVC Bedded, Galvanised Steel Wire Armoured, PVC Sheathed Cable, 300 / 500V, BS EN50288-7

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Insulation: (1) Polyvinyl Chloride (PVC) Compound Type TI51 or

(2) Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Polyvinyl Chloride (PVC) Compound Type ST2

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Flame Retardancy Polyvinyl Chloride (PVC) Compound Type ST2 FR

Outer Sheath Colour: Black or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 70ºC (PVC Insulated) -15ºC to 90ºC (XLPE Insulated)

Final Short Circuit Temperature: 160ºC (PVC Insulated) 250ºC (XLPE Insulated)

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Flame Retardancy: IEC60332-3

CU / PVC / OS / PVC ( PAIRS & TRIADS )

CU / XLPE / OS / PVC ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE / OS / PVC		CU / PVC / OS / PVC
No. of Pairs	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1P	0.5	7 / 0.3	0.6	7.1	58	7.1	63
2P (Quad)		7 / 0.3	0.6	8	81	8	90
2P		7 / 0.3	0.6	10.7	98	10.7	108
3P		7 / 0.3	0.6	11.5	126	11.5	141
4P		7 / 0.3	0.6	12.6	152	12.6	171
5P		7 / 0.3	0.6	13.7	177	13.7	202
6P		7 / 0.3	0.6	15.1	211	15.1	240
8P		7 / 0.3	0.6	16.9	260	16.9	300
10P		7 / 0.3	0.6	19.3	322	19.3	371
12P		7 / 0.3	0.6	19.9	364	19.9	423
16P		7 / 0.3	0.6	22.1	465	22.1	533
20P		7 / 0.3	0.6	24.8	560	24.8	659
24P		7 / 0.3	0.6	27.7	669	27.7	787
36P		7 / 0.3	0.6	31.9	943	31.9	1121
1P	0.75	7 / 0.37	0.6	7.5	66	7.5	72
2P (Quad)		7 / 0.37	0.6	8.5	95	8.5	105
2P		7 / 0.37	0.6	11.6	119	11.6	130
3P		7 / 0.37	0.6	12.3	148	12.3	165
4P		7 / 0.37	0.6	13.5	180	13.5	202
5P		7 / 0.37	0.6	14.9	220	14.9	247
6P		7 / 0.37	0.6	16.2	253	16.2	285
8P		7 / 0.37	0.6	18.2	315	18.2	358
10P		7 / 0.37	0.6	20.8	390	20.8	444
12P		7 / 0.37	0.6	21.5	444	21.5	509
16P		7 / 0.37	0.6	24	571	24	658
20P		7 / 0.37	0.6	27	704	27	812
24P		7 / 0.37	0.6	30.1	840	30.1	970
36P		7 / 0.37	0.6	34.7	1215	34.7	1384
1P	1	7 / 0.43	0.6	7.9	74	7.9	80
2P (Quad)		7 / 0.43	0.6	9	108	9	120
2P		7 / 0.43	0.6	12.3	135	12.3	147
3P		7 / 0.43	0.6	13	170	13	187
4P		7 / 0.43	0.6	14.2	207	14.2	231
5P		7 / 0.43	0.6	15.8	254	15.8	283
6P		7 / 0.43	0.6	17.2	293	17.2	328
8P		7 / 0.43	0.6	19.5	378	19.5	424
10P		7 / 0.43	0.6	22.1	456	22.1	514
12P		7 / 0.43	0.6	23	534	23	604
16P		7 / 0.43	0.6	25.5	674	25.5	767
20P		7 / 0.43	0.6	28.7	832	28.7	948
24P		7 / 0.43	0.6	32	994	32	1133
36P		7 / 0.43	0.6	36.9	1416	36.9	1626
1P	1.5	7 / 0.53	0.6	8.5	89	8.5	95
2P (Quad)		7 / 0.53	0.6	9.7	134	9.7	147
2P		7 / 0.53	0.6	13.3	164	13.3	177
3P		7 / 0.53	0.6	14.2	211	14.2	230
4P		7 / 0.53	0.6	15.7	268	15.7	294
5P		7 / 0.53	0.6	17.2	319	17.2	352
6P		7 / 0.53	0.6	19	381	19	420
8P		7 / 0.53	0.6	21.3	480	21.3	532
10P		7 / 0.53	0.6	24.4	595	24.4	660
12P		7 / 0.53	0.6	25.2	685	25.2	763
16P		7 / 0.53	0.6	28.2	886	28.2	990
20P		7 / 0.53	0.6	31.7	1094	31.7	1224
24P		7 / 0.53	0.6	35.4	1308	35.4	1464
36P		7 / 0.53	0.6	41.1	1895	41.1	2128
1P	2.5	7 / 0.67	0.7	9.7	117	9.7	126
2P (Quad)		7 / 0.67	0.7	11.4	191	11.4	209
2P		7 / 0.67	0.7	15.7	229	15.7	247
3P		7 / 0.67	0.7	16.8	300	16.8	327
4P		7 / 0.67	0.7	18.6	384	18.6	420
5P		7 / 0.67	0.7	20.4	460	20.4	505
6P		7 / 0.67	0.7	22.5	548	22.4	602
8P		7 / 0.67	0.7	22.5	709	25.5	782
10P		7 / 0.67	0.7	29.2	879	29.2	970
12P		7 / 0.67	0.7	30.2	1015	30.2	1124
16P		7 / 0.67	0.7	33.8	1315	33.8	1461
20P		7 / 0.67	0.7	38	1625	38	1807
24P		7 / 0.67	0.7	42.5	1941	42.5	2159
36P		7 / 0.67	0.7	49.2	2817	49.2	3144

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE / OS / PVC		CU / PVC / OS / PVC
No. of Triads	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1T	0.5	7 / 0.3	0.6	7.4	69	7.4	77
6T		7 / 0.3	0.6	16.8	276	16.8	320
16T		7 / 0.3	0.6	24.9	630	24.9	748
24T		7 / 0.3	0.6	31.2	927	31.2	1105
1T	0.75	7 / 0.37	0.6	7.9	80	7.9	88
6T		7 / 0.37	0.6	18	335	18	384
16T		7 / 0.37	0.6	27.1	796	27.1	926
24T		7 / 0.37	0.6	34	1172	34	1367
1T	1	7 / 0.43	0.6	8.3	91	8.3	100
6T		7 / 0.43	0.6	19.3	404	19.3	456
16T		7 / 0.43	0.6	28.8	946	28.8	1086
24T		7 / 0.43	0.6	36.2	1398	36.2	1607
1T	1.5	7 / 0.53	0.6	8.9	111	8.9	121
6T		7 / 0.53	0.6	21.2	518	21.2	576
16T		7 / 0.53	0.6	31.9	1254	31.9	1410
24T		7 / 0.53	0.6	40	1853	40	2087
1T	2.5	7 / 0.67	0.7	10.5	157	10.5	171
6T		7 / 0.67	0.7	25.3	768	25.3	850
16T		7 / 0.67	0.7	38.2	1872	38.2	2090
24T		7 / 0.67	0.7	48.2	2790	48.2	3117

CU / PVC / IS / OS / PVC ( PAIRS & TRAIDS )

CU / XLPE / IS / OS / PVC ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE / IS / OS / PVC		CU / PVC / IS / OS / PVC
No. of Pairs	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1P	0.5	7 / 0.3	0.6	7.1	58	7.1	62
2P		7 / 0.3	0.6	11.3	121	11.3	128
3P		7 / 0.3	0.6	11.9	151	11.9	161
4P		7 / 0.3	0.6	13	184	13	197
5P		7 / 0.3	0.6	14.4	225	14.4	241
6P		7 / 0.3	0.6	15.6	259	15.6	279
8P		7 / 0.3	0.6	17.7	333	17.7	360
10P		7 / 0.3	0.6	20.2	411	20.2	445
12P		7 / 0.3	0.6	20.9	469	20.9	509
16P		7 / 0.3	0.6	23.1	591	23.1	645
20P		7 / 0.3	0.6	26	729	26	795
24P		7 / 0.3	0.6	29	870	29	951
36P		7 / 0.3	0.6	33.5	1254	33.5	1375
1P	0.75	7 / 0.37	0.6	7.5	66	7.5	70
2P		7 / 0.37	0.6	12	137	12	145
3P		7 / 0.37	0.6	12.7	174	12.7	185
4P		7 / 0.37	0.6	14.1	221	14.1	236
5P		7 / 0.37	0.6	15.4	261	15.4	280
6P		7 / 0.37	0.6	17	311	17	333
8P		7 / 0.37	0.6	19	390	19	420
10P		7 / 0.37	0.6	21.7	483	21.7	520
12P		7 / 0.37	0.6	22.4	553	22.4	598
16P		7 / 0.37	0.6	25.1	713	25.1	773
20P		7 / 0.37	0.6	28.2	879	28.2	953
24P		7 / 0.37	0.6	31.4	1049	31.4	1139
36P		7 / 0.37	0.6	36.4	1514	36.4	1648
1P	1.0	7 / 0.43	0.6	7.9	74	7.9	78
2P		7 / 0.43	0.6	12.6	153	12.6	161
3P		7 / 0.43	0.6	13.6	203	13.6	215
4P		7 / 0.43	0.6	14.9	250	14.9	266
5P		7 / 0.43	0.6	16.2	296	16.3	317
6P		7 / 0.43	0.6	17.9	353	17.9	378
8P		7 / 0.43	0.6	20.3	456	20.3	488
10P		7 / 0.43	0.6	23	552	23	592
12P		7 / 0.43	0.6	24	647	24	695
16P		7 / 0.43	0.6	26.6	820	26.6	885
20P		7 / 0.43	0.6	29.9	1013	29.9	1093
24P		7 / 0.43	0.6	33.5	1226	33.5	1324
36P		7 / 0.43	0.6	38.6	1751	38.6	1896
1P	1.5	7 / 0.53	0.6	8.5	89	8.5	93
2P		7 / 0.53	0.6	13.9	190	13.9	199
3P		7 / 0.53	0.6	14.8	245	14.8	259
4P		7 / 0.53	0.6	16.2	304	16.2	323
5P		7 / 0.53	0.6	17.9	373	17.9	396
6P		7 / 0.53	0.6	19.5	434	19.5	462
8P		7 / 0.53	0.6	22.1	562	22.1	599
10P		7 / 0.53	0.6	25.3	696	25.3	742
12P		7 / 0.53	0.6	26.4	817	26.4	872
16P		7 / 0.53	0.6	29.3	1041	29.3	1114
20P		7 / 0.53	0.6	33.1	1302	33.1	1393
24P		7 / 0.53	0.6	36.9	1553	36.9	1663
36P		7 / 0.53	0.6	42.7	2248	42.7	2413
1P	2.5	7 / 0.67	0.7	9.7	117	9.7	124
2P		7 / 0.67	0.7	16.3	258	16.3	272
3P		7 / 0.67	0.7	17.4	339	17.4	359
4P		7 / 0.67	0.7	19	423	19	450
5P		7 / 0.67	0.7	21.1	519	21.1	553
6P		7 / 0.67	0.7	23.2	618	23.2	659
8P		7 / 0.67	0.7	26.3	800	26.4	855
10P		7 / 0.67	0.7	30.1	990	30.1	1059
12P		7 / 0.67	0.7	31.2	1146	31.2	1228
16P		7 / 0.67	0.7	34.9	1486	34.9	1595
20P		7 / 0.67	0.7	39.4	1855	39.4	1990
24P		7 / 0.67	0.7	43.9	2212	43.9	2376
36P		7 / 0.67	0.7	50.8	3207	50.8	3452

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE/ IS / OS / PVC		CU / PVC / IS / OS / PVC
No. of Triads	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1T	0.5	7 / 0.3	0.6	7.5	68	7.5	74
6T		7 / 0.3	0.6	16.5	317	16.5	356
16T		7 / 0.3	0.6	24.4	730	24.4	835
24T		7 / 0.3	0.6	30.6	1076	30.6	1233
1T	0.75	7 / 0.37	0.6	7.9	79	7.9	86
6T		7 / 0.37	0.6	17.7	377	17.7	421
16T		7 / 0.37	0.6	26.5	899	26.5	1014
24T		7 / 0.37	0.6	33.1	1324	33.1	1497
1T	1	7 / 0.43	0.6	8.3	89	8.3	97
6T		7 / 0.43	0.6	18.7	437	18.7	483
16T		7 / 0.43	0.6	28.1	1052	28.1	1176
24T		7 / 0.43	0.6	35.4	1673	35.4	1756
1T	1.5	7 / 0.53	0.6	8.9	109	8.9	118
6T		7 / 0.53	0.6	20.6	561	20.6	614
16T		7 / 0.53	0.6	31.1	1378	31.1	1517
24T		7 / 0.53	0.6	39	2031	39	2240
1T	2.5	7 / 0.67	0.6	10.5	155	10.5	167
6T		7 / 0.67	0.6	24.5	813	24.5	888
16T		7 / 0.67	0.6	37	2002	37	2201
24T		7 / 0.67	0.6	46.5	2977	46.5	3275

CU / PVC / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

CU / XLPE / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	CU / XLPE / OS / PVC / SWA / PVC		CU / PVC / OS / PVC / SWA / PVC
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1P	0.5	7 / 0.3	0.6	7.2	0.9	11.9	264	11.9	269
2P (Quad)		7 / 0.3	0.6	8.1	0.9	12.7	308	12.7	318
2P		7 / 0.3	0.6	10.8	0.9	15.7	398	15.7	408
3P		7 / 0.3	0.6	11.4	0.9	16.3	434	16.3	449
4P		7 / 0.3	0.6	12.5	0.9	17.4	487	17.4	507
5P		7 / 0.3	0.6	13.6	0.9	18.5	541	18.5	565
6P		7 / 0.3	0.6	14.8	1.25	20.6	714	20.6	743
8P		7 / 0.3	0.6	16.6	1.25	22.4	814	22.4	854
10P		7 / 0.3	0.6	18.8	1.25	24.6	940	24.6	989
12P		7 / 0.3	0.6	19.4	1.25	25.4	1008	25.4	1068
16P		7 / 0.3	0.6	21.6	1.25	27.6	1175	27.6	1252
20P		7 / 0.3	0.6	24.1	1.25	30.3	1357	30.3	1455
24P		7 / 0.3	0.6	26.8	1.25	33	1539	33	1657
36P		7 / 0.3	0.6	30.8	1.25	37.2	1939	37.2	2116
1P	0.75	7 / 0.37	0.6	7.6	0.9	12.3	280	12.3	286
2P (Quad)		7 / 0.37	0.6	8.6	0.9	13.2	336	13.2	346
2P		7 / 0.37	0.6	11.5	0.9	16.4	433	16.4	444
3P		7 / 0.37	0.6	12.2	0.9	17.1	477	17.1	493
4P		7 / 0.37	0.6	13.4	0.9	18.3	537	18.3	559
5P		7 / 0.37	0.6	14.6	1.25	20.4	711	20.4	738
6P		7 / 0.37	0.6	15.9	1.25	21.7	782	21.7	815
8P		7 / 0.37	0.6	17.9	1.25	23.7	907	23.7	950
10P		7 / 0.37	0.6	20.3	1.25	26.3	1070	26.3	1124
12P		7 / 0.37	0.6	21	1.25	27	1139	27	1204
16P		7 / 0.37	0.6	23.3	1.25	21.3	1327	29.3	1414
20P		7 / 0.37	0.6	26.1	1.25	32.3	1549	32.3	1657
24P		7 / 0.37	0.6	29	1.25	35.4	1775	35.4	1905
36P		7 / 037	0.6	33.4	1.6	40.7	2499	40.7	2694
1P	1	7 / 0.43	0.6	8	0.9	12.7	296	12.7	302
2P (Quad)		7 / 0.43	0.6	9.1	0.9	13.9	365	13.9	376
2P		7 / 0.43	0.6	12.2	0.9	17.1	464	17.1	475
3P		7 / 0.43	0.6	12.9	0.9	17.8	518	17.8	536
4P		7 / 0.43	0.6	14.1	1.25	19.9	693	19.9	717
5P		7 / 0.43	0.6	15.5	1.25	21.3	771	21.3	801
6P		7 / 0.43	0.6	16.9	1.25	22.7	859	22.7	894
8P		7 / 0.43	0.6	19	1.25	25	1010	25	1056
10P		7 / 0.43	0.6	21.6	1.25	27.6	1174	27.6	1233
12P		7 / 0.43	0.6	22.3	1.25	28.3	1265	28.3	1334
16P		7 / 0.43	0.6	24.8	1.25	31	1495	31	1588
20P		7 / 0.43	0.6	27.8	1.25	34	1727	34	1844
24P		7 / 0.43	0.6	30.9	1.25	37.3	1990	37.3	2129
36P		7 / 0.43	0.6	35.6	1.6	42.9	2803	42.9	3013
1P	1.5	7 / 0.53	0.6	8.6	0.9	13.3	329	13.3	336
2P (Quad)		7 / 0.53	0.6	9.8	0.9	14.6	411	14.6	424
2P		7 / 0.53	0.6	13.2	0.9	18.1	519	18.1	532
3P		7 / 0.53	0.6	14.1	1.25	19.9	696	19.9	716
4P		7 / 0.53	0.6	15.4	1.25	21.2	785	21.2	811
5P		7 / 0.53	0.6	16.9	1.25	22.7	885	22.7	918
6P		7 / 0.53	0.6	18.5	1.25	24.5	1000	24.5	1039
8P		7 / 0.53	0.6	20.8	1.25	26.8	1173	26.8	1225
10P		7 / 0.53	0.6	23.7	1.25	29.9	1380	29.9	1445
12P		7 / 0.53	0.6	24.5	1.25	30.7	1494	30.7	1572
16P		7 / 0.53	0.6	27.3	1.25	33.5	1769	33.5	1873
20P		7 / 0.53	0.6	30.6	1.25	37	2209	37	2079
24P		7 / 0.53	0.6	34.1	1.6	41.4	2637	41.4	2793
36P		7 / 0.53	0.6	39.8	1.6	47.3	3475	47.3	3709
1P	2.5	7 / 0.67	0.7	9.8	0.9	14.7	394	14.7	403
2P (Quad)		7 / 0.67	0.7	11.3	0.9	16.1	499	16.1	516
2P		7 / 0.67	0.7	15.4	1.25	21.2	746	21.2	764
3P		7 / 0.67	0.7	16.5	1.25	22.3	853	22.3	881
4P		7 / 0.67	0.7	18.1	1.25	24.1	990	24.1	1026
5P		7 / 0.67	0.7	19.9	1.25	25.9	1127	25.9	1173
6P		7 / 0.67	0.7	21.8	1.25	27.8	1256	27.8	1311
8P		7 / 0.67	0.7	24.6	1.25	30.8	1506	30.8	1579
10P		7 / 0.67	0.7	28.1	1.25	34.5	1789	34.5	1880
12P		7 / 0.67	0.7	29.1	1.25	35.5	1960	35.5	2070
16P		7 / 0.67	0.7	32.5	1.6	39.8	2587	39.8	2733
20P		7 / 0.67	0.7	36.9	1.6	44.4	3108	44.4	3209
24P		7 / 0.67	0.7	41.2	1.6	48.9	3586	48.9	3805
36P		7 / 0.67	0.7	47.5	2	56.2	5066	56.2	5394

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE / OS / PVC / SWA / PVC		CU / PVC / OS / PVC / SWA / PVC
No. of Triads	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1T	0.5	7 / 0.3	0.6	12.2	282	12.2	290
6T		7 / 0.3	0.6	22.3	830	22.3	877
16T		7 / 0.3	0.6	30.4	1427	30.4	1554
24T		7 / 0.3	0.6	36.5	1899	36.5	2090
1T	0.75	7 / 0.37	0.6	12.7	302	12.7	310
6T		7 / 0.37	0.6	23.5	926	23.5	979
16T		7 / 0.37	0.6	32.4	1642	32.4	1781
24T		7 / 0.37	0.6	39.8	2441	39.8	2650
1T	1	7 / 0.43	0.6	13.1	325	13.1	334
6T		7 / 0.43	0.6	24.8	1035	24.8	1091
16T		7 / 0.43	0.6	34.1	1853	34.1	2002
24T		7 / 0.43	0.6	42.2	2765	42.2	2990
1T	1.5	7 / 0.53	0.6	13.9	367	13.9	377
6T		7 / 0.53	0.6	26.7	1210	26.7	1273
16T		7 / 0.53	0.6	37.2	2250	37.2	2417
24T		7 / 0.53	0.6	46.4	3415	46.4	3666
1T	2.5	7 / 0.67	0.7	15.3	443	15.3	457
6T		7 / 0.67	0.7	30.6	1563	30.6	1651
16T		7 / 0.67	0.7	44.6	3357	44.6	3589
24T		7 / 0.67	0.7	55.2	5007	55.2	5356

CU / PVC / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

CU / XLPE / IS / OS / PVC / SWA / PVC ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	CU / XLPE / IS / OS / PVC / SWA / PVC		CU / PVC / IS / OS / PVC / SWA / PVC
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1P	0.5	7 / 0.3	0.6	7.2	0.9	11.9	264	11.9	269
2P		7 / 0.3	0.6	11.2	0.9	16.1	428	16.1	438
3P		7 / 0.3	0.6	11.8	0.9	16.7	472	16.7	487
4P		7 / 0.3	0.6	12.9	0.9	17.8	533	17.8	553
5P		7 / 0.3	0.6	14.1	1.25	19.9	703	19.9	728
6P		7 / 0.3	0.6	15.3	1.25	21.1	775	21.1	805
8P		7 / 0.3	0.6	17.2	1.25	23.2	913	23.2	954
10P		7 / 0.3	0.6	19.5	1.25	25.5	1056	25.5	1106
12P		7 / 0.3	0.6	20.2	1.25	26.2	1128	26.2	1188
16P		7 / 0.3	0.6	22.4	1.25	28.6	1337	28.6	1417
20P		7 / 0.3	0.6	25.1	1.25	31.3	1549	31.3	1649
24P		7 / 0.3	0.6	27.9	1.25	34.3	1779	34.3	1900
36P		7 / 0.3	0.6	32	1.6	39.3	2490	39.3	2670
1P	0.75	7 / 0.37	0.6	7.6	0.9	12.3	280	12.3	286
2P		7 / 0.37	0.6	11.9	0.9	16.8	459	16.8	470
3P		7 / 0.37	0.6	12.6	0.9	17.5	510	17.5	527
4P		7 / 0.37	0.6	13.8	0.9	18.9	593	18.9	615
5P		7 / 0.37	0.6	15.1	1.25	20.9	766	20.9	794
6P		7 / 0.37	0.6	16.5	1.25	22.5	868	22.5	901
8P		7 / 0.37	0.6	18.5	1.25	24.5	1009	24.5	1053
10P		7 / 0.37	0.6	21	1.25	27.2	1180	27.2	1235
12P		7 / 0.37	0.6	21.7	1.25	27.9	1274	27.9	1340
16P		7 / 0.37	0.6	24.2	1.25	30.4	1498	30.4	1586
20P		7 / 0.37	0.6	27.1	1.25	33.5	1763	33.5	1873
24P		7 / 0.37	0.6	30.1	1.25	36.7	2024	36.7	2155
36P		7 / 0.37	0.6	35.1	1.6	42.6	2902	42.6	3100
1P	1	7 / 0.43	0.6	8	0.9	12.7	296	12.7	302
2P		7 / 0.43	0.6	12.5	0.9	17.4	489	17.4	500
3P		7 / 0.43	0.6	13.3	0.9	18.4	562	18.4	580
4P		7 / 0.43	0.6	14.6	1.25	20.4	741	20.4	765
5P		7 / 0.43	0.6	15.9	1.25	21.7	826	21.7	856
6P		7 / 0.43	0.6	17.4	1.25	23.4	936	23.4	971
8P		7 / 0.43	0.6	19.6	1.25	25.6	1101	25.6	1148
10P		7 / 0.43	0.6	22.3	1.25	28.5	1297	28.5	1356
12P		7 / 0.43	0.6	23.1	1.25	29.3	1405	29.3	1476
16P		7 / 0.43	0.6	25.7	1.25	32.1	1670	32.1	1765
20P		7 / 0.43	0.6	28.8	1.25	35.2	1947	35.2	2065
24P		7 / 0.43	0.6	32	1.6	39.3	2462	39.3	2603
36P		7 / 0.43	0.6	37.3	1.6	44.8	3234	44.8	3447
1P	1.5	7 / 0.53	0.6	8.6	0.9	13.3	329	13.3	336
2P		7 / 0.53	0.6	13.6	0.9	18.7	556	18.7	569
3P		7 / 0.53	0.6	14.5	1.25	20.3	737	20.3	756
4P		7 / 0.53	0.6	15.9	1.25	21.7	834	21.7	861
5P		7 / 0.53	0.6	17.4	1.25	23.4	955	23.4	988
6P		7 / 0.53	0.6	19	1.25	25	1066	25	1106
8P		7 / 0.53	0.6	21.4	1.25	27.6	1272	27.6	1324
10P		7 / 0.53	0.6	24.4	1.25	30.6	1492	30.6	1558
12P		7 / 0.53	0.6	25.3	1.25	31.7	1641	31.7	1720
16P		7 / 0.53	0.6	28.2	1.25	34.6	1951	34.6	2057
20P		7 / 0.53	0.6	31.6	1.6	38.9	2535	38.9	2666
24P		7 / 0.53	0.6	35.6	1.6	43.1	2961	43.1	3118
36P		7 / 0.53	0.6	41	1.6	48.7	3850	48.7	4087
1P	2.5	7 / 0.67	0.7	9.8	0.9	14.7	394	14.7	403
2P		7 / 0.67	0.7	15.8	1.25	21.6	779	21.6	797
3P		7 / 0.67	0.7	16.9	1.25	22.9	908	22.9	935
4P		7 / 0.67	0.7	18.5	1.25	24.5	1042	24.5	1078
5P		7 / 0.67	0.7	20.4	1.25	26.6	1203	26.6	1249
6P		7 / 0.67	0.7	22.3	1.25	28.5	1352	28.5	1407
8P		7 / 0.67	0.7	25.2	1.25	31.6	1623	31.6	1697
10P		7 / 0.67	0.7	28.8	1.25	35.2	1909	35.2	2001
12P		7 / 0.67	0.7	29.9	1.6	37.2	2321	37.2	2431
16P		7 / 0.67	0.7	33.8	1.6	41.3	2851	41.3	2998
20P		7 / 0.67	0.7	37.9	1.6	45.6	3545	45.6	3545
24P		7 / 0.67	0.7	42.2	2	50.9	4225	50.9	4445
36P		7 / 0.67	0.7	49.1	2	58.2	5598	58.2	5928

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	CU / XLPE / IS / OS / PVC / SWA / PVC		CU / PVC / IS / OS / PVC / SWA / PVC
No. of Triads	(mm2)	(no./mm)	(mm)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)	Cable Overall Diameter (mm)	Approximate Weight (kg/km)
1T	0.5	7 / 0.3	0.6	12.2	282	12.2	290
6T		7 / 0.3	0.6	23	904	23	949
16T		7 / 0.3	0.6	31.3	1593	31.3	1711
24T		7 / 0.3	0.6	38.6	2370	38.6	2549
1T	0.75	7 / 0.37	0.6	12.7	302	12.7	310
6T		7 / 0.37	0.6	24.3	1005	24.3	1053
16T		7 / 0.37	0.6	33.5	1829	33.5	1959
24T		7 / 0.37	0.6	41.7	2776	41.7	2971
1T	1	7 / 0.43	0.6	13.1	325	13.1	334
6T		7 / 0.43	0.6	25.4	1102	25.4	1155
16T		7 / 0.43	0.6	35.2	2034	35.2	2174
24T		7 / 0.43	0.6	43.9	3088	43.9	3298
1T	1.5	7 / 0.53	0.6	13.9	367	13.9	377
6T		7 / 0.53	0.6	27.4	1293	27.4	1351
16T		7 / 0.53	0.6	39	2667	39	2823
24T		7 / 0.53	0.6	47.8	3698	47.8	3932
1T	2.5	7 / 0.67	0.7	15.3	443	15.3	457
6T		7 / 0.67	0.7	31.4	1655	31.4	1737
16T		7 / 0.67	0.7	45.7	3578	45.7	3797
24T		7 / 0.67	0.7	56.9	5383	56.9	5711

Matching Products

*Describe Your Buying Requirements in Detail
