11kV 33kV 132kv 220kv to 765kv Overhead Line Conductor

Overhead Lines & Conductors used as bare overhead transmission and for primary and secondary electricity distribution cables – we provide competitive prices for medium and 11kv 33kv 132kv 220kv-765kv high voltage overhead lines, conductors and equipment

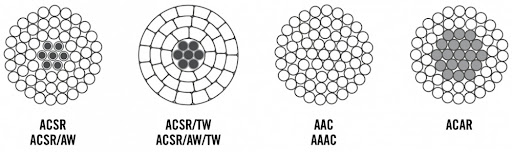

ACSR Overhead line conductor

Aluminium conductor steel-reinforced cable (ACSR), used as bare overhead transmission conductor, as a primary or secondary distribution conductor or messenger support, offers optimal strength for line design.

Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

ACSR Conductor Types

Grouse, Petrel, Minorca, Guinea, Dorking, Cochin, Dotterel, Leghorn, Egret, Redwing, Mallard, Finch, Grackle, Pheasant, Martin, Falcon, Chukar, Ruddy, Canary, Bluebird, Turkey, Swan, Sparrow, Robin, Raven, Quail, Pigeon, Penguin, Swanate, Sparate, Waxwing, Merlin, Chickadee, Pelican, Osprey, Kingbird, Swift, Coot, Brant, Flicker, Parakeet, Peacock, Rook, Flamingo, Stilt, Partridge, Ostrich, Linnet, Ibis, Hawk, Dove, Squab, Grosbeak, Gannet, Starling, Drake, Oriole, Lark, Hen, Eagle, Wood Duck, Scoter, Tern, Rail, Ortolan, Bluejay, Bunting, Bittern, Bobolink, Lapwing, Condor, Cardinal, Curlew, Kiwi, Teal, Dipper.

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

AAC Overhead line conductor

AAC (All Aluminium Conductor) used primarily for overhead transmission and primary and secondary distribution, where ampacity must be maintained and a lighter conductor (compared to ACSR) is desired, when conductor strength is not a critical factor. Classes B and C are used primarily as bus, apparatus connectors and jumpers, where additional flexibility is required.

AAC Conductor Types

Peachbell, Rose, Iris, Pansy, Poppy, Aster, Phlox, Oxlip, Sneezewort, Daisy, Valerian, Laurel, Peony, Tulip, Daffodil, Canna, Goldentuft, Cosmos, Zinnia, Marigold, Hawthorn, Narcissus, Columbine, Carnation, Coreopsis, Gladiolus, Jessamine, Cowslip, Sagebrush, Lupine, Bitterroot, Trillium, Bluebonnet, Dahlia, Syringa, Hyacinth, Mistletoe, Meadowsweet, Orchid, Heuchera, Flag, Verbena, Violet, Nasturtium, Petunia, Cattail, Arbutus, Lilac, Cockscomb, Snapdragon, Magnolia, Hawkweed, Camellia, Bluebell, Larkspur, Goldenrod.

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

AAC/TW Overhead line conductors

All Aluminium Conductor

Trapezoidal Shaped Conductors

Bare

AAC/TW used as a bare overhead conductor. There are two designs of AAC/TW. One design gives an equal area of aluminium when compared to the standard AAC conductor sizes. The other design is conductor with overall outside diameters that are in fixed-increments.

Use of this conductor in the equal area design allows comparable ampacity in a smaller diameter conductor when compared with standard AAC conductor. Use of this conductor in the fixed-increment diameter design allows more ampacity in an equal diameter conductor when compared with standard AAC conductor.

AAC/tw Conductor Types

Tulip, Canna, Cosmos, Zinnia, Mistletoe, Meadowsweet, Orchid, Verbena, Nasturtium, Arbutus, Cockscomb, Magnolia, Hawkweed, Bluebell, Marigold, Hawthorn, Narcissus, Columbine, Carnation, Coreopsis, Jessamine, Cowslip, Lupine, Trillium, Logan, Wheeler, Robson, McKinley, Rainier, Helens, Baker, Hood, Whitney, Powell, Jefferson, Shasta, Adams

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

ACAR Overhead line conductor

Aluminium Conductor

Aluminium Reinforced Reinforced

Bare

ACAR used as bare overhead transmission cable and as primary and secondary distribution cable. A good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design; for equal weight, ACAR offers higher strength and ampacity than ACSR.

Bare conductor meets or exceeds the following ASTM specifications:

B230 Aluminium 1350-H19 Wire for Electrical Purposes

B398 Aluminium-Alloy 6201-T81 Wire for Electrical Purposes.

B524 Concentric-Lay-Stranded Aluminium Conductors, Aluminium-Alloy Reinforced (ACAR, 1350/6201).

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

ACSR/AW Overhead line conductor

Aluminium Conductor

Aluminium-Clad Steel Reinforced

Bare

ACSR/AW used as bare overhead transmission and as primary and secondary distribution cable. ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminium-cladding of the steel core wires.

ACSR/AW Conductor Types

Swan, Swanate, Sparrow, Sparate, Robin, Raven, Quail, Pigeon, Penguin, Waxwing, Partridge, Ostrich, Merlin, Linnet, Oriole, Chickadee, Brant, Ibis, Lark, Pelican, Flicker, Hawk, Hen, Osprey, Parakeet, Dove, Eagle, Peacock, Squab, Teal, Kingbird, Rook, Grosbeak, Flamingo, Gannet, Starling, Redwing, Cuckoo, Drake, Tern, Condor, Mallard, Ruddy, Canary, Rail, Cardinal, Ortolan, Curlew, Bluejay, Pheasant, Bobolink, Lapwing, Grouse, Petrel, Minorca, Leghorn, Guinea, Dotterel, Dorking, Brahma, Cochin

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

ACSR/TW Overhead line conductor

Aluminium Conductor

Steel Reinforced

Trapezoidal Shaped Aluminium Strands.

Bare

ACSR/TW used as a bare overhead conductor. There are two designs of ACSR/TW. One design gives an equal area of aluminium when compared to the standard ACSR conductor sizes. The other design gives an overall outside diameter equal to standard ACSR conductor sizes.

Use of this conductor in the equal area design allows equal ampacity in a smaller diameter conductor when compared with standard ACSR conductor. Use of this conductor in the equal diameter design allows more ampacity in an equal diameter conductor when compared with standard ACSR conductor.

Bare conductor meets or exceeds the following ASTM specifications:

B779 Shaped Wire Compact Concentric-Lay-Stranded Aluminium Conductors, Coated-Reinforced (ACSR/TW).

ACSR/TW Conductor Types

Partridge, Linnet, Oriole, Merlin, Flicker, Hawk, Hen, Parakeet, Dove, Swift, Rook, Scoter, Grosbeak, Tern, Puffin, Condor, Drake, Canary, Phoenix, Rail, Cardinal, Snowbird, Ortolan, Curlew, Avocet, Bluejay, Finch, Oxbird, Bunting, Grackle, Scissortail, Bittern, Pheasant, Dipper, Martin, Bobolink, Plover, Lapwing, Falcon, Chukar, Bluebird, Mackenzie, Thames, St. Croix, Miramichi, Merrimack, Platte, Potomac, Rio Grande, Schuylkill, Pecos, Pee Dee, James, Athabaska, Cumberland, Powder, Santee

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

ACSS Overhead line conductor

Aluminium Conductor, Steel Supporter

Bare

ACSS used for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength; it sags less than a comparable ACSR under electrical loadings; it is self-damping if pre-stretched during installation; and its final sags are not affected by long term creep of aluminium. The advantages make ACSS especially useful in reconductoring applications requiring increased current with existing tensions and clearances, new line applications where structures can be economized because of reduced conductor sag, new line applications requiring high emergency loadings, and lines where aeolian vibration is a problem.

Bare conductor meets or exceeds the following ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Use in Overhead Electrical Conductors.

B609 Aluminium 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminium-Mischmetal Alloy-Coated Steel Core Wire for Aluminium Conductors, Steel Reinforced (ACSR).

B803 High-Strength Zinc-5% Aluminium Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

B856 Concentric-Lay-Stranded Aluminium Conductors, Coated Steel Supported (ACSS).

B958 Extra-High-Strength and Ultra-High-Strength Class A Zinc-5% Aluminium-Mischmetal Alloy-Coated Steel Core Wire for Use in Overhead Electrical Conductors.

ACSS Conductor Types

Partridge, Junco, Ostrich, Linnet, Oriole, Brant, Ibis, Lark, Flicker, Hawk, Hen, Parakeet, Dove, Eagle, Peacock, Squab, Wood Duck, Teal, Rook, Grosbeak, Scoter, Egret, Flamingo, Gannet, Stilt, Starling, Redwing, Cuckoo, Drake, Macaw, Tern, Condor, Mallard, Ruddy, Canary, Redbird, Rail, Towhee, Cardinal, Canvasback, Snowbird, Ortolan, Curlew, Bluejay, Finch, Bunting, Bittern, Pheasant, Dipper, Martin, Bobolink, Plover, Nuthatch, Parrot, Ratite, Lapwing, Falcon, Chukar, Mockingbird, Roadrunner, Bluebird, Kiwi, Thrasher, Joree.

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.

ACSS/TW Overhead line conductor

Aluminium Conductor, Steel Supported

Trapezoidal Shaped Aluminium Strands

Bare

ACSS/TW is designed for overhead distribution and transmission lines. It is designed to operate continuously at elevated temperatures up to 250°C without loss of strength, it sags less under emergency electrical loadings than ACSR/TW, excellent self-damping properties, and its final sags are not affected by long-term creep of aluminium. Southwire’s ACSS/TW is available in equal area and equal diameter design.

The equal area design allows equal ampacity in a smaller diameter conductor when compared with a standard ACSS conductor. The equal diameter design allows more ampacity in an equal diameter conductor when compared with a standard ACSS conductor. ACSS/TW also provides many design opportunities for new line construction: i.e., reduced tower cost, decreased sag, increased self-damping properties, increased operating temperature and improved corrosion resistance.

Bare conductor meets or exceeds the following ASTM specifications:

B500 Metallic Coated Stranded Steel Core for Aluminium Conductors, Steel Reinforced.

B609 Aluminium 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes.

B802 Zinc-5% Aluminium-Mischmetal Alloy-Coated Steel Core Wire for Aluminium Conductors, Steel Reinforced.

B803 High-Strength Zinc-5% Aluminium-Mischmetal Alloy-Coated Steel Core Wire for Aluminium and Aluminium-Alloy Conductors, Steel Reinforced.

B857 Shaped Wire Compact Concentric-Lay-Stranded Aluminium Conductors, Coated-Steel Supported (ACSS/TW).

ACSS/TW Conductor Types

Partridge, Linnet, Oriole, Flicker, Hawk, Hen, Parakeet, Dove, Rook, Grosbeak, Scoter, Tern, Puffin, Condor, Drake, Canary, Phoenix, Rail, Cardinal, Snowbird, Ortolan, Curlew, Avocet, Bluejay, Finch, Oxbird, Bunting, Grackle, Scissortail, Bittern, Pheasant, Dipper, Martin, Bobolink, Plover, Lapwing, Falcon, Chukar, Bluebird, Mohawk, Calumet, Mystic, Oswego, Maumee, Wabash, Kettle, Fraser, Columbia, Suwannee, Cheyenne, Genesee, Hudson, Catawba, Nelson, Yukon, Truckee, Mackenzie, Thames, St. Croix, Miramichi, Merrimack, Platte, Potomac, Rio Grande, Schuylkill, Pecos, Pee Dee, James, Athabaska, Cumberland, Powder, Santee

If you don´t find a suitable cable, please send an email to info@qingzhou-cable.com for a quote. The above is only a partial list of our products.
