PRODUCT

AAC (All Aluminium Conductors) PVC covering

Conductor: Stranded 1350 aluminum conductors

Construction:Over Head Conductor (7, 19, 27, 37, 61),

Cable Type:ungreased or greased

Supplier & Manufacturer from China

Send E-mail Get Price Now

Application

Classes 1 AA and A are used primarily for overhead transmission and primary and secondary distribution, where ampacity must be maintained and a lighter conductor (compared to ACSR) is desired, when conductor strength is not a critical factor. Classes B and C are used primarily as bus, apparatus connectors and jumpers, where additional flexibility is required.

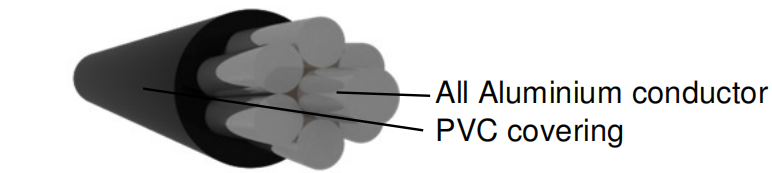

aac pvc.png

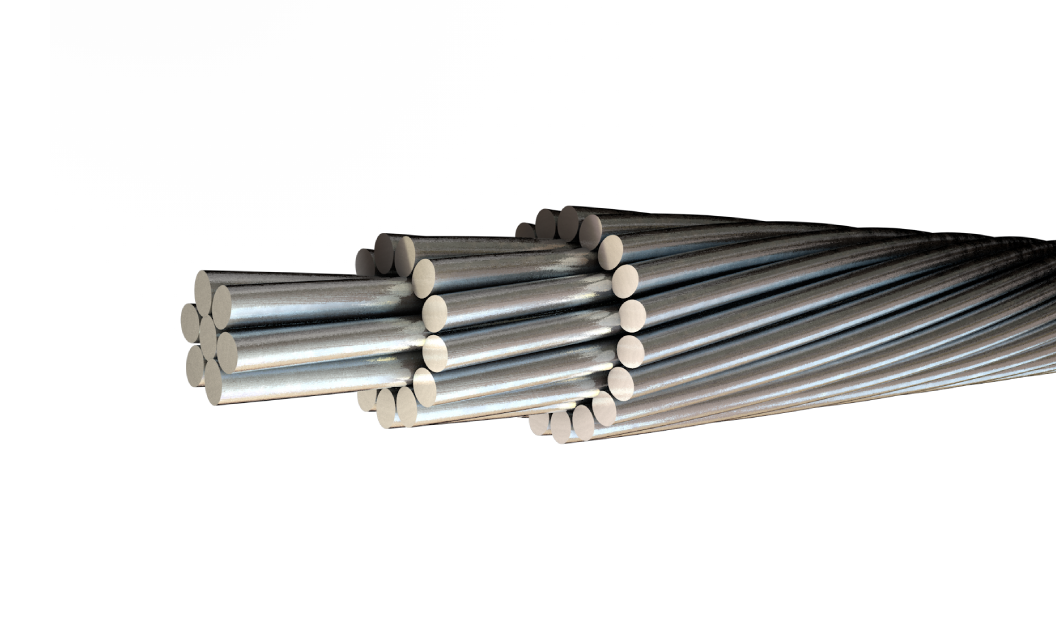

aac cable China.png

AAC (All Aluminium Conductor)+All Aluminium conductor PVC covering

Conductor name	Number/ Size	area mm² Nom.	Conductor mass kg/km Nom	Nom. dia. mm	Standard Length m	Drum Gross mass kg	Bending radius mm Min.	PVC insulation 1.6mm kg/km Nom.	PVC insulation 1.6mm OD mm	PVC insulation 5mm kg/km Nom.	PVC insulation 5mm OD mm	Grease mass (Optional)
1 Aluminium wire + 6 Aluminium wires
Midge	7/2.06	23.3	64	6.18	3 000	735	185	59.4	9.4			2.1
Gnat	7/2.21	26.9	74	6.63	3 000	764	199	62.9	9.8			2.5
Ladybird	7/2.79	42.8	118	8.37	2 500	836	251	76.2	11.6			3.9
Ant	7/3.10	52.8	145	9.3	2 500	905	279	83.3	12.5			4.8
Fly	7/3.40	63.6	175	10.2	2 500	979	306	90.2	13.4			5.8
Wasp	7/4.39	106	292	13.17	1 500	979	395	120.2	16.5			9.7
1 Aluminium wire + 6 +12 Aluminium wires
Hornet	19/3.25	157.6	435	16.25	2 000	1 412	488			507.4	26.3		10.7
Caterpillar	19/3.53	185.9	512	17.65	2 000	1 565	530			540.8	27.7		12.6
Chafer	19/3.78	213.2	587	18.9	2 000	1 715	567			570.6	28.9		14.4
Cockroach	19/4.22	265.7	731	21.1	1 500	1 639	633			623.2	31.1		18
Butterfly	19/4.65	322.7	888	23.25	1 000	1 430	698			674.5	33.3		21.9
Locust	19/5.36	428.7	1180	26.8	1 000	1 722	804			759.3	36.8		21.9
1 Aluminium wire + 6 + 12 + 18 Aluminium wires
Centipede	37/3.78	415.2	1150	26.46	1 000	1 692	794			751.1	36.5		43.2
Maybug	37/4.09	486.1	1338	28.63	1 000	1 880	859			803	38.6		21.9
1 Aluminium wire + 6 + 12 + 18 + 24 Aluminium wires
Columbine	61/3.78	684.5	1884	34.02	1 000	2 426	1021			931.6	44		86.3
Bull	61/4.25	865.4	2400	38.25	1 000	2 942	1148			1032.6	48.3		109.1

AAC - BS 215

Code Name	Nominal Aluminum Area	Stranding and Wire Diameter	Sectional Area	Approximate Overall Diameter	Linear Mass	Calculated Breaking Load	Calculated D.C. Resistance at 20 ℃	Current Rating
Code Name	mm 2	mm	mm 2	mm	kg/km	daN	Ω/km	A
Midge	22	7/2.06	23.33	6.18	64	399	1.227	114
Aphis	25	7/3.35	26.4	7.2	73	411	1.081	134
Gnat	25	7/2.21	26.8	6.6	73	459	1.066	135
Weevil	30	3/3.66	31.6	7.9	86	486	0.9082	163
Mosquito	35	7/2.59	37	7.8	101	603	0.7762	188
Ladybird	40	7/2.79	42.8	8.4	117	687	0.6689	210
Ant	50	7/3.10	52.83	9.3	145	828	0.5419	181
Fly	60	7/3.40	63.55	10.2	174	990	0.4505	199
Bluebottle	70	7/3.66	73.7	11	202	1134	0.3881	228
Earwig	75	7/3.78	78.5	11.4	215	1194	0.3644	242
Grasshopper	80	7/3.91	84.1	11.7	230	1278	0.3406	251
Clegg	90	7/4.17	95.6	12.5	262	1453	0.2994	285
Beetle	100	19/2.67	106	13.4	293	1742	0.2704	295
Wasp	100	7/4.39	106	13.17	290	1600	0.2702	271
Bee	125	7/4.90	132	14.7	361	1994	0.2169	330
Cricket	150	7/5.36	157.9	16.1	432	2385	0.1818	395
Hornet	150	19/3.25	157.6	16.25	434	2570	0.1825	346
Caterpillar	175	19/3.53	186	17.7	512	2863	0.1547	410
Chafer	200	19/3.78	213.2	18.9	587	3240	0.1349	414
Spider	225	19/3.99	236.9	20	652	3601	0.1211	462
Cockroach	250	19/4.22	265.7	21.1	731	4040	0.1083	470
Butterfly	300	19/4.65	322.7	23.25	888	4875	0.08916	528
Drone	350	37/3.58	373.3	25.1	1029	5745	0.07741	612
Moth	350	19/5.00	373.2	25	1027	5637	0.07711	612
Centipede	400	37/3.78	415.2	26.46	1145	6310	0.06944	619
Locust	400	19/5.36	428.5	26.8	1179	6473	0.0671	656
Maybug	450	37/4.09	486.9	28.6	1342	7401	0.05931	729
Scorpion	500	37/4.27	529.5	29.9	1460	7998	0.05441	790
Cicada	600	37/4.65	628.6	32.6	1733	9495	0.04588	940
Tarantula	750	37/5.23	794.6	36.6	2191	12010	0.03627	1150

DIN-48201

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	2.84	1.8022	83
25	24.25	7/2.10	6.3	66	4.17	1.181	108
35	34.36	7/2.50	7.5	94	5.78	0.8333	134
50	49.48	7/3.00	9	135	7.94	0.5787	168
50	48.35	19/1.80	9	133	8.45	0.5951	166
70	65.81	19/2.10	10.5	181	11.32	0.4372	200
95	93.27	19/2.50	12.5	256	15.68	0.3085	248
120	116.99	19/2.80	14	322	18.78	0.2459	285
150	147.11	37/2.25	15.8	406	25.3	0.196	328
185	181.62	37/2.50	17.5	500	30.54	0.1588	373
240	242.54	61/2.25	20.3	670	39.51	0.1191	445
300	299.43	61/2.50	22.5	827	47.7	0.0965	506
400	400.14	61/2.89	26	1104	60.86	0.0722	602
500	499.83	61/3.23	29.1	1379	74.67	0.0578	688
625	626.2	91/2.96	32.6	1732	95.25	0.0462	786
800	802.09	91/3.35	36.9	2218	118.39	0.036	907
1000	999.71	91/3.74	41.1	2767	145.76	0.0289	1026

IEC 61089

Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	mm^2	No.×mm	mm	kg/km	KN	Ω/Km	A
10	10	7/1.35	4.05	27.4	1.95	2.8633	62
16	16	7/1.71	5.13	43.8	3.04	1.7896	84
25	25	7/2.13	6.39	68.4	4.5	1.1453	110
40	40	7/2.70	8.1	109.4	6.8	0.7158	147
63	63	7/3.39	10.17	172.3	10.39	0.4545	195
100	100	19/2.59	12.95	274.8	17	0.2877	259
125	125	19/2.89	14.45	343.6	21.25	0.2302	297
160	160	19/3.27	16.35	439.8	26.4	0.1798	345
200	200	19/3.66	18.3	549.7	32	0.1439	396
250	250	19/4.09	20.45	687.1	40	0.1151	454
315	315	37/3.29	23.03	867.9	51.97	0.0916	522
400	400	37/3.71	25.97	1102	64	0.0721	603
450	450	37/3.94	27.58	1239.8	72	0.0641	647
500	500	37/4.15	29.05	1377.6	80	0.0577	688
560	560	37/4.39	30.73	1542.9	89.6	0.0515	736
630	630	61/3.63	32.67	1738.3	100.8	0.0458	789
710	710	61/3.85	34.65	1959.1	113.6	0.0407	845
800	800	61/4.09	36.81	2207.4	128	0.0361	905
900	900	61/4.33	38.97	2483.3	144	0.0321	967
1000	1000	61/4.57	41.13	2759.2	160	0.0289	1026
1120	1120	91/3.96	43.56	3093.5	179.2	0.0258	1091
1250	1250	91/4.18	45.98	3452.6	200	0.0231	1157
1400	1400	91/4.43	48.73	3866.9	224	0.0207	1226
1500	1500	91/4.58	50.38	4143.1	240	0.0193	1270
