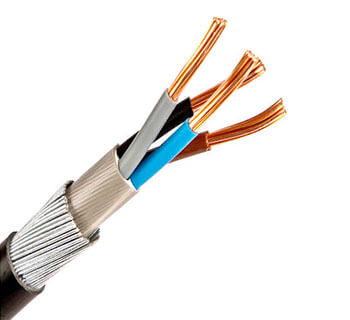

These include low voltage and medium voltage SWA steel wire armour cable, and all sizes of these widely used armoured power cables with current ratings up to 35kV. For single core cables, aluminium wire armour - AWA - is used to prevent induced current in the armour. Armoured power cables are available with both copper and aluminium conductors as required.
The armour provides additional protection where mechanical stress has the potential to cause damage to the cable, such as direct burial, outdoors or underground. The armour also enables the cable to withstand higher pulling loads. It should be noted, however, that the armour provides no protection for climatic conditions.
Armoured cables are often referred to as steel wire armoured cables, SWA cable, mains power cable, single core power cable, and multi-core booklet armoured cable.
Armoured Control Cable,450/750V Control Cable
Control cable are suitable for the wiring of electric controlling equipments and instrument, monitoring and controlling return circuit ,electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750 AC.
Qingzhou Cables' range of armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheathing, LSZH sheathings are recommended for use in high density enclosed areas, and are mandatory in some public places.
Conductor: plain stranded copper or aluminium
Insulation: materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
Bedding: a layer to create a protective barrier between the insulation and the armour.
Armour: a steel or aluminium armour provides mechanical protection to allow the cable to withstand the mechanical stresses to which it is exposed.
Sheath: the constituent parts of the cable are held together by a sheath offering a further level of protection. Black sheaths can be carbon-loaded for UV stability.
Voltage: voltage ratings of 600/1000V, 1.9/3.3KV, 6.35/11kV and 19/33kV.

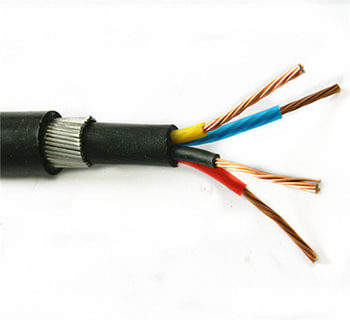

0.6/1kV XLPE Insulated Unarmoured/Armoured Cable | Core | Armor |
Cu or Al/XLPE/PVC Power Cable | Single Core | No |
Cu or Al/XLPE/AWA/PVC Power Cable | Single Core | AWA |
Cu or Al/XLPE/PVC Power Cable | Two Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | Two Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | Two Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | Three Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | Three Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | Three Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | 3+1 Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | 3+1 Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | 3+1 Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | Four Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | Four Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | Four Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | 4+1 Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | 4+1 Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | 4+1 Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | Five Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | Five Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | Five Cores | SWA |
Cu or Al/XLPE/PVC Power Cable | 3+2 Cores | No |
Cu or Al/XLPE/STA/PVC Power Cable | 3+2 Cores | STA |
Cu or Al/XLPE/SWA/PVC Power Cable | 3+2 Cores | SWA |
Get price list by E-mail:info@qingzhou-cable.com

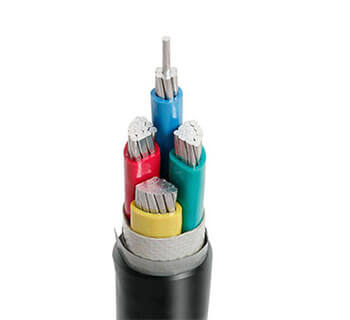

PVC insulated Armored Power Cable
0.6/1kV PVC Insulated Cable | Conductor | Insulation | Armor | Outer Sheath | |||||
Aluminum | Copper | PVC | SW | ST | DST | AW | PVC | PE | |
Cu/PVC/PVC | P | P | --- | --- | --- | --- | P | ||
Cu/PVC/PE | P | P | --- | --- | --- | --- | P | ||
Al/PVC/PVC | P | P | --- | --- | --- | --- | P | ||
Al/PVC/PE | P | P | --- | --- | --- | --- | P | ||
Cu/PVC/STA/PVC | P | P | --- | P | --- | --- | P | ||
Cu/PVC/STA/PE | P | P | --- | P | --- | --- | P | ||
Al/PVC/STA/PVC | P | P | --- | P | --- | --- | P | ||
Al/PVC/STA/PE | P | P | --- | P | --- | --- | P | ||
Cu/PVC/DSTA/PVC | P | P | --- | --- | P | --- | P | ||
Cu/PVC/DSTA/PE | P | P | --- | --- | P | --- | P | ||
Al/PVC/DSTA/PVC | P | P | --- | --- | P | --- | P | ||
Al/PVC/DSTA/PE | P | P | --- | --- | P | --- | P | ||
Cu/PVC/SWA/PVC | P | P | P | --- | --- | --- | P | ||
Cu/PVC/SWA/PE | P | P | P | --- | --- | --- | P | ||
Al/PVC/SWA/PVC | P | P | P | --- | --- | --- | P | ||
Al/PVC/SWA/PE | P | P | P | --- | --- | --- | P | ||
Cu/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
Cu/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
Al/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
Al/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire |
Get price list by E-mail:info@qingzhou-cable.com
Voltage rating for Armoured Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
0.6/1 kV & 1.9/3.3KV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
1x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
1x400 mm2 | ||||||||
1x500 mm2 |

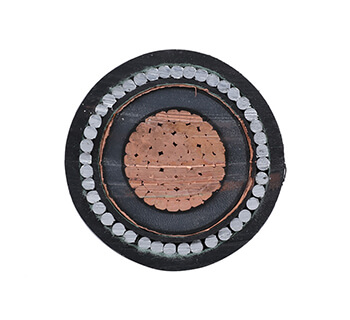

MEDIUM VOLTAGE CABLES
Cross-sectional area: generally 35mm2 up to 100mm2
Number of cores: generally one or three
Solid or stranded aluminium conductors: for applications requiring a lighter cable weight, also often more economical due to lower aluminium prices.
Stranded copper conductors: for applications requiring a smaller overall diameter and higher transmitting properties.
Bedding: Bonded or strippable out semi-conducting layer
Water tightness: longitudinal, longitudinal + quasi-radial, longitudinal + radial
Insulation layers (conductor screen, insulation and insulation screen): XLPE, which is more commonly used for MV cables, or EPR which is more flexible and often better suited to marine and offshore applications.
Metallic screen: to nullify the electric field outside the MV cable. Concentric copper wire screens, Aluminium foil laminate, or extruded lead alloy sheath.
Twisted three-core cable or triplex
Armouring: for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.
Tapes: Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.
Outer Sheath: compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.
British Standard MV cables | Voltage Rating | ||
---|---|---|---|
BS6622 - standard British MV cable | 6.35/11kV | 19/33kV | |
BS7835 - LSZH British MV cable | 6.35/11kV | 19/33kV | |
European standard MV cables | Voltage Rating | ||
N2XSH / N2XSEH - single or multicore XLPE insulated with LSZH oversheath | 12/20kV | ||
N2XSY - single copper core XLPE insulated with PVC oversheath | 6/10kV | 12/20kV | 18/30kV |
N2XS2Y - single copper core XLPE insulated with PE oversheath | 6/10kV | 12/20kV | 18/30kV |
NA2XSY - single aluminium core XLPE insulated with PVC oversheath | 6/10kV | 12/20kV | 18/30kV |
NA2XS2Y - single aluminium core XLPE insulated with PE oversheath | 6/10kV | 12/20kV | 18/30kV |
N2XSEY - 3 copper core XLPE insulated with PVC oversheath | 6/10kV | ||
N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath | 6/10kV | 12/20kV | 18/30kV |
N2XS(FL)2Y - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath | 6/10kV | 12/20kV | |
NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath | 6/10kV | 12/20kV | 18/30kV |
NA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath | 6/10kV | 12/20kV | 18/30kV |
NYFGY - copper 3 core PVC insulated and sheathed cable |
N | MV cable according to DIN VDE 0276 |
A | Aluminium (Al) conductor |
[blank] | Copper (Cu) conductor |
2X | Cross-linked polyethylene (XLPE) insulation |
S | Screen of copper wires and copper tape, helically wound |
SE | Screen of copper wires and copper tape over each individual core, helically wound |
Y | Polyvinyl Chloride (PVC) sheath |
2Y | Polyethylene (PE) sheath |
(F)2Y | Longitudinal water tightness with PE sheath |
(FL)2Y | Longitudinal and transversal water tightness with Al/PE sheath |
Our 10kV, 11kV, 20kV, 30kV and 33kV cables are available in the following cross-sectional size ranges. Larger sizes are available upon request.
10kV single core | 35mm2 to 500mm2 |
10kV 3-core | 35mm2 to 240mm2 |
11kV single core | 50mm2 to 1000mm2 |
11kV 3-core | 35mm2 to 400mm2 |
20kV single core | 50mm2 to 500mm2 |
30kV single core | 50mm2 to 500mm2 |
33kV single core | 70mm2 to 1000mm2 |
