CU/AL PVC Insulated Power Cable for 1.8/3KV and 0.6/1KV

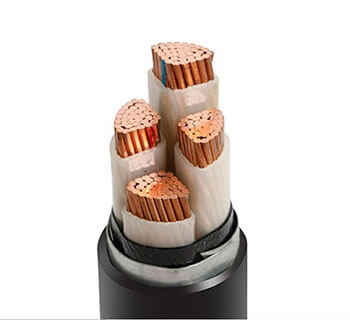

    0.6/1KV CU/AL PVC/PVC Power cable (non-armored) VV, VLV

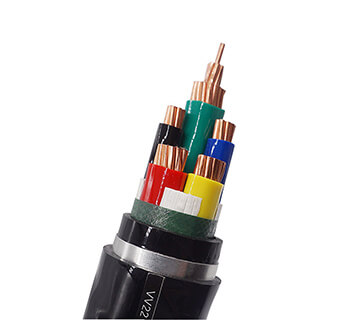

    0.6/1KV CU/AL PVC/PVC Power cable (steel wire/tape armored) VV32, VLV32 VV22,VLV22

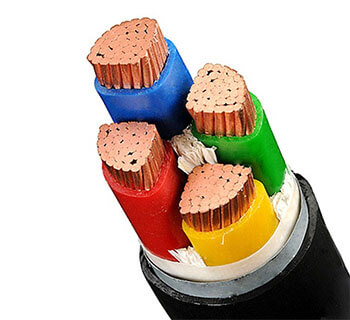

    0.6/1KV  CU/AL PVC/PVC  Power  cable  (steel wire/tape armored) VV32, VLV32 VV22, VLV22

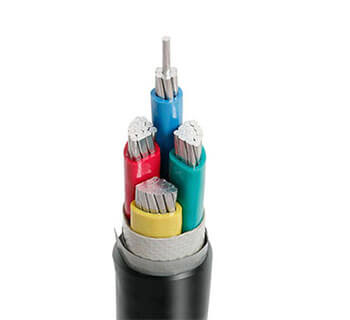

    1.8/3 (3.6) KV CU/AL PVC/PVC single core 3 cores (non-armored) VV, VLV

    1.8/3 (3.6) KV CU/AL PVC/PVC 3 cores (steel wire/tape armored) VV32, VLV32 VV22, VLV22

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.



Application

This product is used for power transmission and distribution lines with AC rated voltage of 1.8/3KV and below.

Its mechanical and physical properties and electrical performance meet the requirements of national standard GB/T12706- 2008 and international standard IEC60502-2004 “Extruded Insulated Power Cable with Rate Voltage of 1-30KV and Accessories”.

Operating characteristics and electrical performance

1. Cable laying temperature: ≥0°C

2. Long-term allowable operating temperature of cable conductor: ≤70°C

3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 160°C

4. Minimum permissible bending radius: Single core cable: 20D; multi-core cable: 15D (Note: D is actual outer diameter of cable).

5. AC withstand voltage test of finished cable product.

Rated voltage (KV)

0.6/1

1.8/3

Rated voltage (KV)

3.5

6.5

Duration (min)

5

5

Conductor DC resistance meets the requirements of national standard GB/T3956-2008 “Cable Conductor” and international standard IEC60228.

Models, Names and Laying Occasions of PVC Insulated Power Cable


Model



Name



Laying Occasion

Copper core

Aluminum core



VV

VLV

PVC insulated and sheathed power cable

Laid indoors, and in tunnels, pipelines, cable trenches,

and flammable and severe corrosion places, and can not

bear external mechanical forces.

VY

VLY

PVC insulated PE sheathed power cable

Laid indoors, and in pipelines, cable trenches and severe

corrosion places, and cannot bear external mechanical forces

VV22

VLV22

PVC insulated steel tape armored PVC sheathed power cable

Laid indoors, and in cable trenches, underground severe

 corrosion places, and cannot bear tension.

VV23

VLV23

PVC insulated steel tape armored PE

Laid indoors, and in cable trenches and underground

severe corrosion place, and cannot bear tension.

VV32

VLV32

PVC insulated thin steel wire armored PVC sheathed power cable

Laid under ground and in shafts, water and severe

corrosion places, and cannot bear high tension.

VV33

VLV33

PVC insulated thin steel wire armored PVC sheathed power cable

Laid under ground and in shafts, water and severe

corrosion places, and can bear high tension.

VV42

VLV42

PVC insulated thick steel wire armored PVC sheathed power cable

Laid under ground and in shafts and severe corrosion

places, and can bear high tension.

VV43

VLV43

PVC insulated thick steel wire armored PE sheathed power cable

Laid under ground and in shafts and severe corrosion

places, and can bear high tension.


Range of production



Number of cores



0.6/1(KV)



1.8/3 (KV)

Single core 1

1.5-100 (mm2)

10-1000 (mm2)

Twin core 2

1.5-240 (mm2)

10-240 (mm2)

Triple core 3

1.5-300 (mm2)

10-300 (mm2)

Three big cores and one small core 3+1

2.5-300 (mm2)

10-300 (mm2)

Fourth core 4

2.5-300 (mm2)

10-300 (mm2)

Fifth core 5

2.5-300 (mm2)

10-300 (mm2)

Three big cores and two small cores 3+2

2.5-300 (mm2)

10-300 (mm2)

Four big cores and one small core 4+1

2.5-300 (mm2)

10-300
