acsr zebra drake dog rabbit merlin wolf aluminium conductor steel reinforced cable price from manufacturer

Date:2020-07-06

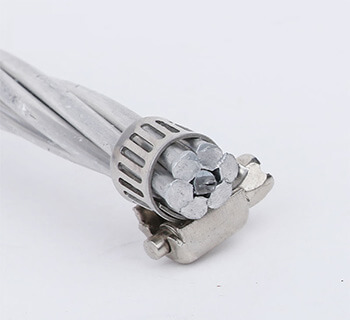

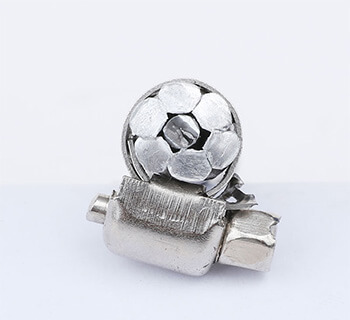

acsr zebra drake dog rabbit merlin wolf aluminium conductor steel reinforced cable price from manufacturer

Code word	Size	Nº of wire		Nominal wire diameter				Steel cobre diameter		Overall cable diameter		Aluminum cross section
				Aluminum		Steel
	AWG or kcmil	Aluminum	Steel	mm	mils	mm	mils	mm	in	mm	in	mm²	kcmil
Petrel	101,8	12	7	2,34	92,1	2,34	92,1	7,02	0,276	11,7	0,46	51,6	101,8
Minorca	110,8	12	7	2,44	96,1	2,44	96,1	7,32	0,288	12,2	0,481	56,2	110,8
Leghorn	134,6	12	7	2,69	105,9	2,69	105,9	8,07	0,318	13,5	0,53	68,2	134,6
Guinea	159	12	7	2,92	115,1	2,92	115,1	8,77	0,345	14,6	0,58	80,6	159
Dotterel	176,9	12	7	3,08	121,4	3,08	121,4	9,25	0,364	15,4	0,607	89,6	176,9
Dorking	190,8	12	7	3,20	126,1	3,20	126,1	9,61	0,378	16,0	0,631	96,7	190,8
Brahma	203,2	16	19	2,86	112,7	2,48	97,7	12,4	0,489	18,1	0,714	103	203,3
Dog	207,2	6	7	4,72	185,8	1,57	61,8	4,71	0,185	14,2	0,557	105	207,2
Cochin	211,3	12	7	3,37	132,7	3,37	132,7	10,1	0,398	16,9	0,66	107	211,2
Wren	8	6	1	1,33	52,4	1,33	52,4	1,33	0,052	4,0	0,157	8,30	16,5
Turkey	6	6	1	1,68	66,1	1,68	66,1	1,68	0,066	5,0	0,198	13,30	26,2
Thrush	5	6	1	1,89	74,4	1,89	74,4	1,89	0,074	5,7	0,223	16,80	33,2
Swan	4	6	1	2,12	83,4	2,12	83,4	2,12	0,083	6,4	0,25	21,14	41,7
Swanate	4	7	1	1,96	77,2	2,61	102,8	2,61	0,103	6,5	0,257	21,12	41,7
Swallow	3	6	1	2,38	93,7	2,38	93,7	2,38	0,094	7,1	0,281	26,69	52,7
Sparrow	2	6	1	2,67	105,2	2,67	105,2	2,67	0,105	8,0	0,316	33,64	66,4
Sparate	2	7	1	2,47	97,4	3,29	129,5	3,29	0,13	8,2	0,324	33,65	66,4
Robin	1	6	1	3,00	118,1	3,00	118,1	3,00	0,118	9,0	0,354	42,41	83,7
Raven	1/0	6	1	3,37	132,7	3,37	132,7	3,37	0,133	10,1	0,398	53,55	105,7
Quail	2/0	6	1	3,78	148,9	3,78	148,9	3,78	0,149	11,4	0,447	67,40	133
Pigeon	3/0	6	1	4,25	167,2	4,25	167,2	4,25	0,167	12,7	0,502	85,00	167,7
Auk	203	8	7	4,05	159,3	2,25	88,6	6,75	0,266	14,8	0,584	102,9	203
Penguin	4/0	6	1	4,77	187,8	4,77	187,8	4,77	0,188	14,3	0,563	107,2	211,6
Coyote	260	26	7	2,54	100,0	1,98	78,0	5,94	0,234	16,1	0,634	131,7	260
Waxwing	266,8	18	1	3,09	121,7	3,09	121,7	3,09	0,122	15,5	0,608	135,1	266,8
Owl	266,8	6	7	5,36	211,0	1,79	70,5	5,37	0,211	16,1	0,633	135,4	266,8
Partridge	266,8	26	7	2,57	101,3	2,00	78,8	6,01	0,236	16,3	0,642	135,2	266,8
Phoebe	300	18	1	3,28	129,1	3,28	129,1	3,28	0,129	16,4	0,646	152,1	300,2
Ostrich	300	26	7	2,73	107,4	2,12	83,5	6,36	0,251	17,3	0,680	152,0	299,9
Piper	300	30	7	2,54	100	2,54	100	7,62	0,3	17,8	0,700	152,0	300
Merlin	336,4	18	1	3,47	136,7	3,47	136,7	3,47	0,137	17,4	0,683	170,4	336,4
Linnet	336,4	26	7	2,89	113,7	2,25	88,4	6,74	0,265	18,3	0,720	170,3	336,4
Oriole	336,4	30	7	2,69	105,9	2,69	105,9	8,07	0,318	18,8	0,741	170,5	336,4
Chickadee	397,5	18	1	3,77	148,6	3,77	148,6	3,77	0,149	18,9	0,743	201,4	397,5
Brant	397,5	24	7	3,27	128,7	2,18	85,8	6,54	0,257	19,6	0,772	201,4	397,5

Get a free quote by e-mail: info@qingzhou-cable.com

ACSR Conductor Parameter- U.S.A- ASTM B 232

ACSR conductor-ASTM B 232/B 232M
Code	Stranding		Stranding			Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	AL	Steel	AL	Steel	Total	Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	No.xmm	No.xmm	mm^2	mm^2	mm^2	mm	Kg/Km	KN	Ω/Km	A
Turkey	13.3	2.22	6/1.68	1/1.68	5.04	15.52	53.6	4.98	2.1499	76
Swan	21.18	3.53	6/2.12	1/2.12	6.36	24.71	85.3	7.83	1.3501	101
Swanate	21.12	5.35	7/1.96	1/2.61	6.53	26.47	99.6	9.79	1.3539	102
Sparrow	33.59	5.6	6/2.67	1/2.67	8.01	39.19	135.7	11.92	0.8512	135
Sparate	33.54	8.55	7/2.47	1/3.30	8.24	42.09	158.7	15.08	0.8525	135
Robin	42.41	7.07	6/3.00	1/3.00	9	49.48	171.1	14.86	0.6742	156
Raven	53.52	8.92	6/3.37	1/3.37	10.11	62.44	216.1	18.33	0.5343	180
Quail	67.33	11.22	6/3.78	1/3.78	11.34	78.55	272	22.46	0.4247	207
Pigeon	85.12	14.19	6/4.25	1/4.25	12.75	99.31	343	28.02	0.3359	239
Penguin	107.22	17.87	6/4.77	1/4.77	14.31	125.09	432.7	35.36	0.2667	275
Waxwing	134.98	7.5	18/3.09	1/3.09	15.45	142.48	430.2	29.8	0.2129	313
Partridge	134.87	21.99	26/2.57	7/2.00	16.28	156.86	545.9	47.15	0.2141	316
Ostrich	152.19	24.71	26/2.73	7/2.12	17.28	176.9	613.4	53.38	0.1897	341
Merlin	170.22	9.46	18/3.47	1/3.47	17.35	179.68	542.8	37.36	0.1688	361
Linnet	170.55	27.83	26/2.89	7/2.25	18.31	198.38	687.5	59.16	0.1693	365
Oriole	170.5	39.78	30/2.69	7/2.69	18.83	210.28	783.3	72.06	0.1698	367
Chickadee	200.93	11.16	18/3.77	1/3.77	18.85	212.09	641.3	43.15	0.143	400
Brant	201.56	26.13	24/3.27	7/2.18	19.62	227.69	761	61.83	0.1433	403
Ibis	201.34	32.73	26/3.14	7/2.44	19.88	234.07	812.4	68.05	0.1434	404
Lark	200.9	46.88	30/2.92	7/2.92	20.44	247.78	925.2	84.07	0.1441	406
Pelican	242.31	13.46	18/4.14	1/4.14	20.7	255.77	769.7	51.15	0.1186	448
Flicker	241.58	31.4	24/3.58	7/2.39	21.49	272.98	913.5	72.06	0.1195	450
Hawk	241.65	39.19	26/3.44	7/2.67	21.77	280.84	975.1	81.84	0.1195	451
Hen	241.27	56.3	30/3.20	7/3.20	22.4	297.57	1110.6	98.3	0.12	453
Osprey	282.47	15.69	18/4.47	1/4.47	22.35	298.16	897.7	59.6	0.1017	492
Parakeet	282.31	36.6	24/3.87	7/2.58	23.22	318.91	1065.6	83.18	0.1023	495
Dove	282.59	45.92	26/3.72	7/2.89	23.55	328.51	1138.6	94.3	0.1022	497
Eagle	282.07	65.82	30/3.46	7/3.46	24.22	347.89	1295.6	114.76	0.1026	499
Peacock	306.13	39.78	24/4.03	7/2.69	24.19	345.91	1158.9	90.74	0.0943	520
Squab	305.83	49.81	26/3.87	7/3.01	24.51	355.64	1237	101.41	0.0944	521
Wood Duck	307.06	71.65	30/3.61	7/3.61	25.27	378.71	1408.4	121.43	0.0943	525
Teal*	307.06	69.62	30/3.61	19/2.16	25.24	376.68	1396.6	124.54	0.0943	525
Kingbird	323.01	17.95	18/4.78	1/4.78	23.9	340.96	1026.6	68.05	0.089	533
Swift	323.02	8.97	36/3.38	1 /3.38	23.66	331.99	956.5	60.05	0.089	532
Rook	323.07	41.88	24/4.14	7/2.76	24.84	364.95	1217.5	95.19	0.0894	537
Grosbeak	321.84	52.49	26/3.97	7/3.09	25.15	374.33	1300.8	104.97	0.0897	537
Scoter	322.56	75.26	30/3.70	7/3.70	25.9	397.82	1480.7	127.66	0.0897	541
Egret*	322.56	73.54	30/3.70	19/2.22	25.9	396.1	1469	130.77	0.0897	541
Flamingo	337.27	43.72	24/4.23	7/2.82	25.38	380.99	1276.6	99.64	0.0856	551
Gannet	338.26	54.9	26/4.07	7/3.16	25.76	393.16	1363.3	110.31	0.0854	553
Stilt	363.27	46.88	24/4.39	7/2.92	26.32	410.15	1370.4	107.2	0.0795	576
Starling	361.93	59.15	26/4.21	7/3.28	26.68	421.08	1463.7	118.32	0.0798	577
Redwing*	362.06	82.41	30/3.92	19/2.35	27.43	444.47	1650.6	143.23	0.0799	580
Coot	401.86	11.16	36/3.77	1/3.77	26.39	413.02	1195.8	73.39	0.0715	607
Tern	403.77	27.83	45/3.38	7/2.25	27.03	431.6	1331.8	94.3	0.0715	610
Condor	402.33	52.15	54/3.08	7/3.08	27.72	454.48	1520.7	118.32	0.0718	612
Cuckoo	402.33	52.15	24/4.62	7/3.08	27.72	454.48	1522.2	117.43	0.0718	612
Drake	402.56	65.44	26/4.44	7/3.45	28.11	468	1626.4	131.66	0.0717	615
Mallard*	403.84	91.78	26/4.44	7/3.45	28.96	495.62	1836	159.24	0.0717	619
Ruddy	455.5	31.67	45/3.59	7/2.40	28.74	487.17	1507.3	104.53	0.0634	656
Canary	456.28	59.15	54/3.28	7/3.28	29.52	515.43	1723.1	134.33	0.0633	660
Catbird	484.61	13.46	36/4.14	1/4.14	28.98	498.07	1434.4	86.74	0.0593	679
Rail	483.84	33.54	45/3.70	7/2.47	29.61	517.38	1598.1	110.76	0.0597	680
Cardinal	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Cardinal	484.53	62.81	54/3.38	7/3.38	30.42	547.34	1825.9	142.34	0.0596	685
Tanager	522.79	14.52	36/4.30	1/4.30	30.1	537.31	1553.5	93.85	0.055	710
Orotlan	523.87	36.31	45/3.85	7/2.57	30.81	560.18	1730.5	118.32	0.0551	713
Curlew	522.51	67.73	54/3.51	7/3.51	31.59	590.24	1977.6	153.9	0.0553	716
Bluejay	565.49	38.9	45/4.00	7/2.66	31.98	604.39	1866	127.66	0.0511	745
Finch*	565.03	71.57	54/3.65	19/2.19	32.85	636.6	2127.8	164.58	0.0514	748
Bunting	605.76	41.88	45/4.14	7/2.76	33.12	647.64	1996.9	136.55	0.0477	776
Grackle*	602.79	76.89	54/3.77	19/2.27	33.97	679.68	2278.1	176.59	0.0481	777
Skylark	646.02	17.95	36/4.78	1/4.78	33.46	663.97	1913.6	115.65	0.0445	804
Bittern	644.4	44.66	45/4.27	7/2.85	34.17	689.06	2130.8	145.89	0.0448	805
Pheasant*	645.08	81.71	54/3.90	19/2.34	35.1	726.79	2431.4	183.26	0.045	808
Dipper	684.24	47.2	45/4.40	7/2.93	35.19	731.44	2263.2	154.79	0.0422	834
Martin*	685.39	86.67	54/4.02	19/2.41	36.17	772.06	2581.7	194.82	0.0423	838
Bobolink	725.27	50.14	45/4.53	7/3.02	36.24	775.41	2397.2	164.13	0.0398	862
Plover*	726.92	91.78	54/4.14	19/2.48	37.24	818.7	2734.9	206.39	0.0399	866
Nuthatch	764.2	52.83	45/4.65	7/3.10	37.2	817.03	2529.6	171.25	0.0378	888
Parrot*	766.06	97.03	54/4.25	19/2.55	38.25	863.09	2883.7	217.51	0.0379	892
Lapwing	807.53	55.6	45/4.78	7/3.18	38.22	863.13	2663.5	180.14	0.0358	916
Falcon*	806.23	102.43	54/4.36	19/2.62	39.26	908.66	3038.5	229.52	0.036	919
Chukar*	903.18	73.54	84/3.70	19/2.22	40.7	976.72	3083.1	217.51	0.0321	976
Bluebird*	1092.84	88.84	84/4.07	19/2.44	44.76	1181.68	3731.9	256.65	0.0266	1083
Kiwi*	1099.76	47.52	72/4.41	7/2.94	44.1	1147.28	3423.9	215.28	0.0264	1083
Thrasher*	1171.42	63.94	76/4.43	19/2.07	45.79	1235.36	3754.2	243.75	0.0248	1122
Grouse**	40.54	14.12	8/2.54	1/4.24	9.32	54.66	221.4	21.75	0.7089	153
Petrel**	51.61	30.1	12/2.34	7/2.34	11.7	81.71	377.7	42.08	0.5595	181
Minorca**	56.11	32.73	12/2.44	7/2.44	12.2	88.84	411.1	45.81	0.5146	191
Leghorn**	68.2	39.78	12/2.69	7/2.69	13.45	107.98	499.2	55.16	0.4234	215
Guinea**	80.36	46.88	12/2.92	7/2.92	14.6	127.24	589.7	64.94	0.3593	238
Dotterel**	89.41	52.15	12/3.08	7/3.08	15.4	141.56	656.1	70.28	0.323	254
Dorking**	96.51	56.3	12/3.20	7/3.20	16	152.81	707.8	75.62	0.2992	267
Cochin**	107.04	62.44	12/3.37	7/3.37	16.85	169.48	783.9	84.07	0.2698	284
Brahma&*	102.79	91.78	12/3.37	7/3.37	18.12	194.57	1003.8	114.76	0.2809	283

Get a free quote by e-mail: info@qingzhou-cable.com

ACSR Conductor Parameter- BS 215-2 Standard

ACSR conductor-BS 215-2
Code	Nominal Area				Stranding		Overall Diameter		Weight(CU)			Rated Strength	Electrical Resistance @20o
	AL		Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	Nominal	Teorical	Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	mm^2	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	mm	Kg/Km	Kg/Km	Kg/Km	KN	Ω/Km
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	1.5	4.5	29	14	43	4.14	2.706
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	2.11	6.33	57	28	85	7.88	1.368
Gopher	25	26.24	4.38	30.62	6/2.36	1/2.36	2.36	7.08	71	35	106	9.61	1.093
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	2.59	7.77	87	41	128	11.45	0.9077
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	2.79	8.37	101	48	149	13.2	0.7822
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	3	9	117	55	172	15.2	0.6766
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	3.35	10.05	145	69	214	18.35	0.5426
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	3.66	10.98	171	84	255	2.18	0.4545
Shunk	60	63.27	37.03	100.3	12/2.59	7/2.59	7.77	12.95	178	287	465	5.3	0.4567
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	3.99	11.97	203	99	302	2.57	0.3825
Horse	70	73.37	42.63	116.2	12/2.79	7/2.79	8.37	13.95	203	335	538	61.2	0.3936
Racoon	75	79.2	13.2	92.4	6/4.1	1/4.1	4.1	12.3	216	104	320	27.2	0.3622
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	4.22	13.98	226	113	339	28.8	0.3419
Cat	90	95.44	15.86	111.3	6/4.5	1/4.5	4.5	15.9	258	128	386	32.7	0.3007
Hare	100	105	17.5	122.5	6/4.72	1/4.72	4.72	17.5	284	141	425	36	0.2733
Dog	100	105	13.5	118.5	6/4.72	7/1.57	4.71	14.15	288	106	394	32.7	0.2733
Hyena	100	105.8	20.4	126.2	7/4.39	7/1.93	5.79	14.57	250	200	450	40.9	0.2712
Leoperd	125	131.3	16.8	148.1	8/5.28	7/1.75	5.25	15.81	310	182	492	40.7	0.2184
Coyotte	125	132.1	20.1	152.2	26/2.54	7/1.91	5.73	15.89	410	112	522	46.4	0.2187
Congar	125	130.3	7.2	137.5	18/3.05	1/3.05	3.05	15.25	361	58	419	29.8	0.2189
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	7.08	16.52	365	237	602	58	0.2202
Wolf	150	158.1	36.8	194.9	30/2.59	7/2.59	7.77	18.13	441	285	726	69.2	0.1828
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	3.35	16.75	437	69	506	35.7	0.1815
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	8.37	19.53	507	335	842	79.8	0.1576
Caracal	175	184.3	10.2	194.5	18/3.61	1/3.61	3.61	18.05	507	80	587	41.1	0.1563
Panther	200	212.1	49.4	261.5	30/3.00	7/3.00	9	21	586	388	974	92.25	0.1363
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	3.86	19.3	580	91	671	46.55	0.1367
Lion	225	238.5	55.7	294.2	30/3.18	7/3.18	9.54	22.26	657	438	1095	100.6	0.1212
Bear	250	264	61.6	325.6	30/3.35	7/3.35	10.05	23.45	728	485	1213	111.1	0.109
Goat	300	324.3	75.7	400	30/3.71	7/3.71	11.13	25.79	894	595	1489	135.7	0.0891
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	11.97	27.93	1031	687	1718	155.9	0.077
Antilope	350	373.1	48.4	421.5	54/2.97	7/2.97	8.91	26.73	1040	371	1411	118.2	0.0772
Bizon	350	381.8	49.5	431.3	54/3.00	7/3.00	9	27	1064	380	1444	120.9	0.7573
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	9.54	28.62	1185	436	1621	131.9	0.0674

Get a free quote by e-mail:info@qingzhou-cable.com

ACSR conductor-IEC 61089 Standard

ACSR conductor-IEC 61089
Code	Nominal Area			Stranding		Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
Code	AL	Steel	Total	AL	Steel	Overall Diameter	Weight	Breakign Load	Electrical Resistance @20o	Current Rating*
	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	Kg/Km	KN	Ω/Km	A
16	16	2.67	18.7	6/1.84	1/1.84	5.52	64.6	6.08	1.7934	85
25	25	4.17	29.2	6/2.30	1/2.30	6.9	100.9	9.13	1.1478	112
40	40	6.67	46.7	6/2.91	1/2.91	8.73	161.5	14.4	0.7174	150
63	63	10.5	73.5	6/3.66	1/3.66	10.98	254.4	21.63	0.4555	198
100	100	16.7	117	6/4.61	1/4.61	13.83	403.8	34.33	0.2869	263
125	125	6.94	132	18/2.97	1/2.97	14.85	397.9	29.17	0.2304	299
125	125	20.4	145	26/2.47	7/1.92	15.64	503.9	45.69	0.231	302
160	160	8.89	169	18/3.36	1/3.36	16.8	509.3	36.18	0.18	347
160	160	26.1	186	26/2.80	7/2.18	17.74	644.9	57.69	0.1805	351
200	200	11.1	211	18/3.76	1/3.76	18.8	636.7	44.22	0.144	398
200	200	32.6	233	26/3.13	7/2.43	19.81	806.2	70.13	0.1444	402
250	250	24.6	275	22/3.80	7/2.11	21.53	880.6	68.72	0.1154	458
250	250	40.7	291	26/3.50	7/2.72	22.16	1007.7	87.67	0.1155	461
315	315	21.8	337	45/2.99	7/1.99	23.91	1039.6	79.03	0.0917	526
315	315	51.3	366	26/3.93	7/3.05	24.87	1269.7	106.83	0.0917	530
400	400	27.7	428	45/3.36	7/2.24	26.88	1320.1	98.36	0.0722	607
400	400	51.9	452	54/3.07	7/3.07	27.63	1510.3	123.04	0.0723	610
450	450	31.1	481	45/3.57	7/2.38	28.56	1485.2	107.47	0.0642	651
450	450	58.3	508	54/3.26	7/3.26	29.34	1699.1	138.42	0.0643	655
500	500	34.6	535	45/3.76	7/2.51	30.09	1650.2	119.41	0.0578	693
500	500	64.8	565	54/3.43	7/3.43	30.87	1887.9	153.8	0.0578	697
560	560	38.7	599	45/3.98	7/2.65	31.83	1848.2	133.74	0.0516	741
560*	560	70.9	631	54/3.63	19/2.18	32.68	2103.4	172.59	0.0516	745
630	630	43.6	674	45/4.22	7/2.81	33.75	2079.2	150.45	0.0459	794
630*	630	79.8	710	54/3.85	19/2.31	34.65	2366.3	191.77	0.0459	798
710	710	49.1	759	45/4.48	7/2.99	35.85	2343.2	169.56	0.0407	851
710*	710	89.9	800	54/4.09	19/2.45	36.79	2666.8	216.12	0.0407	856
800*	800	34.6	835	72/3.76	7/2.51	37.61	2480.2	167.41	0.0361	910
800*	800	66.7	867	84/3.48	7/3.48	38.28	2732.7	205.33	0.0362	912
800*	800	101	901	54/4.34	19/2.61	39.09	3004.9	243.52	0.0362	916
900*	900	38.9	939	72/3.99	7/2.66	39.9	2790.2	188.33	0.0321	972
900*	900	75	975	84/3.69	7/3.69	40.59	3074.2	226.5	0.0322	974
1000*	1000	43.2	1043	72/4.21	7/2.80	42.08	3100.3	209.26	0.0289	1031
1120*	1120	47.3	1167	72/4.45	19/1.78	44.5	3464.9	234.53	0.0258	1096
1120*	1120	91.2	1211	84/4.12	19/2.47	45.31	3811.5	283.17	0.0258	1100
1250*	1250	102	1352	84/4.35	19/2.61	47.85	4253.9	316.04	0.0232	1165
1250*	1250	52.8	1303	72/4.70	19/1.88	47	3867.1	261.75	0.0231	1163

Get a free quote by e-mail:info@qingzhou-cable.com

ACSR Conductor Parameter- DIN 48204 Standard

ACSR Technical characteristics / DIN 48204
Area				Standing and wire diameter		Overall diameter		Nominal breaking load	Maximum resistance at 20°C	Current Rating
Nominal.	Actual			Standing and wire diameter			Total.
Al/Steel--	Al	Steel	Total	Aluminum	Steel		Total.
Al/Steel--	mm2	mm2	mm2	mm	mm	mm	kg/km	daN	Ω/km	A
16/2.5	15.1515	2.22	18.1818	6/1.80	1/1.80	5.55	62	595	2.22222	105
25/4.0	24.2424	4.44	28.2828	6/2.25	1/2.5	7.77	97	920	1.11111	140
35/6.0	34.3434	6.66	40.4040	6/2.70	1/2.70	8.88	140	1265	1.11111	170
44/32.0	44.4444	32.3232	76.7676	14/2.00	7/2.40	11.1111	372	4500	1.11111	220
50/8.0	48.4848	8.88	56.5656	6/3.20	1/3.20	10.1010	196	1710	1.11111	210
50/30	51.5151	30.3030	81.8181	12/2.33	7/2.33	12.1212	378	4380	1.11111	223
70/12	70.7070	11.1111	81.8181	26/1.85	7/1.44	12.1212	284	2680	0.00000	290
95/15	94.9494	15.1515	110.110110	26/2.15	7/1.67	14.1414	383	3575	0.00000	350
95/55	96.9696	56.5656	153.153153	12/3.20	7/3.20	16.1616	712	7935	0.00000	352
105/75	106.106106	76.7676	182.182182	14/3.10	9/2.25	18.1818	891	10845	0.00000	385
120/20	121.121121	20.2020	141.141141	26/2.44	7/1.90	16.1616	494	4565	0.00000	410
120/70	122.122122	71.7171	193.193193	12/3.60	7/3.60	18.1818	90	10000	0.00000	410
125/30	128.128128	30.3030	158.158158	30/2.33	7/2.33	16.1616	591	5760	0.00000	425
150/25	149.149149	24.2424	173.173173	26/2.70	7/2.10	17.1717	605	5525	0.00000	470
170/40	172.172172	40.4040	212.212212	30/2.70	7/2.70	19.1919	794	7675	0.00000	520
185/30	184.184184	30.3030	214.214214	26/3.00	7/2.33	19.1919	746	6620	0.00000	535
210/35	209.209209	34.3434	243.243243	26/3.20	7/2.49	20.2020	850	7490	0.00000	590
210/50	212.212212	50.5050	262.262262	30/3.00	7/3.00	21.2121	981	9390	0.00000	610
230/30	231.231231	30.3030	261.261261	24/3.50	7/2.33	21.2121	877	7310	0.00000	630
240/40	243.243243	40.4040	282.282282	26/3.45	7/2.68	22.2222	987	8640	0.00000	645
265/35	264.264264	34.3434	298.298298	24/3.74	7/2.49	22.2222	1002	8305	0.00000	680
300/50	304.304304	50.5050	354.354354	26/3.86	7/3.00	24.2424	1236	10700	0.00000	740
305/40	305.305305	40.4040	344.344344	54/2.68	7/2.68	24.2424	1160	9940	0.00000	740
340/30	339.339339	30.3030	369.369369	48/3.00	7/2.33	25.2525	1180	9290	0.00000	790
380/50	382.382382	50.5050	432.432432	54/3.00	7/3.00	27.2727	1453	12310	0.00000	840
385/35	386.386386	34.3434	420.420420	48/3.20	7/2.49	27.2727	1344	10480	0.00000	850
435/55	434.434434	59.5959	491.491491	54/3.20	7/3.20	29.2929	1653	13645	0.00000	900
450/40	449.449449	40.4040	488.488488	48/3.45	7/2.68	29.2929	1561	12075	0.00000	920
490/65	490.490490	64.6464	554.554554	54/3.40	7/3.40	31.3131	1866	15310	0.00000	960
495/35	494.494494	34.3434	528.528528	45/3.74	7/2.49	30.3030	1646	12180	0.00000	968
510/45	510.510510	45.4545	556.556556	48/3.68	7/2.87	31.3131	1778	13665	0.00000	980
550/70	550.550550	71.7171	621.621621	54/3.60	7/3.60	32.3232	2092	17060	0.00000	1020
560/50	562.562562	50.5050	611.611611	48/3.86	7/3.00	32.3232	1954	14895	0.00000	1040
570/40	566.566566	40.4040	610.610610	45/4.00	7/2.68	32.3232	1888	13900	0.00000	1040
650/45	698.698698	45.4545	653.653653	45/4.30	7/2.87	34.3434	2163	15552	0.00000	1280
680/85	679.679679	86.8686	765.765765	54/4.00	19/2.40	36.3636	2570	21040	0.00000	1150
1045/45	1046.10461046	45.4545	1091.10911091	72/4.30	7/2.87	43.4343	3249	21787	0.00000	1570

Get a free quote by e-mail:info@qingzhou-cable.com

Related Products

If you don´t find a suitable cable, we will design it for you acc. to your individual requests. Send Inquiry Now:

E-mail: info@qingzhou-cable.com or WhatsApp/WeChat: 0086 186 2550 3172

Pre：0.6/1kv/11kv/15kv/33kv overhead electrical bundle cable

Next：dz7r aerial conductor cables

*Describe Your Buying Requirements in Detail
