AL/CU XLPE Insulated Armored & Non-armored underground Power Cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

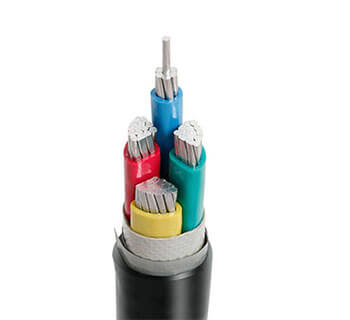

Low Voltage & Medium Voltage XLPE Insulated Non-armored and Armoured Underground Power Cable

Application:

XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 600~1000v 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

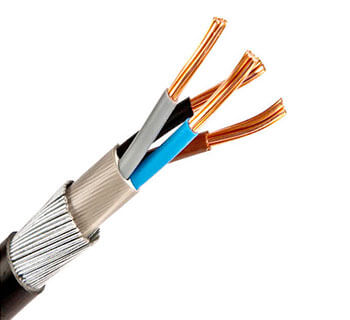

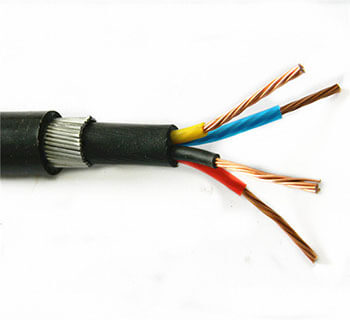

The range of hard-wearing steel wire armour (SWA) and aluminium wire armour (AWA) XLPE insulated cables is manufactured in accordance with IEC 60502-1 and is designed for use in applications where there is a risk of mechanical stress and where protection is required against mechanical damage. It is commonly used for the supply of mains electricity and for auxiliary control cables in diverse environments including aerial power networks, outdoors, indoors, underground systems and in cable ducting. The SWA armour means these are direct burial cables - suitable for installation directly into free draining soil as they are protected from damage should be they accidentally hit. These cables are suitable for use clipped directly onto a surface, on a tray, in a basket or in free air.

0.6/1kV XLPE Insulated Unarmoured/Armoured Cable	Core	Armor
Cu or Al/XLPE/PVC Power Cable	Single Core	No
Cu or Al/XLPE/AWA/PVC Power Cable	Single Core	AWA
Cu or Al/XLPE/PVC Power Cable	Two Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Two Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Two Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Three Cores	No
Cu or Al/XLPE/PVC Power Cable	Three Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Three Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Four Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Four Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Four Cores	SWA
Cu or Al/XLPE/PVC Power Cable	4+1 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	4+1 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	4+1 Cores	SWA
Cu or Al/XLPE/PVC Power Cable	Five Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	Five Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	Five Cores	SWA
Cu or Al/XLPE/PVC Power Cable	3+2 Cores	No
Cu or Al/XLPE/STA/PVC Power Cable	3+2 Cores	STA
Cu or Al/XLPE/SWA/PVC Power Cable	3+2 Cores	SWA

Voltage rating for XLPE Power Cable	No. x Nominal Cross Section of Conductor No. x mm2
Voltage rating for XLPE Power Cable	1 core	2 core	3 core	3+1 core	4core	3+2 core	4+1 core	5 core
0.6/1 kV	1x4 mm2	2x4 mm2	3x4 mm2	3x4 mm2 + 1x2.5mm2	4x4 mm2	3x4 mm2 + 2x2.5mm2	4x4 mm2 + 1x2.5mm2	5x2.5 mm2
	1x6 mm2	2x6 mm2	3x6 mm2	3x6 mm2 + 1x4 mm2	4x6 mm2	3x6 mm2 + 2x4 mm2	4x6 mm2 + 1x4 mm2	5x4 mm2
	1x10 mm2	2x10 mm2	3x10 mm2	3x10 mm2 + 1x6 mm2	4x10 mm2	3x10 mm2 + 2x6 mm2	4x10 mm2 + 1x6 mm2	5x6 mm2
	1x16 mm2	2x16 mm2	3x16mm2	3x16 mm2 + 1x10 mm2	4x16 mm2	3x16 mm2 + 2x10 mm2	4x16 mm2 + 1x10 mm2	5x10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	3x25 mm2 + 1x16mm2	4x25 mm2	3x25 mm2 + 2x16mm2	4x25 mm2 + 1x16mm2	5x16 mm2
	1x35 mm2	2x35 mm2	3x 35 mm2	3x35 mm2 + 1x16mm2	4x35 mm2	3x35 mm2 + 2x16mm2	4x35 mm2 + 1x16mm2	5x25 mm2
	1x50 mm2	2x50 mm2	3x 50 mm2	3x50 mm2 + 1x25mm2	4x50 mm2	3x50 mm2 + 2x25mm2	4x50 mm2 + 1x25mm2	5x35 mm2
	1x70 mm2	2x70 mm2	3x 70 mm2	3x70 mm2 + 1x35mm2	4x70 mm2	3x70 mm2 + 2x35mm2	4x70 mm2 + 1x35mm2	5x50 mm2
	1x95 mm2	2x95 mm2	3x 95 mm2	3x95 mm2 + 1x50mm2	4x95 mm2	3x95 mm2 + 2x50mm2	4x95 mm2 + 1x50mm2	5x70 mm2
	1x120 mm2	2x120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4x120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5x95 mm2
	1x150 mm2	2x150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4x150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
	1x185 mm2	2x185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4x185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
	1x240 mm2		3x 240 mm2	3x240mm2 + 1x120mm2	4x240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
	1x300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4x300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
	1x400 mm2
	1x500 mm2

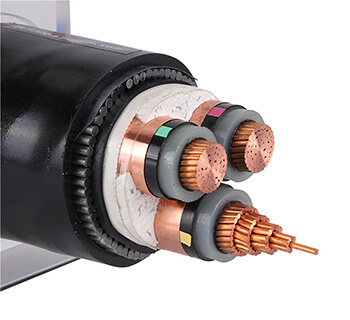

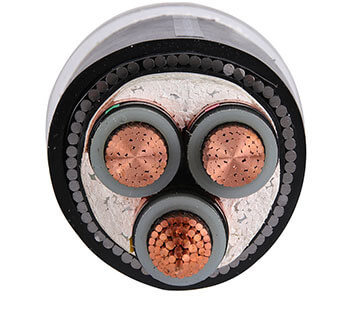

Medium Voltage XLPE Insulated Armoured Power Cable

3.6/6(7.2)kV, 3.8/6.6(7.2)kV, 6/10(12)kV,6.35/11(12)kV, 8.7/10(15)kV,8.7/15(17.5)kV, 12/20(22)kV,12.7/22(24)kV, 12.7/22(24)kV,18/30(36)kV, 19/33(36)kV XLPE Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
	Aluminum	Copper	XLPE	SW	ST	DST	AW	PVC	PE
Cu/XLPE/PVC		P	P	---	---	---	---	P
Cu/ XLPE /PE		P	P	---	---	---	---		P
Al/ XLPE /PVC	P		P	---	---	---	---	P
Al/ XLPE /PE	P		P	---	---	---	---		P
Cu/ XLPE /STA/PVC		P	P	---	P	---	---	P
Cu/ XLPE /STA/PE		P	P	---	P	---	---		P
Al/ XLPE /STA/PVC	P		P	---	P	---	---	P
Al/ XLPE /STA/PE	P		P	---	P	---	---		P
Cu/ XLPE /DSTA/PVC		P	P	---	---	P	---	P
Cu/ XLPE /DSTA/PE		P	P	---	---	P	---		P
Al/ XLPE /DSTA/PVC	P		P	---	---	P	---	P
Al/ XLPE /DSTA/PE	P		P	---	---	P	---		P
Cu/ XLPE /SWA/PVC		P	P	P	---	---	---	P
Cu/ XLPE /SWA/PE		P	P	P	---	---	---		P
Al/PVC/SWA/PVC	P		P	P	---	---	---	P
Al/PVC/SWA/PE	P		P	P	---	---	---		P
Cu/PVC/AWA/PVC		P	P	---	---	---	P	P
Cu/PVC/AWA/PE		P	P	---	---	---	P		P
Al/PVC/AWA/PVC	P		P	---	---	---	P	P
Al/PVC/AWA/PE	P		P	---	---	---	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Voltage rating for Medium Voltage XLPE Power Cable	No. x Nominal Cross Section of Conductor No. x mm2
Voltage rating for Medium Voltage XLPE Power Cable	1 core	3 core
3.6/6(7.2)kV 3.6/6.6(7.2) kV, 6/10(12)kV 8.7/10(12)kV, 8.7/15(17.5)kV 12/20(24)kV 18/30(36)kV 19/33(36)kV 21/35(40.5)kV 26/35(40.5)kV	1x 25 mm2	3x 25 mm2
	1x35 mm2	3x 35 mm2
	1x50 mm2	3x 50 mm2
	1x70 mm2	3x 70 mm2
	1x95 mm2	3x 95 mm2
	1x120 mm2	3x 120 mm2
	1x150 mm2	3x 150 mm2
	1x185 mm2	3x 185 mm2
	1x240 mm2	3x 240 mm2
	1x300 mm2	3x 300 mm2
	1x400 mm2	3x 400 mm2
	1x500 mm2	3x 500 mm2
	1x630 mm2

BS_5467_Armoured_Power_Cables_1900_3300V.pdf

BS_5467_EEMUA_133_Lead_covered_armoured_Power_Cables_to_600_1000V.pdf

BS_5467_EEMUA_133_Lead_covered_armoured_Power_Cables_to_1900_3300V.pdf

BS_5467_Armoured_Power_Cables_0.6-1KV.pdf

IEC_60502-1_600_1000V_XLPE_Insulated_Cables.pdf

IEC_60502-1_600_1000V_XLPE_Insulated_Lead_Sheathed_Cables.pdf

BS_8573_Five_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS_8573.pdf

BS_6724_LSOH_Armoured_Power_Cables_1900_3300V.pdf

BS_6724_LSOH_Armoured_Power_Cables_600_1000V.pdf

BS_8573_Four_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS 8573.pdf

BS_8573_Single_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables.pdf

BS_8573_Three_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS_8573.pdf

BS_8573_Two_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables.pdf

IEC60502_BS_6622_BS_7835_Three_Core_Medium_Voltage_Power_Cable_Armored_Unarmored.pdf

BS6622_BS7835_Single_Core_Medium_Voltage_Power_Cables_Armored_Unarmored.pdf

IEC_60502_mv_Single_Core_Cables_Armored_Unarmored.pdf

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

Conductor dimensions (mm2)	Insulation thickness (mm)	Nonmetallic sheath, unarmored cable
		Sheath thickness					Outer diameter (approximate)					Cable weight (Kg/km)
		mm					mm					Copper core					Aluminum core
		1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C
1.5	0.7	1.4	1.8	1.8	1.8	1.8	5.6	10.0	10.4	11.1	11.9	45	122	139	167	195	35	103	111	506	148
2.5	0.7	1.4	1.8	1.8	1.8	1.8	6.0	10.8	11.2	12.1	13.0	57	148	175	215	253	42	117	129	641	175
4	0.7	1.4	1.8	1.8	1.8	1.8	6.5	11.7	12.3	13.2	14.3	75	185	228	285	337	50	135	153	833	212
6	0.7	1.4	1.8	1.8	1.8	1.8	7.0	12.7	13.4	14.4	15.6	97	239	295	373	445	60	165	183	1086	258
10	0.7	1.4	1.8	1.8	1.8	1.8	8.1	15.0	15.8	17.2	18.7	143	346	445	568	681	80	220	256	1629	366
16	0.7	1.4	1.8	1.8	1.8	1.8	9.2	17.2	18.2	19.8	21.7	206	494	660	835	1008	106	292	358	2377	505
25	0.9	1.4	1.8	1.8	1.8	1.8	10.6	20.0	21.2	23.2	25.5	303	711	951	1217	1483	146	396	479	3457	696
35	0.9	1.4	1.8	1.8	1.8	1.8	11.8	22.4	23.8	26.1	28.7	403	919	1267	1598	1959	185	478	606	4528	858
50	1.0	1.4	1.8	1.8	1.9	2.0	13.2	25.2	26.8	29.7	32.9	554	1188	1675	2209	2733	241	558	731	6190	1160
70	1.1	1.4	1.9	1.9	2.0	2.1	15.0	22.2	25.7	30.0	36.2	755	1564	2260	2987	3735	317	683	939	8348	1533
95	1.1	1.5	2.0	2.0	2.1	2.3	16.9	25.2	29.1	34.2	40.3	1004	2069	3003	3977	4975	409	874	1210	11091	1987
120	1.2	1.5	2.1	2.1	2.3	2.4	18.5	28.2	32.4	37.2	44.7	1250	2592	3763	4983	6228	498	1082	1498	13880	2453
150	1.4	1.6	2.2	2.3	2.4	2.6	20.6	31.0	36.2	41.2	50.3	1558	3214	4700	6202	7777	619	1327	1869	17280	3059
185	1.6	1.6	2.3	2.4	2.6	2.8	22.7	36.8	40.4	46.2	58.6	1908	3978	5779	7655	9623	750	1650	2287	21355	3803
240	1.7	1.7	2.5	2.6	2.8	3.0	25.3	41.6	47.4	53.3	63.1	2450	5104	7456	9859	12326	947	2084	2926	27399	4776
300	1.8	1.8	2.7	2.8	3.0	3.2	27.9	46.4	50.1	59.4	68.2	3043	6328	9234	12260	15291	1163	2541	3554	33997	5824
400	2.0	1.9		3.1	3.3	3.6	31.6		57.2	68.4	83.1	4021		12224	16240	20305	1514		4651	36685	7683
500	2.2	2.0		3.3	3.3		35.0		74.2	82.2		5002		15136	20176		1869		5849	7554
630	2.4	2.2					39.3					6290					2342
800	2.6	2.3					44.8					7957					2943
1000	2.8	2.4					49.9					9897					3629

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

Conductor dimensions (mm2)		Insulation thickness (mm)		Nonmetallic sheath, unarmored cable
				Sheath thickness			Outer diameter (approximate)			Cable weight (Kg/km)
				mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	1.8	1.8	1.8	11.9	12.6	12.8	206	229	253	—	—	—
4	2.5	0.7	0.7	1.8	1.8	1.8	12.9	13.7	14.0	268	302	323	178	196	197
6	4.0	0.7	0.7	1.8	1.8	1.8	14.2	15.1	15.4	352	402	428	215	240	237
10	6.0	0.7	0.7	1.8	1.8	1.8	16.5	17.5	18.1	517	584	645	290	321	328
16	10.0	0.7	0.7	1.8	1.8	1.8	19.2	20.5	21.1	761	865	955	396	437	444
25	16.0	0.9	0.7	1.8	1.8	1.8	22.4	23.9	24.7	1110	1278	1406	538	605	606
35	16.0	0.9	0.7	1.8	1.8	1.8	24.6	25.9	27.3	1402	1558	1805	647	709	731
50	25.0	1.0	0.9	1.8	1.9	1.9	28.0	29.9	31.3	1943	2243	2531	842	984	975
70	35.0	1.1	0.9	1.9	2.0	2.1	29.5	33.2	34.4	2645	3038	3412	1101	1273	1234
95	50.0	1.1	1.0	2.1	2.2	2.2	33.2	37.8	38.7	3554	4105	4551	1443	1679	1579
120	70.0	1.2	1.1	2.2	2.3	2.4	36.3	41.6	43.6	4504	5265	5791	1793	2112	1993
150	70.0	1.4	1.1	2.3	2.4	2.5	39.7	45.9	47.9	5425	6200	7018	2147	2480	2380
185	95.0	1.6	1.1	2.5	2.6	2.7	45.4	51.4	53.3	6781	7792	8720	2683	3095	2946
240	120.0	1.7	1.2	2.7	2.8	2.9	53.0	58.6	60.1	8708	9960	11172	3412	3907	3701
300	150.0	1.8	1.4	2.9	3.0	3.1	58.3	65.4	62.9	10818	12394	13827	4192	4823	4480
400	185.0	2.0	1.6	3.1	3.3	3.4	67.5	74.2	67.8	14163	16132	18093	5423	6225	5725

0.6/1KV XLPE/PVC Power cable (steel wire armored) YJV32, YJLV32

Conductor dimensions (mm2)	nsulation thickness (mm)	Armored wire cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	14.2	14.6	15.3	16.1	343	367	414	445	324	339	377	399
2.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	15.0	15.4	16.3	17.2	317	421	485	528	286	374	423	450
4	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	1.25	1.8	1.8	1.8	1.8	15.9	16.5	17.4	19.4	369	497	576	782	319	422	476	658
6	0.7	1.0	1.0	1.0	1.0	0.8	0.8	1.25	1.25	1.8	1.8	1.8	1.8	16.9	17.6	19.5	20.7	443	587	816	929	368	475	666	742
10	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.8	1.8	1.8	1.8	20.1	20.9	22.3	23.8	720	927	1098	1284	595	738	847	969
16	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.6	1.6	1.8	1.8	1.8	1.8	22.3	23.3	25.6	27.5	925	1217	1588	1831	723	915	1186	1328
25	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	25.8	27.0	29.0	31.3	1350	1746	2091	2455	1035	1274	1462	1669
35	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.9	1.9	28.2	29.6	32.1	34.7	1642	2161	2586	3096	1202	1500	1705	1995
50	1.0	1.0	1.0	1.0	1.2	1.6	1.6	1.6	2.0	1.8	1.9	2.0	2.1	31.0	32.8	35.7	40.1	2053	2685	3322	4332	1424	1741	2064	2759
70	1.1	1.0	1.2	1.2	1.2	1.6	2.0	2.0	2.0	2.0	2.0	2.2	2.3	28.2	32.9	37.4	43.6	2272	3484	4417	5448	1389	2160	2651	3242
95	1.1	1.2	1.2	1.2	1.4	2.0	2.0	2.0	2.5	2.1	2.2	2.3	2.5	32.4	36.5	41.6	49.5	3126	4374	5571	7465	1929	2577	3175	4471
120	1.2	1.2	1.2	1.4	1.4	2.0	2.0	2.5	2.5	2.2	2.3	2.5	2.6	35.4	39.8	46.4	53.9	3755	5291	7287	8986	2241	3021	4260	5203
150	1.4	1.2	1.4	1.4	1.4	2.0	2.5	2.5	2.5	2.3	2.5	2.7	2.8	38.2	45.4	50.6	59.5	4485	6912	8738	10850	2594	4075	4955	6121
185	1.6	1.4	1.4	1.4	1.6	2.5	2.5	2.5	2.5	2.5	2.6	2.8	3.0	46.0	49.6	55.4	68.2	5999	8243	10431	13220	3666	4743	5766	7388
240	1.7	1.4	1.6	1.6	1.6	2.5	2.5	2.5	3.15	2.7	2.8	3.0	3.3	50.8	57.0	62.9	74.2	7325	10375	13098	17103	4298	5835	7045	9537
300	1.8	1.6	1.6	1.6	1.8	2.5	2.5	2.5	3.15	2.9	3.0	3.2	3.5	56.0	59.7	69.0	79.7	8805	12311	15861	20414	5018	6631	8287	10947
400	2.0		1.6	1.8			2.5	3.15			3.3	3.6			66.8	79.9			15679	21307			8105	11209
500	2.2		1.8				3.15				3.5				85.5				20806				11339

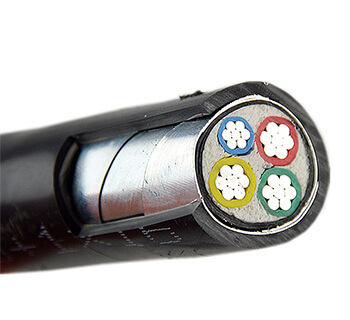

0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)	nsulation thickness (mm)	Steel tape armoured cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	11.8	12.2	12.9	13.7	215	236	274	308	196	208	237	261
2.5	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	12.6	13.0	13.9	14.8	250	281	333	378	218	234	271	300
4	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	13.5	14.1	15.0	16.1	296	346	412	475	246	271	312	351
6	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	14.5	15.2	16.2	17.4	361	424	513	597	286	312	363	410
10	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	16.8	17.6	19.0	20.5	492	600	737	866	366	411	485	552
16	0.7	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	19.0	20.0	21.6	23.5	663	840	1032	1225	462	538	629	722
25	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.8	21.8	23.0	25.0	27.3	910	1162	1450	1740	595	690	821	954
35	0.9	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.8	1.9	24.2	25.6	27.9	30.7	1155	1506	1861	2265	715	845	980	1164
50	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	0.2	1.8	1.8	1.9	2.0	27.0	28.6	31.5	34.7	1507	1947	2510	3067	877	1003	1252	1494
70	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.2	0.5	1.9	2.0	2.1	2.2	24.0	27.7	32.0	40.0	1809	2531	3304	4549	927	1207	1539	2342
95	1.1	0.9	1.2	1.2	1.2	0.2	0.5	0.5	0.5	2.0	2.2	2.3	2.4	27.0	33.1	38.2	44.1	2347	3673	4764	5877	1149	1876	2368	2882
120	1.2	1.2	1.2	1.2	1.2	0.5	0.5	0.5	0.5	2.2	2.3	2.4	2.6	32.0	36.4	41.0	48.7	3256	4507	5815	7249	1743	2238	2789	3466
150	1.4	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.3	2.4	2.6	2.7	34.8	40.0	45.6	54.5	3951	5509	7189	8953	2060	2672	3406	4225
185	1.6	1.2	1.2	1.4	1.4	0.5	0.5	0.5	0.5	2.4	2.6	2.7	2.9	40.6	44.4	50.4	62.8	4844	6701	8734	10990	2511	3202	4068	5158
240	1.7	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.6	2.7	2.9	3.1	45.8	51.6	57.5	67.3	6127	8563	11100	13794	3100	4023	5047	6228
300	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	0.5	2.8	2.9	3.1	3.4	50.6	54.3	63.6	72.6	7408	10400	13640	16907	3622	4719	6067	7440
400	2.0		1.4	1.4			0.5	0.5			3.2	3.4			61.4	72.6			13550	17825			5976	7727
500			1.4				0.5				3.4				78.4				17038				7571

0.6/1KV XLPE/PVC Power cable (steel wire armored) YJV32, YJLV22

Conductor dimensions (mm2)		Insulation thickness (mm)		Armored wire cable
				PVC bedding thickness			Armored wire outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	1.0	1.0	1.0	0.8	0.8	0.8	1.8	1.8	1.8	16.1	16.8	17.0	468	504	533	—	—	—
4	2.5	0.7	0.7	1.0	1.0	1.0	0.8	1.25	1.25	1.8	1.8	1.8	17.1	18.8	19.1	549	730	753	458	624	638
6	4.0	0.7	0.7	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	19.3	20.2	20.5	794	869	907	657	707	733
10	6.0	0.7	0.7	1.0	1.0	1.0	1.25	1.25	1.25	1.8	1.8	1.8	21.6	22.6	23.2	1023	1117	1201	797	853	912
16	10.0	0.7	0.7	1.0	1.0	1.0	1.25	1.6	1.6	1.8	1.8	1.8	24.3	26.3	26.9	1345	1640	1749	980	1212	1284
25	16.0	0.9	0.7	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.8	28.2	29.7	30.5	1946	2172	2322	1374	1499	1592
35	16.0	0.9	0.7	1.0	1.0	1.0	1.6	1.6	1.6	1.8	1.8	1.9	30.4	31.7	33.3	2317	2515	2835	1562	1665	1859
50	25.0	1.0	0.9	1.0	1.0	1.2	1.6	1.6	2.0	1.9	2.0	2.1	34.0	35.9	38.7	2994	3357	4021	1893	2098	2605
70	35.0	1.1	0.9	1.2	1.2	1.2	2.0	2.0	2.0	2.1	2.1	2.2	36.9	40.4	41.6	4044	4577	5014	2499	2813	3029
95	50.0	1.1	1.0	1.2	1.2	1.2	2.0	2.0	2.0	2.2	2.3	2.4	40.4	45.0	46.1	5095	5837	6362	2984	3411	3651
120	70.0	1.2	1.1	1.2	1.4	1.4	2.0	2.5	2.5	2.4	2.5	2.6	43.7	50.8	52.8	6193	7821	8453	3482	4668	4985
150	70.0	1.4	1.1	1.4	1.4	1.4	2.5	2.5	2.5	2.5	2.6	2.7	48.9	55.1	57.1	7839	8969	9893	4560	5249	5669
185	95.0	1.6	1.1	1.4	1.4	1.6	2.5	2.5	2.5	2.7	2.8	2.9	54.6	60.6	62.9	9506	10871	11997	5408	6174	6732
240	120.0	1.7	1.2	1.6	1.6	1.6	2.5	2.5	2.5	2.9	3.0	3.1	62.6	68.2	69.7	11941	13507	14820	6645	7454	8010
300	150.0	1.8	1.4	1.6	1.6	1.6	2.5	2.5	3.15	3.1	3.2	3.4	67.9	75.0	74.0	14363	16353	18430	7737	8781	9911
400	185.0	2.0	1.6	1.6	1.8	1.8	3.15	3.15	3.15	3.4	3.5	3.7	78.6	85.5	79.3	19145	21623	23153	10405	11716	11889

0.6/1KV XLPE/PVC Power cable (steel tape armored) YJV22, YJLV22

Conductor dimensions (mm2)		Insulation thickness (mm)		Steel tape armoured cable
				PVC bedding thickness			Armored wire outer diameter			Sheath thickness			Outer diameter (approximate)			Cable weight (approximate) (Kg/km)			Cable weight (approximate) (Kg/km)
				mm			mm			mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	13.9	14.6	15.1	254	280	307	—	—	—
4	2.5	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	15.2	15.8	16.3	322	357	381	232	251	266
6	4.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	16.4	17.1	17.6	410	461	491	273	299	316
10	6.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	18.6	19.8	20.4	582	655	718	356	392	429
16	10.0	0.7	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	21.0	22.3	23.0	834	943	1036	469	516	570
25	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.5	26.3	27.3	1198	1374	1506	625	700	776
35	16.0	0.9	0.7	0.9	0.9	0.9	0.2	0.2	0.2	1.8	1.8	1.8	24.2	27.5	27.6	1477	1655	1896	722	805	921
50	25.0	1.0	0.9	0.9	0.9	0.9	0.2	0.2	0.2	1.9	1.9	2.0	28.7	31.1	32.4	2052	2351	2657	950	1092	1241
70	35.0	1.1	0.9	0.9	0.9	1.2	0.2	0.2	0.5	2.0	2.1	2.2	31.9	35.9	38.3	2775	3186	3621	1231	1421	1635
95	50.0	1.1	1.0	1.2	1.2	1.2	0.5	0.5	0.5	2.2	2.3	2.3	37.1	41.7	42.6	3756	4333	4784	1645	1907	2073
120	70.0	1.2	1.1	1.2	1.2	1.2	0.5	0.5	0.5	2.3	2.4	2.5	40.2	45.5	47.5	4724	5514	6053	2013	2362	2585
150	70.0	1.4	1.1	1.2	1.2	1.4	0.5	0.5	0.5	2.5	2.5	2.6	43.8	50.2	52.3	5684	6479	7351	2406	2759	3126
185	95.0	1.6	1.1	1.4	1.4	1.4	0.5	0.5	0.5	2.6	2.7	2.8	49.8	55.7	57.7	7098	8147	9089	3000	3450	3824
240	120.0	1.7	1.2	1.4	1.4	1.4	0.5	0.5	0.5	2.8	2.9	3.0	57.4	62.8	64.5	9075	10362	11586	3779	4309	4776
300	150.0	1.8	1.4	1.4	1.4	1.4	0.5	0.5	0.5	3.0	3.1	3.2	62.3	73.5	75.6	11216	12895	14381	4590	5324	5862
400	185.0	2.0	1.6	1.4	1.4	1.4	0.5	0.5	0.8	3.3	3.4	3.6	74.0	81.2	76.2	14688	16680	18656	5948	6774	7391

1.8/3 (3.6) KV XLPE/PVC single core (non-armored) YJV, YJLV

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)
10	Compact round	3.9	2.0	0.12	1.4	12.9	252	189	500
16	Compact round	5.0	2.0	0.12	1.4	14.0	326	226	500
25	Compact round	6.0	2.0	0.12	1.4	15.0	426	269	500
35	Compact round	7.2	2.0	0.12	1.4	16.2	538	319	500
50	Compact round	8.4	2.0	0.12	1.5	17.6	702	390	500
70	Compact round	10.0	2.0	0.12	1.5	19.2	914	475	500
95	Compact round	11.7	2.0	0.12	1.6	21.1	1181	586	500
120	Compact round	13.1	2.0	0.12	1.6	22.5	1433	681	500
150	Compact round	14.6	2.0	0.12	1.7	24.2	1743	803	500
185	Compact round	16.3	2.0	0.12	1.7	25.9	2091	933	500
240	Compact round	18.5	2.0	0.12	1.8	28.3	2643	1140	500
300	Compact round	20.7	2.0	0.12	1.9	30.7	3244	1364	500
400	Compact round	23.8	2.0	0.12	2.0	34.0	4225	1718	500
500	Compact round	26.6	2.2	0.12	2.1	37.4	5227	2093	500
630	Compact round	30.1	2.4	0.12	2.2	41.5	6523	2574	500
800	Compact round	35.0	2.6	0.12	2.3	47.0	8221	3207	500
1000	Milliken conductor	39.5	2.8	0.12	2.5	52.3	10371	4104	500

1.8/3 (3.6) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)
10	Compact round	3.9	2.0	0.1	1.8	22.8	700	511	500
16	Compact round	5.0	2.0	0.1	1.8	25.2	964	662	500
25	Compact round	6.0	2.0	0.1	1.8	27.3	1255	783	500
35	Compact round	7.2	2.0	0.1	1.9	30.1	1623	962	500
50	Compact round	8.4	2.0	0.1	2.0	32.9	2016	1072	500
70	Compact round	10.0	2.0	0.1	2.1	36.6	2660	1336	500
95	Compact round	11.7	2.0	0.1	2.2	40.4	3444	1647	500
120	Compact round	13.1	2.0	0.1	2.3	43.6	4216	1946	500
150	Compact round	14.6	2.0	0.1	2.4	47.1	5141	2304	500
185	Compact round	16.3	2.0	0.1	2.5	50.9	6207	2707	500
240	Compact round	18.5	2.0	0.1	2.7	56.1	7874	3335	500
300	Compact round	20.7	2.0	0.1	2.8	61.0	9666	3986	500
400	Compact round	23.8	2.0	0.1	3.1	68.3	12659	5086	500
500	Compact round	26.6	2.2	0.1	3.3	75.6	15695	6228	500

1.8/3 (3.6)KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)
10	Compact round	3.9	2.0	0.1	1.2	1.6	1.8	29.0	1640	1451	500
16	Compact round	5.0	2.0	0.1	1.2	1.6	1.9	31.6	2010	1708	500
25	Compact round	6.0	2.0	0.1	1.2	1.6	2.0	33.9	2407	1935	500
35	Compact round	7.2	2.0	0.1	1.2	2.0	2.1	37.5	3123	2462	500
50	Compact round	8.4	2.0	0.1	1.2	2.0	2.2	40.3	3652	2709	500
70	Compact round	10.0	2.0	0.1	1.2	2.0	2.3	44.0	4469	3145	500
95	Compact round	11.7	2.0	0.1	1.3	2.5	2.5	49.6	6012	4215	500
120	Compact round	13.1	2.0	0.1	1.3	2.5	2.6	52.8	6995	4725	500
150	Compact round	14.6	2.0	0.1	1.4	2.5	2.7	56.5	8160	5323	500
185	Compact round	16.3	2.0	0.1	1.5	2.5	2.8	60.5	9474	5974	500
240	Compact round	18.5	2.0	0.1	1.6	2.5	3.0	65.9	11498	6958	500
300	Compact round	20.7	2.0	0.1	1.7	2.5	3.2	71.2	13636	7956	500
400	Compact round	23.8	2.0	0.1	1.8	3.15	3.5	80.0	18022	10448	500
500	Compact round	26.6	2.2	0.1	1.9	3.15	3.7	87.5	21634	12167	500

1.8/3 (3.6)KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22

Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)	Insulation resistance 20°C (Min) (MΩ/km)
Cross sectional area (mm2)	Structure	Oute diameter (mm)
10	Compact round	3.9	2.0	0.1	1.2	0.2	1.8	26.0	988	799	500
16	Compact round	5.0	2.0	0.1	1.2	0.2	1.8	28.4	1281	979	500
25	Compact round	6.0	2.0	0.1	1.2	0.2	1.9	30.7	1613	1141	500
35	Compact round	7.2	2.0	0.1	1.2	0.2	2.0	33.5	2015	1354	500
50	Compact round	8.4	2.0	0.1	1.2	0.2	2.1	36.3	2443	1499	500
70	Compact round	10.0	2.0	0.1	1.2	0.5	2.2	41.2	3520	2196	500
95	Compact round	11.7	2.0	0.1	1.3	0.5	2.3	45.2	4412	2615	500
120	Compact round	13.1	2.0	0.1	1.3	0.5	2.4	48.4	5257	2987	500
150	Compact round	14.6	2.0	0.1	1.4	0.5	2.6	52.3	6312	3475	500
185	Compact round	16.3	2.0	0.1	1.5	0.5	2.7	56.3	7496	3997	500
240	Compact round	18.5	2.0	0.1	1.6	0.5	2.9	61.7	9319	4780	500
300	Compact round	20.7	2.0	0.1	1.7	0.5	3.0	66.8	11265	5585	500
400	Compact round	23.8	2.0	0.1	1.8	0.5	3.3	74.3	14476	6903	500
500	Compact round	26.6	2.2	0.1	1.9	0.5	3.5	81.8	17738	8271	500

Matching Products

*Describe Your Buying Requirements in Detail
