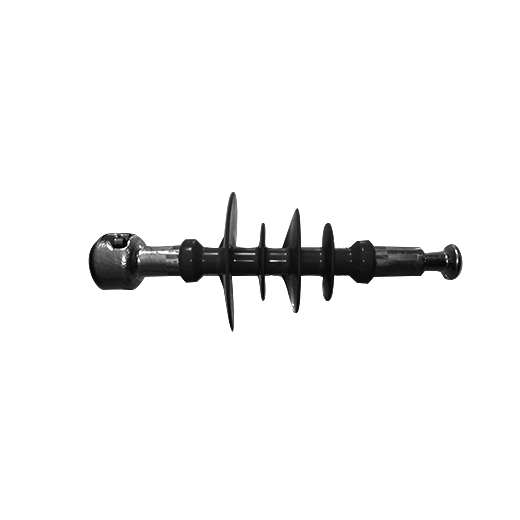

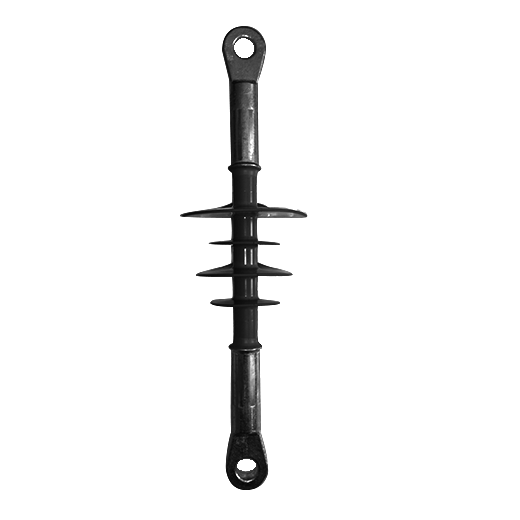

TRANSMISSION SUSPENSION / TENSION INSULATOR

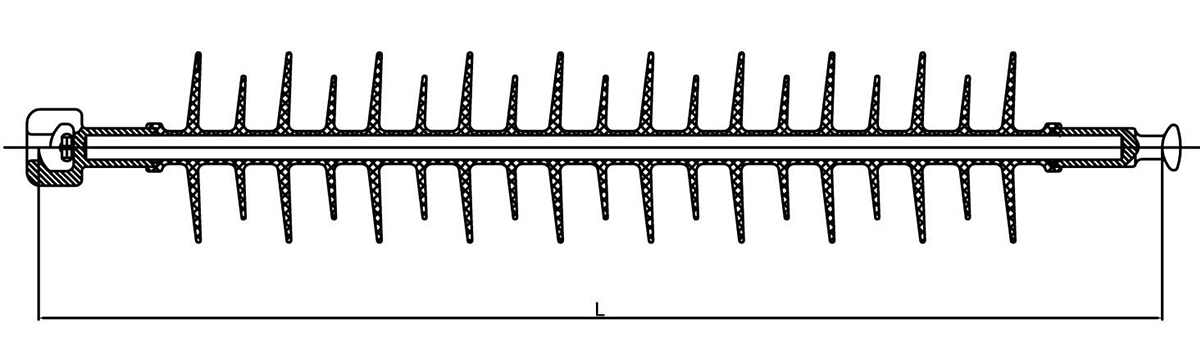

Main Technical date for Long rod insulator up to 500kV

Send E-mail Get Price Now

Main Technical date for Long rod insulator up to 500kV

Typical line voltage (kV)	Type	Section length(mm)	Arcing distance(mm)	Creepage distance (mm)	Specified mechanical load (kn)	Lightning impulse flashover voltage (kv)		Power frequency flashover voltage (kv)
Typical line voltage (kV)	Type	Section length(mm)	Arcing distance(mm)	Creepage distance (mm)	Specified mechanical load (kn)	Pos	Neg	Dry	Wet
66kV	CS120SB570/2497	1087	922	2497	120	570	585	205	185
66kV	CS160SB570/2513	1159	916	2513	160	570	585	205	185
66kV	CS120SB565/2977	1080	918	2977	120	565	580	205	185
66kV	CS70SB365/2003	721	628	2003	70	365	350	210	190
66kV	CS70SB385/2142	754	661	2142	70	385	370	225	205
66kV	CS70SB405/2247	787	694	2247	70	405	390	235	215
66kV	CS70SB425/2386	820	727	2386	70	425	410	250	225
132kV	CS120SB760/3425	1383	1218	3425	120	760	780	275	250
132kV	CS210SB760/3441	1455	1212	3441	210	760	780	275	250
132kV	CS120SB790/3657	1457	1292	3657	120	790	815	280	255
132kV	CS120SB835/3889	1531	1366	3889	120	835	860	295	265
132kV	CS210SB835/3905	1603	1360	3905	210	835	860	295	265
132kV	CS120SB835/4605	1528	1366	4605	120	835	860	295	265
132kV	CS120SB885/4121	1605	1440	4121	120	885	910	310	280
132kV	CS210SB930/4369	1751	1508	4369	210	930	955	325	295
132kV	CS120SB975/4585	1753	1588	4585	120	975	1005	345	310
132kV	CS120SB975/5419	1752	1590	5419	120	975	1005	345	310
132kV	CS120SB1060/5049	1901	1736	5049	120	1060	1090	360	325
132kV	CS210SB1020/4833	1899	1656	4833	210	1020	1050	360	325
132kV	CS210SB1105/5297	2047	1804	5297	210	1105	1140	375	340
132kV	CS120SB1105/6233	1976	1814	6233	120	1105	1140	375	340
220kV	CS120SB1150/5513	2049	1884	5513	120	1150	1185	385	350
132kV	CS210SB1150/5529	2121	1878	5529	210	1150	1185	385	350
220kV	CS120SB1195/5745	2123	1958	5745	120	1195	1230	405	365
220kV	CS210SB1195/5761	2195	1952	5761	210	1195	1230	405	365
220kV	CS120SB1240/5977	2197	2032	5977	120	1240	1275	420	380
220kV	CS210SB1240/5993	2269	2026	5993	210	1240	1275	420	380
220kV	CS120SB1245/7047	2200	2038	7047	120	1245	1280	420	380
220kV	CS210SB1285/6225	2343	2100	6225	210	1285	1325	435	395
220kV	CS120SB1315/7454	2312	2150	7454	120	1315	1355	445	400
275kV	CS120SB1335/6441	2345	2180	6441	120	1335	1375	455	410
275kV	CS120SB1470/7369	2641	2476	7369	120	1470	1515	465	420
275kV	CS210SB1380/6689	2491	2248	6689	210	1380	1420	470	425
275kV	CS120SB1380/7861	2424	2262	7861	120	1380	1420	470	425
275kV	CS120SB1475/8675	2648	2486	8675	120	1475	1520	475	430
275kV	CS120SB1425/6905	2493	2328	6905	120	1425	1470	480	435
275kV	CS210SB1515/7617	2787	2544	7617	210	1515	1560	480	435
330kV	CS120SB1560/7833	2789	2624	7833	120	1560	1650	500	450
330kV	CS210SB1560/7849	2861	2618	7849	210	1560	1605	500	450
330kV	CS120SB1610/9489	2287	2710	9489	120	1610	1660	510	460
330kV	CS120SB1645/8297	2937	2772	8297	120	1645	1695	520	470
330kV	CS210SB1645/8313	3009	2766	8313	210	1645	1695	520	470
330kV	CS120SB1735/8761	3085	2920	8761	120	1735	1785	555	500
330kV	CS210SB1735/8777	3157	2914	8777	210	1735	1785	555	500
330kV	CS120SB1740/10303	3096	2934	10303	120	1740	1790	55	500
330kV	CS210SB1780/9009	3231	2988	9009	210	1780	1835	565	510
330kV	CS120SB1810/10710	3208	3046	10710	120	1810	1865	575	520
400kV	CS120SB1825/9225	3233	3068	9225	120	1825	1880	580	525
400kV	CS210SB1870/9473	3379	3136	9473	210	1870	1925	595	535
400kV	CS120SB1965/10153	3529	3364	10153	120	1965	2025	600	540
400kV	CS210SB2005/10401	3675	3432	10401	210	2005	2065	610	550
400kV	CS120SB1945/11524	3432	3270	11524	120	1945	2005	620	560
400kV	CS210SB1960/9937	3527	3284	9937	210	1960	2020	625	565
400kV	CS120SB2040/12338	3656	3494	12338	120	2040	2100	625	565
400kV	CS210SB2095/10865	3823	3580	10865	210	2095	2160	635	575
400kV	CS120SB2135/11081	3825	3660	11081	120	2135	2200	650	585
400kV	CS210SB2180/11329	3971	3728	11329	210	2180	2245	660	595
400kV	CS120SB2170/12152	3880	3718	13152	120	2170	2235	660	595
400kV	CS210SB2270/11793	4119	3876	11793	210	2270	2340	685	620
400kV	CS120SB2425/13152	4104	3942	13966	120	2425	2500	1470	1325
400kV	CS120SB2435/12009	4121	3956	12009	120	2435	2510	1475	1330
400kV	CS210SB2485/12257	4267	4042	12257	210	2485	2560	1505	1355
500kV	CS120SB2575/12705	4343	4178	12705	120	2575	2655	1560	1405
500kV	CS120SB2625/12937	4417	4252	12937	120	2625	2705	1580	1425
500kV	CS210SB2620/12953	4489	4246	12953	210	2620	2700	1580	1425
500kV	CS120SB2640/15187	4440	4287	15187	120	2640	2720	1595	1435
500kV	CS120SB2670/13169	4491	4326	13169	120	2670	2750	1610	1450
500kV	CS120SB2715/13401	4565	44006	13401	120	2715	2795	1635	14
