Application

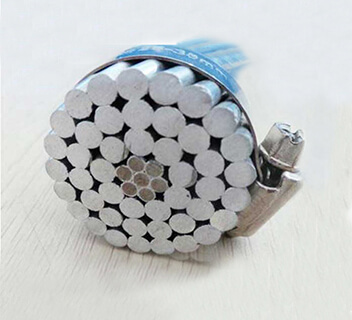

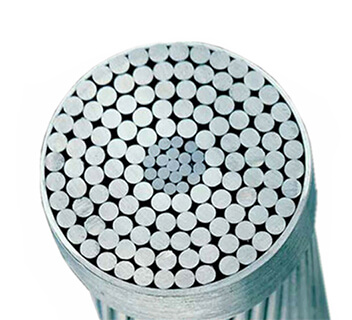

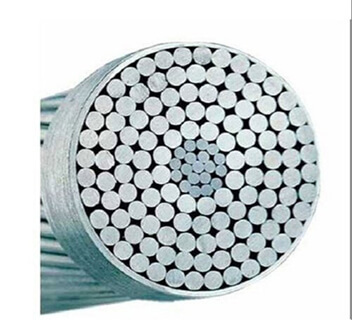

zinc–5 % aluminummischmetal (Zn–5Al–MM) alloy-coated, steel core wire for use in Overhead Electrical Conductors. ACSS ACSS/TW The high temperature low sag solution
Specification
ASTM B802 803 958
Class
Round, high strength, extra-high-strength, and ultra-high-strength, Class A B C coated
Features
operates continuously at high temperatures up to 250°C, with proper steel coating, ensuring maximum utilization and performance; standard coating for high temperature operation is a Zn-5% Al Mischmetal coating so that customers can take full advantage of the 250°C continuous operating temperature rating. Galvanized coatings are rated only 180°C for continuous operation.
Zn-5Al-MM Alloy Coating (Metric)
Specified Diameter of Coated Wire, mm | Area Density of Coating, min.g/m2 of Uncoated Wire Surface | |
Class A | Class C | |
Class A | Class C | |
1.27 to 1.52, incl | 183 | 549 |
1.53 to 1.90, incl | 198 | 594 |
1.91 to 2.28, incl | 214 | 642 |
2.29 to 2.64, incl | 229 | 687 |
2.65 to 3.04, incl | 244 | 732 |
3.05 to 3.55, incl | 259 | 777 |
3.56 to 4.57, incl | 274 | 822 |
Normal Grade Tensile Requirements (Metric)
Specified Diameter, mm | Stress at 1 % Extension, min, MPa | Ultimate Tensile Strength, min, MPa | Elongation in 250 mm, min, %
| |||
Class A | Class C | Class A | Class C | Class A | Class C | |
1.27 to 2.28, incl | 1310 | 1170 | 1450 | 1310 | 3.0 | 3.0 |
2.29 to 3.04, incl | 1280 | 1140 | 1410 | 1280 | 3.5 | 3.0 |
3.05 to 3.55, incl | 1240 | 1100 | 1410 | 1280 | 4.0 | 3.0 |
3.56 to 4.82, incl | 1170 | 1070 | 1380 | 1240 | 4.0 | 4.0 |
Grade 4 Extra-High-Strength Tensile Requirements (Metric)
Specified Diameter, mm | Stress at 1% Extension, | Ultimate Tensile Strength, | Elongation in 250 mm, min % |
min, MPa | min, MPa | ||
1.27 to 2.28, incl | 1550 | 1825 | 3.0 |
2.29 to 3.04, incl | 1515 | 1790 | 3.0 |
3.05 to 3.55, incl | 1480 | 1760 | 3.5 |
3.56 to 4.82, incl | 1450 | 1725 | 3.5 |
Grade 5 Ultra-High-Strength Tensile Requirements (Metric)
Specified Diameter, mm | Stress at 1% Extension, | Ultimate Tensile Strength, | Elongation in 250 mm, min % |
min, MPa | min, MPa | ||
1.27 to 2.28, incl | 1580 | 1965 | 3.0 |
2.29 to 3.04, incl | 1550 | 1900 | 3.0 |
3.05 to 3.55, incl | 1515 | 1860 | 3.5 |
3.56 to 4.82, incl | 1480 | 1825 | 3.5 |
