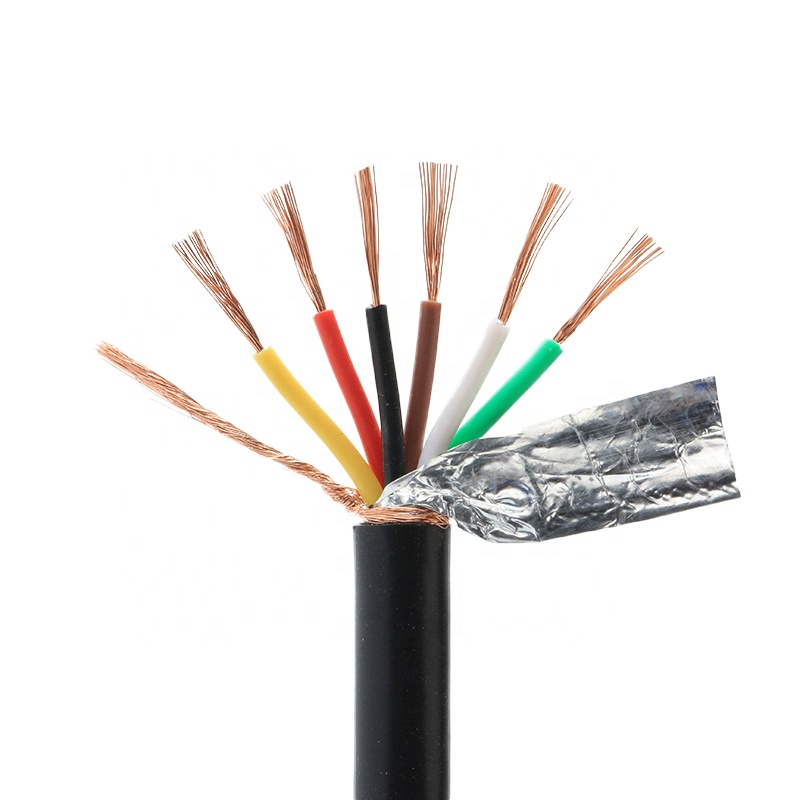

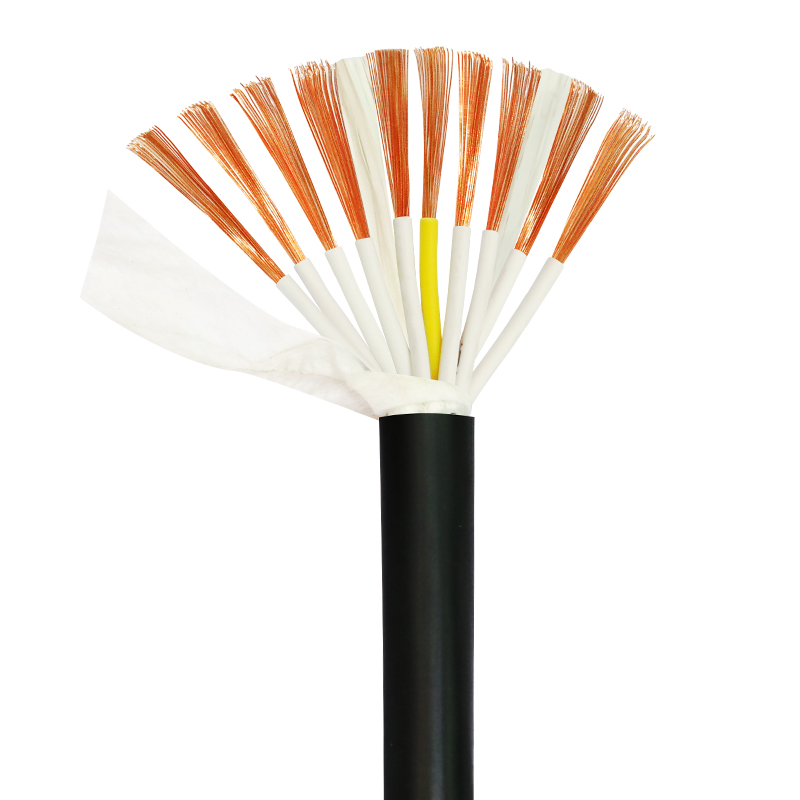

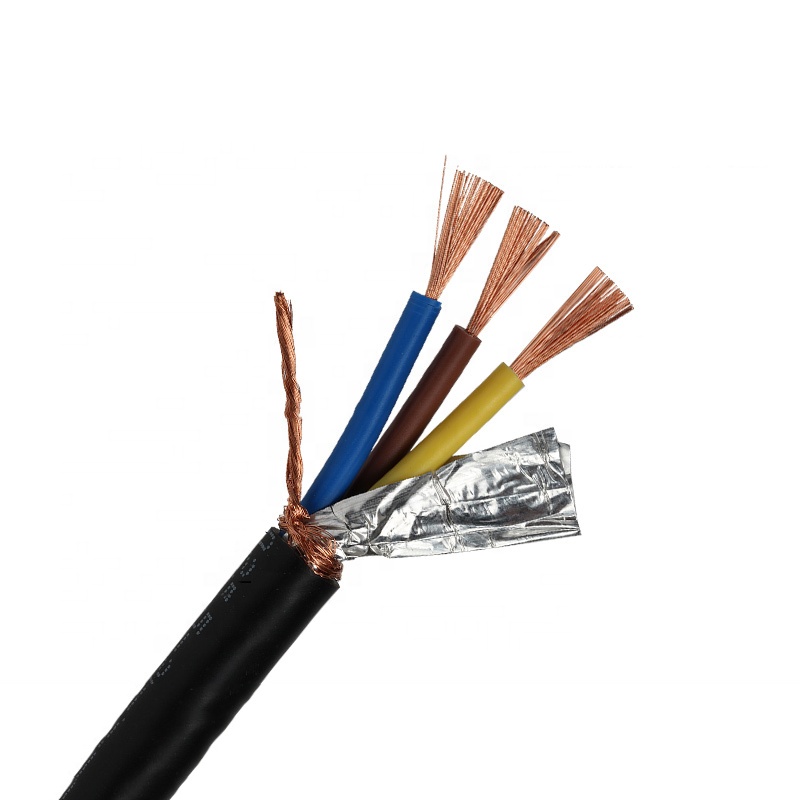

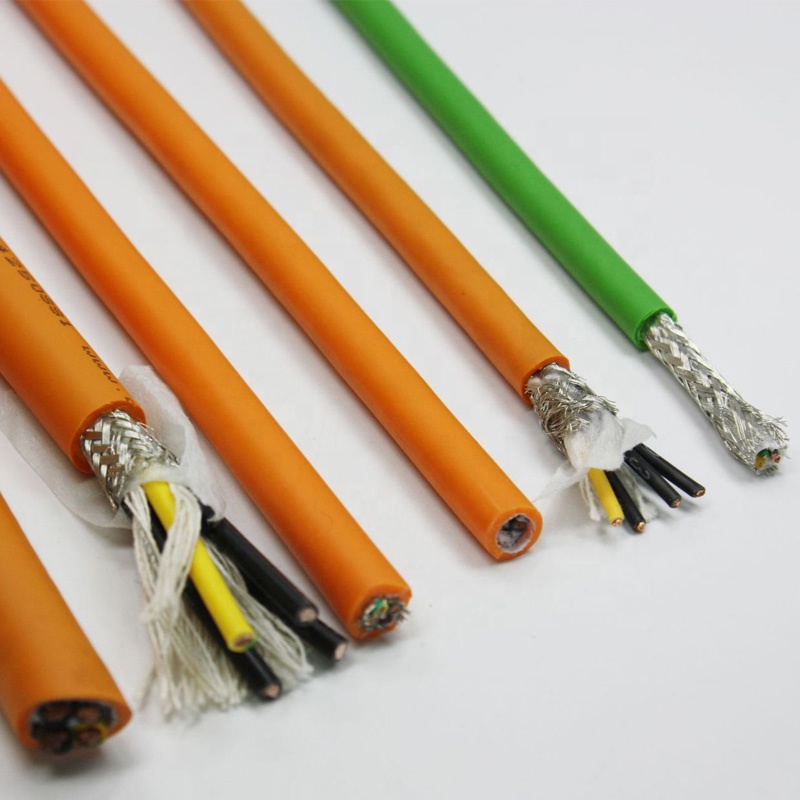

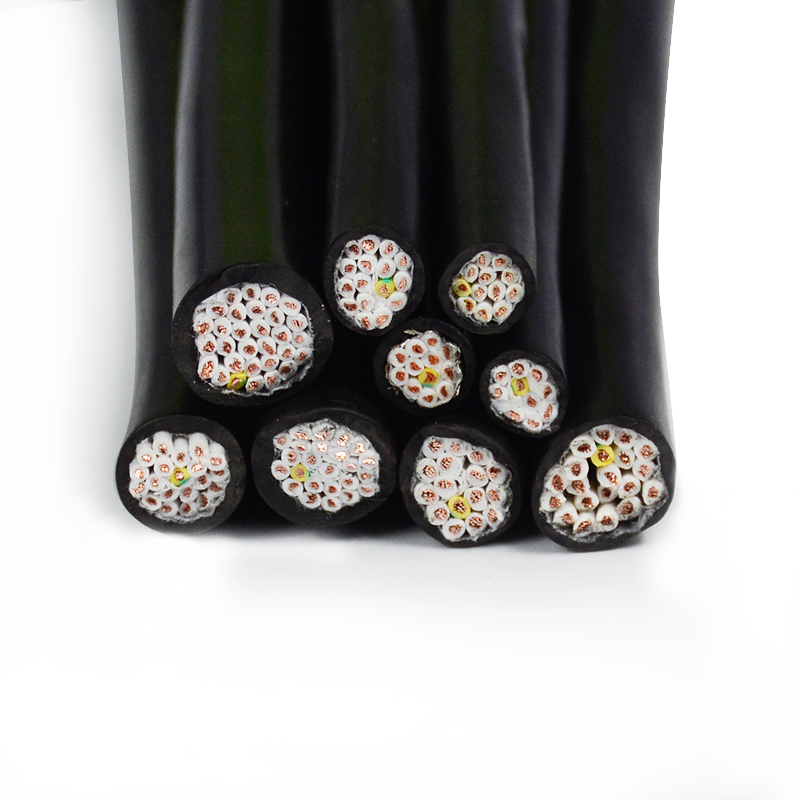

PVC/XLPE insulated control cable

PVC insulated control cable

XLPE Insulated Control Cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Application

This product is used for electrical appliance and instrument connecting cables in power distribution equipment with AC rated voltage of 450/750V and below.

Its mechanical and physical properties and electrical performance meet the requirements of GB/T9330-2008 "Plastic Insulated Control Cable.

Operating characteristics and electrical performance

1. Cable laying temperature: ≥0°C

2. Long-term allowable operating temperature of cable conductor: 90°C

3. Minimum permissible bending radius:

a. For unarmored cables, should be no less than 6 times of cable outer diameter;

b. For armored or copper belt shield structure cables, should be not less than 12 times of cable outer diameter;

c. For flexible cable with shield structure, shoud be less than six times of cable outer diameter.

4. Finished cable can bear AC 50HZ, 3 KV, 5min withstand test without breakdown.

5. Conductor DC resistance meets the requirements of national standard GB/T3956-2008 “Cable Conductor” and international standard IEC60228.

Cable Models, Names and Laying Occasions

Model	Name	Laying Occasion
KVV	Copper core PVC insulated PVC sheathed control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions.
KVVP	Copper core PVC insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KVVP2	Copper core PVC insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KVV22	Copper core PVC insulated PVC sheathed copper belt shield control cable	Laid indoors, and in cable trenches, pipelines, direct-buring and other fixed places capable of bearing large mechanical force.
KVV32	Copper core PVC insulated PVC sheathed steel tape armored control cable	Laid indoors, and in cable trenches, pipelines, vertical shafts and other fixed places capable of bearing large mechanical force.
KVVR	Copper core PVC insulated PVC sheathed, fine steel wire armored control cable	Laid indoors in occasions requiring movement and flexibility.
KVVRP	Copper core PVC insulated PVC sheathed flexible control cable	Laid indoors in occasions requiring movement, flexibility and shielding.
KVVP2-22	Copper core PVC insulated PVC sheathed copper belt shield steel tape armored control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions capable of bearing large mechanical force and requiring shielding.

Models, Names and Laying Occasions of XLPE Insulated Control Cable

Model	Name	Laying Occasion
KYJV	Copper core XLPE insulated PVC sheathed control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions.
KYJVP	Copper core XLPE insulated PVC sheathed braid shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KYJVP2	Copper core XLPE insulated PVC sheathed copper belt shield control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions requiring shielding.
KYJV22	Copper core XLPE insulated PVC sheathed steel tape armored control cable	Laid indoors, and in cable trenches, pipelines, direct-buring and other fixed places capable of bearing large mechanical force.
KYJV32	KYJV32 Copper core XLPE insulated PVC sheathed fine steel wire armored control cable	Laid indoors, and in cable trenches, pipelines, vertical shafts and other fixed places capable of bearing large mechanical force.
KYJVR	Copper core XLPE insulated PVC sheathed flexible control cable	Laid indoors in occasions requiring movement and flexibility.
KYJVRP	Copper core XLPE insulated PVC sheathed braid shielding control cable	Laid indoors in occasions requiring movement, flexibility and shielding.
KYJVP2-22	Copper core XLPE insulated PVC sheathed steel tape shielded steel plate armored control cable	Laid indoors, and in cable trenches, pipelines and other fixed occasions capable of bearing large mechanical force and requiring shielding.

Range of production

Model	Rated voltage (V)	Conductor nominal cross sectional area (mm2)
			0.75	1.0	1.5	2.5	4	6	10
KV	45O/750	-	2-61				2-14		2-10
KVVP
KVVP2			4-61				4-14		4-10
KVV22		-	7-61			4-61	4-14		4-10
KVVP2-22
KVV32		-	19-61		7-61		4-14		4-10
KVVR			4-61				-		-
KVVRP		4-61			4-48		-		-

Notes: The recommended number of cores is: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 37, 44, 48, 52 and 61

Range of production

Model	Rated voltage (V)	Conductor nominal cross sectional area (mm2)
			0.75	1.0	1.5	2.5	4	6	10
KYJV	45O/750	-	2-61				2-14		2-10
KYJVP
KYJP2			4-61				4-14		4-10
KYJV22		-	7-61			4-61	4-14		4-10
KYJVP2-22
KYJV32		-	19-61		7-61		4-14		4-10
KYJVR			4-61				-		-
KYJVRP		4-61			4-48		-		-

Notes: The recommended number of cores is: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 37, 44, 48, 52 and 61.
