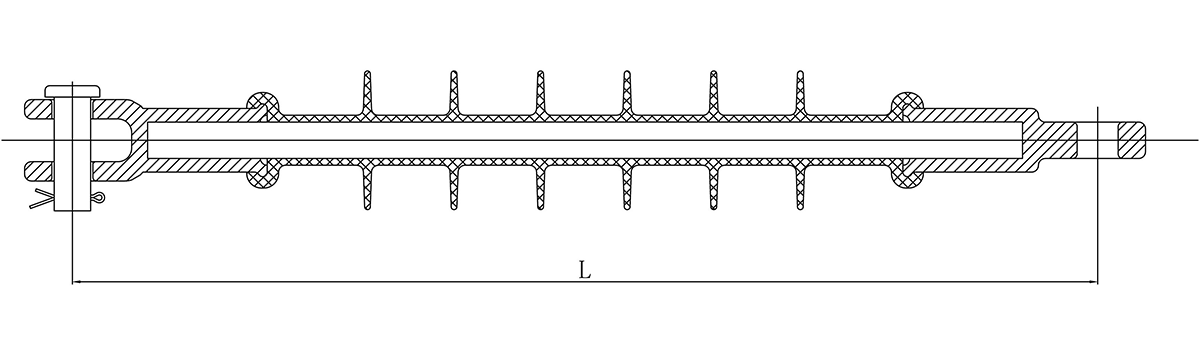

DISTRIBUTION DEAD-END INSULATOR

Main Technical date for Dead-end insulator up to 36kV

Send E-mail Get Price Now

Main Technical date for Dead-end insulator up to 36kV

Main Technical date for Dead-end insulator up to 36kV

Typical line voltage(kv)	Type	Section length(mm)	Arcing distance(mm)	Creepage distance (mm)	Coupling size	Specified mechanical load (kn)	Lightning impulse flashover voltage		Power frequency Flashover voltage
Typical line voltage(kv)	Type	Section length(mm)	Arcing distance(mm)	Creepage distance (mm)	Coupling size	Specified mechanical load (kn)	Pos	Neg	Dry	Wet
11kV	CS70SB140/620	290	220	620	16	70	140	130	80	75
11kv	CS70SB95/498	266	150	328	16	70	95	90	55	50
11kV	CS70CT140/470	329	219	470	16	70	140	130	80	70
15kV	CS70SB150/498	367	238	498	16	70	150	140	90	80
15kV	CS70SB140/521	330	218	521	16	70	140	130	80	70
24kV	CS70SB180/612	390	285	612	16	70	180	170	105	95
24kV	CS70SB205/782	450	325	782	16	70	205	190	120	110
24kV	CS70SB190/523	450	302	523	16	70	190	180	110	100
24kV	CS70SB210/904	440	328	904	16	70	210	195	120	110
24kV	CS70SB195/691	435	306	691	16	70	195	180	80	100
24kV	CS70CT205/752	430	319	752	16	70	205	190	120	105
36kV	CS70CT300/1175	580	469	1175	16	70	300	280	175	155
36kV	CS70CT270/1035	529	420	1035	16	70	270	250	155	140
36kV	CS70SB350/1628	660	551	1628	16	70	350	325	205	185
36kV	CS70SB270/1162	570	421	1162	16	70	270	250	155	140
36kV	CS70SB385/1293	732	605	1293	16	70	385	360	225	205
36kV	CS120SB270/1150	570	400	1150	16	120	230	210	105	93
