11KV 33KV Overhead XLPE Bundled Cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Application

Medium Voltage Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

Construction

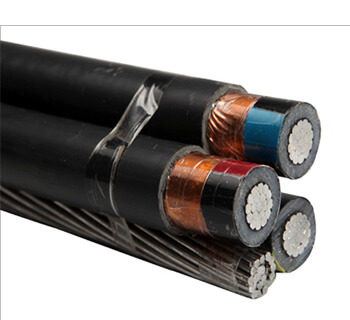

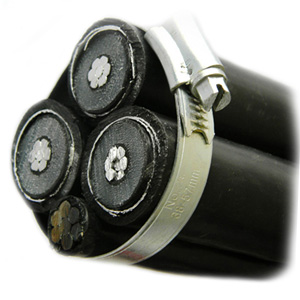

mv abc.jpg mv abc6.jpg

Phase Conductor	Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen	Extruded semi-conductive layer.
Insulation	XLPE.
Insulation Screen	Extruded semi-conductive layer.
Metallic Screen(optional)	Copper wire screen or copper tape screen.
Separator	Semi-conductive swellable tape.
Outer Sheath	HDPE.
Support Conductor	Galvanized steel wires.
Assembly	Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

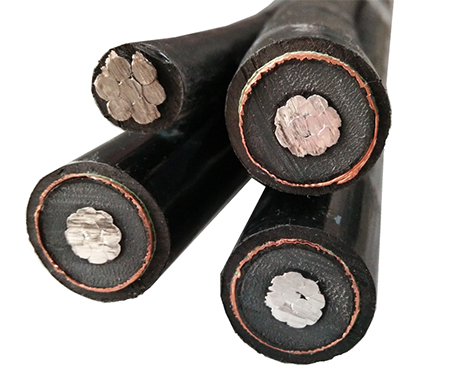

6.35/11kV & 12.7/22kV ABC Cable-AS/NZS 3599.1 Standard
number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Continuous current rating, A
number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV
3x35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370	110	155	185
3x50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530	130	185	225
3x70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790	160	235	280
3x95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100	195	285	345
3x120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540	230	335	405
3x150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840	255	380	460
3x185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190	295	440	530
12.7/22kV
3x35	6.9	5.5	0.8	1.2	7/4.75	61	1780	110	155	180
3x50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970	130	185	220
3x70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260	160	230	275
3x95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600	195	285	335
3x120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070	225	330	395
3x150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390	255	375	450
3x185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760	290	435	520
