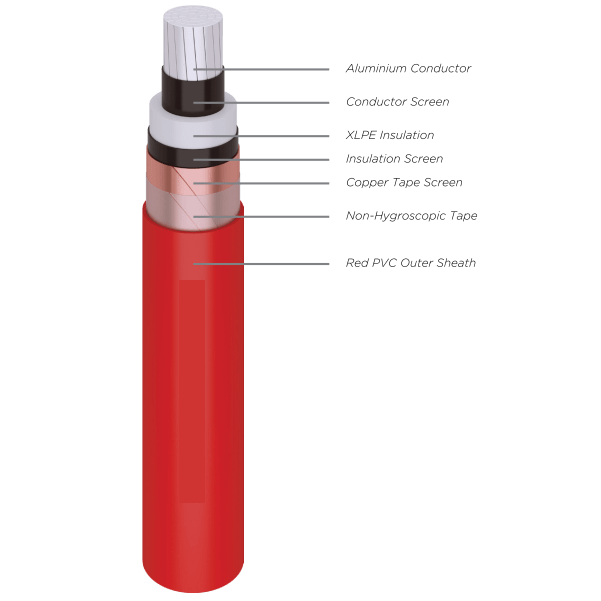

ALUMINIUM MEDIUM VOLTAGE POWER CABLES

NA2XSY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV
(Al/XLPE/CTS/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2

Application :
For power station and switchgear as well as station because of small bending radius in confined spaces indoors. As underground because of light weight where installation conditions are difficult

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

· Anti Rodent

· Low Smoke Zero Halogen

Note = Conductor Shape :
35 – 800 sqmm supplied in compacted circular stranded (cm) conductor shape

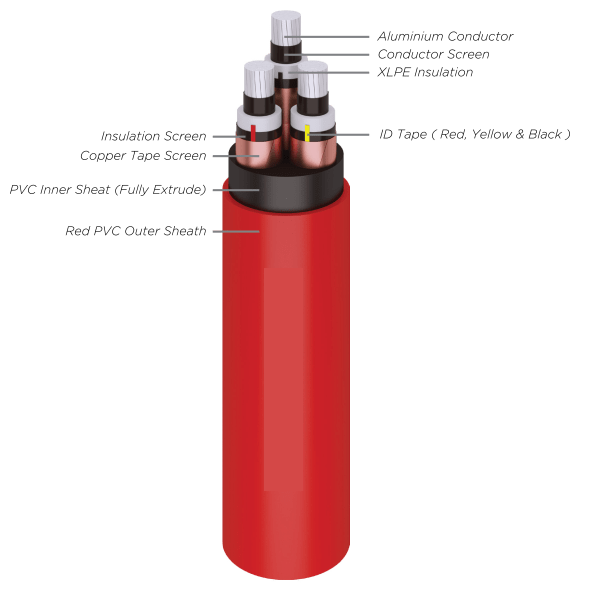

NA2XSEY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV

(Al/XLPE/CTS/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2

Application :
Indoors, cable trunking, outdoors and in ground; For power stations, industry and switchgear.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

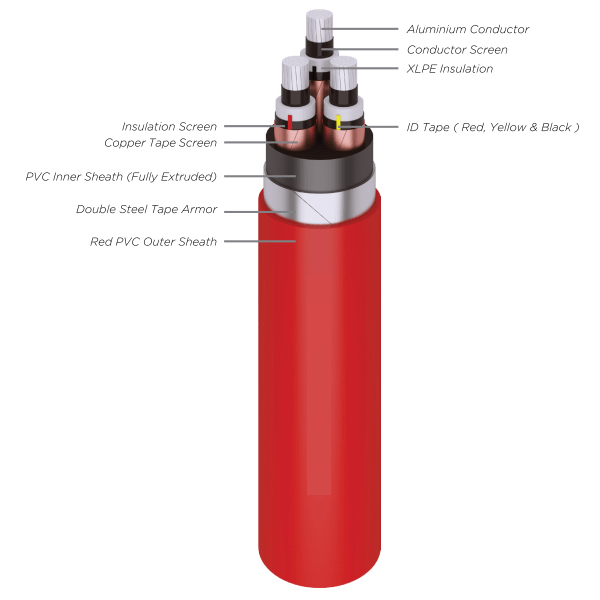

NA2XSEBY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV

(Al/XLPE/CTS/DSTA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Double Steel Tape Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2

Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape.

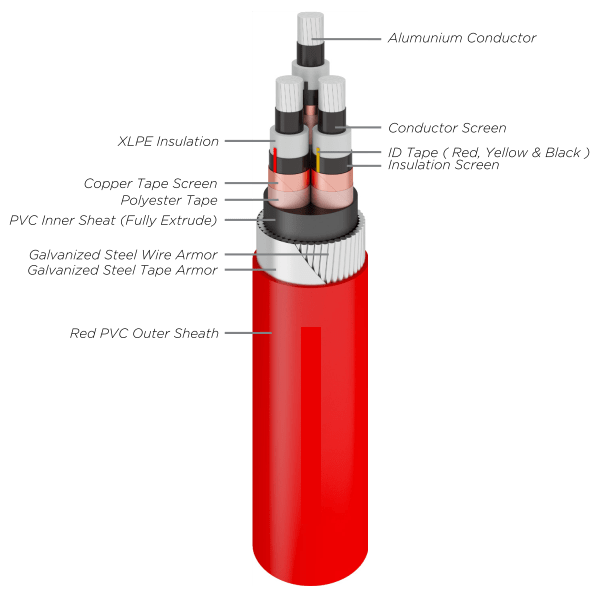

NA2XSERGbY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV

(Al/XLPE/CTS/SWA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, Steel Wire Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2

Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape.

NA2XSRY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV

(Al/XLPE/CTS/AWA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Sheathed, AlumuniumWire Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2

Application :
For installation indoor, in ground direct burried, for power station and switchgear, if there is a risk that low mechanical damage may occur.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 630 sqmm supplied in compacted circular stranded (cm) conductor shape

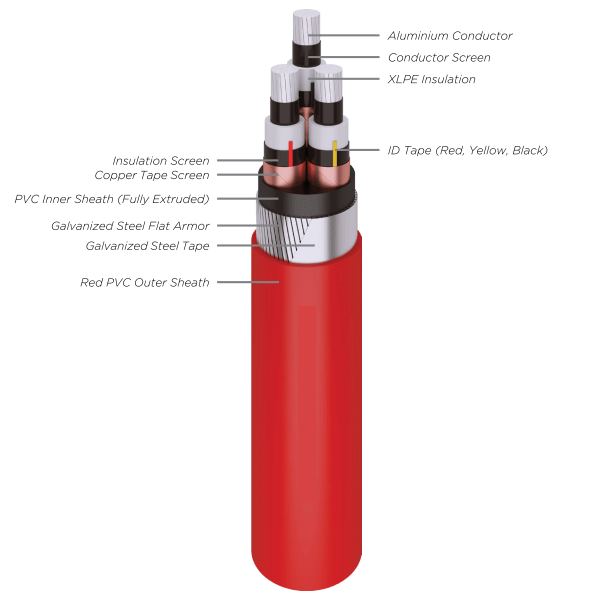

NA2XSEFGbY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) ; 18/30(36) kV

(Al/XLPE/CTS/SFA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Tape Screen, PVC Inner Sheathed, Galvanized Steel Flat Armor, PVC Sheathed)
Standard Specification : SNI IEC 60502-2, IEC 60502-2,

Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

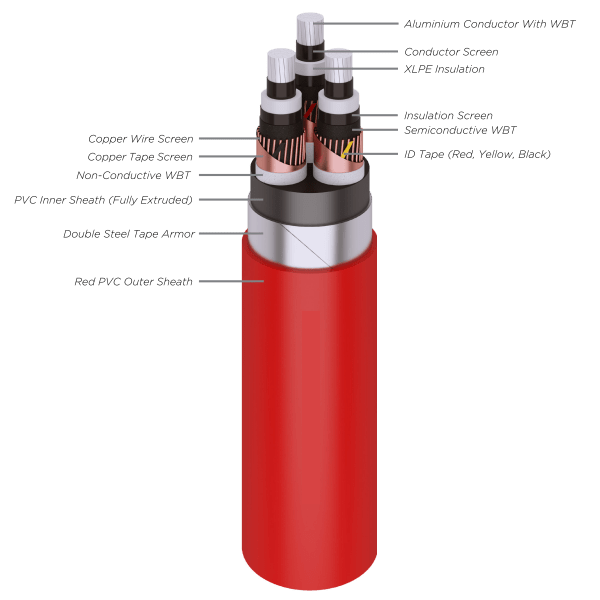

NA2XSEYBY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) kV

(Al/XLPE/CWS/DSTA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Double Steel Tape Armor, PVC Sheathed)
Standard Specification : SPLN 43-5, SNI IEC 60502-2, IEC 60502-2

Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape

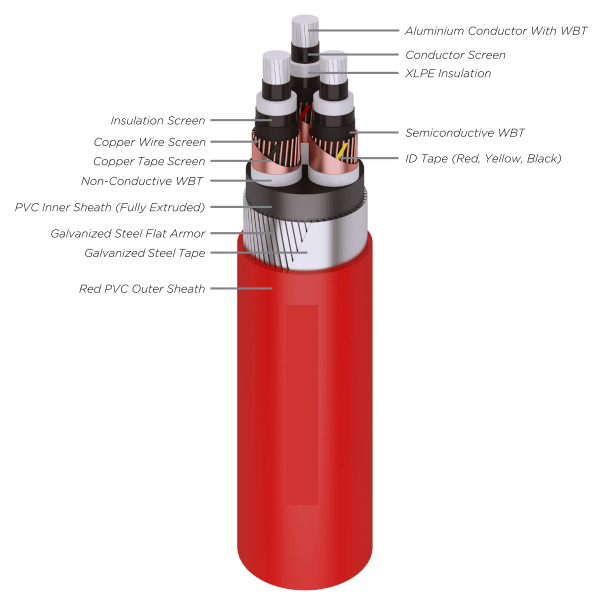

NA2XSEYFGbY 3.6/6(7.2) ; 6/10(12) ; 8.7/15(17.5) ; 12/20(24) kV

(Al/XLPE/CWS/SFA/PVC)

(Aluminium Conductor, XLPE Insulated, Copper Wire Screen, PVC Inner Sheathed, Steel Flat Armor, PVC Sheathed)
Standard Specification : SPLN 43-5, SNI IEC 60502-2, IEC 60502-2

Application :
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.

Special Features on Request :

· Oil Resistance

· UV Resistance

· Flame Retardant Cat. A, B, C

· Flame Retardant Non Category

· Heat Resistance

· Anti Termite

Note = Conductor Shape :
35 – 400 sqmm supplied in compacted circular stranded (cm) conductor shape
