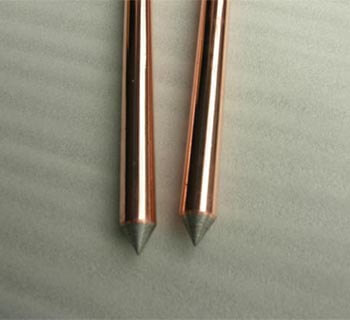

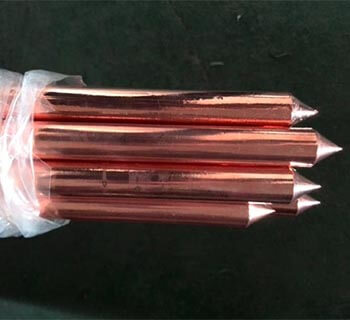

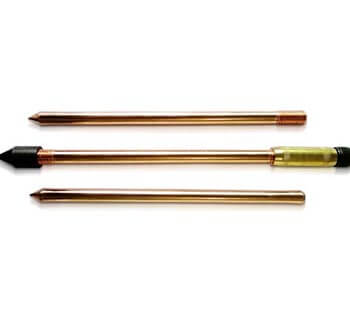

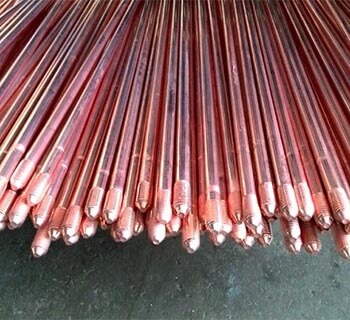

Copper Clad copperweld Steel Rod

earthing rod soil copper

copper earthing rod

manufacturer and supplier from China

Wholesale Price

Send E-mail Get Price Now

Application：
Lightning protection grounding projects in petrochemical plants, oil storage, power plants, substations, communication base stations, airports, network equipment rooms, etc.

Advantags：

1. Higher tensile strength than pure copper ground rod, can be as high as 600MPA and above
2. Superior corrosion resistance: underground service life of up to 30-50 years
3. Compared with pure copper ground rod, it has excellent electrical conductivity of copper and saves cost.
4. Compared with traditional galvanized ground rods, the conductivity is higher and the corrosion resistance is stronger.

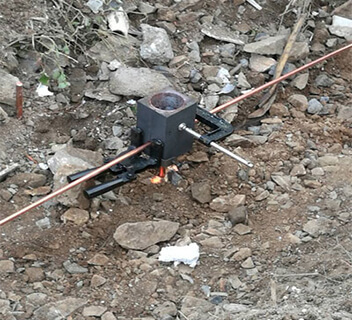

5. The connection to the grounding grid can be made by exothermic welding, integrated and molded, and the grounding resistance is small, making it a permanent maintenance-free grounding device.

Main conductor size(mm2)	Branch conductor size(mm2)	Bolts QTY.
2.5-35	1.5-6	1×M6
16-95	1.5-10	1×M6
16-95	4-35(50)	1×M8
50-150	6-35(50)	1×M8
25-95	25-95	1×M8
50-150	50-150	1×M8

1. Copper layer 0.254mm

Diameter and Length	Unit Weight	Pack
mm	Kg	Pack
13 x 1220 (1/2in x 4ft)	1.27	10
13 x 1500 (1/2in x 5ft)	1.56	10
13 x 1800 (1/2in x 6ft)	1.87	10
13 x 2400 (1/2in x 8ft)	2.50	10
13 x 3000 (1/2in x 10ft)	3.13	10
14.2 x 1220 (5/8in x 4ft)	1.53	10
14.2 x 1500 (5/8in x 5ft)	1.91	10
14.2 x 1800 (5/8in x 6ft)	2.31	10
14.2 x 2400 (5/8in x 8ft)	3.05	5
14.2 x 3000 (5/8in x 10ft)	3.83	5
17.2 x 1800 (3/4in x 6ft)	3.37	5
17.2 x 2400 (3/4in x 8ft )	4.55	5
17.2 x 3000 (3/4in x 10ft )	5.58	3
25 x 3000 (1’ x 10ft )	9.8	3

2. Copper layer 0.33-0.5mm

Diameter and Length	Unit Weight	Pack
mm	Kg	Pack
13 x 1220 (1/2in x 4ft)	1.275	10
13 x 1500 (1/2in x 5ft)	1.565	10
13 x 1800 (1/2in x 6ft)	1.88	10
13 x 2400 (1/2in x 8ft)	2.51	10
13 x 3000 (1/2in x 10ft)	3.14	10
14.2 x 1220 (5/8in x 4ft)	1.54	10
14.2 x 1500 (5/8in x 5ft)	1.92	10
14.2 x 1800 (5/8in x 6ft)	2.33	10
14.2 x 2400 (5/8in x 8ft)	3.07	5
14.2 x 3000 (5/8in x 10ft)	3.87	5
17.2 x 1800 (3/4in x 6ft)	3.39	5
17.2 x 2400 (3/4in x 8ft )	4.57	5
17.2 x 3000 (3/4in x 10ft )	5.60	3
25 x 3000 (1’ x 10ft )	9.85	3

Remark:Copper-bonded copperweld steel copperweld ground rod steel material and copper plating thickness can be customized according to requirements, the company provides OEM service.
