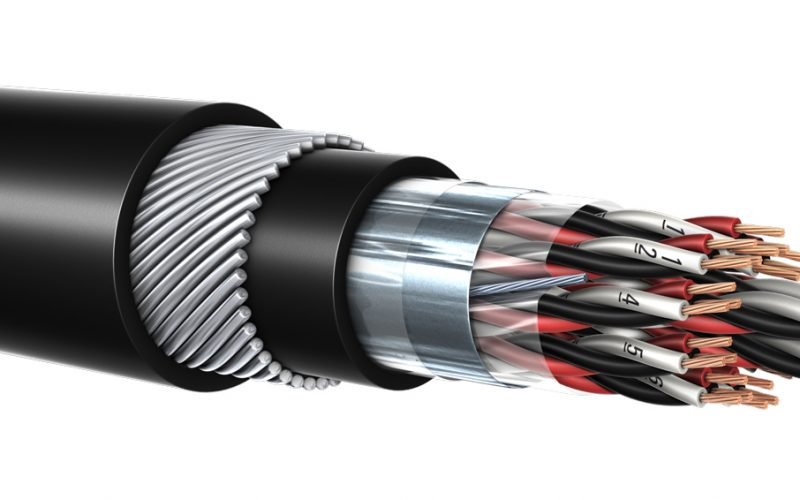

Fire Resistant Instrumentation Cable

CU / MGT / XLPE / OS / LSZH ( PAIRS & TRIADS )

CU / MGT / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

CU / MGT / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

CU / MGT / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

Manufacturer and supplier in China

Send E-mail Get Price Now

FR-XOL

CU / MGT / XLPE / OS / LSZH ( PAIRS & TRIADS )

Mica Taped, XLPE Insulated, Overall Aluminium Foil Screened, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

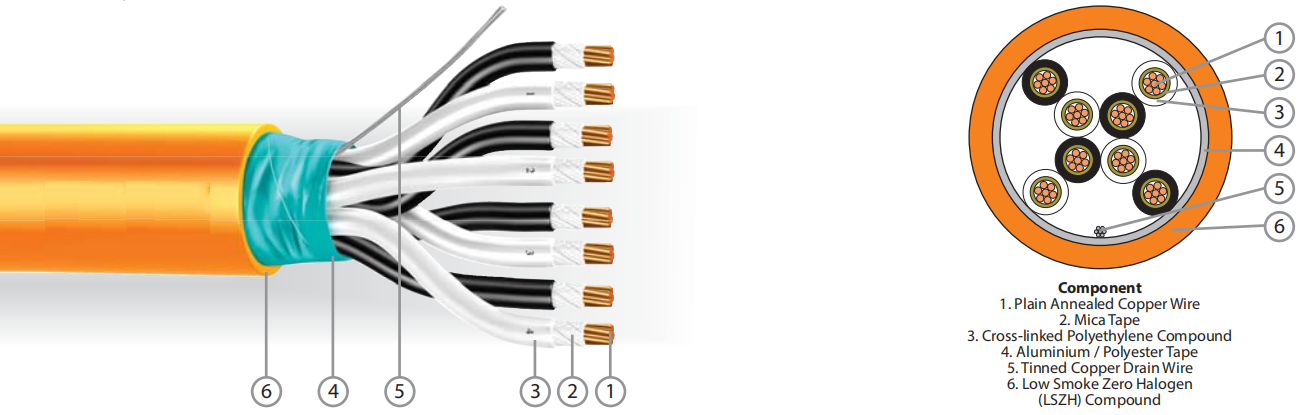

FR-XOL CU-MGT-XLPE-OS-LSZH副本.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Fire Barrier: Mica Tape (MGT)

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Orange or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC

Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Fire Resistance: BS6387 (C, W, Z), SS299 (C, W, Z),

IEC60331

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

FR-XIOL

CU / MGT / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

Mica Taped, XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

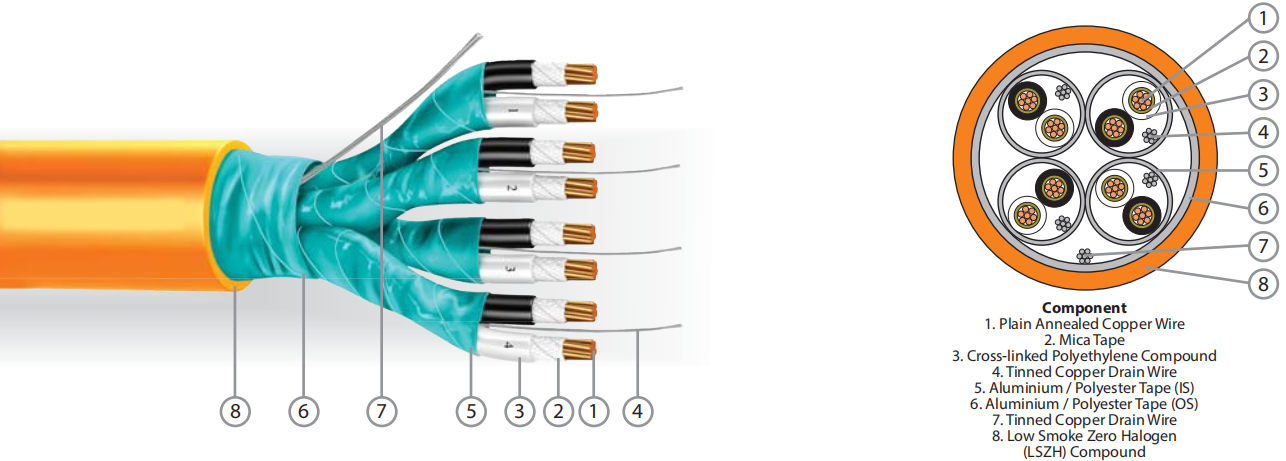

FR-XIOL CU-MGT-XLPE-IS-OS-LSZH.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Fire Barrier: Mica Tape (MGT)

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Orange or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC

Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Fire Resistance: BS6387 (C, W, Z), SS299 (C, W, Z), IEC60331

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2 IEC60754-1, IEC60754-2 BS EN50267-2-1, BS EN50267-2-2

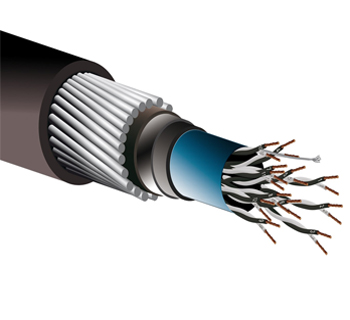

FR-XOSL

CU / MGT / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

Mica Taped, XLPE Insulated, Overall Aluminium Foil Screened, LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

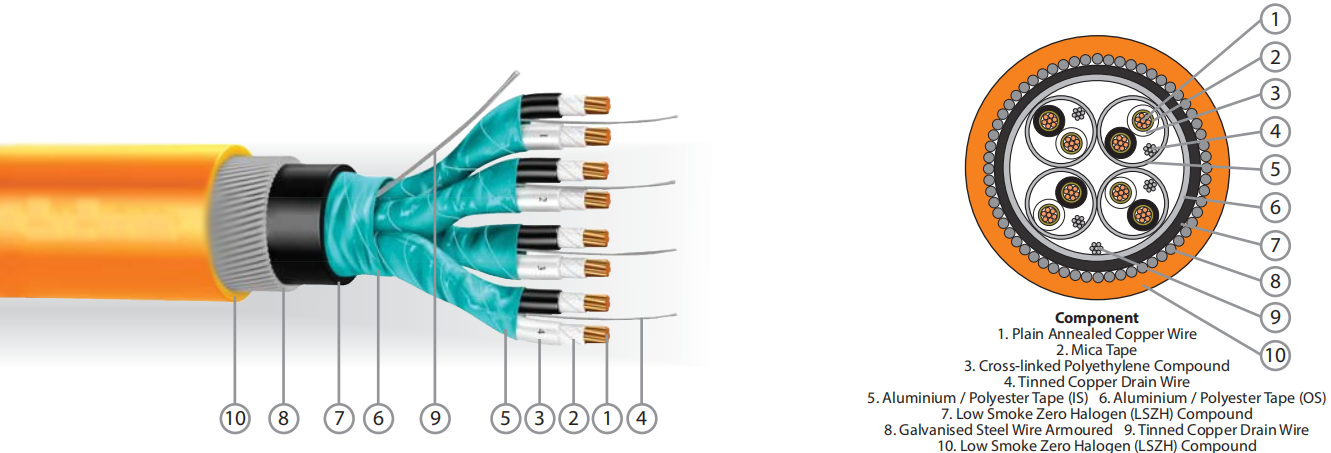

FR-XOSL CU-MGT-XLPE-OS-LSZH-SWA-LSZH.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Fire Barrier: Mica Tape (MGT)

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Low Smoke Zero Halogen (LSZH) Compound

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Orange or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC

Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Fire Resistance: BS6387 (C, W, Z), SS299 (C, W, Z),

IEC60331

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2

IEC60754-1, IEC60754-2

BS EN50267-2-1, BS EN50267-2-2

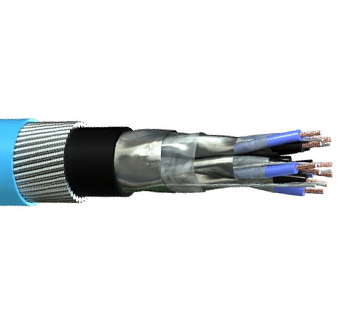

FR-XIOSL

CU / MGT / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

Mica Taped, XLPE Insulated, Individual Aluminium Foil Screened, Overall Aluminium Foil Screened,

LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable, 300 / 500V, BS EN50288-7

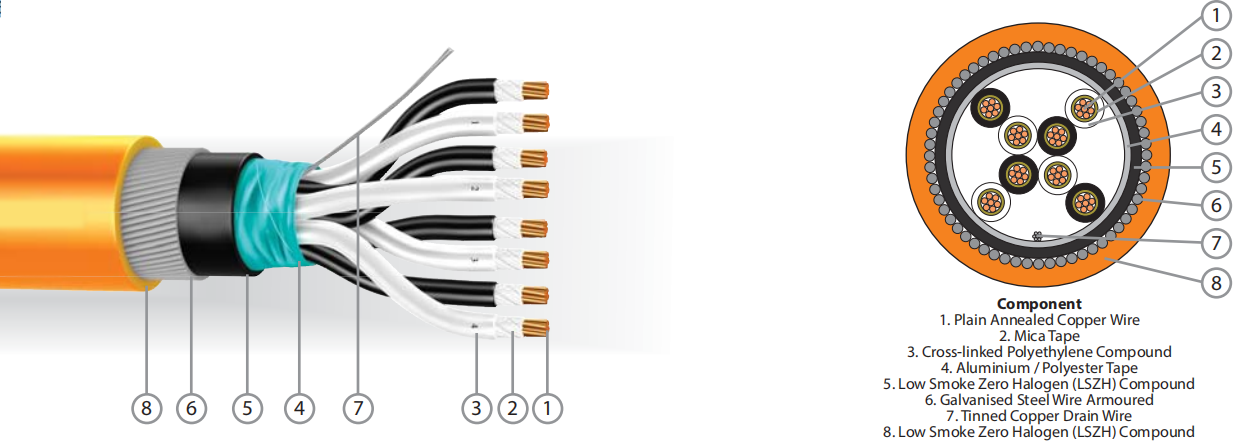

FR-XIOSL CU-MGT-XLPE-IS-OS-LSZH-SWA-LSZH.png

CONSTRUCTION

Conductor: Plain Annealed Copper, Class 2 Stranded Circular

Fire Barrier: Mica Tape (MGT)

Insulation: Cross-linked Polyethylene (XLPE) Compound

Insulation Colour: Pair/s - Black/White with Black numberings Triad/s - Red/Black/White with Black numberings

Cores Twisted: Cores twisted to form a pair, traid or quad

Wrap Film: Polyester Binder Tape

Individual Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (IS)

Lay Up: Multi-pairs, triads or quads are assembled together in concentric layers to form the cable core

Wrap Film: Polyester Binder Tape

Overall Screen: Aluminium/Polyester Tape, with a Tinned Copper Drain Wire 0.5mm2 (7/0.3mm) (OS)

Bedding: Low Smoke Zero Halogen (LSZH) Compound

Bedding Colour: Black

Armour: Galvanized Steel Wire Armoured (SWA)

Outer Sheath: Low Smoke Zero Halogen (LSZH) Compound

Outer Sheath Colour: Orange or Blue

ELECTRICAL CHARACTERISTICS

Operating Voltage, Uo/U: 300/500V

Operating Temperature: -15ºC to 90ºC

Final Short Circuit Temperature: 250ºC

Test Voltage: 2kV for 1 minute

REFERENCE STANDARDS

Design Specification: BS EN50288-7

Conductor: IEC60228, BS EN60228

Fire Resistance: BS6387 (C, W, Z), SS299 (C, W, Z), IEC60331

Flame Retardancy: IEC60332-3-22, BS EN60332-3-22

Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2 IEC60754-1, IEC60754-2 BS EN50267-2-1, BS EN50267-2-2

CU / MGT / XLPE / OS / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1P	0.75	7 / 0.37	0.6	9.6	89
2P (Quad)		7 / 0.37	0.6	11	142
2P		7 / 0.37	0.6	15.3	165
3P		7 / 0.37	0.6	16.3	206
4P		7 / 0.37	0.6	18.1	261
5P		7 / 0.37	0.6	19.9	308
6P		7 / 0.37	0.6	21.8	356
8P		7 / 0.37	0.6	24.8	458
10P		7 / 0.37	0.6	28.4	567
12P		7 / 0.37	0.6	29.4	645
16P		7 / 0.37	0.6	32.9	828
20P		7 / 0.37	0.6	36.8	1000
24P		7 / 0.37	0.6	41.2	1196
36P		7 / 0.37	0.6	47.8	1720
1P	1	7 / 0.43	0.6	10	98
2P (Quad)		7 / 0.43	0.6	11.5	158
2P		7 / 0.43	0.6	16	182
3P		7 / 0.43	0.6	17	230
4P		7 / 0.43	0.6	18.9	292
5P		7 / 0.43	0.6	20.8	346
6P		7 / 0.43	0.6	22.7	400
8P		7 / 0.43	0.6	25.9	516
10P		7 / 0.43	0.6	29.7	640
12P		7 / 0.43	0.6	20.7	731
16P		7 / 0.43	0.6	34.4	941
20P		7 / 0.43	0.6	38.8	1161
24P		7 / 0.43	0.6	43.3	1386
36P		7 / 0.43	0.6	50.1	1970
1P	1.5	7 / 0.53	0.6	10.6	113
2P (Quad)		7 / 0.53	0.6	12.4	195
2P		7 / 0.53	0.6	17	213
3P		7 / 0.53	0.6	18.4	283
4P		7 / 0.53	0.6	20.2	349
5P		7 / 0.53	0.6	22.4	428
6P		7 / 0.53	0.6	24.5	496
8P		7 / 0.53	0.6	27.9	641
10P		7 / 0.53	0.6	32	794
12P		7 / 0.53	0.6	33.1	911
16P		7 / 0.53	0.6	37.1	1176
20P		7 / 0.53	0.6	41.8	1450
24P		7 / 0.53	0.6	46.7	1731
36P		7 / 0.53	0.6	54.2	2500
1P	2.5	7 / 0.67	0.7	12	150
2P (Quad)		7 / 0.67	0.7	13.9	253
2P		7 / 0.67	0.7	19.4	284
3P		7 / 0.67	0.7	21	383
4P		7 / 0.67	0.7	23.1	475
5P		7 / 0.67	0.7	25.6	583
6P		7 / 0.67	0.7	28	679
8P		7 / 0.67	0.7	31.9	873
10P		7 / 0.67	0.7	36.6	1090
12P		7 / 0.67	0.7	38.1	1277
16P		7 / 0.67	0.7	42.7	1650
20P		7 / 0.67	0.7	48.1	2036
24P		7 / 0.67	0.7	53.7	2428
36P		7 / 0.67	0.7	62.3	3513

SINGLE & MULTI-TRIADS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1T	0.75	7 / 0.37	0.6	10.1	109
6T		7 / 0.37	0.6	24.6	488
16T		7 / 0.37	0.6	37.2	1152
24T		7 / 0.37	0.6	46.8	1695
1T	1.0	7 / 0.43	0.6	10.5	121
6T		7 / 0.43	0.6	25.7	552
16T		7 / 0.43	0.6	38.9	1318
24T		7 / 0.43	0.6	49	1943
1T	1.5	7 / 0.53	0.6	11.2	143
6T		7 / 0.53	0.6	27.7	689
16T		7 / 0.53	0.6	42	1656
24T		7 / 0.53	0.6	52.9	2443
1T	2.5	7 / 0.67	0.7	12.7	193
6T		7 / 0.67	0.7	31.7	951
16T		7 / 0.67	0.7	48.3	2336
24T		7 / 0.67	0.7	61	3478

CU / MGT / XLPE / IS / OS / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1P	0.75	7 / 0.37	0.6	9.6	88
2P		7 / 0.37	0.6	15.7	183
3P		7 / 0.37	0.6	16.9	241
4P		7 / 0.37	0.6	18.6	295
5P		7 / 0.37	0.6	20.4	350
6P		7 / 0.37	0.6	22.5	417
8P		7 / 0.37	0.6	25.6	536
10P		7 / 0.37	0.6	29.3	663
12P		7 / 0.37	0.6	30.3	757
16P		7 / 0.37	0.6	34	974
20P		7 / 0.37	0.6	38.2	1200
24P		7 / 0.37	0.6	42.7	1431
36P		7 / 0.37	0.6	49.3	2032
1P	1	7 / 0.43	0.6	10	96
2P		7 / 0.43	0.6	16.5	208
3P		7 / 0.43	0.6	17.6	265
4P		7 / 0.43	0.6	19.4	326
5P		7 / 0.43	0.6	21.4	399
6P		7 / 0.43	0.6	23.5	463
8P		7 / 0.43	0.6	26.7	597
10P		7 / 0.43	0.6	30.6	739
12P		7 / 0.43	0.6	31.7	847
16P		7 / 0.43	0.6	35.5	1091
20P		7 / 0.43	0.6	39.9	1345
24P		7 / 0.43	0.6	44.6	1606
36P		7 / 0.43	0.6	51.7	2315
1P	1.5	7 / 0.53	0.6	10.6	112
2P		7 / 0.53	0.6	17.6	240
3P		7 / 0.53	0.6	18.8	310
4P		7 / 0.53	0.6	20.9	396
5P		7 / 0.53	0.6	22.9	472
6P		7 / 0.53	0.6	25.3	562
8P		7 / 0.53	0.6	28.7	725
10P		7 / 0.53	0.6	32.9	898
12P		7 / 0.53	0.6	34.1	1032
16P		7 / 0.53	0.6	38.2	1332
20P		7 / 0.53	0.6	43	1643
24P		7 / 0.53	0.6	48	1960
36P		7 / 0.53	0.6	55.7	2833
1P	2.5	7 / 0.67	0.7	12	149
2P		7 / 0.67	0.7	20	315
3P		7 / 0.67	0.7	21.3	411
4P		7 / 0.67	0.7	23.7	525
5P		7 / 0.67	0.7	26.1	630
6P		7 / 0.67	0.7	28.8	750
8P		7 / 0.67	0.7	32.7	970
10P		7 / 0.67	0.7	37.5	1201
12P		7 / 0.67	0.7	39.1	1407
16P		7 / 0.67	0.7	43.8	1819
20P		7 / 0.67	0.7	49.2	2242
24P		7 / 0.67	0.7	55.2	2703
36P		7 / 0.67	0.7	64	3903

SINGLE & MULTI-TRIADS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(kg/km)
1T	0.75	7 / 0.37	0.6	10.1	109
6T		7 / 0.37	0.6	25.3	561
16T		7 / 0.37	0.6	38.3	1329
24T		7 / 0.37	0.6	48.2	1956
1T	1	7 / 0.43	0.6	10.5	121
6T		7 / 0.43	0.6	26.4	627
16T		7 / 0.43	0.6	40	1500
24T		7 / 0.43	0.6	50.4	2211
1T	1.5	7 / 0.53	0.6	11.2	143
6T		7 / 0.53	0.6	28.5	768
16T		7 / 0.53	0.6	43.1	1846
24T		7 / 0.53	0.6	54.4	2750
1T	2.5	7 / 0.67	0.7	12.7	193
6T		7 / 0.67	0.7	32.4	1037
16T		7 / 0.67	0.7	49.4	2544
24T		7 / 0.67	0.7	62.6	3815

CU / MGT / XLPE / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1P	0.75	7 / 0.37	0.6	9.7	0.9	14.4	356
2P (Quad)		7 / 0.37	0.6	11.1	0.9	15.8	442
2P		7 / 0.37	0.6	15.2	1.25	20.8	682
3P		7 / 0.37	0.6	16.2	1.25	22	762
4P		7 / 0.37	0.6	17.8	1.25	23.6	858
5P		7 / 0.37	0.6	19.6	1.25	25.4	967
6P		7 / 0.37	0.6	21.5	1.25	27.5	1091
8P		7 / 0.37	0.6	24.3	1.25	30.3	1270
10P		7 / 0.37	0.6	27.7	1.25	33.9	1484
12P		7 / 0.37	0.6	28.7	1.25	34.9	1499
16P		7 / 0.37	0.6	32	1.25	38.2	1866
20P		7 / 0.37	0.6	35.9	1.6	43	2431
24P		7 / 0.37	0.6	40.1	1.6	47.4	2787
36P		7 / 0.37	0.6	46.7	2	55	3970
1P	1	7 / 0.43	0.6	10.1	0.9	14.8	378
2P (Quad)		7 / 0.43	0.6	11.6	0.9	16.3	472
2P		7 / 0.43	0.6	15.9	1.25	21.7	726
3P		7 / 0.43	0.6	16.9	1.25	22.7	810
4P		7 / 0.43	0.6	18.6	1.25	24.4	914
5P		7 / 0.43	0.6	20.5	1.25	26.3	1031
6P		7 / 0.43	0.6	22.4	1.25	28.4	1162
8P		7 / 0.43	0.6	25.4	1.25	31.4	1356
10P		7 / 0.43	0.6	29	1.25	35.2	1596
12P		7 / 0.43	0.6	30	1.25	36.2	1723
16P		7 / 0.43	0.6	33.5	1.6	40.6	2275
20P		7 / 0.43	0.6	37.7	1.6	44.8	2649
24P		7 / 0.43	0.6	42	2	50.1	3354
36P		7 / 0.43	0.6	49	2	57.5	4341
1P	1.5	7 / 0.53	0.6	10.7	0.9	15.6	416
2P (Quad)		7 / 0.53	0.6	12.3	0.9	17	516
2P		7 / 0.53	0.6	16.9	1.25	22.7	793
3P		7 / 0.53	0.6	18.1	1.25	23.9	893
4P		7 / 0.53	0.6	19.9	1.25	25.7	1020
5P		7 / 0.53	0.6	21.9	1.25	27.9	1164
6P		7 / 0.53	0.6	24	1.25	30	1297
8P		7 / 0.53	0.6	27.2	1.25	33.4	1545
10P		7 / 0.53	0.6	31.1	1.25	37.3	1807
12P		7 / 0.53	0.6	32.2	1.25	38.6	1970
16P		7 / 0.53	0.6	36	1.6	43.1	2588
20P		7 / 0.53	0.6	40.5	1.6	47.8	3040
24P		7 / 0.53	0.6	45.6	2	53.9	3923
36P		7 / 0.53	0.6	52.7	2.5	62.4	5566
1P	2.5	7 / 0.67	0.7	11.9	0.9	16.8	476
2P (Quad)		7 / 0.67	0.7	13.8	0.9	18.5	615
2P		7 / 0.67	0.7	19.1	1.25	24.9	930
3P		7 / 0.67	0.7	20.5	1.25	26.5	1070
4P		7 / 0.67	0.7	22.6	1.25	28.6	1227
5P		7 / 0.67	0.7	24.9	1.25	31.1	1412
6P		7 / 0.67	0.7	27.3	1.25	33.5	1584
8P		7 / 0.67	0.7	31	1.25	37.4	1901
10P		7 / 0.67	0.7	35.5	1.6	42.8	2505
12P		7 / 0.67	0.7	36.8	1.6	44.1	2730
16P		7 / 0.67	0.7	41.6	1.6	49.1	3324
20P		7 / 0.67	0.7	46.8	2	55.3	4290
24P		7 / 0.67	0.7	52.2	2.5	61.9	5452
36P		7 / 0.67	0.7	60.8	2.5	70.9	7101

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Triads	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1T	0.75	7 / 0.37	0.6	10.2	0.9	14.9	390
6T		7 / 0.37	0.6	24.1	1.25	30.1	1289
16T		7 / 0.37	0.6	36.1	1.6	43.2	2565
24T		7 / 0.37	0.6	45.3	2	53.4	3811
1T	1	7 / 0.43	0.6	10.6	0.9	15.5	423
6T		7 / 0.43	0.6	25.2	1.25	31.2	1390
16T		7 / 0.43	0.6	37.8	1.6	44.9	2806
24T		7 / 0.43	0.6	47.5	2	55.8	4176
1T	1.5	7 / 0.53	0.6	11.3	0.9	16.2	460
6T		7 / 0.53	0.6	27	1.25	33	1565
16T		7 / 0.53	0.6	40.7	1.6	48	3247
24T		7 / 0.53	0.6	51.6	2	60.1	4934
1T	2.5	7 / 0.67	0.7	12.6	0.9	17.5	533
6T		7 / 0.67	0.7	30.8	1.25	37	1952
16T		7 / 0.67	0.7	47	1.6	55.3	4564
24T		7 / 0.67	0.7	59.1	2	69	6878

CU / MGT / XLPE / IS / OS / LSZH / SWA / LSZH ( PAIRS & TRIADS )

SINGLE & MULTI-PAIRS

No. of Pairs	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Pairs	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1P	0.75	7 / 0.37	0.6	9.7	0.9	14.4	356
2P		7 / 0.37	0.6	15.6	1.25	21.4	727
3P		7 / 0.37	0.6	16.6	1.25	22.4	805
4P		7 / 0.37	0.6	18.3	1.25	24.1	911
5P		7 / 0.37	0.6	20.1	1.25	25.9	1029
6P		7 / 0.37	0.6	22	1.25	28	1162
8P		7 / 0.37	0.6	24.9	1.25	30.9	1360
10P		7 / 0.37	0.6	28.4	1.25	34.6	1604
12P		7 / 0.37	0.6	29.4	1.25	35.6	1727
16P		7 / 0.37	0.6	32.9	1.6	40	2293
20P		7 / 0.37	0.6	36.9	1.6	44.2	2681
24P		7 / 0.37	0.6	41.2	1.6	48.5	3053
36P		7 / 0.37	0.6	48	2	56.5	4396
1P	1	7 / 0.43	0.6	10.1	0.9	14.8	378
2P		7 / 0.43	0.6	16.2	1.25	22	758
3P		7 / 0.43	0.6	17.3	1.25	23.1	853
4P		7 / 0.43	0.6	19.1	1.25	24.9	978
5P		7 / 0.43	0.6	20.9	1.25	26.9	1106
6P		7 / 0.43	0.6	23	1.25	29	1235
8P		7 / 0.43	0.6	26	1.25	32	1458
10P		7 / 0.43	0.6	29.7	1.25	35.9	1718
12P		7 / 0.43	0.6	30.8	1.25	37	1865
16P		7 / 0.43	0.6	34.4	1.6	41.5	2469
20P		7 / 0.43	0.6	38.6	1.6	45.9	2887
24P		7 / 0.43	0.6	43.5	2	51.8	3741
36P		7 / 0.43	0.6	50.2	2	58.7	4746
1P	1.5	7 / 0.53	0.6	10.7	0.9	15.6	416
2P		7 / 0.53	0.6	17.3	1.25	23.1	828
3P		7 / 0.53	0.6	18.5	1.25	24.3	937
4P		7 / 0.53	0.6	20.4	1.25	26.4	1089
5P		7 / 0.53	0.6	22.4	1.25	28.4	1229
6P		7 / 0.53	0.6	24.6	1.25	30.6	1373
8P		7 / 0.53	0.6	27.8	1.25	34	1641
10P		7 / 0.53	0.6	31.8	1.25	38.2	1943
12P		7 / 0.53	0.6	33	1.6	40.1	2347
16P		7 / 0.53	0.6	36.9	1.6	44.2	2811
20P		7 / 0.53	0.6	41.9	2	50.2	3688
24P		7 / 0.53	0.6	46.7	2	55.2	4251
36P		7 / 0.53	0.6	54	2.5	63.7	5975
1P	2.5	7 / 0.67	0.7	11.9	0.9	16.8	476
2P		7 / 0.67	0.7	19.5	1.25	25.5	980
3P		7 / 0.67	0.7	20.8	1.25	26.8	1116
4P		7 / 0.67	0.7	23	1.25	29	1284
5P		7 / 0.67	0.7	25.4	1.25	31.6	1481
6P		7 / 0.67	0.7	27.9	1.25	34.1	1675
8P		7 / 0.67	0.7	31.6	1.25	38	2013
10P		7 / 0.67	0.7	36.2	1.6	43.5	2652
12P		7 / 0.67	0.7	37.6	1.6	44.9	2883
16P		7 / 0.67	0.7	42.5	2	50.8	3868
20P		7 / 0.67	0.7	47.7	2	56.2	4539
24P		7 / 0.67	0.7	53.3	2.5	63.2	5793
36P		7 / 0.67	0.7	62.1	2.5	72.4	7616

SINGLE & MULTI-TRIADS

No. of Triads	Nominal Conductor Area	No. and Diameter of Wires	Radial Thickness of Insulation	Diameter Under Armour	Armour Wire Diameter	Cable Overall Diameter	Approximate Weight
No. of Triads	(mm2)	(no./mm)	(mm)	(mm)	(mm)	(mm)	(kg/km)
1T	0.75	7 / 0.37	0.6	10.2	0.9	14.9	390
6T		7 / 0.37	0.6	24.6	1.25	30.6	1362
16T		7 / 0.37	0.6	37	1.6	44.3	2783
24T		7 / 0.37	0.6	46.9	2	55.2	4183
1T	1	7 / 0.43	0.6	10.6	0.9	15.5	423
6T		7 / 0.43	0.6	25.7	1.25	31.7	1465
16T		7 / 0.43	0.6	38.7	1.6	46	3013
24T		7 / 0.43	0.6	49.1	2	57.6	4582
1T	1.5	7 / 0.53	0.6	11.3	0.9	16.2	460
6T		7 / 0.53	0.6	27.6	1.25	33.8	1670
16T		7 / 0.53	0.6	42	1.6	50.3	3861
24T		7 / 0.53	0.6	52.7	2	62.4	5789
1T	2.5	7 / 0.67	0.7	12.6	0.9	17.5	533
6T		7 / 0.67	0.7	31.3	1.25	37.7	2054
16T		7 / 0.67	0.7	47.9	1.6	56.4	4832
24T		7 / 0.67	0.7	60.7	2	70.8	7339

Matching Products

*Describe Your Buying Requirements in Detail
