Low Voltage Single-Multi-Core XLPE insulated Unarmored Cable

    Unarmored Cable-XLPE insulated, LSF sheathed

    600/1000V,1900/3300V, Single-Multi-Core Aluminium/Copper Conductor


    If you don´t find a suitable cable, we will design it for you acc. to your individual requests. Send Inquiry Now


Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

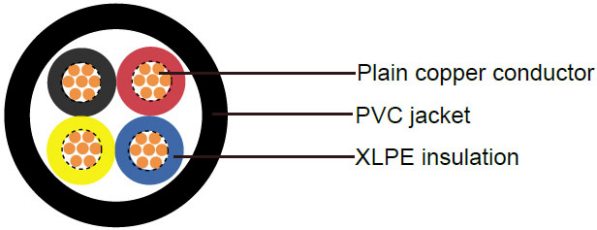

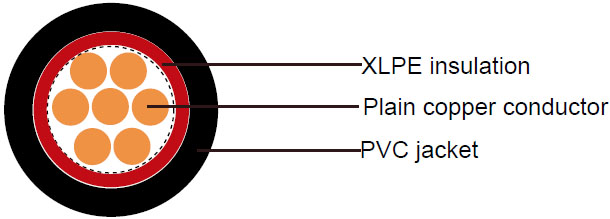

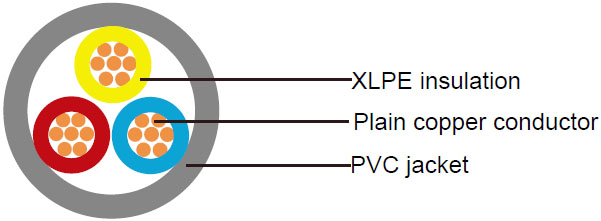

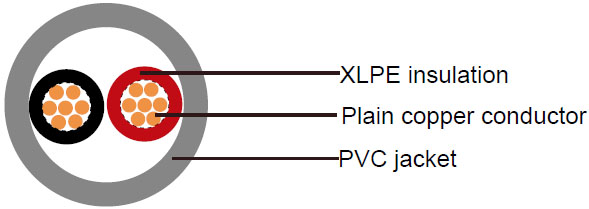

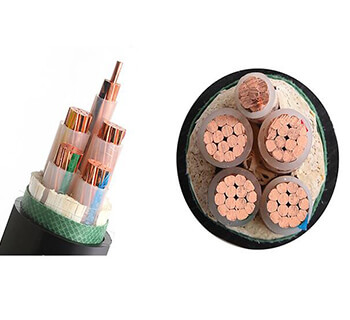

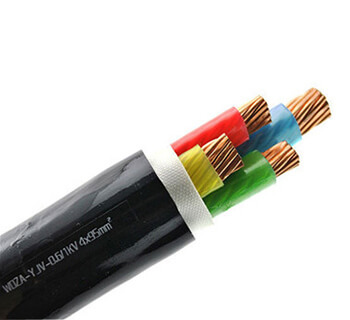

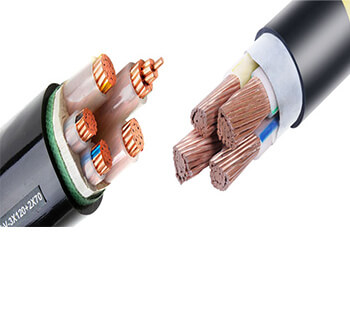

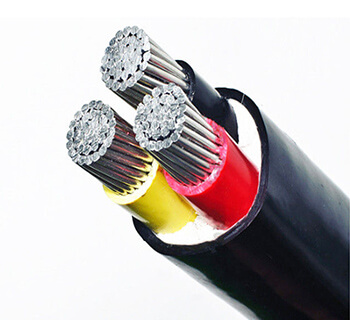

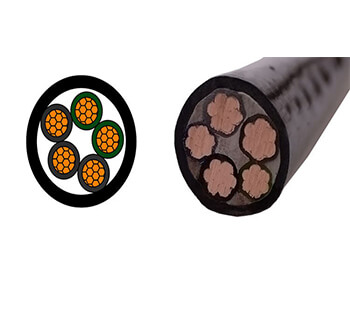

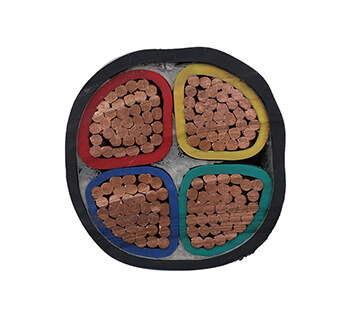

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

XLPE material and thickness shall be as per IEC 60502-1, rated for 90℃ continuous operation.

Colour Code

1 Core

Brown or Blue

2 Cores

Brown, Blue

3 Cores

Brown, Black, Grey

4 Cores

Blue, Brown, Black, Grey

5 Cores

Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores

Black Cores with White numerals

Other colours can be manufactured upon request.

Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.

Optional : Lead Sheath

lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.

Optional : Seperation Sheath

The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer sheath material.

Optional: Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.

Optional : Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

The sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.


Voltage rating for  XLPE Power Cable                  No. x Nominal Cross Section of Conductor             No. x  mm2
    1 core    2 core    3 core   3+1 core4core3+2 core4+1 core5 core
0.6/1 kV

1x4 mm22x4 mm23x4 mm23x4 mm2 + 1x2.5mm24x4 mm23x4 mm2 + 2x2.5mm24x4 mm2 + 1x2.5mm25x2.5 mm2
1x6 mm22x6 mm23x6 mm23x6 mm2 + 1x4 mm24x6 mm23x6 mm2 + 2x4 mm24x6 mm2 + 1x4 mm25x4 mm2
1x10 mm22x10 mm23x10 mm23x10 mm2 + 1x6 mm24x10 mm23x10 mm2 + 2x6 mm24x10 mm2 + 1x6 mm25x6 mm2
1x16 mm22x16 mm23x16mm23x16 mm2 + 1x10 mm24x16 mm23x16 mm2 + 2x10 mm24x16 mm2 + 1x10 mm25x10 mm2
1x 25 mm22x 25 mm23x 25 mm23x25 mm2 + 1x16mm24x25 mm23x25 mm2 + 2x16mm24x25 mm2 + 1x16mm25x16 mm2
1x35 mm22x35 mm23x 35 mm23x35 mm2 + 1x16mm24x35 mm23x35 mm2 + 2x16mm24x35 mm2 + 1x16mm25x25 mm2
1x50 mm22x50 mm23x 50 mm23x50 mm2 + 1x25mm24x50 mm23x50 mm2 + 2x25mm24x50 mm2 + 1x25mm25x35 mm2
1x70 mm22x70 mm23x 70 mm23x70 mm2 + 1x35mm24x70 mm23x70 mm2 + 2x35mm24x70 mm2 + 1x35mm25x50 mm2
1x95 mm22x95 mm23x 95 mm23x95 mm2 + 1x50mm24x95 mm23x95 mm2 + 2x50mm24x95 mm2 + 1x50mm25x70 mm2
1x120 mm22x120 mm23x 120 mm23x120mm2 + 1x70mm24x120 mm23x120mm2 + 2x70mm24x120mm2 + 1x70mm25x95 mm2
1x150 mm22x150 mm23x 150 mm23x150mm2 + 1x70mm24x150 mm23x150mm2 + 2x70mm24x150mm2 + 1x70mm2
1x185 mm22x185 mm23x 185 mm23x185mm2 + 1x95mm24x185 mm23x185mm2 + 2x95mm24x185mm2 + 1x95mm2
1x240 mm2
3x 240 mm23x240mm2 + 1x120mm24x240 mm23x240mm2 + 2x120mm24x240mm2 + 1x120mm2
1x300 mm2
3x 300 mm23x300mm2 + 1x150mm24x300 mm23x300mm2 + 2x150mm24x300mm2 + 1x150mm2
1x400 mm2






1x500 mm2
