Nigerian Recline Cables

Manufacturer, factory, supplier, company from China

16mm 25mm 35mm 50mm 70mm recline cable price

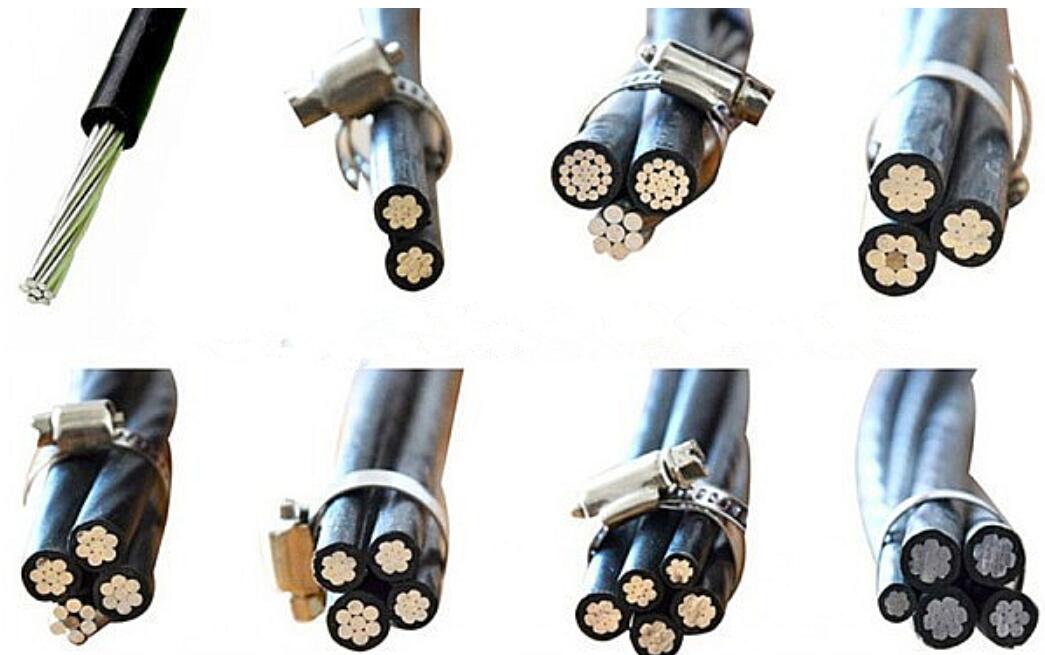

Overhead Aluminium conductor Aerial Bounded Cable Recline cable

MOQ: 5KM Send e-mail for price list

Send E-mail Get Price Now

Brief introduction

The Insulated Aerial cable is made up of the aluminium (aluminium alloy) conductor, inner shield, climate-resistant insulation material and outer shield. It has structure and is safe a nd reliable. It has both excellent properties of the power cable and good physical properties of the aerial cable. By using the climate-resistant insulation material, the product has the excellent properties of resistance to air aging. Compare with the bare wire, it has good characteristics such as smaller laying distance, higher reliability. Itissuitableforusing in the high buildings, brushland and bad weather zone.

Structure

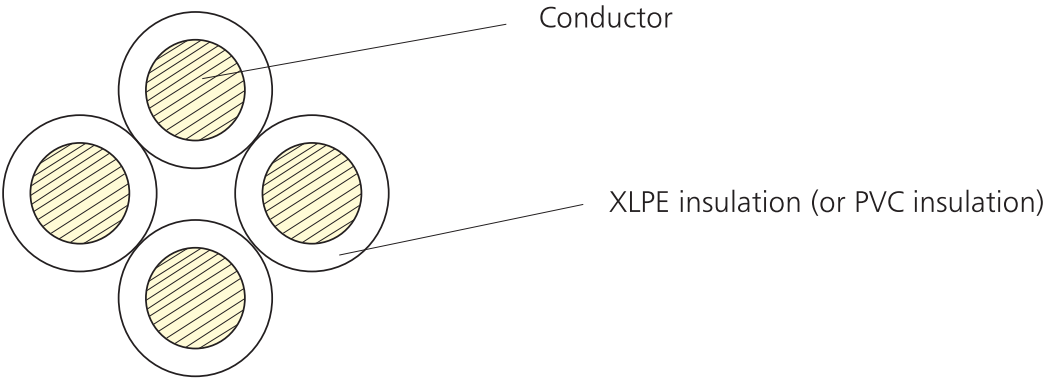

1 kV 4-core insulated aerial cable

1 kV 4-core insulated aerial cable.png

Number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	Ohm/km	kN	A	mm	kg/km
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	319	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	319	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	360	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	400	1217
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	418	1438
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	420	1544
4x120 + 1x 25 RM	0,253/1,200	18,6/4,0	290/107	590	2050

Construction

Conductor (for either phase, neutral or street lighting)	The conductors shall be of aluminium 1350 wires and are compacted circular stranded(RM).
Insulation	XLPE/PE as requirements
Assembly	2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded.

Technical Data

Rated voltage	kV	0.6/1
Test voltage	Veff kV	4
Laying temperature	°C	min. -20
Operating temperature	°C	-30 ~ +80
Conductor temperature	°C	max. +80
Short-circuit temperature	°C/s	max. +130 /5
Bending radius (min.)		18 × o of cable
