MV cable: 11KV 33KV 3.6KV - 35KV Underground Power Cable

3.6/6 (7.2) KV XLPE/PVC PVC/PVC single core 3 cores (armored/non-armored) YJV, YJLV VV, VLV……

3.6/6 (7.2) KV XLPE/PVC PVC/PVC 3 cores (steel wire armored) YJV32, YJLV32 VV32, VLV32……

6/6 (7.2), 6/10 (12) KV XLPE/PVC single core 3 cores (armored/non-armored) YJV, YJLV……

8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC single core 3 cores (armored/non-armored) YJV, YJLV……

12/20 (24) XLPE/PVC single core 3 cores (armored/non-armored) YJV, YJLV……

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Application

Their aluminium wire armour (AWA) for single core cables and steel wire armour (SWA) for multicore cables provide robust mechanical protection making these MV cables suitable for direct burial in the ground. These armoured MV mains power cables are more commonly supplied with copper conductors but they are also available with aluminium conductors upon request to the same standard. The copper conductors are stranded (Class 2) whereas the aluminium conductors are compliant to the standard using both stranded and solid (Class 1) constructions.

Operating characteristics

1. Laying temperature: ≥0°C;

2. Cable conductor long-term allowable working temperature: PVC insulated ≤70°C, XLPE insulated ≤90°C;

3. Maximum operating temperature in case of short-circuit: PVC insulated ≤160°C, XLPE insulation ≤ 250°C;

4. Cable bending radius:


Item	Single-core		Three-core
Item	Non-armored	Armored	Non-armored	Armored
Installation	20D	15D	15D	12D
Close to the terminal and connection box	15D	12D	12D	10D

Note: D is the cable diameter

MV Cables Construction

	BS6622	BS7835
Conductor	Class 2 stranded copper or Class 1 solid /Class 2 stranded aluminium
Conductor Screen	Semi-conductive Cross-Linked Polyethylene (XLPE)
Insulation	XLPE
Insulation Screen	Semi-conductive XLPE
Metallic Screen	Individual or overall copper tape
Filler	Polyethylene Terephthalate (PET) fibres
Separator	Binding Tape
Bedding	Polyvinyl Chloride (PVC)	Low Smoke Zero Halogen (LSZH) compound
Armour	Single core cable: Aluminium Wire Armour (AWA) Multicore cable: Steel Wire Armour (SWA)
Sheath	PVC or Medium Density Polyethylene (MDPE)	LSZH

Cable models, names, and laying conditions


Model		Name	Laying Occasion
Copper core	Aluminum core	Name	Laying Occasion
YJV	YJLV	XLPE insulated PVC sheathed power cable	Laid indoors, and in tunnels and pipelines
YJY	YJLY	XLPE insulated PE sheathed power cable	Laid indoors, and in tunnels and pipelines
YJV22	YJLV22	XLPE insulated steel tape armored PVC sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV23	YJLV23	XLPE insulated steel tape armored PE sheathed power cable	Adapt for buried laying, not suitable for in-pipe laying
YJV32	YJLV32	XLPE insulated thin steel wire armored PVC sheathed power cable	Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas.
YJV33	YJLV33	XLPE insulated thin steel wire armored PVC sheathed power cable
YJV42	YJLV42	XLPE insulated thick steel wire armored PVC sheathed power cable
YJV43	YJLV43	XLPE insulated thick steel wire armored PE sheathed power cable
W	VLV	PVC insulated and sheathed power cable	Laid indoors, and in tunnels, pipelines, cable trenches, and flammable and severe corrosion places, and can not bear external mechanical forces.
VY	VLY	PVC insulated PE sheathed power cable	Laid indoors, and in pipelines, cable trenches and severe corrosion places, and cannot bear external mechanical forces.
VV22	VLV22	PVC insulated steel tape armored PVC sheathed power cable	Laid indoors, and in cable trenches, underground severe corrosion places, and cannot bear tension.
VV23	VLV23	PVC insulated steel tape armored PE sheathed power cable	Laid indoors, and in cable trenches and underground severe corrosion place, and cannot bear tension.
VV32	VLV32	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and cannot bear high tension.
VV33	VLV33	PVC insulated thin steel wire armored PVC sheathed power cable	Laid under ground and in shafts, water and severe corrosion places, and can bear high tension
VV42	VLV42	PVC insulated thick steel wire armored PVC sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.
VV43	VLV43	PVC insulated thick steel wire armored PE sheathed power cable	Laid under ground and in shafts and severe corrosion places, and can bear high tension.

3.6/6 (7.2) KV XLPE/PVC single core (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.12	1.5	17.2	510	354
35	Compact round	7.2	2.5	0.12	1.6	18.6	637	418
50	Compact round	8.4	2.5	0.12	1.6	19.8	800	488
70	Compact round	10.0	2.5	0.12	1.7	21.6	1029	591
95	Compact round	11.7	2.5	0.12	1.7	23.3	1296	701
120	Compact round	13.1	2.5	0.12	1.8	24.9	1566	815
150	Compact round	14.6	2.5	0.12	1.8	26.4	1873	934
185	Compact round	16.3	2.5	0.12	1.9	28.3	2244	1085
240	Compact round	18.5	2.6	0.12	1.9	30.7	2805	1302
300	Compact round	20.7	2.8	0.12	2.0	33.7	3456	1576
400	Compact round	23.8	3.0	0.12	2.2	37.4	4501	1994
500	Compact round	26.6	3.2	0.12	2.3	41.4	5546	2412
630	Compact round	30.1	3.2	0.12	2.4	45.1	6853	2905
800	Compact round	35.0	3.2	0.12	2.5	50.4	8576	3562
1000	Milliken conductor	39.5	3.2	0.12	2.6	55.3	10592	4306

3.6/6 (7.2) KV PVC/PVC single core (non-armored) VV, VLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.12	1.4	15.7	360	297
16	Compact round	5.0	3.4	0.12	1.4	16.8	444	344
25	Compact round	6.0	3.4	0.12	1.5	18.0	560	404
35	Compact round	7.2	3.4	0.12	1.5	19.2	684	465
50	Compact round	8.4	3.4	0.12	1.6	20.6	861	549
70	Compact round	10.0	3.4	0.12	1.6	22.2	1087	649
95	Compact round	11.7	3.4	0.12	1.7	24.1	1371	776
120	Compact round	13.1	3.4	0.12	1.7	25.5	1636	885
150	Compact round	14.6	3.4	0.12	1.8	27.2	1962	1023
185	Compact round	16.3	3.4	0.12	1.8	28.9	2326	1168
240	Compact round	18.5	3.4	0.12	1.9	31.3	2900	1397
300	Compact round	20.7	3.4	0.12	2.0	33.7	3523	1643
400	Compact round	23.8	3.4	0.12	2.1	37.0	4534	2027
500	Compact round	26.6	3.4	0.12	2.2	40.0	5538	2404
630	Compact round	30.1	3.4	0.12	2.3	43.7	6837	2889
800	Compact round	35.0	3.4	0.12	2.4	48.8	8545	3531
1000	Milliken conductor	39.5	3.4	0.12	2.6	53.7	10539	4271

3.6/6 (7.2) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectiona area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.12	2.1	34.7	1521	1049
35	Compact round	7.2	2.5	0.12	2.2	37.5	1891	1230
50	Compact round	8.4	2.5	0.12	2.3	40.2	2402	1458
70	Compact round	10.0	2.5	0.12	2.4	43.9	3082	1760
95	Compact round	11.7	2.5	0.12	2.5	47.8	3914	2121
120	Compact round	13.1	2.5	0.12	2.6	51.1	4722	2456
150	Compact round	14.6	2.5	0.12	2.7	54.5	5676	2844
185	Compact round	16.3	2.5	0.12	2.8	58.4	6786	3293
240	Compact round	18.5	2.6	0.12	3.0	63.9	8535	4004
300	Compact round	20.7	2.8	0.12	3.2	70.3	10512	4849
400	Compact round	23.8	3.0	0.12	3.5	78.4	13664	6113
500	Compact round	26.6	3.2	0.12	3.7	87.0	16918	7479

3.6/6 (7.2) KV PVC/PVC 3 cores (non-armored)VV, VLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.8	28.8	1003	815
16	Compact round	5.0	3.4	0.1	1.9	31.4	1311	1009
25	Compact round	6.0	3.4	0.1	2.0	33.8	1647	1175
35	Compact round	7.2	3.4	0.1	2.1	36.6	2052	1392
50	Compact round	8.4	3.4	0.1	2.2	39.3	2481	1537
70	Compact round	10.0	3.4	0.1	2.3	43.0	3174	1850
95	Compact round	11.7	3.4	0.1	2.4	46.8	4010	2213
120	Compact round	13.1	3.4	0.1	2.5	50.1	4827	2557
150	Compact round	14.6	3.4	0.1	2.6	53.5	5797	2960
185	Compact round	16.3	3.4	0.1	2.7	57.4	6916	3417
240	Compact round	18.5	3.4	0.1	2.9	62.5	8651	4112
300	Compact round	20.7	3.4	0.1	3.1	67.6	10540	4859
400	Compact round	23.8	3.4	0.1	3.3	74.7	13601	6027
500	Compact round	26.6	3.4	0.1	3.5	81.1	16645	7178

3.6/6 (7.2) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.1	1.2	2.0	2.3	42.1	3317	2845
35	Compact round	7.2	2.5	0.1	1.3	2.5	2.5	46.7	4312	3651
50	Compact round	8.4	2.5	0.1	1.3	2.5	2.5	49.3	4972	4028
70	Compact round	10.0	2.5	0.1	1.4	2.5	2.7	53.3	5968	4646
95	Compact round	11.7	2.5	0.1	1.4	2.5	2.8	57.2	7033	5239
120	Compact round	13.1	2.5	0.1	1.5	2.5	2.9	60.6	8072	5807
150	Compact round	14.6	2.5	0.1	1.6	2.5	3.0	64.2	9288	6456
185	Compact round	16.3	2.5	0.1	1.6	2.5	3.1	68.1	10737	7245
240	Compact round	18.5	2.6	0.1	1.7	2.5	3.3	73.9	12869	8339
300	Compact round	20.7	2.8	0.1	1.8	3.15	3.5	81.8	16183	10520
400	Compact round	23.8	3.0	0.1	2.0	3.15	3.8	90.4	20070	12519
500	Compact round	26.6	3.2	0.1	2.1	3.15	4.1	99.3	24131	14692

3.6/6 (7.2) KV PVC/PVC 3 cores (steel wire armored) VV32, VLV32


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.2	2.0	2.1	36.4	2385	2196
16	Compact round	5.0	3.4	0.1	1.2	2.0	2.1	38.8	2802	2500
25	Compact round	6.0	3.4	0.1	1.2	2.0	2.2	41.2	3236	2764
35	Compact round	7.2	3.4	0.1	1.2	2.0	2.3	44.0	3768	3107
50	Compact round	8.4	3.4	0.1	1.3	2.5	2.5	48.5	4890	3946
70	Compact round	10.0	3.4	0.1	1.3	2.5	2.6	52.2	5789	4465
95	Compact round	11.7	3.4	0.1	1.4	2.5	2.7	56.2	6856	5059
120	Compact round	13.1	3.4	0.1	1.5	2.5	2.8	59.7	7901	5631
150	Compact round	14.6	3.4	0.1	1.5	2.5	2.9	63.1	9076	6239
185	Compact round	16.3	3.4	0.1	1.6	2.5	3.1	67.4	10467	6968
240	Compact round	18.5	3.4	0.1	1.7	2.5	3.2	72.5	12514	7975
300	Compact round	20.7	3.4	0.1	1.8	3.15	3.4	79.1	15590	9910
400	Compact round	23.8	3.4	0.1	1.9	3.15	3.7	86.6	19214	11641
500	Compact round	26.6	3.4	0.1	2.0	3.15	3.9	93.2	22781	13314

3.6/6 (7.2) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	2.5	0.1	1.2	0.5	2.2	39.3	2474	2002
35	Compact round	7.2	2.5	0.1	1.3	0.5	2.3	42.3	2947	2286
50	Compact round	8.4	2.5	0.1	1.3	0.5	2.4	45.1	3537	2593
70	Compact round	10.0	2.5	0.1	1.4	0.5	2.5	48.9	4351	3030
95	Compact round	11.7	2.5	0.1	1.4	0.5	2.6	52.8	5297	3504
120	Compact round	13.1	2.5	0.1	1.5	0.5	2.8	56.4	6277	4012
150	Compact round	14.6	2.5	0.1	1.6	0.5	2.9	60.0	7373	4541
185	Compact round	16.3	2.5	0.1	1.6	0.5	3.0	63.9	8665	5172
240	Compact round	18.5	2.6	0.1	1.7	0.5	3.2	69.7	10618	6087
300	Compact round	20.7	2.8	0.1	1.8	0.5	3.4	76.3	12836	7173
400	Compact round	23.8	3.0	0.1	2.0	0.8	3.7	86.1	17195	9644
500	Compact round	26.6	3.2	0.1	2.1	0.8	3.9	94.8	20887	11448

3.6/6 (7.2) KV PVC/PVC 3 cores (steel tape armored) VV22, VLV22


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
10	Compact round	3.9	3.4	0.1	1.2	0.2	1.9	32.2	1382	1193
16	Compact round	5.0	3.4	0.1	1.2	0.2	2.0	34.8	1722	1420
25	Compact round	6.0	3.4	0.1	1.2	0.5	2.1	38.4	2447	1975
35	Compact round	7.2	3.4	0.1	1.2	0.5	2.2	41.2	2914	2253
50	Compact round	8.4	3.4	0.1	1.3	0.5	2.3	44.1	3426	2482
70	Compact round	10.0	3.4	0.1	1.3	0.5	2.4	47.8	4204	2879
95	Compact round	11.7	3.4	0.1	1.4	0.5	2.6	52.0	5176	3379
120	Compact round	13.1	3.4	0.1	1.5	0.5	2.7	55.5	6099	3829
150	Compact round	14.6	3.4	0.1	1.5	0.5	2.8	58.9	7152	4315
185	Compact round	16.3	3.4	0.1	1.6	0.5	2.9	63.0	8397	4897
240	Compact round	18.5	3.4	0.1	1.7	0.5	3.1	68.3	10290	5751
300	Compact round	20.7	3.4	0.1	1.8	0.5	3.2	73.4	12308	6628
400	Compact round	23.8	3.4	0.1	1.9	0.5	3.5	80.9	15624	8051
500	Compact round	26.6	3.4	0.1	2.0	0.8	3.7	88.7	19733	10266

6/6 (7.2), 6/10 (12) KV XLPE/PVC single core (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.12	1.6	19.4	580	423
35	Compact round	7.2	3.4	0.12	1.6	20.6	702	483
50	Compact round	8.4	3.4	0.12	1.7	22.0	878	566
70	Compact round	10.0	3.4	0.12	1.7	23.6	1103	665
95	Compact round	11.7	3.4	0.12	1.8	25.5	1386	791
120	Compact round	13.1	3.4	0.12	1.8	26.9	1649	898
150	Compact round	14.6	3.4	0.12	1.9	28.6	1974	1035
185	Compact round	16.3	3.4	0.12	1.9	30.3	2337	1178
240	Compact round	18.5	3.4	0.12	2.0	32.7	2908	1406
300	Compact round	20.7	3.4	0.12	2.1	35.3	3544	1664
400	Compact round	23.8	3.4	0.12	2.2	38.6	4554	2047
500	Compact round	26.6	3.4	0.12	2.3	42.2	5574	2440
630	Compact round	30.1	3.4	0.12	2.4	45.9	6884	2936
800	Compact round	35.0	3.4	0.12	2.5	51.2	8611	3597
1000	Milliken conductor	39.5	3.4	0.12	2.7	56.3	10655	4369

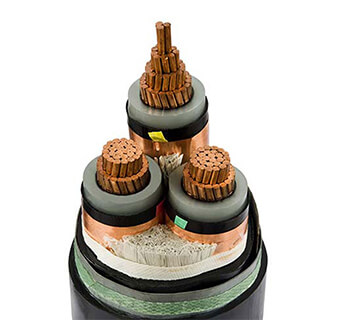

6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.12	2.2	38.9	1728	1256
35	Compact round	7.2	3.4	0.12	2.3	41.6	2111	1451
50	Compact round	8.4	3.4	0.12	2.4	44.4	2636	1692
70	Compact round	10.0	3.4	0.12	2.5	48.1	3336	2015
95	Compact round	11.7	3.4	0.12	2.7	52.0	4185	2392
120	Compact round	13.1	3.4	0.12	2.8	55.2	5009	2743
150	Compact round	14.6	3.4	0.12	2.9	58.7	5979	3148
185	Compact round	16.3	3.4	0.12	3.0	62.5	7109	3616
240	Compact round	18.5	3.4	0.12	3.1	67.6	8845	4314
300	Compact round	20.7	3.4	0.12	3.3	73.1	10764	5101
400	Compact round	23.8	3.4	0.12	3.5	80.2	13848	6297
500	Compact round	26.6	3.4	0.12	3.7	87.9	17019	7580

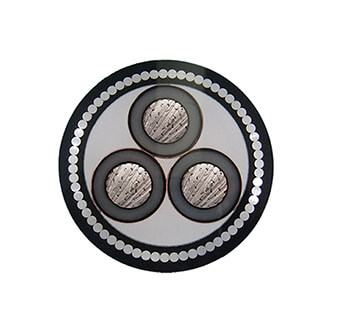

6/6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.1	1.3	2.5	2.5	48.0	4175	3703
35	Compact round	7.2	3.4	0.1	1.3	2.5	2.6	50.8	4733	4072
50	Compact round	8.4	3.4	0.1	1.4	2.5	2.7	53.8	5491	4547
70	Compact round	10.0	3.4	0.1	1.5	2.5	2.8	57.6	6446	5124
95	Compact round	11.7	3.4	0.1	1.5	2.5	2.9	61.5	7530	5737
120	Compact round	13.1	3.4	0.1	1.6	2.5	3.0	64.9	8628	6363
150	Compact round	14.6	3.4	0.1	1.6	2.5	3.1	68.3	9794	6963
185	Compact round	16.3	3.4	0.1	1.7	2.5	3.3	72.6	11326	7834
240	Compact round	18.5	3.4	0.1	1.8	3.15	3.5	79.2	14268	9737
300	Compact round	20.7	3.4	0.1	1.9	3.15	3.6	84.8	16641	10978
400	Compact round	23.8	3.4	0.1	2.0	3.15	3.9	92.3	20362	12811
500	Compact round	26.6	3.4	0.1	2.1	3.15	4.1	99.3	24203	14764

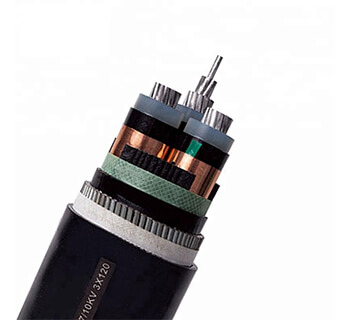

6/6 (7.2), 6/10 (12) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	3.4	0.1	1.3	0.5	2.4	43.8	2805	2333
35	Compact round	7.2	3.4	0.1	1.3	0.5	2.4	46.4	3251	2590
50	Compact round	8.4	3.4	0.1	1.4	0.5	2.6	49.6	3902	2958
70	Compact round	10.0	3.4	0.1	1.5	0.5	2.7	53.4	4739	3417
95	Compact round	11.7	3.4	0.1	1.5	0.5	2.8	57.3	5706	3913
120	Compact round	13.1	3.4	0.1	1.6	0.5	2.9	60.7	6681	4415
150	Compact round	14.6	3.4	0.1	1.6	0.5	3.0	64.1	7764	4932
185	Compact round	16.3	3.4	0.1	1.7	0.5	3.1	68.2	9108	5615
240	Compact round	18.5	3.4	0.1	1.8	0.5	3.3	73.5	11046	6515
300	Compact round	20.7	3.4	0.1	1.9	0.5	3.5	79.3	13198	7534
400	Compact round	23.8	3.4	0.1	2.0	0.8	3.7	87.8	17420	9869
500	Compact round	26.6	3.4	0.1	2.1	0.8	3.9	94.8	20958	11520

8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.12	2.4	43.9	2008	1536
35	Compact round	7.2	4.5	0.12	2.5	46.7	2411	1750
50	Compact round	8.4	4.5	0.12	2.6	49.5	2953	2009
70	Compact round	10.0	4.5	0.12	2.7	53.2	3672	2351
95	Compact round	11.7	4.5	0.12	2.8	57.1	4544	2751
120	Compact round	13.1	4.5	0.12	2.9	60.3	5387	3122
150	Compact round	14.6	4.5	0.12	3.0	63.7	6378	3546
185	Compact round	16.3	4.5	0.12	3.1	67.6	7531	4038
240	Compact round	18.5	4.5	0.12	3.3	72.7	9297	4767
300	Compact round	20.7	4.5	0.12	3.5	78.2	11249	5586
400	Compact round	23.8	4.5	0.12	3.7	85.3	14376	6825
500	Compact round	26.6	4.5	0.12	3.9	93.0	17592	8153

8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (steel wire armored) YJV32, YJLV32


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored wire outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.1	1.4	2.5	2.7	53.3	4803	4331
35	Compact round	7.2	4.5	0.1	1.4	2.5	2.8	56.1	5379	4719
50	Compact round	8.4	4.5	0.1	1.5	2.5	2.9	59.1	6091	5147
70	Compact round	10.0	4.5	0.1	1.5	2.5	3.0	62.8	7088	5766
95	Compact round	11.7	4.5	0.1	1.6	2.5	3.1	66.8	8239	6446
120	Compact round	13.1	4.5	0.1	1.7	2.5	3.2	70.2	9346	7080
150	Compact round	14.6	4.5	0.1	1.7	3.15	3.4	75.2	11431	8599
185	Compact round	16.3	4.5	0.1	1.8	3.15	3.5	79.2	12953	9461
240	Compact round	18.5	4.5	0.1	1.9	3.15	3.7	84.6	15139	10608
300	Compact round	20.7	4.5	0.1	2.0	3.15	3.8	90.1	17591	11928
400	Compact round	23.8	4.5	0.1	2.1	3.15	4.1	97.6	21504	13953
500	Compact round	26.6	4.5	0.1	2.2	3.15	4.3	105.5	25364	15925

8.7/10 (12), 8.7/15 (17.5) KV XLPE/PVC 3 cores (steel tape armored) YJV22, YJLV22


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	PVC bedding thickness (mm)	Armored tape outer diameter (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cable weight (kg/km)	Aluminum core cable weight (kg/km)
25	Compact round	6.0	4.5	0.1	1.4	0.5	2.5	48.9	3227	2755
35	Compact round	7.2	4.5	0.1	1.4	0.5	2.6	51.7	3711	3050
50	Compact round	8.4	4.5	0.1	1.5	0.5	2.7	54.7	4372	3428
70	Compact round	10.0	4.5	0.1	1.5	0.5	2.8	58.4	5208	3886
95	Compact round	11.7	4.5	0.1	1.6	0.5	3.0	62.6	6271	4477
120	Compact round	13.1	4.5	0.1	1.7	0.5	3.1	66.0	7254	4989
150	Compact round	14.6	4.5	0.1	1.7	0.5	3.2	69.5	8420	5588
185	Compact round	16.3	4.5	0.1	1.8	0.5	3.3	73.5	9731	6239
240	Compact round	18.5	4.5	0.1	1.9	0.5	3.5	78.9	11715	7184
300	Compact round	20.7	4.5	0.1	2.0	0.8	3.7	85.8	14774	9111
400	Compact round	23.8	4.5	0.1	2.1	0.8	3.9	93.1	18350	10798
500	Compact round	26.6	4.5	0.1	2.2	0.8	4.1	101.0	21990	12551

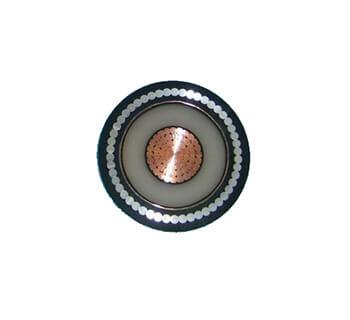

12/20 (24) XLPE/PVC single core (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.12	1.8	25.2	896	677
50	Compact round	8.4	5.5	0.12	1.8	26.4	1071	759
70	Compact round	10.0	5.5	0.12	1.9	28.2	1320	882
95	Compact round	11.7	5.5	0.12	1.9	29.9	1604	1009
120	Compact round	13.1	5.5	0.12	2.0	31.5	1892	1141
150	Compact round	14.6	5.5	0.12	2.0	33.0	2215	1275
185	Compact round	16.3	5.5	0.12	2.1	34.9	2605	1447
240	Compact round	18.5	5.5	0.12	2.2	37.3	3196	1693
300	Compact round	20.7	5.5	0.12	2.2	39.7	3833	1953
400	Compact round	23.8	5.5	0.12	2.3	43.0	4867	2360
500	Compact round	26.6	5.5	0.12	2.4	46.6	5902	2769
630	Compact round	30.1	5.5	0.12	2.5	50.3	7250	3302
800	Compact round	35.0	5.5	0.12	2.7	55.8	9040	4026
1000	Milliken conductor	39.5	5.5	0.12	2.8	60.7	11096	4810

12/20 (24) XLPE/PVC 3 cores (non-armored) YJV, YJLV


Conductor			Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
Cross sectional area (mm2)	Structure	Outer diameter (mm)	Insulation thickness (mm)	Copper tape screen (approximate) (mm)	Sheath thickness (mm)	Outer diameter (approximate) (mm)	Copper core cableweight (kg/km)	Aluminum core cable weight (kg/km)
35	Compact round	7.2	5.5	0.12	2.6	51.3	2708	2047
50	Compact round	8.4	5.5	0.12	2.7	54.1	3264	2320
70	Compact round	10.0	5.5	0.12	2.8	57.8	4004	2682
95	Compact round	11.7	5.5	0.12	3.0	61.7	4897	3103
120	Compact round	13.1	5.5	0.12	3.1	64.9	5757	3492
150	Compact round	14.6	5.5	0.12	3.2	68.3	6767	3935
185	Compact round	16.3	5.5	0.12	3.3
