URD Cable (Direct Burial Cable) Underground Secondary Distribution

    Single Conductor 600 Volt URD

    Duplex Conductor 600 Volt URD

    Triplex Conductor 600 Volt URD

    Quadruplex Conductor 600 Volt URD

    Direct Burial UD Cable

    Manufacturer from China

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.



Send E-mail Get Price Now

Application

Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.

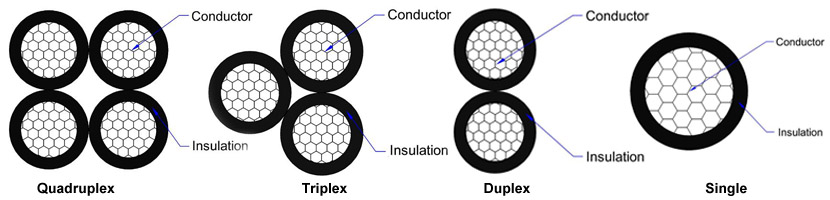

Construction

Conductors are stranded, compressed 1350-H19, H16, or H26 aluminum, insulated with cross-linked polyethylene. Neutrals are triple yellow extruded stripe.







Color: distribution cable is black.

Description: Underground Secondary Distribution Cables are twisted assemblies of aluminum alloy 1350 conductors insulated with cross-linked polyethylene. This underground electrical wire is used in various underground applications in secondary distribution circuits at up to 600 volts.

Conductor: Compressed Class B compressed stranded, 1350 series aluminum alloy.

Insulation: Black cross-linked polyethylene (XLPE)

Assembly: Phase conductors and neutral conductors are cabled together to form a twisted assembly.

Applicable Standards: – UL 854: Service Entrance Cables

– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables.

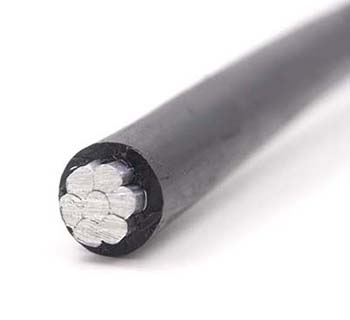

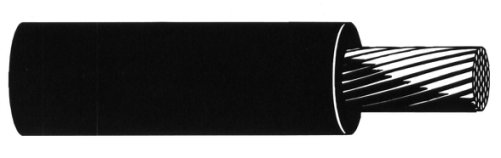

Single Conductor 600V Secondary UD

Code Word

Size (AWG or kcmil)

Strand- ing

Insul. Thick. (mils)

Diameter (mils)

Weight Per 1000

feet (lbs.)

Allowable Ampacities+





Bare

Complete Cable


Direct Burial

In Ducts

Princeton

6

7

60

178

298

44

90

65

Mercer

4

7

60

225

345

63

120

85

Clemson

2

7

60

283

403

92

155

115

Kenyon

1

9

80

313

473

121

175

130

Harvard

1/0

9

80

352

512

146

200

150

Yale

2/0

11

80

395

555

177

225

170

Tufts

3/0

17

80

443

603

215

250

195

Beloit

4/0

18

80

498

658

263

290

225

Hofstra

250

26

95

542

732

315

320

250

Gonzaga

300

37

95

594

784

369

355

280

Rutgers

350

37

95

641

831

422

385

305

Emory

500

37

95

790

980

580

465

370

Duke

600

61

110

866

1086

699

510

410

Furman

700

61

110

935

1155

803

550

440

Sewanee

750

61

110

968

1188

854

580

470

Fordham

1000

61

110

1117

1337

1109

670

545

+Ampacity: 90°C conductor temperature, 20°C ambient temperature, RHO factor 90, 100% load factor for three conductor triplexed, 3 phase operation. For NEC Applications, use NEC Table 310.16 Ampacities.

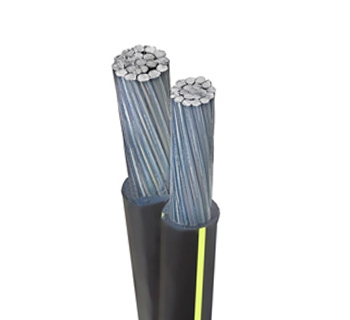

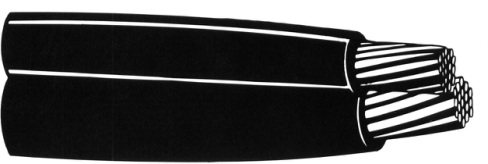

Duplex 600V Secondary UD

Code Word

Phase Conductor

Neutral

Diameter (mils)

Weight Per 1000

feet (lbs.)

Allowable Ampacities+


Size (AWG)

Strand- ing

Insul. Thick. (mils)

Size (AWG)

Strand- ing

Insul. Thick. (mils)

Single Phase Cond.

Complete Cable


Direct Burial

In Ducts

DUPLEX WITH YELLOW EXTRUDED STRIPE NEUTRAL

Bard

8

7

60

8

7

60

262

524

64

70

55

Claflin

6

7

60

6

7

60

298

596

89

95

70

Delgado

4

7

60

4

7

60

345

690

127

125

90

+Ampacity: 90°C conductor temperature, 20°C ambient, RHO 90, 100% load factor. For NEC Applications, use NEC Table 310.16 Ampacities.

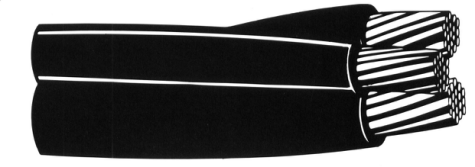

Triplex 600V Secondary UD

Code Word

Phase Conductor

Neutral

Diameter (mils)

Weight Per 1000

feet (lbs.)

Allowable Ampacities+


Size (AWG)

Strand- ing

Insul. Thick. (mils)

Size (AWG)

Strand- ing

Insul. Thick. (mils)

Single Phase Cond.

Complete Cable


Direct Burial

In Ducts

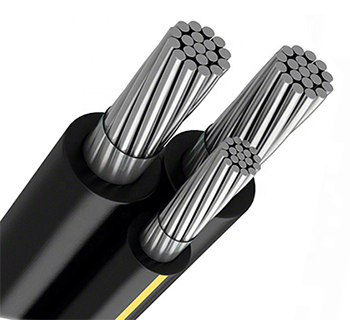

TRIPLEXED WITH YELLOW EXTRUDED STRIPE NEUTRAL.

Erskine

6

7

60

6

7

60

298

644

134

95

70

Vassar

4

7

60

4

7

60

345

745

191

125

90

Stephens

2

7

60

4

7

60

403

870

249

165

120

Ramapo

2

7

60

2

7

60

403

870

278

165

120

Brenau

1/0

9

80

2

7

60

512

1106

387

215

160

Bergen

1/0

9

80

1/0

9

80

512

1106

441

215

160

Converse

2/0

11

80

1

9

80

555

1199

478

245

180

Hunter

2/0

11

80

2/0

11

80

555

1199

535

245

180

Hollins

3/0

17

80

1/0

9

80

603

1302

581

280

205

Rockland

3/0

17

80

3/0

17

80

603

1302

651

280

205

Sweetbriar

4/0

18

80

2/0

11

80

658

1421

709

315

240

Monmouth

4/0

18

80

4/0

18

80

658

1421

796

315

240

Pratt

250

26

95

3/0

17

80

732

1581

853

345

265

Wesleyan

350

37

95

4/0

18

80

831

1795

1118

415

320

Holyoke

500

37

95

300

37

95

980

2117

1545

495

395

Rider

500

37

95

350

37

95

980

2117

1598

495

395

+Ampacity: 90°C conductor temperature, 20°C ambient, RHO 90, 100% load factor for three conductor triplex with neutral carrying only unbalanced load. Technical data for cable with solid black neutral is identical to yellow extruded stripe data except for "YES" suffix to code word. Also available in paralleled construction. For NEC Applications, use NEC Table 310.16 Ampacities.

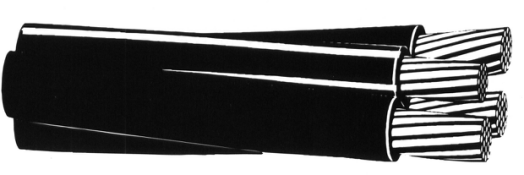

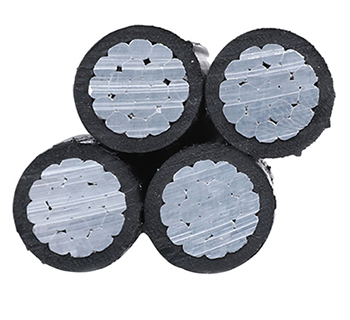

Quadruplex 600V Secondary UD






Code Word



Phase Conductors



Neutral Conductor





Complete Cable Diameter (inches)







Weight (lbs/1000’)



Allowable Ampacities+


Size (AWG

or kcmil)



Strand

-ing



Insul. Thick. (inches)



Phase Diameter (inches)



Size (AWG)



Strand

-ing



Insul. Thick. (inches)



Neutral Diameter (inches)





Direct Burial



In Ducts

Quadruplex with Yellow Extruded Stripe Neutral

Tulsa

4

7

0.060

0.345

4

7

0.060

0.345

0.833

255

120

85

Dyke

2

7

0.060

0.403

4

7

0.060

0.345

0.973

342

155

115

Wittenberg

2

7

0.060

0.403

2

7

0.060

0.403

0.973

371

155

115

Notre Dame

1/0

9

0.080

0.512

2

7

0.060

0.403

1.236

534

200

150

Purdue

1/0

9

0.080

0.512

1/0

9

0.080

0.512

1.236

589

200

150

Syracuse

2/0

11

0.080

0.555

1

9

0.080

0.473

1.340

657

225

170

Lafayette

2/0

11

0.080

0.555

2/0

11

0.080

0.555

1.340

713

225

170

Swarthmore

3/0

17

0.080

0.603

1/0

9

0.080

0.512

1.456

798

250

195

Davidson

3/0

17

0.080

0.603

3/0

17

0.080

0.603

1.456

868

250

195

Wake Forest

4/0

18

0.080

0.658

2/0

11

0.080

0.555

1.588

971

290

225

Earlham

4/0

18

0.080

0.658

4/0

18

0.080

0.658

1.588

1062

290

225

Slippery Rock

350

30

0.095

0.831

4/0

18

0.080

0.658

2.006

1527

385

305

Wofford

500

37

0.095

0.980

350

30

0.095

0.831

2.366

2179

465

370

+ Ampacity: 90°C conductor temperature, 20°C ambient, RHO 90, 100% load factor for three conductor triplex with neutral carrying only unbalanced load.

Technical data for cable with solid black neutral is identical to yellow extruded stripe data except for the “YES” suffix to code word.

Also available in paralleled construction.

For NEC Applications, use NEC Table 310.16 Ampacities.

Single Conductor URD Wire Code Name Item

6AWG Princeton Single Conductor URD Wire

4AWG Mercer Single Conductor URD Wire

2AWG Clemson Single Conductor URD Wire

1/0 Harvard Single Conductor URD Wire

2/0 Yale Single Conductor URD Wire

3/0 Tufts Single Conductor URD Wire

4/0 Beloit Single Conductor URD Wire

250MCM Hofstra Single Conductor URD Wire

350MCM Rutgers Single Conductor URD Wire

500MCM Emory Single Conductor URD Wire

750MCM Sewanee Single Conductor URD Wire

1000MCM Fordham Single Conductor URD Wire

Duplex URD Wire Code Name Item

8-8 Bard duplex URD Wire(direct burial)

6-6 Bard duplex URD Wire(direct burial)

4-4 Bard duplex URD Wire(direct burial)

2-2 Bard duplex URD Wire(direct burial)

Triplex URD Wire (Direct Burial) Cable Code Name Item

6-6-6 Erskine Triplex URD Wire (Direct Burial)
4-4-4 Vassar Triplex URD Wire (Direct Burial)
2-2-4 Stephens Triplex URD Wire (Direct Burial)
2-2-2 Ramapo Triplex URD Wire (Direct Burial)
1/0,1/0 & #2 Brenau Triplex URD Wire (Direct Burial)
1/0,1/0 & 1/0 Bergen Triplex URD Wire (Direct Burial)
2/0,2/0 & #1 Converse Triplex URD Wire (Direct Burial)
2/0,2/0 & 2/0 Hunter Triplex URD Wire (Direct Burial)
3/0,3/0 & 1/0 Hollins Triplex URD Wire (Direct Burial)
4/0,4/0 & 2/0 Sweetbriar Triplex URD Wire (Direct Burial)
4/0,4/0 & 4/0 Monmouth Triplex URD Wire (Direct Burial)
250,250 & 3/0 Pratt Triplex URD Wire (Direct Burial)
350,350 & 4/0 Wesleyan Triplex URD Wire (Direct Burial)
500,500 & 350 Rider Triplex URD Wire (Direct Burial)
750,750 & 500 Fairfield Triplex URD Wire (Direct Burial)

Quadruplex URD Wire (Direct Burial) Cable Code Name Item

URD wire- 4-4-4-4 Tulsa Quadruplex URD Wire (Direct Burial)
2-2-2-4 Dyke Quadruplex URD Wire (Direct Burial)
2-2-2-2 Wittenburg Quadruplex URD Wire (Direct Burial)
1/0,1/0,1/0 & #2 Notre Dame Quadruplex URD Wire (Direct Burial)
2/0,2/0,2/0 & #1 Syracuse Quadruplex URD Wire (Direct Burial)
3/0,3/0,3/0 & 3/0 Davidson Quadruplex URD Wire (Direct Burial)
4/0,4/0,4/0 & 2/0 Wake Forest Quadruplex URD Wire (Direct Burial)
4/0,4/0,4/0 & 4/0 Earlham Quadruplex URD Wire (Direct Burial)
250,250,250 & 3/0 Rust Quadruplex URD Wire (Direct Burial)
350,350,350 & 4/0 Slippery Rock Quadruplex URD Wire (Direct Burial)
500,500, 500 & 350 Wofford Quadruplex URD Wire (Direct Burial)
