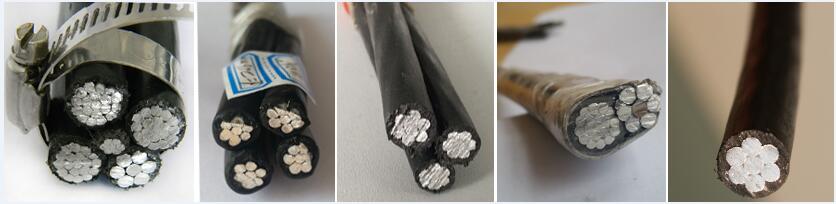

Low Voltage Aerial Bundled ABC Cable

Low Voltage LV Aerial Bundled Conductor (ABC) Cable

recline cable company in China

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Application

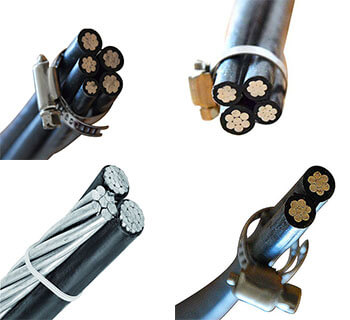

LV Aerial Bundle Cables(Recline Cables) are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores.

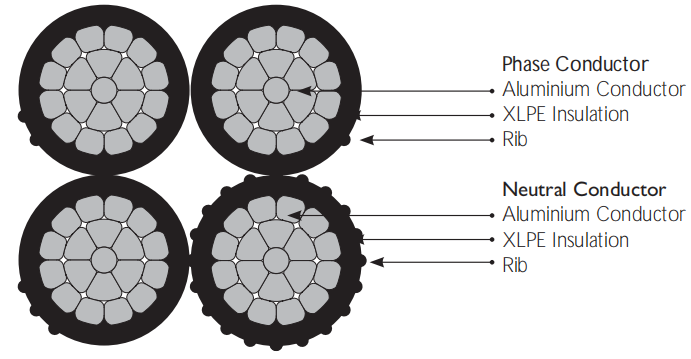

Construction

Phase Conductor: AAC1350,

Neutral Conductor:AAC1350 /AAAC1120/AAAC6201/ACSR,

Insulation:PE/XLPE/PVC/LDPE/HDPE.

Rated voltage	0.6/1KV
Cores	1,2,3, 4, 3+1,4+1 etc.
Section	10mm2~120mm2
Phase Conductor	Aluminium (AAC)
Neutral Conductor	AAAC/ACSR
Insulation	XLPE/ PE/ PVC/ LEPE/ HDPE
Standards:	NFC 33-209/ BS 7870-5/ IEC 60502/AS/NZS or according to your requirement.
Application	Overhead power transmission.

overhead bundled conductor cable supplier from China abc cable price list from manufacturer in China

600/1000V ABC –Aerial Bundled Cables to AS/NZS 3560.1 (AL/XLPE)

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km

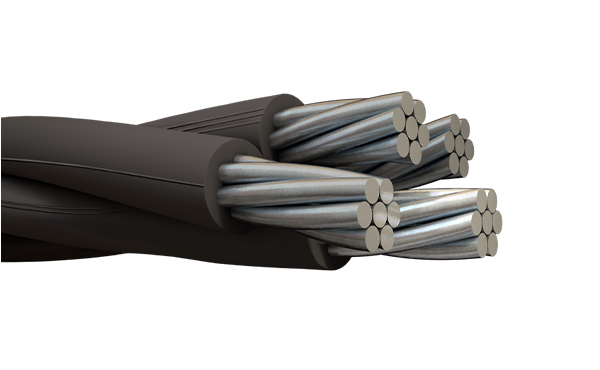

2x16 RM	4.4	78	15.0	140
2x25 RM	7.0	105	17.6	210
2x35 RM	9.8	125	19.6	270
2x50 RM	11.4	150	22.8	370
2x95 RM	15.3	230	30.6	680
3x25 RM	8.8	97	19.0	310
3x35 RM	9.8	120	21.1	410
3x50 RM	11.4	140	24.6	550

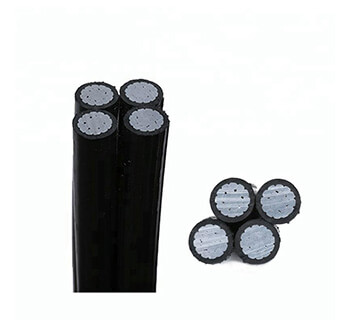

4x16 RM	8.8	74	18.1	290
4x25 RM	14.0	97	21.2	410
4x35 RM	19.6	120	23.7	550
4x50 RM	28.0	140	27.5	740
4x70 RM	39.2	175	31.9	1000
4x95 RM	53.2	215	36.9	1370
4x120 RM	67.2	250	40.6	1690
4x150 RM	84.0	280	43.9	2020

600/1000V ABC –Aerial Bundled Cables to BS 7870-5 (AL/XLPE)

number of cores x nominal cross section	max. conductor- resistance	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	Ohm/km	kN	A	mm	kg/km

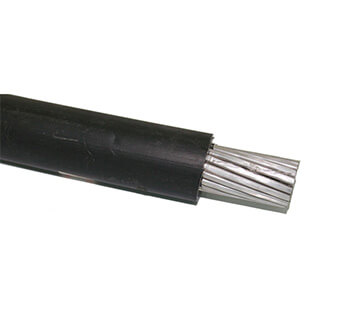

1x 16 RM	1,910	2,5	72	80	74
1x 25 RM	1,200	4,0	107	90	106
1x 35 RM	0,868	5,5	132	105	138
1x 50 RM	0,641	8,0	165	118	182
1x 70 RM	0,443	10,7	205	130	252
1x 95 RM	0,320	13,7	240	154	333
1x 120 RM	0,253	18,6	290	170	408
1x 150 RM	0,206	23,2	334	190	502
1x 185 RM	0,164	28,7	389	210	611
1x 240 RM	0,125	37,2	467	240	801
2x 16 RM	1,910	2,5	72	156	147
2x 25 RM	1,200	4,0	107	180	208
2x 35 RM	0,868	5,5	132	200	277
2x 50 RM	0,641	8,0	165	235	361
2x 70 RM	0,443	10,7	205	254	505
2x 95 RM	0,320	13,7	240	303	666
2x 150 RM	0,206	23,2	334	380	1004
4x 16 RM	1,910	2,5	72	188	286
4x 25 RM	1,200	4,0	107	212	430
4x 35 RM	0,868	5,5	132	241	553
4x 50 RM	0,641	8,0	165	278	746
4x 70 RM	0,443	10,7	205	318	1009
4x 95 RM	0,320	13,7	240	378	1332
4x 120 RM	0,253	18,6	290	544	1632
4x 50 + 1x 25 RM	0,641/1,200	8,0/4,0	165/107	319	814
4x 50 + 1x 35 RM	0,641/0,868	8,5/5,5	165/132	319	845
4x 70 + 1x 25 RM	0,443/1,200	10,7/4,0	205/107	360	1105
4x 70 + 2x 25 RM	0,443/1,200	10,7/4,0	205/107	400	1217
4x 95 + 1x 25 RM	0,320/1,200	13,7/4,0	240/107	418	1438
4x 95 + 2x 25 RM	0,320/1,200	13,7/4,0	240/107	420	1544
4x120 + 1x 25 RM	0,253/1,200	18,6/4,0	290/107	590	2050

600/1000V ABC –Aerial Bundled Cables to IEC 60502 & TNB Specification (AL/PE)

Number of cores x nominal cross section	min. breaking load of conductor strand	Current rating in the air	Outer diameter	Total weight
mm^2	kN	A	mm	kg/km
1x16+1x 25 RM	6.4	61	15.3	160
3x16+1x 25 RM	6.4	61	19.0	290
3x25+1x 25 RM	6.4	84	23.2	400
3x35+1x 25 RM	6.4	104	25.6	500
3x50+1x 35 RM	8.9	129	30.0	680
3x70+1x 50 RM	12.1	167	34.9	920
3x95+1x 70 RM	18.0	209	40.6	1270
3x120+1x 70 RM	18.0	246	44.1	1510
3x150+1x 95 RM	24.2	283	49.2	1870
3x185+1x120 RM	30.8	332	54.9	2340
3x25+1x25+1x16 RM	6.4	84	23.2	470
3x35+1x25+1x16 RM	6.4	104	25.6	560
3x50+1x35+1x16 RM	8.9	129	30.0	740
3x70+1x50+1x16 RM	12.1	167	34.9	980
3x95+1x70+1x16 RM	18.0	209	40.6	1330
3x120+1x70+1x16 RM	18.0	246	44.1	1580
3x150+1x95+1x16 RM	24.2	283	49.2	1940
3x185+1x120+1x16 RM	30.8	332	54.9	2410

other cross-sections on request

Parameter/Data Sheet

Please click or download below LV ABC Cable pdf to check the parameter regard to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards.

French_Standard_600_1000V_ABC_–Aerial_Bundled_Cables_to_NFC 33-209.pdf

Australian_Standard_600_1000V_ABC_Aerial_Bundled_Cables_to_AS_NZS_3560.1.pdf

German_Standard_600_1000V_ABC_–Aerial_Bundled_Cables_to_HD_626_S1.pdf

German_Standard_AsXSn_600_1000V_ABC_–Aerial_Bundled_Cables_to_PN_HD_626_4F.pdf

German_Standard_E-A2Y_600_1000V_ABC_–Aerial_Bundled_Cables_to_HD_626_3A.pdf

IEC_Standard_6001000V_ABC_–Aerial_Bundled_Cables_to_IEC_60502.pdf

German_Standard_NFA2X_600_1000V_ABC_–Aerial_Bundled_Cables_to_VDE_0274(Z).pdf

British_Standard_600_1000V_ABC_–Aerial_Bundled_Cables_to_BS_7870-5.pdf

American_Standard_Duplex_600_1000V_ABC_Service_Drop_Cable_to_IECA-S-76-474.pdf

American_Standard_Quadruplex_600_1000V_ABC_Service_Drop_Cable_to_IECA-S-76-474.pdf

American_Standard_Triplex_600_1000V_ABC_Service_Drop_Cable_to_IECA-S-76-474.pdf

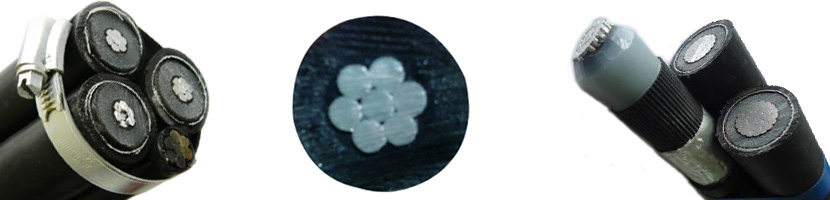

15kv, 24kv (12/20kv), 33kv (18/30KV) HTA/CIS ABC Cable

Medium Voltage ABC Cable Construction

Phase Conductor	Circular compacted stranded H68 aluminium to BS2627.
Conductor Screen	Extruded semi-conductive layer.
Insulation	XLPE.
Insulation Screen	Extruded semi-conductive layer.
Outer Sheath	HDPE.
Support Conductor	Aluminium alloy conductor (AAAC/1120).
Assembly	Three XLPE insulated cores are bundled around the AAAC/1120 support conductor in a right hand lay.

Single Core Medium Voltage ABC Cable Parameter:

Cross section	No. of wires	Conductor diam.	Overall Diameter	Minimum breaking load	Approx. weight	Max. DC-resistance at 20°C	Ampacity 90°C
[mm²]	No. of wires	[mm]	[mm]	[kgf]	[kg/km]	[Ohm/km]	[A]
35	7	7.1	13.6	464	190	0.868	187
50	7	8.2	14.7	663	235	0.641	225
70	19	9.7	16.2	928	315	0.443	282
95	19	11.5	18	1259	400	0.32	345
120	19	12.9	19.4	1591	500	0.253	401
150	19	14.2	20.7	1988	580	0.206	456
185	37	16.2	22.6	2452	695	0.164	525
240	37	18.4	24.9	3182	875	0.125	625

6.35/11kV & 12.7/22kV ABC Cable-AS/NZS 3599.1 Standard
number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Continuous current rating, A
number of cores x nominal cross section	Nominal conductor diameter	Nominal insulation thickness	Nominal insulation screen thickness	Nominal sheath thickness	AAAC/1120 support conductor size	Nominal overall diameter	Weight	Still air	1m/s wind	2m/s wind
mm^2	mm	mm	mm	mm	No/mm	mm	kg/km	A	A	A
6.35/11kV
3x35	6.9	3.4	0.8	1.2	7/4.75	52.4	1370	110	155	185
3x50	8.1	3.4	0.8	1.2	7/4.75	54.6	1530	130	185	225
3x70	9.7	3.4	0.8	1.2	7/4.75	57.8	1790	160	235	280
3x95	11.4	3.4	0.8	1.2	7/4.75	61.3	2100	195	285	345
3x120	12.8	3.4	0.8	1.2	19/3.50	67.3	2540	230	335	405
3x150	14.2	3.4	0.8	1.2	19/3.50	70.1	2840	255	380	460
3x185	15.7	3.4	0.8	1.2	19/3.50	73.1	3190	295	440	530
12.7/22kV
3x35	6.9	5.5	0.8	1.2	7/4.75	61	1780	110	155	180
3x50	8.1	5.5	0.8	1.2	7/4.75	63.3	1970	130	185	220
3x70	9.7	5.5	0.8	1.2	7/4.75	66.5	2260	160	230	275
3x95	11.4	5.5	0.8	1.2	7/4.75	69.9	2600	195	285	335
3x120	12.8	5.5	0.8	1.2	19/3.50	75.9	3070	225	330	395
3x150	14.2	5.5	0.8	1.2	19/3.50	78.7	3390	255	375	450
3x185	15.7	5.5	0.8	1.2	19/3.50	81.7	3760	290	435	520

Please check the specification, our competitive price will send you in 12 hours.

Starting custom your ideal size, the factory price will send you in 12 hours.
E-mail: info@qingzhou-cable.com

Professional abc cable manufacturer from China, Meet your kinds of requirement of abc cables. With over 26 years production experience and 10 years export experience, factory price without any third party, On-time delivry.

Can be customized Standard: ASTM B232, BS215, DIN48204, JISC3109, AS, IEC, NFC, SS

ABC Cable NFC 33-209 Standard
Number of Cores x Nominal Cross Section	Overal Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.x mm^2	mm	Kg/Km	Ω/Km	KN	A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.910 / 12.100	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.910 / 12.100	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.200 / 12.100	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.200 / 12.100	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868 / 12.100	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868 / 12.100	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641 / 12.100	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630 / 1.200	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630 / 1.200 / 1.910	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630 / 0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630 / 0.868 / 1.910	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630 / 0.868 / 1.200	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630 / 0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630 / 0.641 / 1.910	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630 / 0.641 / 1.200	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630 / 0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630 / 0.443 / 1.910	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630 / 0.443 / 1.200	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630 / 0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630 / 0.320 / 1.910	13.5/2.3	240/72
