0.6/1KV 1.9/3.3KV PVC Insulated Armored Power Cable

0.6/1KV,1.9/3.3KV, 1-5 Core 2.5-400㎡ Al/Cu

Flame Retardant (FR) PVC/PVC AWA/SWA/STA FRLS Power Cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured FRLS Power Cable

0.6/1kV PVC Insulated Power Cable	Conductor		Insulation	Armor				Outer Sheath
0.6/1kV PVC Insulated Power Cable	Aluminum	Copper	PVC	SW	ST	DST	AW	PVC	PE
Cu/PVC/PVC		P	P	---	---	---	---	P
Cu/PVC/PE		P	P	---	---	---	---		P
Al/PVC/PVC	P		P	---	---	---	---	P
Al/PVC/PE	P		P	---	---	---	---		P
Cu/PVC/STA/PVC		P	P	---	P	---	---	P
Cu/PVC/STA/PE		P	P	---	P	---	---		P
Al/PVC/STA/PVC	P		P	---	P	---	---	P
Al/PVC/STA/PE	P		P	---	P	---	---		P
Cu/PVC/DSTA/PVC		P	P	---	---	P	---	P
Cu/PVC/DSTA/PE		P	P	---	---	P	---		P
Al/PVC/DSTA/PVC	P		P	---	---	P	---	P
Al/PVC/DSTA/PE	P		P	---	---	P	---		P
Cu/PVC/SWA/PVC		P	P	P	---	---	---	P
Cu/PVC/SWA/PE		P	P	P	---	---	---		P
Al/PVC/SWA/PVC	P		P	P	---	---	---	P
Al/PVC/SWA/PE	P		P	P	---	---	---		P
Cu/PVC/AWA/PVC		P	P	---	---	---	P	P
Cu/PVC/AWA/PE		P	P	---	---	---	P		P
Al/PVC/AWA/PVC	P		P	---	---	---	P	P
Al/PVC/AWA/PE	P		P	---	---	---	P		P
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

Low Voltage PVC Power Cable Voltage rating	No. x Nominal Cross Section of Conductor No. x mm2
Low Voltage PVC Power Cable Voltage rating	single core	two cores	three cores	3+1 cores	Four cores	3+2 cores	4+1 cores	5 core
0.6/1 kV	1x4 mm2	2x4 mm2	3x4 mm2	3x4 mm2 + 1x2.5mm2	4x4 mm2	3x4 mm2 + 2x2.5mm2	4x4 mm2 + 1x2.5mm2	5x2.5 mm2
	1x6 mm2	2x6 mm2	3x6 mm2	3x6 mm2 + 1x4 mm2	4x6 mm2	3x6 mm2 + 2x4 mm2	4x6 mm2 + 1x4 mm2	5x4 mm2
	1x10 mm2	2x10 mm2	3x10 mm2	3x10 mm2 + 1x6 mm2	4x10 mm2	3x10 mm2 + 2x6 mm2	4x10 mm2 + 1x6 mm2	5x6 mm2
	1x16 mm2	2x16 mm2	3x16mm2	3x16 mm2 + 1x10 mm2	4x16 mm2	3x16 mm2 + 2x10 mm2	4x16 mm2 + 1x10 mm2	5x10 mm2
	1x 25 mm2	2x 25 mm2	3x 25 mm2	3x25 mm2 + 1x16mm2	4x25 mm2	3x25 mm2 + 2x16mm2	4x25 mm2 + 1x16mm2	5x16 mm2
	1x35 mm2	2x35 mm2	3x 35 mm2	3x35 mm2 + 1x16mm2	4x35 mm2	3x35 mm2 + 2x16mm2	4x35 mm2 + 1x16mm2	5x25 mm2
	1x50 mm2	2x50 mm2	3x 50 mm2	3x50 mm2 + 1x25mm2	4x50 mm2	3x50 mm2 + 2x25mm2	4x50 mm2 + 1x25mm2	5x35 mm2
	1x70 mm2	2x70 mm2	3x 70 mm2	3x70 mm2 + 1x35mm2	4x70 mm2	3x70 mm2 + 2x35mm2	4x70 mm2 + 1x35mm2	5x50 mm2
	1x95 mm2	2x95 mm2	3x 95 mm2	3x95 mm2 + 1x50mm2	4x95 mm2	3x95 mm2 + 2x50mm2	4x95 mm2 + 1x50mm2	5x70 mm2
	1x120 mm2	2x120 mm2	3x 120 mm2	3x120mm2 + 1x70mm2	4x120 mm2	3x120mm2 + 2x70mm2	4x120mm2 + 1x70mm2	5x95 mm2
	1x150 mm2	2x150 mm2	3x 150 mm2	3x150mm2 + 1x70mm2	4x150 mm2	3x150mm2 + 2x70mm2	4x150mm2 + 1x70mm2
	1x185 mm2	2x185 mm2	3x 185 mm2	3x185mm2 + 1x95mm2	4x185 mm2	3x185mm2 + 2x95mm2	4x185mm2 + 1x95mm2
	1x240 mm2	2x240 mm2	3x 240 mm2	3x240mm2 + 1x120mm2	4x240 mm2	3x240mm2 + 2x120mm2	4x240mm2 + 1x120mm2
	1x300 mm2		3x 300 mm2	3x300mm2 + 1x150mm2	4x300 mm2	3x300mm2 + 2x150mm2	4x300mm2 + 1x150mm2
	1x400 mm2
	1x500 mm2
	1x630 mm2

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.

Colour Code

1 Core	Brown or Blue
2 Cores	Brown, Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores	Black Cores with White numerals

Other colours can be manufactured upon request.

Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.

Optional:Lead Sheath

lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.Opti

Optional :Seperation Sheath

The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer sheath material.

Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

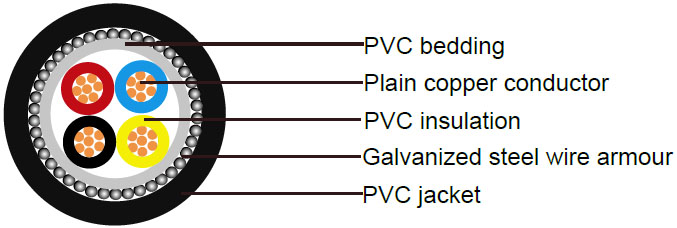

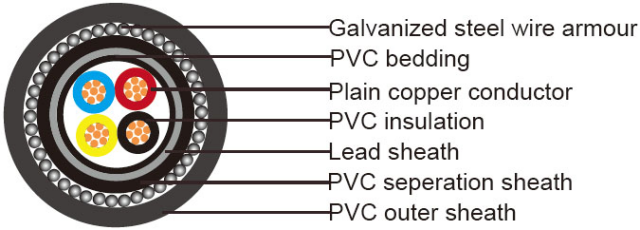

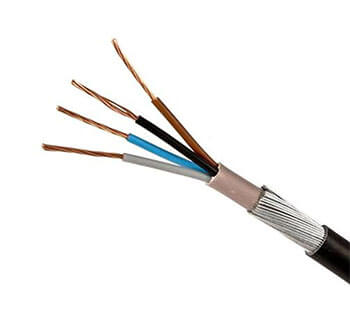

Four cores(Galvanized steel wire armoured).png

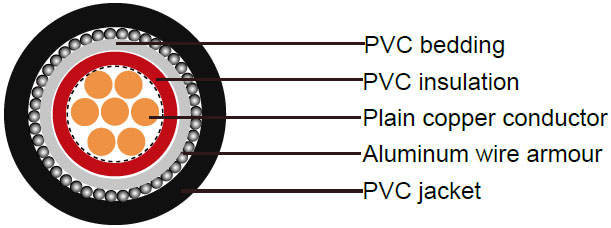

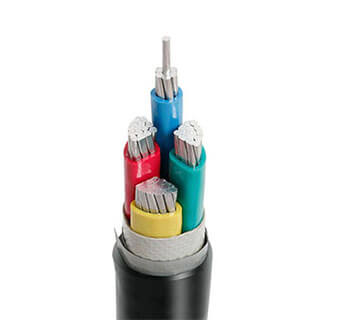

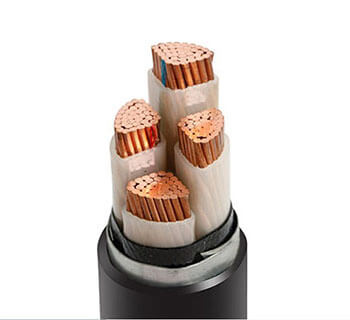

Single core PVC ( aluminum wire armoured) .png Three cores(Galvanized steel wire armoured).png

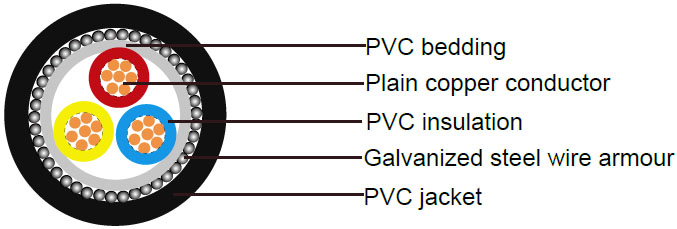

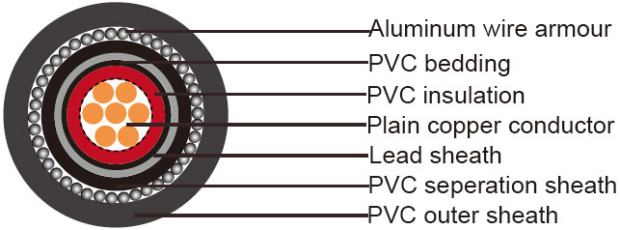

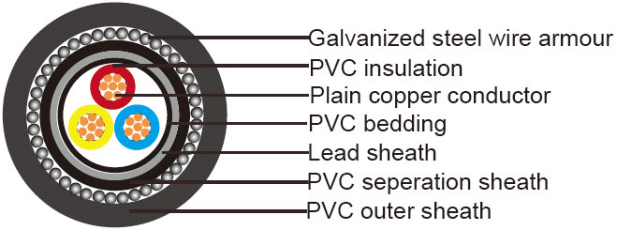

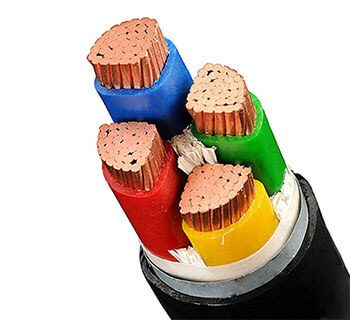

Three cores(Galvanized steel wire armoured) Lead Sheath.png Single core( aluminum wire armoured) Lead Sheath.png

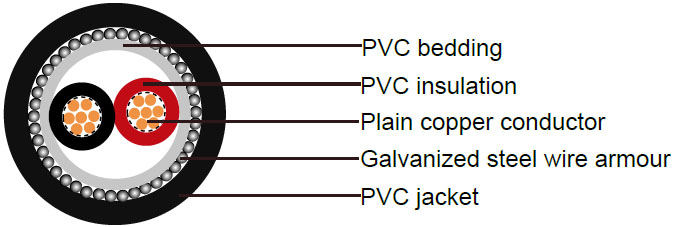

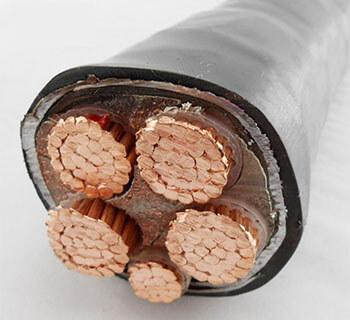

Two cores(Galvanized steel wire armoured).png

Type	Designation	Main Applications
VV VLV	Copper(Aluminium)Conducter PVC Insulated and sheathed Power Cable	For laying indoor and outdoor tunnels, able to bear a centain traction installation, but unable to bear pulling force and pressure, single core cable can not be laid in the magnetic tube. Flame retardant, fire-resistant cable suitable for the places with higher requirements for fire protection.
ZR-VV ZA-VV ZB-VV ZC-VV ZR-VLV ZA-VLV ZB-VLV ZC-VLV	Copper(Aluminium)Conducter Flame Retardant PVC Insulated and sheathed Power Cable
NH-VV NHZA-VV NHZB-VV NHZB-VV NHZC-VV	Copper(Aluminium)Conducter Fire-resistant PVC Insulated and sheathed Power Cable

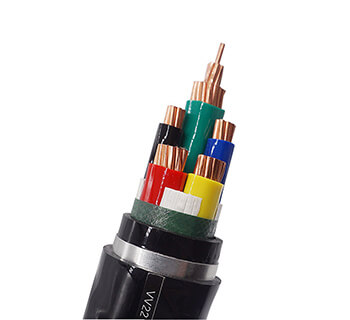

VV22 VLV22	Copper(Aluminium)Conducter PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable	For laying direct in ground, able to bear a centain traction installation, pulling force and pressure, flame retardant, fire-resistant cable suitable for the place with higher requirements for fire protection.
ZR-VV22 ZA-VV22 ZB-VV22 ZC-VV22 ZR-VLV22 ZA-VLV22 ZB-VLV22 ZC-VLV22	Copper(Aluminium)Conducter Flame Retardant PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable
NH-VV22 NHZA-VV22 NHZB-VV22 NHZB-VV22 NHZC-VV22	Copper(Aluminium)Conducter Fire-resistant PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable

Production Range of Cable：

Type	No. of Cores	Nom. Cross-section of Conductor(mm²)
Type	No. of Cores	Copper Core	Aluminum Core
	1 Core	1.5-630	2.5-630
VV VLV ZR－VV ZA－VV ZB－VV ZC－VV ZR－VLV	2 Cores	1.5-400	2.5-400
ZA－VLV ZB－VLV ZC－VLV NH-VV NHZA－VV NHZB－VV	3 Cores
NHZC－VV VV22 VLV22 ZR－VV22 ZA－VV22 ZB－VV22	4 Cores
ZC－VV22 ZR－VLV22 ZA－VLV22 ZB－VLV22	5 Cores
ZC－VLV22 NH－VV22 NHZA－VV22 NHZB－VV22	3＋1 Cores
NHZC－VV22	3＋2 Cores
	4＋1 Cores
