PRODUCT

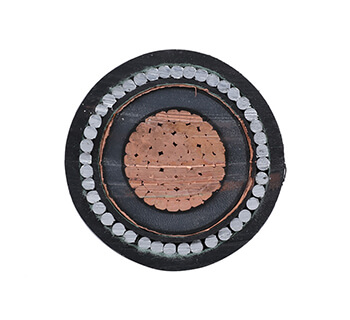

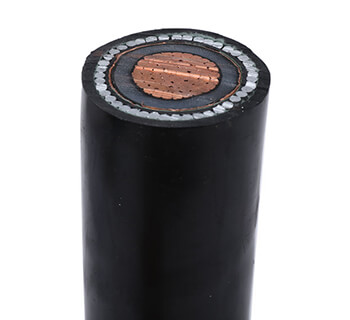

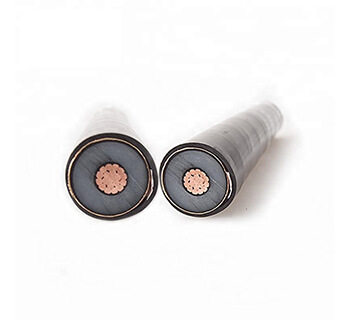

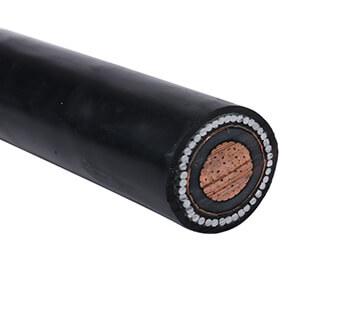

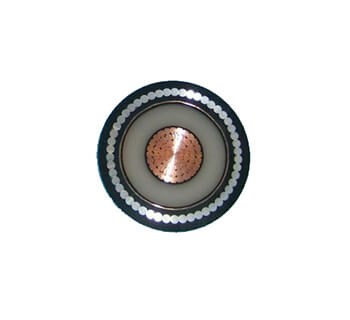

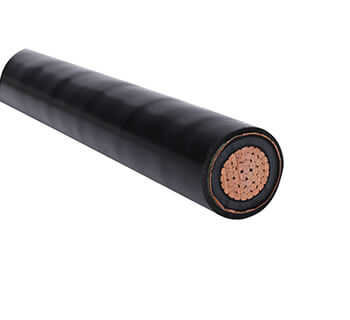

Single Core Medium Voltage Power Cable

    3.8/6.6kV-19/33kV or 1.8/3kV-26/35kV

    Aluminium/Copper Conductor,Conductor Screen,

    XLPE/EPR/HEPR insulation,Insulation screen, Metallic Screen,

    PVC/PE/LSZH Sheath

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.


Application

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 1.8/3KV to 26/35KV and frequency 50Hz.

They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Construction







Conductor

Plain annealed copper or aluminium complying with IEC 60228 class 1 or 2.

Conductor Screen

The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids. The conductor screen is not necessary for both PVC and EPR/HEPR insulated 1.8/3KV and 3.6/6KV cables.

Insulation

Insulation is of polyvinyl chloride (PVC) intended for 1.8/3KV and 3.6/6KV cables, cross-linked polyethylene compound (XLPE) or ethylene propylene rubber (EPR/HEPR).
