Low Voltage ABC Accessories

    CONNECTORS

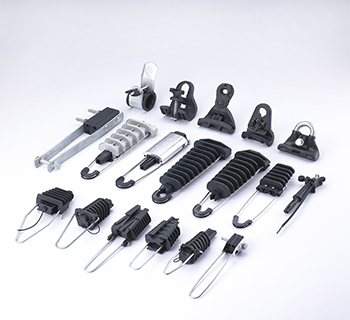

    TENSION AND SUSPENSION CLAMPS

    If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

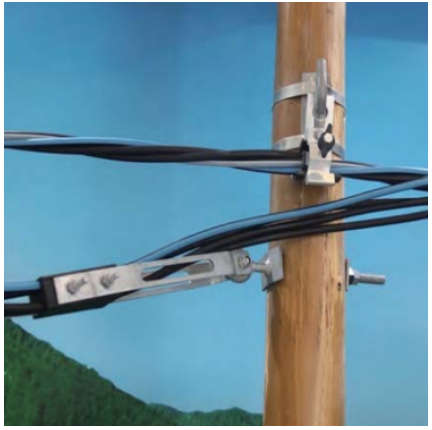

Anchor clamps for self-supporting LV-ABC lines

The clamps are designed to anchor self-supporting LV-ABC lines with 2 to 4 cores. The wedge type clamp is self-adjusting. Pilot wires or street lighting conductors are led alongside the clamp.



The insertion of conductors is facilitated by an integrated spring, which helps open the clamp. The version with movable arms in addition simplifies the installation.


Features

  • Single M12 bolt and self-locking nut allow clamp to be fixed also to closed eye screws and brackets

  • Short length of approx. 320 mm

  • Exceeds requirements according to ESI 43-14 and VDE 0211 and in futureto CENELEC prEN 50483-2

  • Clamp made of weather and UV light resistant glass fibre reinforced polymer and hot dip galvanized steel


Suspension clamps for self-supporting LV-ABC lines

The clamps are designed to suspend self supporting LV-ABC lines. They can be also used for LV-ABC lines with bare and insulated neutral messenger.


Features

  • Can be installed in straight direction and in line deviation angle up to 30°

  • Tool free installation, equipped with wing nut

  • Exceeds requirements according to ESI 43-14 and VDE 0211

  • Made of weather and UV-light resistant elastomer and hot dip galvanized steel

  • Fits to hooks and pigtails up to a diameter of 21 mm

  • Operating load 2, 5 kN

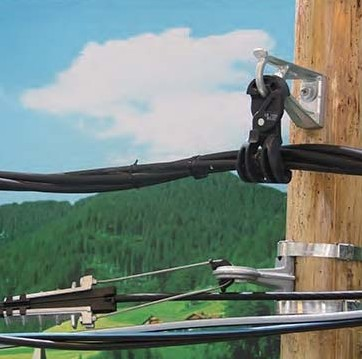

Anchor clamps for LV-ABC lines with insulated neutral messenger

The clamps are designed to anchor LV-ABC lines with insulated neutral messenger. The clamp consists of an aluminium alloy cast body and self-adjusting plastic wedges which clamp the neutral messenger without damaging its insulation.



The flexible stainless steel bail protected by plastic wear-resistant saddle allows installations of up to 3 clamps on a bracket. The clamp and the bracket are available either separately or together as assembly.


Features

  • Tool free installation

  • Not lose parts

  • Exceeds requirements according to CENELEC prEN 50483-2 and NFC 33 041 and 042

  • Clamp body made of corrosion resistant aluminium alloy, bail of stainless steel, wedges of weather and UV resistant polymer

  • Universal fixing of bracket by 2 bolts M14 or stainless steel straps of 20 x 0,7 mm

  • Bracket made of corrosion resistant aluminium alloy


Anchor clamps for LV-ABC lines with insulated neutral messenger

The clamps are designed to anchor LV-ABC lines with insulated neutral messenger. The clamp consists of an aluminium alloy cast body and self-adjusting plastic wedges which clamp the neutral messenger without damaging its insulation.



The flexible stainless steel bail protected by plastic wear-resistant saddle allows installations of up to 3 clamps on a bracket. The clamp and the bracket are available either separately or together as assembly.


Features

  • Tool free installation

  • Not lose parts

  • Exceeds requirements according to CENELEC prEN 50483-2 and NFC 33 041 and 042

  • Clamp body made of corrosion resistant aluminium alloy, bail of stainless steel, wedges of weather and UV resistant polymer

  • Universal fixing of bracket by 2 bolts M14 or stainless steel straps of 20 x 0,7 mm

  • Bracket made of corrosion resistant aluminium alloy


Wall mounted saddles and cable ties for LV-ABC lines

The wall mounted saddles are designed to install LV-ABC lines (self-supporting or insulated neutral messenger type) alongside walls and poles.



The LV-ABC cable is fixed to the saddle by a cable tie. A second cable can be installed on the same support by hanging it down from the bottom side with an additional cable tie.


Features

  • The body of saddles and the cable ties are made of weather and UV light resistant polymer material

  • Width of cable ties 9 mm

  • Black colour

  • Halogen free and flame retarded

  • Temperature ranges: operating –50 °C to +80 °C, installation –15 °C to +60 °C, max. allowed peak 120 °C


Service Anchoring clamps for armored and un-armored cables

The clamp is designed to anchor insulated service lines with 2 to 4 conductors. The clamp is composed of a body, 2 wedges and removable and adjustable bail.


Features

  • Tool free installation

  • No loose parts

  • Easy to open bails permits fixing to brackets and pigtails

  • Bail lengths can be adjusted up to 220 mm in four steps

  • Exceeds requirements according to NFC 33 042

  • Clamps made of weather and UV-light resistant glass fiber reinforced polymer

  • Adjustable link made of Stainless steel and hot dip galvanized steel


Waterproof pre-insulated hexagonal compression lugs

These pre-insulated lugs are suitable for insulated stranded aluminium conductors. Stripped cables are inserted up to the end. Crimping according to the marks with appropriate crimping die size over the insulation. The electrical contact and the sealing by the elastomeric ring are achieved during the crimp process. Available with aluminium palm (CPTA) and as bimetallic lug with a copper palm (CPTAU).


Features

Suitable for stranded Aluminium conductors

Mechanical strength achieved is 50%of cable breaking load

Tested for water tightness at a voltage of 6 kV for 30 min in a waterbath

Three die sizes (E140, E173, E215) for all connector sizes

Exceeds requirements according to CENELEC prEN 50483-4 class 1, NFC 33021 and ESI 43-14

A colour code of elastomeric sealing ring allows an easy identification of the cross sections

Inner aluminium sleeve filled with contact grease

Insulation material made of weather and UV resistant polymer
