BUILDING

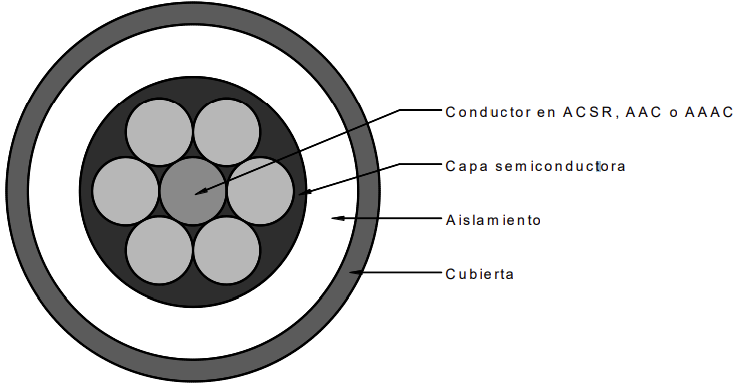

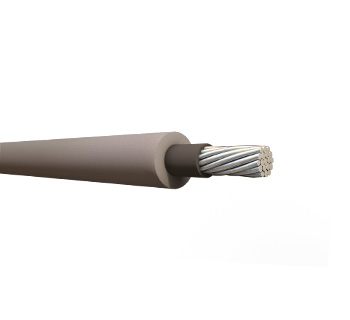

Covered conductors for compact networks type A.A.C., A.C.S.R. and A.A.A.C. they are wired concentrically, and are built with aluminum wires, a first coating of semiconductor material is applied on the metal conductor, then it is insulated with a uniform layer of cross-linked polyethylene (XLPE) or LDPE and an antitracking XLPE or HDPE cover. Its form of packaging are reels in lengths according to the needs of the client.

APPLICATIONS

Covered cables for compact networks of the type A.A.C. (All Aluminum conductor), A.C.S.R. (Aluminum Conductor Steel Reinforced) with class AA and A braids are used for power transmission and distribution lines, in wooded or industrial areas. Its service voltage for all applications varies depending on the thickness of the wall of the cover and can be between 15 kV and 25 kV.

SPECS

• ASTM B230: Aluminum wires, alloy 1350-H19 for electrical purposes.

• ASTM B231: Type 1350-H19 stranded aluminum conductors in concentric layers.

• ASTM B232: Aluminum Stranded Conductors Reinforced with Steel (A.C.S.R.)

• ASTM B399: Aluminum alloy 6201 - T81 stranded conductors.

• NTC 5909: Covered (semi-insulated) non-shielded power cables of 15 kV - 46 kV, for use in overhead power distribution lines.

• ANSI/ICEA S-121-733: Standard for ecological cable - semi-insulated overhead lines.

In addition to all the requirements of the National Electrical Code.

cable aac acsr aaac xlpe hdpe.png

DESCRIPCION

CABLE AAC 2AWG IRIS MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 1/0AWG POPPY MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 2/0AWG ASTER MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 4/0AWG OXLIP MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 266.8KCMIL DAISY MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 336.4KCMIL TULIPMONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAC 477 KCMIL COSMOS MONOPOLAR CUBIERTO 15KV 90°C

CABLE AAC 556.5 KCMIL DAHLIA MONOPOLAR CUBIERTO 15KV 90°C

CABLE ACSR 2AWG SPARROW MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE ACSR 1/0AWG RAVEN MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE ACSR 2/0AWG QUAIL MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE ACSR 4/0AWG PENGUIN MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE ACSR 266.8KCMIL WAXWING MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 77.47 KCMIL AMES MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 123.3 KCMIL AZUSA MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 155.4 KCMIL ANAHEIM MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 246.9 KCMIL ALLIANCE MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 312.8 KCMIL BUTTE MONOPOLAR CUBIERTO XLPE 15KV 90°C

CABLE AAAC 394.5 KCMIL CANTON MONOPOLAR CUBIERTO 15KV 90°C

CABLE AAAC 559.5 KCMIL DARIEN MONOPOLAR CUBIERTO 15KV 90°C

CABLE AAC 4/0 AWG OXLIP MONOPOLAR CUBIERTO 25KV 90°C

CABLE AAC 477 KCMIL COSMOS MONOPOLAR CUBIERTO 25KV 90°C

CABLE AAC 795 KCMIL ARBUTUS MONOPOLAR CUBIERTO 25KV 90°C

CABLE ACSR 1/0 AWG RAVEN MONOPOLAR CUBIERTO 25KV 90°C

CABLE ACSR 4/0 AWG PENGUIN MONOPOLAR CUBIERTO 25KV 90°C

CABLE ACSR 477 KCMIL PELICAN MONOPOLAR CUBIERTO 25KV 90°C

CABLE ACSR 795 KCMIL DRAKE MONOPOLAR CUBIERTO 25KV 90°C

CABLE AAC 1/0 AWG POPPY MONOPOLAR CUBIERTO 38KV 90°C

CABLE AAC 2/0AWG ASTER MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAC 4/0AWG OXLIP MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAC 266.8KCMIL DAISY MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAC 336.4KCMIL TULIPMONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAC 477 KCMIL COSMOS MONOPOLAR CUBIERTO 38KV 90°C

CABLE ACSR 2/0AWG QUAIL MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE ACSR 4/0AWG PENGUIN MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE ACSR 266.8KCMIL WAXWING MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAAC 77.47 KCMIL AMES MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAAC 123.3 KCMIL AZUSA MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAAC 155.4 KCMIL ANAHEIM MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAAC 246,9 KCMIL ALLIANCE MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAAC 312.8 KCMIL BUTTE MONOPOLAR CUBIERTO XLPE 38KV 90°C

CABLE AAC 4/0 AWG OXLIP MONOPOLAR CUBIERTO 48KV 90°C

CABLE AAC 795 KCMIL ARBUTUS MONOPOLAR CUBIERTO 48KV 90°C

CABLE AAAC 312.8 KCMIL BUTTE MONOPOLAR CUBIERTO XLPE 48KV 90°C
