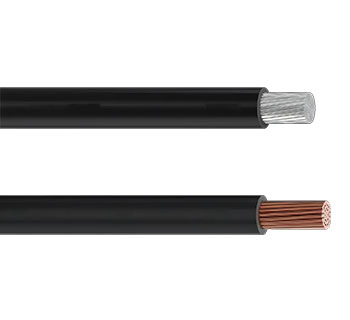

Solar PV Cable UL 4703 2000V AC

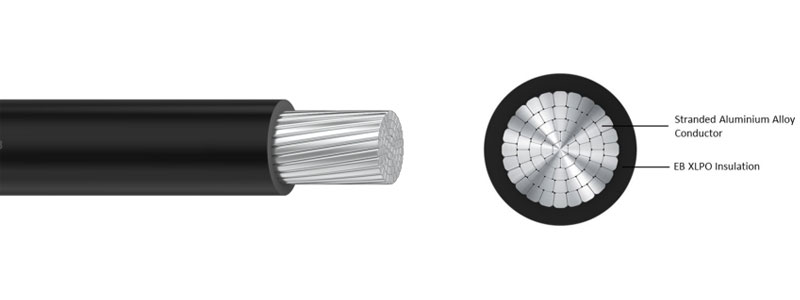

ALUMINIUM ALLOY SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

APPLICATION

PV halogen free flame-retardant Aluminium Alloy conductor E-Beam crosslinked Polyolefins insulated Wire is designed to use in Outdoor Solar application as per NEC 690 in wet & dry location. The cable is rated direct burial, Sunlight resistant and weatherproof.

CHARACTERISTICS

Voltage Rating

Max. Rated Voltage: 2000 V

Max. Short circuit temp: 250°C

Operation Temperature

Fixed: -40°C to +90° C

CONSTRUCTION

Conductor: AA8000 Series Stranded Aluminium Alloy conductor as per ASTM B-801.

Insulation: Halogen free flame-retardant E-Beam crosslinked Polyolefins.

Core Identification

(-ve) Black, (+ve) Red

Bending Radius

Fixed installation: 8-10 X D

Test Voltage

As per UL 44

OUTSTANDING FEATURES

UV resistant

Ozone resistant

Flame retardant

High temperature resistant

Oil and gasoline resistant

Moisture resistant

STANDARD FOLLOWS

• ASTM B-801

• UL 44

• UL 4703

• UL 854

• UL 1685

• CSA C22.2 No. 271

COMPLIANCE

• UL 854 for USE-2

• UL 44 for Type RHW-2

• UL 4703 for Type PV

• UL 1685 CT Flame rated (for 1/0 AWG and above)

• c(UL) CSA C22.2 No. 271 RPVU90

• ANSI ICEA S 95 658 NEMA WC70

• FT1, FT2, FT4, VW-1

• NEC NFPA 70, NEC 310, NEC Section 690.31

• EPA 40 CFR part 261 for leachable lead content per TCLP

• RoHS and REACH compliant

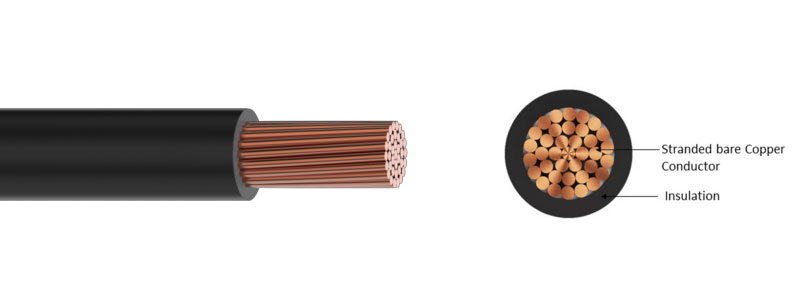

COPPER SOLAR CABLE Photovoltaic Power Cable, UL 4703, 2000 V

APPLICATION

PV halogen free flame-retardant Copper conductor, E-Beam crosslinked Polyolefins insulated Wire is designed to use in Outdoor Solar application as per NEC 690 in wet & dry location. The cable is rated direct burial, Sunlight resistant and weatherproof.

CHARACTERISTICS

Voltage Rating

Max. Rated Voltage: 2000 V

Max. Short circuit temp: 250°C

Operation Temperature

Fixed: -40°C to +90° C

CONSTRUCTION

Conductor: Stranded (Class B) Bare or Tinned Copper conductor as per ASTM B3, B33 & ASTM B8

Insulation: Halogen free Flame retardant EBeam crosslinked Polyolefins.

Core Identification

(-ve) Black, (+ve) Red

Bending Radius

Fixed installation: 8-10 D

Test Voltage

As per UL 44

OUTSTANDING FEATURES

Flame retardant

UV, Ozone resistant

High temperature resistant

Oil and Gasoline resistant

Moisture resistant

Meets cold bend and cold impact at -40°C

STANDARD FOLLOWS

UL 4703

ASTM B8

UL 44

UL 854

UL 1685

CSA C22.2 No. 271

COMPLIANCE

• UL 854 for USE-2

• UL 44 for Type RHW-2

• UL 4703 for Type PV

• UL 1685 CT Flame rated (for 1/0 AWG and above)

• c(UL) CSA C22.2 No. 271 RPVU90

• ANSI ICEA S 95 658 NEMA WC70

• FT1, FT2, FT4, VW-1

• NEC NFPA 70, NEC 310, NEC Section 690.31

• EPA 40 CFR part 261 for leachable lead content per TCLP

• RoHS and REACH compliant

• OSHA acceptable

• Federal Spec A-A-59544
