AAAC (All Alloy Aluminium Conductor) PVC covering

Conductor: Stranded hard-drawn aluminium conductors

Construction: Aluminium Alloy wires stranded

Cable Type: ungreased or greased

Supplier & Manufacturer from China

Send E-mail Get Price Now

Application

AAAC All Alloy Aluminium Conductor used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum-alloy to achieve a high strength-to-weight ratio; affords good sag characteristics. Aluminum-alloy 6201-T81 gives AAAC higher resistance to corrosion than ACSR.

This standard covers stranded hard-drawn circular aluminium alloy conductors to be used mainly for overhead distribution wires, overhead feeder. Construction Stranded hard-drawn aluminium alloy conductors

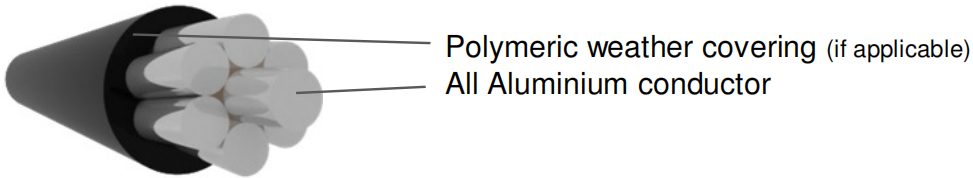

aaac pvc.png

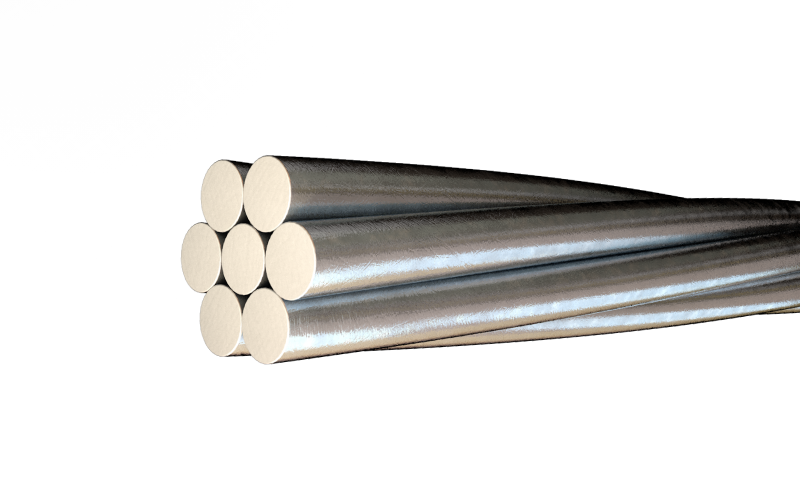

ALUMINIO AAAC 6201 China.png

AAAC All Alloy Aluminium Conductor+PVC covering

Standards	Conductor	Number	Size	Diameter (D)	Area	Bending radius Min.	Resistance Ω/km		Current Rating (A)	Grease mass calculated Nom.		PVC insulation 1.6mm		PVC insulation 5mm
		Number	Size	Diameter (D)	Area	Bending radius Min.	dc 20°C	ac 75℃	Current Rating (A)	Case 2	Case 4	kg/km Nom.	OD mm	kg/km Nom.	OD mm
		#	mm	mm	mm	mm	dc 20°C	ac 75℃	75C	kgkm	kg'km	kg/km Nom.	OD mm	kg/km Nom.	OD mm
BS 3242	Acacia	7	2.08	6.24	23.8	187	1.393	1.736	133	.	1.9	60	9
	Almond	7	2.34	7.02	30.1	211	1.101	1.371	153	.	2.4	66	10	.	-
	CODE 35	7	2.77	8.31	422	249	0.785	0.979	189	.	3.4	76	12	.	.
	Fir	7	2.95	8.85	47.8	266	0.692	0.863	204	.	3.8	80	12	.	.
	Hazel	7	3.3	9.90	59.9	297	0.553	0.69	235	-	4.8	88	13	.	.
	Pine	7	3.61	10.83	71.6	325	0.462	0.576	262	.	5.7	95	14	-	-
	Willow	7	4.04	12.12	89.7	364	0.369	0.48	302		7.1	105	15	.	.
	Oak	7	4.65	13.95	118.9	419	0.279	0.347	359		9.4	119	17	-
	Mulberry	19	3.18	15.9	150.9	477	0.22	0.274	416	9.2	18	134	19	.	.
	Elm	19	3.76	18.8	211	564	0.157	0.196	513	12.9	25.1	156	22	-	-
	Ash	19	3.48	17.4	180.7	522	0.183	0.228	467	11	21.5	145	21	.
	Poplar	37	2.87	20.09	239.4	603	0.138	0.172	513	22.5	32.9	166	23	599	30
	Sycamore	37	3.23	22.61	303.2	678	0.109	0.136	643	28.4	41.7	185	26	659	33
	Upas	37	3.53	24.71	362.1	741	0.091	0.114	718	34	49.8	201	28	709	35
	Yew	37	4.06	28.42	479.0	853	0.069	0.086	853	44.9	65.9	(Z)RH	229	32	38
ASTM B-399B 399M	Azusa	7	3.37	10.11	62.5	303	0.53	0.661	262	.	5.0	89	13	.
	Aliance	7	4.77	14.31	125.1	429	0.265	0.33	395	-	9.9	122	18
	Elgin	19	4.71	23.54	330.6	706	0.1	0.125	739	60.41	88.6	192	27	681	34
	650	37	3.37	23.56	329.2	707	0.101	0.125	789	30.9	45.3	192	27	682	34
	800	37	3.73	26.14	405.2	784	0.082	0.102	971	38.01	55.8	212	29	743	36
	Greely	37	4.02	28.14	469.6	844	0.071	0.088	908	44.1	64.6	227	31	791	38
IEC 60189	160	19	3.51	17.55	183.8	527	0.1798	0.2241	355	11.2	21.9	146	21	538	28
	200	19	3.93	19.65	230.5	590	0.1439	0.1793	513	14.1	27.4	162	23	589	30
	315	37	3.53	24.71	362.1	741	0.0916	0.1141	671	11.4	22.1	201	28	709	35
	400	37	3.98	27.86	460.3	836	0.0721	0.0898	829	14.4	28.1	225	31	785	38
	450	37	4.22	29.54	517.5	886	0.0641	0.0798	987	16.2	31.6	238	33	825	40
	500	37	4.45	31.15	575.5	935	0.0577	0.0718	1145	18.1	35.2	250	34	863	41
	560	61	3.67	33.03	645.3	991	0.0516	0.0643	1 3o3	12.3	23.9	265	36	908	43
	630	61	3.89	35.01	725.0	1050	0.0458	0.0571	1 4s1	13.8	26.9	280	38	955	45
	710	61	4.13	37.17	817.2	1115	0.0407	0.0507	1619	15.6	30.3	236	40	1007	47
	800	61	4.38	39.5o	921.0	1185	0.0361	0.0449	177	17.5	34.1	314	43	1062	50

AAAC conductor-BS 3242

Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

AAAC conductor-BS EN 50182

Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

AAAC conductor-DIN 48201

Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

AAAC conductor-IEC 61089

Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

ALL ALUMINIUM ALLOY CONDUCTORS (AAAC) AS PER IS 398 (PART - IV) : 1994

Equivalent	Actual	Stranding & Wire Diameter		Overall Dia (mm) (Approx)	Mass (Approx) (Kg /Km)	Resistance AT 20 deg C (Ohms/Km) (Max)	Ultimate Breaking Load (Kn)	Current Carrying Capacity
Acsr	Area	Conductor						65 Deg. C	75 Deg. C	90 Deg. C
Code Word	(sq mm)	No.	DIA (mm)					Amps	Amps	Amps
Mole	15	3	2.50	5.39	40.15	2.3040	4.33	73 72	88 87	105 104
Squirrel	22	7	2.00	6	60.16	1.5410	6.45	92 90	110 109	132 130
Weasel	34	7	2.50	7.50	94.00	0.9900	10.11	121 119	146 144	175 173
Rabbit	55	7	3.15	9.45	149.20	0.6210	16.03	160 158	194 191	234 231
Racoon	80	7	3.81	11.43	218.26	0.425	23.41	202 199	246 242	297 293
Dog	100	7	4.26	12.78	272.86	0.3390	29.26	232 229	283 279	343 338
Dog (Up)	125	19	2.89	14.45	342.51	0.2735	36.64	266 262	325 320	394 389
Coyote	148	19	3.15	15.75	406.91	0.2290	43.50	295 291	362 357	440 434
Wolf	173	19	3.40	17.00	474.02	0.1969	50.54	324 320	398 393	485 478
Wolf (Up)	200	19	3.66	18.30	549.40	0.1710	58.66	354 349	436 430	532 524
Panther	232	19	3.94	19.70	636.67	0.1471	68.05	387 382	478 471	584 575
Panther (Up)	288	37	3.15	22.05	794.05	0.1182	84.71	442 436	548 540	670 661
Panther (Up)	346	37	3.45	24.15	952.56	0.0984	101.58	493 487	613 605	752 742
Kundah	400	37	3.71	25.97	1101.63	0.0829	117.40	538 530	670 660	824 811
Zebra	465	37	4.00	28.00	1280.50	0.0734	136.38	589 580	736 725	905 892
Zebra (UP)	525	61	3.31	29.79	1448.39	0.0651	146.03	632 623	792 781	976 963
Moose	570	61	3.45	31.05	1573.71	0.0598	158.66	663 655	833 822	1028 1015
Morculla	604	61	3.55	31.95	1666.00	0.0568	167.99	686 676	862 849	1065 1049
Moose (Up)	642	61	3.66	32.94	1771.36	0.0534	178.43	711 700	894 881	1106 1089
Morculla (Up)	695	61	3.81	34.29	1919.13	0.0492	193.25	745 734	939 925	1162 1145
Bersimis	767	61	4.00	36.00	2115.54	0.0446	213.01	788 777	995 981	1234 1217
