CU/AL 0.6/1KV 1.8/3KV 1-5 Core YJV YJLV YJV22 YJV32 LV Power Cable

0.6/1KV,1.9/3.3KV, 1-5 Core 2.5-400㎡ Al/Cu

YJV YJLV YJV22 YJV32 Power Cable

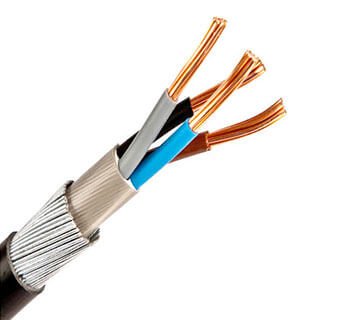

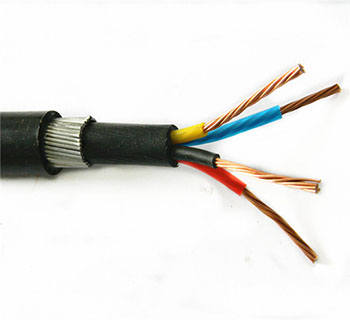

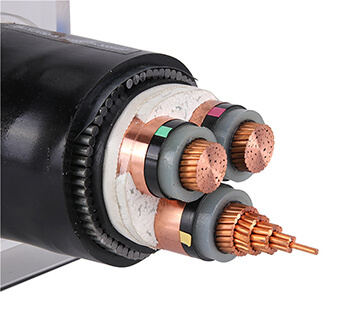

CU XLPE SWA/STA Power Cable for Sale

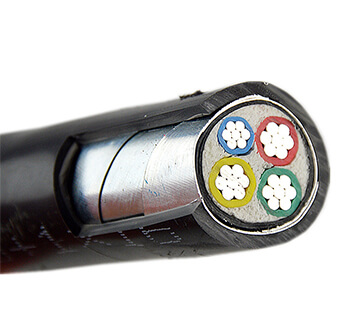

Non-armored and Armoured Power Cable

If you don´t find a suitable cable, we will design it for you acc. to your individual requests.

Send E-mail Get Price Now

Low Voltage XLPE Insulated Power Cable

The product is applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below.

The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.

Operating characteristics

1.Cable laying temperature: ≥0°C

2.Cable conductor long-term allowable working temperature:≤90°C

3.Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C

4.Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

Model		Name	Laying Occasion
Copper core	Aluminum core	Name	Laying Occasion
YJV	YJLV	XLPE insulated PVC sheathed non-armored cable	Laid indoors, and in tunnels and pipelines
YJY	YJLY	XLPE insulated PE sheathed non-armored cable	Laid indoors, and in tunnels and pipelines
YJV22	YJLV22	XLPE insulated steel tape armored PVC sheathed cable	Adapt for buried laying, not suitable for in-pipe laying
YJV23	YJLV23	XLPE insulated steel tape armored PE sheathed cable	Adapt for buried laying, not suitable for in-pipe laying
YJV32	YJLV32	XLPE insulated thin steel wire armored PVC sheathed cable	Laid on riverbeds of rivers or shallow water as connecting lines across rivers or petroleum/natural gas platforms, also used in land high drop areas.
YJV33	YJLV33	XLPE insulated thin steel wire armored PVC sheathed cable
YJV42	YJLV42	XLPE insulated thick steel wire armored PVC sheathed cable
YJV43	YJLV43	XLPE insulated thick steel wire armored PE sheathed cable

Type	No. of Cores	Nom. Cross-section of Conductor(mm²)
Type	No. of Cores	Copper Core	Aluminum Core
	1 Core	1.5-630	2.5-630
YJV YJLV ZR-YJV ZA-YJV ZB-YJV ZC-YJV	2 Cores	1.5-400	2.5-400
ZR-YJLV ZA-YJLV ZB-YJLV ZC-YJLV NH-YJV	3 Cores
NHZA-YJV NHZB-YJV NHZC-YJV YJV22 YJLV22	4 Cores
ZR-YJV22 ZA-YJV22 ZB-YJV22 ZC-YJV22	5 Cores
ZR-YJLV22 ZA-YJLV22 ZB-YJLV22 ZC-YJLV22	3＋1 Cores
NH-YJV22 NHZA-YJV22 NHZB-YJV22 NHZC-YJV22	3＋2 Cores
	4＋1 Cores

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

XLPE material and thickness shall be as per IEC 60502-1, rated for 90℃ continuous operation

Colour Code (1)

1 Core	Brown or Blue
2 Cores	Brown, Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores	Black Cores with White numerals

Colour Code (2)

1 Core	Brown or Blue
2 Cores	Brown, Blue
3 Cores	Brown, Black, Grey
4 Cores	Blue, Brown, Black, Grey
5 Cores	Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores	Black Cores with White numerals

Other colours can be manufactured upon request.

Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores, a lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder is permitted before application of an extruded inner covering. The material is compatible with the insulating material,The materials used for inner coverings and fillers shall be suitable for the operating temperature of the cable and compatible with the insulating material.For halogen free cables, the inner covering and fillers shall also be halogen free compound.

Optional : Lead Sheath

lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.

Optional : Seperation Sheath

The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer sheath material.

Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.

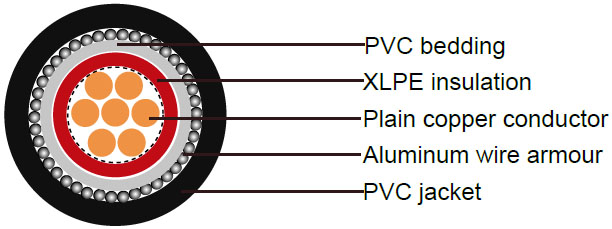

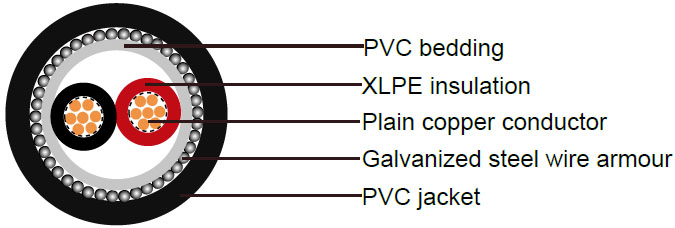

Single Core XLPE Al Wire Armored.png Two Core XLPE insulated Armored.png

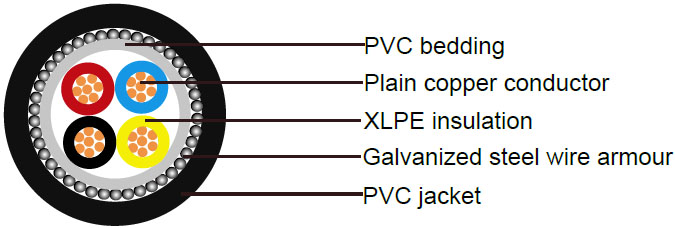

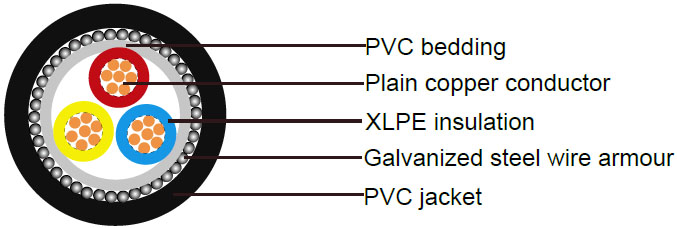

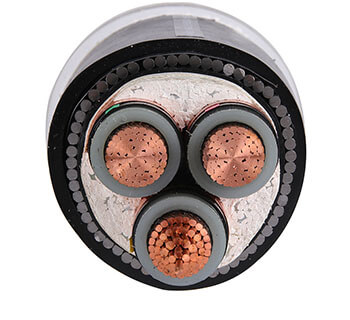

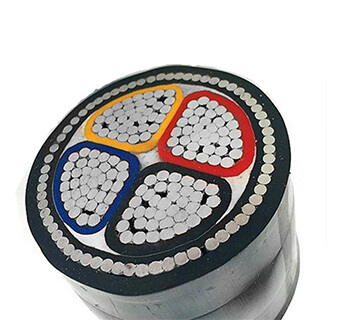

Four core XLPE insulated armored.png Three core XLPE insulated Armored.png

Parameter/Data Sheet

Please click or download below AAAC pdf to check the parameter regard to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

BS_5467_Armoured_Power_Cables_0.6-1KV.pdf

BS_5467_Armoured_Power_Cables_1900_3300V.pdf

BS_5467_EEMUA_133_Lead_covered_armoured_Power_Cables_to_600_1000V.pdf

BS_5467_EEMUA_133_Lead_covered_armoured_Power_Cables_to_1900_3300V.pdf

BS_8573_Five_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS_8573.pdf

BS_6724_LSOH_Armoured_Power_Cables_1900_3300V.pdf

BS_8573_Four_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS 8573.pdf

BS_6724_LSOH_Armoured_Power_Cables_600_1000V.pdf

BS_8573_Single_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables.pdf

BS_8573_Three_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables_to_BS_8573.pdf

BS_8573_Two_Core_600_1000V_XLPE_Insulation_LSZH_Sheath_Cables.pdf

IEC_60502-1_600_1000V_XLPE_Insulated_Cables.pdf

IEC_60502-1_600_1000V_XLPE_Insulated_Lead_Sheathed_Cables.pdf

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

Conductor dimensions (mm2)	Insulation thickness (mm)	Nonmetallic sheath, unarmored cable
		Sheath thickness					Outer diameter (approximate)					Cable weight (Kg/km)
		mm					mm					Copper core					Aluminum core
		1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C	1C	2C	3C	4C	5C
1.5	0.7	1.4	1.8	1.8	1.8	1.8	5.6	10.0	10.4	11.1	11.9	45	122	139	167	195	35	103	111	506	148
2.5	0.7	1.4	1.8	1.8	1.8	1.8	6.0	10.8	11.2	12.1	13.0	57	148	175	215	253	42	117	129	641	175
4	0.7	1.4	1.8	1.8	1.8	1.8	6.5	11.7	12.3	13.2	14.3	75	185	228	285	337	50	135	153	833	212
6	0.7	1.4	1.8	1.8	1.8	1.8	7.0	12.7	13.4	14.4	15.6	97	239	295	373	445	60	165	183	1086	258
10	0.7	1.4	1.8	1.8	1.8	1.8	8.1	15.0	15.8	17.2	18.7	143	346	445	568	681	80	220	256	1629	366
16	0.7	1.4	1.8	1.8	1.8	1.8	9.2	17.2	18.2	19.8	21.7	206	494	660	835	1008	106	292	358	2377	505
25	0.9	1.4	1.8	1.8	1.8	1.8	10.6	20.0	21.2	23.2	25.5	303	711	951	1217	1483	146	396	479	3457	696
35	0.9	1.4	1.8	1.8	1.8	1.8	11.8	22.4	23.8	26.1	28.7	403	919	1267	1598	1959	185	478	606	4528	858
50	1.0	1.4	1.8	1.8	1.9	2.0	13.2	25.2	26.8	29.7	32.9	554	1188	1675	2209	2733	241	558	731	6190	1160
70	1.1	1.4	1.9	1.9	2.0	2.1	15.0	22.2	25.7	30.0	36.2	755	1564	2260	2987	3735	317	683	939	8348	1533
95	1.1	1.5	2.0	2.0	2.1	2.3	16.9	25.2	29.1	34.2	40.3	1004	2069	3003	3977	4975	409	874	1210	11091	1987
120	1.2	1.5	2.1	2.1	2.3	2.4	18.5	28.2	32.4	37.2	44.7	1250	2592	3763	4983	6228	498	1082	1498	13880	2453
150	1.4	1.6	2.2	2.3	2.4	2.6	20.6	31.0	36.2	41.2	50.3	1558	3214	4700	6202	7777	619	1327	1869	17280	3059
185	1.6	1.6	2.3	2.4	2.6	2.8	22.7	36.8	40.4	46.2	58.6	1908	3978	5779	7655	9623	750	1650	2287	21355	3803
240	1.7	1.7	2.5	2.6	2.8	3.0	25.3	41.6	47.4	53.3	63.1	2450	5104	7456	9859	12326	947	2084	2926	27399	4776
300	1.8	1.8	2.7	2.8	3.0	3.2	27.9	46.4	50.1	59.4	68.2	3043	6328	9234	12260	15291	1163	2541	3554	33997	5824
400	2.0	1.9		3.1	3.3	3.6	31.6		57.2	68.4	83.1	4021		12224	16240	20305	1514		4651	36685	7683
500	2.2	2.0		3.3	3.3		35.0		74.2	82.2		5002		15136	20176		1869		5849	7554
630	2.4	2.2					39.3					6290					2342
800	2.6	2.3					44.8					7957					2943
1000	2.8	2.4					49.9					9897					3629

0.6/1KV XLPE/PVC Power cable (non-armored) YJV, YJLV

Conductor dimensions (mm2)		Insulation thickness (mm)		Nonmetallic sheath, unarmored cable
				Sheath thickness			Outer diameter (approximate)			Cable weight (Kg/km)
				mm			mm			Copper core			Aluminum core
Phase line	Null line	Phase line	Null line	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C	3+1C	3+2C	4+1C
2.5	1.5	0.7	0.7	1.8	1.8	1.8	11.9	12.6	12.8	206	229	253	—	—	—
4	2.5	0.7	0.7	1.8	1.8	1.8	12.9	13.7	14.0	268	302	323	178	196	197
6	4.0	0.7	0.7	1.8	1.8	1.8	14.2	15.1	15.4	352	402	428	215	240	237
10	6.0	0.7	0.7	1.8	1.8	1.8	16.5	17.5	18.1	517	584	645	290	321	328
16	10.0	0.7	0.7	1.8	1.8	1.8	19.2	20.5	21.1	761	865	955	396	437	444
25	16.0	0.9	0.7	1.8	1.8	1.8	22.4	23.9	24.7	1110	1278	1406	538	605	606
35	16.0	0.9	0.7	1.8	1.8	1.8	24.6	25.9	27.3	1402	1558	1805	647	709	731
50	25.0	1.0	0.9	1.8	1.9	1.9	28.0	29.9	31.3	1943	2243	2531	842	984	975
70	35.0	1.1	0.9	1.9	2.0	2.1	29.5	33.2	34.4	2645	3038	3412	1101	1273	1234
95	50.0	1.1	1.0	2.1	2.2	2.2	33.2	37.8	38.7	3554	4105	4551	1443	1679	1579
120	70.0	1.2	1.1	2.2	2.3	2.4	36.3	41.6	43.6	4504	5265	5791	1793	2112	1993
150	70.0	1.4	1.1	2.3	2.4	2.5	39.7	45.9	47.9	5425	6200	7018	2147	2480	2380
185	95.0	1.6	1.1	2.5	2.6	2.7	45.4	51.4	53.3	6781	7792	8720	2683	3095	2946
240	120.0	1.7	1.2	2.7	2.8	2.9	53.0	58.6	60.1	8708	9960	11172	3412	3907	3701
300	150.0	1.8	1.4	2.9	3.0	3.1	58.3	65.4	62.9	10818	12394	13827	4192	4823	4480
400	185.0	2.0	1.6	3.1	3.3	3.4	67.5	74.2	67.8	14163	16132	18093	5423	6225	5725

0.6/1KV XLPE/PVC Power cable (steel wire armored) YJV32, YJLV32

Conductor dimensions (mm2)	nsulation thickness (mm)	Armored wire cable
		PVC bedding thickness				Armored wire Outer diameter				Sheath thickness				Outer diameter (approximate)				Cable weight (approximate) (Kg/km)				Cable weight (approximate) (Kg/km)
		mm				mm				mm				mm				Copper core				Aluminum core
		2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C	2C	3C	4C	5C
1.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	14.2	14.6	15.3	16.1	343	367	414	445	324	339	377	399
2.5	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	0.8	1.8	1.8	1.8	1.8	15.0	15.4	16.3	17.2	317	421	485	528	286	374	423	450
4	0.7	1.0	1.0	1.0	1.0	0.8	0.8	0.8	1.25	1.8	1.8	1.8	1.8	15.9	16.5	17.4	19.4	369	497	576	782	319	422	476	658
6	0.7	1.0	1.0	1.0	1.0	0.8	0.8	1.25	1.25	1.8	1.8	1.8	1.8	16.9	17.6	19.5	20.7	443	587	816	929	368	475	666	742
10	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.8	1.8	1.8	1.8	20.1	20.9	22.3	23.8	720	927	1098	1284	595	738	847	969
16	0.7	1.0	1.0	1.0	1.0	1.25	1.25	1.6	1.6	1.8	1.8	1.8	1.8	22.3	23.3	25.6	27.5	925	1217	1588	1831	723	915	1186	1328
25	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.8	1.8	25.8	27.0	29.0	31.3	1350	1746	2091	2455	1035	1274	1462	1669
35	0.9	1.0	1.0	1.0	1.0	1.6	1.6	1.6	1.6	1.8	1.8	1.9	1.9	28.2	29.6	32.1	34.7	1642	2161	2586	3096	1202	1500	1705	1995
50	1.0	1.0	1.0	1.0	1.2	1.6	1.6	1.6	2.0	1.8	1.9	2.0	2.1	31.0	32.8	35.7	40.1	2053	2685	3322	4332	1424	1741	2064	2759
70	1.1	1.0	1.2	1.2	1.2	1.6	2.0	2.0	2.0	2.0	2.0	2.2	2.3	28.2	32.9	37.4	43.6	2272	3484	4417	5448	1389	2160	2651	3242
95	1.1	1.2	1.2	1.2	1.4	2.0	2.0	2.0	2.5	2.1	2.2	2.3	2.5	32.4	36.5	41.6	49.5	3126	4374	5571	7465	1929	2577	3175	4471
120	1.2	1.2	1.2	1.4	1.4	2.0	2.0	2.5	2.5	2.2	2.3	2.5	2.6	35.4	39.8	46.4	53.9	3755	5291	7287	8986	2241	3021	4260	5203
150	1.4	1.2	1.4	1.4	1.4	2.0	2.5	2.5	2.5	2.3	2.5	2.7	2.8	38.2	45.4	50.6	59.5	4485	6912	8738	10850	2594	4075	4955	6121
185	1.6	1.4	1.4	1.4	1.6	2.5	2.5	2.5	2.5	2.5	2.6	2.8	3.0	46.0	49.6	55.4	68.2	5999	8243	10431	13220	3666	4743	5766	7388
240	1.7	1.4	1.6	1.6	1.6	2.5	2.5	2.5	3.15	2.7	2.8	3.0	3.3	50.8	57.0	62.9	74.2	7325	10375	13098	17103	4298	5835	7045	9537
300	1.8	1.6	1.6	1.6	1.8	2.5	2.5	2.5	3.15	2.9	3.0	3.2	3.5	56.0	59.7	69.0	79.7	8805	12311	15861	20414	5018	6631	8287	10947
400	2.0		1.6	1.8			2.5	3.15			3.3	3.6			66.8	79.9			15679	21307			8105	11209
500	2.2		1.8				3.15				3.5				85.5				20806				11339
