service drop wire price list from manufacturer in China

Date:2020-07-13

service drop wire price list from manufacturer in China

Quadruplex Service Drop Wire

quadruplex- service-drop -wire-2.jpg

APPLICATION

Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulate conductors.

STANDARD

quadruplex service drop cable meets or exceeds the following ASTM specifications:

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

• B-231 Aluminum Conductors, Concentric-Lay-Stranded.

• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.

• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .

CONSTRUCTION

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)

TECHNICAL DATA

Code* Word	Phase Conductor			Bare				Weight		Allowable
	Phase Conductor			Neutral Messenger				Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Equiv.	Size++	Strand-	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Dia.	(kcmil)	ing	Strength
	or		(mils)	(AWG)++			(lbs).
	kcmil)
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	1	45	6	30.58	7	1110	137	137	75	60
French Coach	6	7	45	6	30.58	7	1110	146	146	75	60
German Coach	4	1	45	4	48.69	7	1760	205	205	100	80
Arabian	4	7	45	4	48.69	7	1760	217	217	100	80
Belgian	2	7	45	2	77.47	7	2800	328	328	135	105
Shetland	1/0	9	60	1/0	123.3	7	4460	519	519	180	140
Thoroughbred	2/0	11	60	2/0	155.4	7	5390	639	639	205	160
Trotter	3/0	17	60	3/0	195.7	7	6790	789	789	235	185
Walking	4/0	18	60	4/0	246.9	7	8560	977	977	275	210
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Get a free quote by e-mail: info@qingzhou-cable.com

Code* Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft. (lbs.)		Allowable Ampacities+
Code* Word	Size (AWG or kcmil)	Stranding	Insul. Thick. (mils	Size (AWG or kcmil)	Stranding	Rated Strength (lbs).	XLP	POLY	XLP	POLY
AAC NEUTRAL-MESSENGER
Clydesdale	4	1	45	4	7	881	198	198	100	80
Pinto	4	7	45	4	7	881	211	211	100	80
Mustang	2	7	45	2	7	1350	318	318	135	105
Criollo	1/0	9	60	1/0	7	1990	503	503	180	140
Percheron	2/0	11	60	2/0	7	2510	619	619	205	160
Hanovarian	3/0	17	60	3/0	19	3310	754	764	235	185
Oldenburg	4/0	18	60	4/0	19	4020	945	945	275	210
Lippizaner	336.4	19	80	336.4	19	6146	1519	1519	370	280
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Code* Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft. (Ibs.)		Allowable Ampacities+
Code* Word	Size (AWG or kcmil)	Stranding	Insul. Thick. (mils)	Size (AWG or kcmil)	Stranding	Rated Strength (Ibs).	XLP	POLY	XLP	POLY
ACSR NEUTRAL-MESSENGER
Morochuca	6	1	45	6	6/1	1190	145	145	75	60
Chola	6	7	45	6	6/1	1190	153	153	75	60
Morgan	4	1	45	4	6/1	1860	217	217	100	80
Hackney	4	7	45	4	6/1	1860	229	229	100	80
Palomino	2	7	45	2	6/1	2850	347	347	135	105
Costena	1/0	9	60	1/0	6/1	4380	549	549	180	140
Grullo	2/0	11	60	2/0	6/1	5310	677	677	205	160
Suffolk	3/0	17	60	3/0	6/1	6620	837	837	235	185
Appaloosa	4/0	18	60	4/0	6/1	8350	1038	1038	275	210
Gelding	336.4	19	80	4/0	6/1	8350	1494	1494	370	280
Bronco	336.4	19	80	336.4	18/1	8680	1568	1568	370	280
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Get a free quote by e-mail: info@qingzhou-cable.com

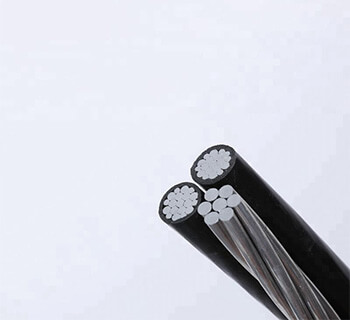

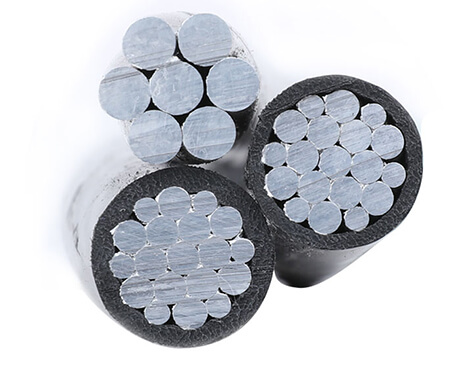

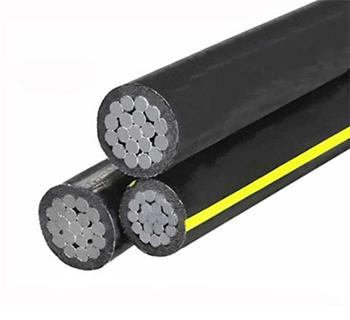

Triplex Service Drop Line

3 core abc3.jpg

APPLICATIONS

Used to supply power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors

SPECIFICATIONS

Triplex service drop cable meets or exceeds the following ASTM specifications:

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

• B-231 Aluminum Conductors, Concentric-Lay-Stranded.

• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR).

• B-399 Stranded 6201-T81 Aluminum Alloy Conductors.

• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Triplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA

CONSTRUCTION

TECHNICAL DATA

Code* Word	Phase Conductor			Bare				Weight		Allowable
	Phase Conductor			Neutral Messenger				Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Equiv.	Size++	Strand-	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Dia.	(kcmil)	ing	Strength
	or		(mils)	(AWG)++			(lbs).
	kcmil)
6201 ALLOY NEUTRAL-MESSENGER
Minex	6	1	45	6	30.58	7	1110	101	101	85	70
Hippa	6	7	45	6	30.58	7	1110	107	107	85	70
Prawn	4	1	45	4	48.69	7	1760	152	152	115	90
Barnacle	4	7	45	4	48.69	7	1760	160	160	115	90
Shrimp	2	7	45	2	77.47	7	2800	243	243	150	120
Gammarus	1/0	7	60	1/0	123.3	7	4460	390	390	205	160
Leda	1/0	9	60	1/0	123.3	7	4460	384	384	205	160
Dungenese	2/0	7	60	2/0	155.4	7	5390	483	483	235	185
Cyclops	2/0	11	60	2/0	155.4	7	5390	474	474	235	185
Flustra	3/0	17	60	3/0	195.7	7	6790	587	587	275	215
Lepas	4/0	18	60	4/0	246.9	7	8560	728	728	315	245
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Get a free quote by e-mail: info@qingzhou-cable.com

Code* Word	Phase Conductor			Bare			Weight		Allowable
	Phase Conductor			Neutral Messenger			Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Size (kcmil)	Strand- ing	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Size (kcmil)	Strand- ing	Strength
	or		(mils)			(lbs).
	kcmil)
6201 ALLOY NEUTRAL-MESSENGER
Artemia	4	1	45	30.58	7	1110	135	135	115	90
Crab	4	7	45	30.58	7	1110	143	143	115	90
Solaster	2	7	45	48.69	7	1760	216	216	150	120
Sandcrab	1/0	7	60	77.47	7	2800	347	347	205	160
Echinus	1/0	9	60	77.47	7	2800	341	341	205	160
Fulgar	3/0	17	60	123.3	7	4460	519	519	275	215
Arca	4/0	18	60	155.4	7	5390	643	643	315	245
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Code* Word	Phase Conductor			Bare			Weight		Allowable
	Phase Conductor			Neutral Messenger			Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Size	Strand- ing	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Size	Strand- ing	Strength
	or		(mils)	(AWG or		(lbs).
	kcmil)			kcmil)
AAC NEUTRAL-MESSENGER
Patella	6	7	45	6	7	563	103	103	85	70
Oyster	4	7	45	4	7	881	154	154	115	90
Clam	2	7	45	2	7	1350	233	233	150	120
Murex	1/0	7	60	1/0	7	1990	374	374	205	160
Purpura	1/0	9	60	1/0	7	1990	368	368	205	160
Nassa	2/0	7	60	2/0	7	2510	462	462	235	185
Melita	3/0	17	60	3/0	19	3310	562	562	275	215
Portunus	4/0	18	60	4/0	19	4020	696	696	315	245
Nannynose	336.4	19	80	336.4	19	6146	1118	1118	420	325
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Code* Word	Phase Conductor			Bare			Weight		Allowable
	Phase Conductor			Neutral Messenger			Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Size	Strand- ing	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Size	Strand- ing	Strength
	or		(mils)	(AWG or		(lbs).
	kcmil)			kcmil)
ACSR NEUTRAL-MESSENGER
Paludina	6	1	45	6	6/1	1190	109	109	85	70
Voluta	6	7	45	6	6/1	1190	114	114	85	70
Whelk	4	1	45	4	6/1	1860	-	164	115	90
Periwinkle	4	7	45	4	6/1	1860	172	172	115	90
Conch	2	7	45	2	6/1	2850	262	262	150	120
Neritina	1/0	7	60	1/0	6/1	4380	420	420	205	160
Cenia	1/0	9	60	1/0	6/1	4380	414	414	205	160
Runcina	2/0	7	60	2/0	6/1	5310	520	520	235	185
Triton	2/0	11	60	2/0	6/1	5310	512	512	235	185
Mursia	3/0	17	60	3/0	6/1	6620	635	635	275	215
Zuzara	4/0	18	60	4/0	6/1	8350	789	789	315	245
Limpet	336.4	19	80	336.4	18/1	8680	1167	1167	420	325
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Get a free quote by e-mail: info@qingzhou-cable.com

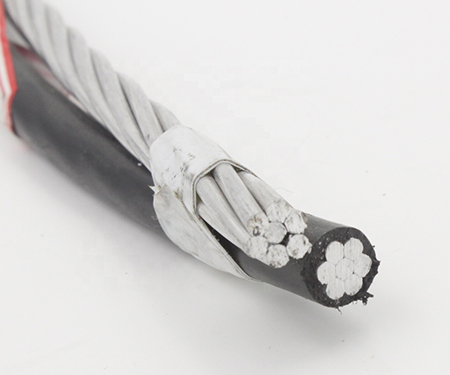

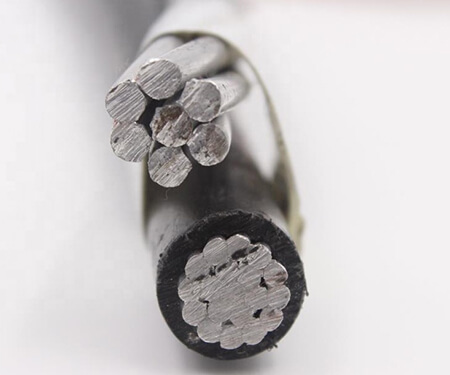

Duplex Service Drop Wire

APPLICATION

Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

STANDARD

Duplex service drop cable meets or exceeds the following ASTM specifications:

• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

• B-231 Aluminum Conductors, Concentric-Lay-Stranded.

• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

• B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.

• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Duplex service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

CONSTRUCTION

TECHNICAL DATA

Code* Word	Phase Conductor			Bare				Weight		Allowable
	Phase Conductor			Neutral Messenger				Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Equiv.	Size++	Strand-	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Dia.	(kcmil)	ing	Strength
	or		(mils)	(AWG)++			(lbs).
	kcmil)
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	1	45	6	30.58	7	1110	65	65	85	70
Vizsla	6	7	45	6	30.58	7	1110	68	68	85	70
Harrier	4	1	45	4	48.69	7	1760	99	99	115	90
Whippet	4	7	45	4	48.69	7	1760	103	103	115	90
Schnauzer	2	7	45	2	77.47	7	2800	157	157	150	120
Heeler	1/0	9	60	1/0	123.3	7	4460	250	250	205	160
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Get a free quote by e-mail: info@qingzhou-cable.com

Code* Word	Phase Conductor			Bare			Weight		Allowable
	Phase Conductor			Neutral Messenger			Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Size	Strand- ing	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Size	Strand- ing	Strength
	or		(mils)	(AWG or		(lbs).
	kcmil)			kcmil)
AAC NEUTRAL-MESSENGER
Pekingese	6	1	45	6	7	563	61	61	85	70
Collie	6	7	45	6	7	563	64	64	85	70
Dachshund	4	1	45	4	7	881	92	92	115	90
Spaniel	4	7	45	4	7	881	96	96	115	90
Doberman	2	7	45	2	7	1350	147	147	150	120
Malemute	1/0	7	60	1/0	7	1990	234	234	205	160
9 60 1/0 7 1990 234 234 205 160 * Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP)
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Code* Word	Phase Conductor			Bare			Weight		Allowable
	Phase Conductor			Neutral Messenger			Per 1000 ft.(lbs.)		Ampacities+
	Size	Strand-	Insul.	Size	Strand- ing	Rated	XLP	POLY	XLP	POLY
	(AWG	ing	Thick.	Size	Strand- ing	Strength
	or		(mils)	(AWG or		(lbs).
	kcmil)			kcmil)
ACSR NEUTRAL-MESSENGER
Setter	6	1	45	6	6/1	1190	72	72	85	70
Shepherd	6	7	45	6	6/1	1190	75	75	85	70
Eskimo	4	1	45	4	6/1	1860	110	110	115	90
Terrier	4	7	45	4	6/1	1860	115	115	115	90
Chow	2	7	45	2	6/1	2850	176	176	150	120
Bull	1/0	7	60	1/0	6/1	4380	280	280	205	160
9 60 1/0 7 1990 234 234 205 160 * Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP)
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Get a free quote by e-mail: info@qingzhou-cable.com
