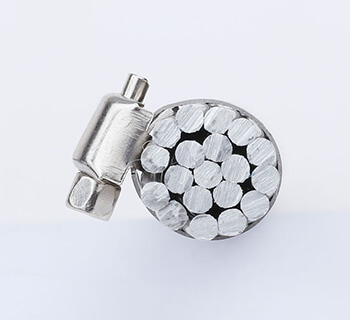

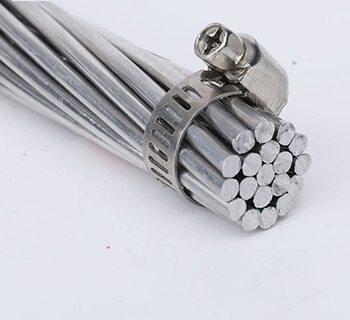

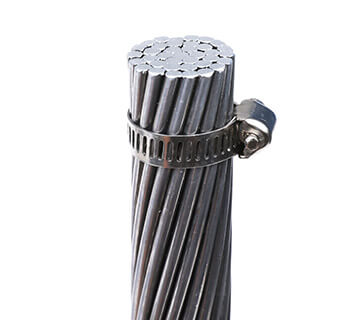

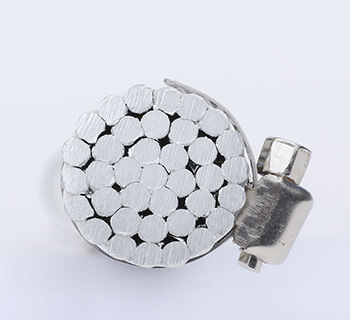

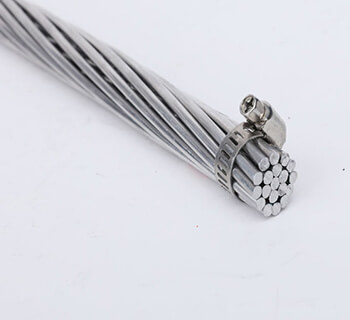

AAAC Overhead Conductor

All Aluminum Alloy Conductor (AAAC) Bare

Conductor for high voltage transmission line

Send the details by email for price list now

Send E-mail Get Price Now

Application

AAAC-Aluminum Alloy Overhead Bare Conductor is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

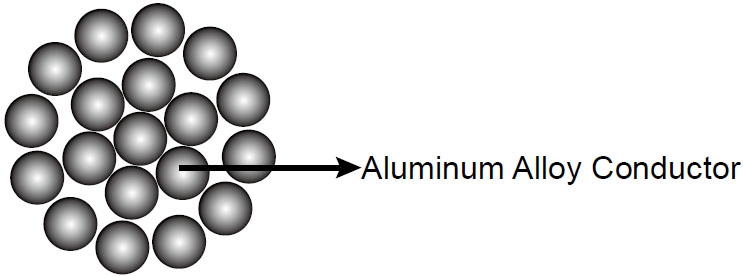

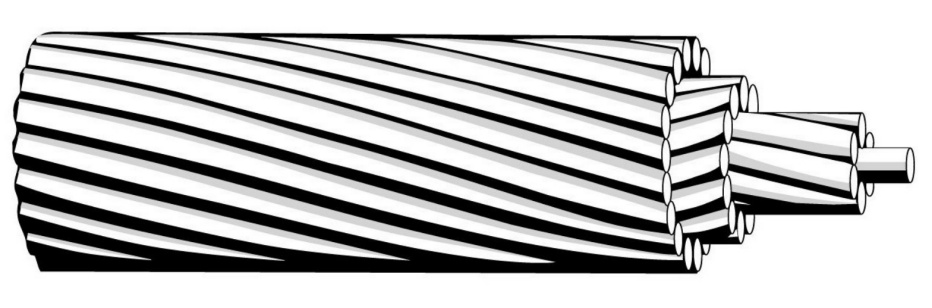

Construction

aaac price, aaac manufacturer, aaac parameter,aaac catalogue
AAAC Aluminum Alloy Overhead Bare Conductor cable consists of aluminum alloy wires concentrically stranded.

Advantage:
1. Corrosion Resistance: AAAC exhibits excellent corrosion resistance specially in sea coast areas and in polluted industrial areas due to absence of steel core.

2. Lower Power losses: Since AAAC is homogeneous (with all strands of Aluminium Alloy) with no steel component the resistance of AAAC is lower as compared to ACSR.

3. Higher Ampacity: AAAC can carry atleast 15-20% extra current as compared to ACSR of equal size
Longer Life: Experience in foreign countries shows that All Aluminium Alloy Conductors are in service for over 60 years, which is about double the life of ACSR Conductors.

AAAC Standard

AAAC 6201

Code Word	Conductor size		Size and stranding of ACSR equivalent	Wires	Wire diameter		Cable diameter		Mass		Rated strength		Nominal d.c.		Ampacity
	Conductor size		Size and stranding of ACSR equivalent		Wire diameter		Cable diameter		Mass		Rated strength		Resistance at 20 °C		Sun, no wind	Sun and wind	No sun and wind
	kcmil	mm²	AWG or kcmil		mm	mils	mm	in	kg/km	lb/kft	kgf	kips	W/ km	W/kft	A*
Akron	30,58	15,5	6	7	1,68	66,1	5,04	0,198	42,5	28,6	502	1,107	2,161	0,6588	62	107	111
Alton	48,69	24,7	4	7	2,12	83,4	6,36	0,25	67,7	45,5	799	1,762	1,358	0,4138	85	143	150
Ames	77,47	39,2	2	7	2,67	105,2	8,02	0,316	107,7	72,4	1272	2,804	0,853	0,2601	119	191	201
Azusa	123,3	62,4	1/0	7	3,37	132,7	10,1	0,398	171,4	115,2	1939	4,275	0,536	0,1635	164	256	271
Anaheim	155,4	78,6	2/0	7	3,78	149	11,4	0,447	216,1	145,2	2445	5,390	0,425	0,1297	192	296	315
Amherst	195,7	99,3	3/0	7	4,25	167,2	12,7	0,502	272,1	182,8	3079	6,787	0,338	0,1030	226	342	365
Alliance	246,9	125	4/0	7	4,77	187,8	14,3	0,563	343,2	230,7	3884	8,563	0,268	0,0816	265	395	424
Butte	312,8	159	266,8	19	3,26	128,3	16,3	0,642	434,8	292,2	4767	10,508	0,211	0,0644	313	460	495
Canton	394,5	200	336,4	19	3,66	144,1	18,3	0,721	548,5	368,6	6013	13,256	0,168	0,0511	368	532	575
Cairo	465,4	236	397,5	19	3,98	156,5	19,9	0,783	647	434,8	7092	15,636	0,142	0,0433	413	590	640
Darien	559,5	284	477	19	4,36	171,6	21,8	0,858	777,9	522,8	8527	18,798	0,118	0,0360	468	663	720
Elgin	652,4	331	556,5	19	4,71	185,3	23,5	0,927	907	609,6	9943	21,920	0,101	0,0309	520	729	795
Flint	740,8	375	636	37	3,59	141,5	25,2	0,991	1030	692,2	11048	24,356	0,089	0,0272	566	790	863
Greeley	927,2	470	795	37	4,02	158,3	28,1	1,11	1289	866,3	13827	30,483	0,071	0,0217	660	908	996
-	1077,4	547	954	61	3,38	132,9	30,4	1,2	1498	1007	15891	35,032	0,061	0,0187	733	998	1099
-	1165,1	590	1033,5	61	3,51	138,2	31,6	1,24	1620	1089	17183	37,882	0,057	0,0173	771	1045	1153
-	1259,6	638	1113	61	3,65	143,7	32,8	1,29	1751	1177	18578	40,958	0,052	0,0160	812	1096	1211
-	1348,8	685	1192,5	61	3,78	148,7	34	1,34	1875	1260	19894	43,857	0,049	0,0149	850	1143	1265
-	1439,2	729	1272	61	3,9	153,6	35,1	1,38	2001	1345	21226	46,795	0,046	0,0140	886	1187	1315

* Capacidad de corriente de conductores desnudos al aire libre, con base en temperatura ambiente de 25 °C, temperatura en el conductor 75 °C, velocidad del viento 0,6 m/s, emisividad del conductor 0,5, radiación solar 1000 W/m2 a nivel del mar.

* Allowed ampacities of bare conductors in free air, based on ambient temperature of 25 ºC, conductor temperature of 75 ºC, wind velocity 2 ft/s, conductor emisivity 0,5, solar radiation 96 W/ft2, at sea level.

Type AAAC 1120 – All Aluminium Alloy Conductor AS 1531-1991

Part Number	Conductor Code	Stranding andWire Diameter (No/mm)	Nominal Overall Diameter (mm)	Cross Sectional Area (mm2)	Approx. Mass (kg/km)	Breaking Load (kN)	Modulus of Elasticity (GPa)	Coefficient of Linear Expansion (x10-6/oC	DC Resistance (Ω/km)
AAAC/1120 - 7/2.50	Chlorine	7/2.50	7.5	34.36	94.3	8.18	65	23	0.864
AAAC/1120 - 7/2.75	Chromium	7/2.75	8.25	41.58	113	9.91	65	23	0.713
AAAC/1120 - 7/3.00	Fluorine	7/3.00	9	49.48	135	11.8	65	23	0.599
AAAC/1120 - 7/3.75	Helium	7/3.75	11.3	77.28	211	17.6	65	23	0.383
AAAC/1120 - 7/4.50	Hydrogen	7/4.50	13.5	111.3	304	24.3	65	23	0.266
AAAC/1120 - 7/4.75	Iodine	7/4.75	14.3	124	339	27.1	65	23	0.239
AAAC/1120 - 19/3.25	Krypton	19/3.25	16.3	157.6	433	37.4	65	23	0.189
AAAC/1120 - 19/3.50	Lutetium	19/3.50	17.5	182.8	503	41.7	65	23	0.163
AAAC/1120 - 19/3.75	Neon	19/3.75	18.8	209.8	576	47.8	65	23	0.142
AAAC/1120 - 37/3.00	Nitrogen	37/3.00	21	261.6	721	62.2	64	23	0.114
AAAC/1120 - 37/3.25	Nobelium	37/3.25	22.8	307	845	72.8	64	23	0.0973
AAAC/1120 - 19/4.75	Oxygen	19/4.75	23.8	336.7	924	73.6	65	23	0.0884
AAAC/1120 - 37/3.75	Phosphorus	37/3.75	26.3	408.5	1120	93.1	64	23	0.0731
AAAC/1120 - 61/3.25	Selenium	61/3.25	29.3	506.1	1400	114	64	23	0.0592
AAAC/1120 - 61/3.50	Silicon	61/3.50	31.5	586.9	1620	127	64	23	0.0511
AAAC/1120 - 61/3.75	Sulphur	61/3.75	33.8	673.4	1860	145	64	23	0.0444

AAAC conductor-DIN 48201 Part 6
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Nominal	Teorical	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
mm^2	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	15.89	7/1.70	5.1	43	4.44	2.0742	78
25	24.25	7/2.10	6.3	66	6.77	1.3593	102
35	34.36	7/2.50	7.5	94	9.6	0.9591	126
50	49.48	7/3.00	9	135	13.82	0.666	158
50	48.35	19/1.80	9	133	13.5	0.6849	156
70	65.81	19/2.10	10.5	181	18.38	0.5032	189
95	93.27	19/2.50	12.5	256	26.05	0.3551	234
120	116.99	19/2.80	14	322	32.68	0.2831	269
150	147.11	37/2.25	15.8	406	41.09	0.2256	309
185	181.62	37/2.50	17.5	500	50.73	0.1828	352
240	242.54	61/2.25	20.3	670	67.74	0.1371	420
300	299.43	61/2.50	22.5	827	83.63	0.111	477
400	400.14	61/2.89	26	1104	111.76	0.0831	568
500	499.83	61/3.23	29.1	1379	139.6	0.0665	649
625*	626.2	91/2.96	32.6	1732	174.9	0.0531	742
800*	802.09	91/3.35	36.9	2218	224.02	0.0415	857
1000*	999.71	91/3.74	41.1	2767	279.22	0.0333	971

Get a free quote by e-mail: info@qingzhou-cable.com

AAAC conductor-ASTM B 399B 399M
Nominal Area		Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
AWG&MCM	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
6	13.2	7/1.55	4.65	36.2	4.18	2.5361	69
4	21.1	7/1.96	5.88	57.9	6.69	1.586	93
2	33.5	7/2.47	7.41	92	10.6	0.9987	123
0	53.5	7/3.12	9.36	146.8	17	0.62592	165
2/0	67.3	7/3.50	10.5	184.8	20.4	0.49738	190
3/0	84.9	7/3.93	11.79	233	25.7	0.3945	219
4/0	107	7/4.42	13.26	294.7	32.5	0.31188	253
250	126	19/2.91	14.55	346.7	38.8	0.26509	280
300	152	19/3.19	15.95	416.7	46.6	0.22059	313
350	178	19/3.45	17.25	487.3	52	0.1886	345
400	203	19/3.69	18.45	557.5	59.5	0.16486	375
450	228	19/3.91	19.55	626	66.8	0.14683	402
500	253	19/4.12	20.6	695	74.2	0.13224	429
550	279	37/3.10	21.7	766.2	83.9	0.11995	455
600	303	37/3.23	22.61	831.9	91	0.11049	478
650	330	37/3.37	23.59	905.5	94.9	0.1015	504
700	354	37/3.49	24.43	971.2	101	0.09464	525
750	381	37/3.62	25.34	1045	109	0.08796	549
800	404	37/3.73	26.11	1109	116	0.08285	569
900	456	37/3.96	27.72	1250	131	0.07351	612
1000	508	37/4.18	29.26	1393	146	0.06597	653
1250	631	61/3.63	32.67	1732	179	0.05306	743
1500	759	61/3.98	35.82	2082	215	0.04414	827
1750	886	61/4.30	38.7	2431	251	0.03781	904

Get a free quote by e-mail:info@qingzhou-cable.com

AAAC conductor-BS 3242
Code	AL Nominal Area	Cu Nominal Area Equivalent	Total Area	Stranding	Overall Diameter	Weight
	mm^2	mm^2	mm^2	No.Ω/mm	mm	kg/km
-	-	6.45	11.7	7/1.47	4.41	32.2
Box	-	9.68	18.8	7/1.85	5.55	51.7
Acacia	-	12.9	21.9	7/2.08	6.24	66.1
Almond	25	16.1	30.1	7/2.34	7.02	82.9
Ceda	30	19.4	35.5	7/2.54	7.62	97.8
-	40	22.6	42.2	7/2.77	8.31	116.4
Fir	50	25.8	47.8	7/2.95	8.85	131.8
Hazel	100	32.3	59.9	7/3.30	9.9	165
Pine	-	38.7	71.7	7/3.61	10.83	197.7
-	-	45.2	84.1	7/3.91	11.73	231.6
Willow	150	48.4	89.8	7/4.04	12.12	247.5
-	175	51.6	96.5	7/4.19	12.57	266.2
-	300	58.1	108.8	7/4.45	13.35	299.8
Oak	-	64.5	118.9	7/4.65	13.95	327.8
-	-	80.6	118.8	19/2.82	14.1	327.6
Mulberry	-	96.8	151.1	19/3.18	15.9	416.7
Ash	-	113	180.7	19/3.48	17.4	498.1
Elm	-	129	211	19/3.76	18.8	582.1
Poplar	-	145	239	37/2.87	20.09	658.8
-	-	161	270.8	37/3.05	21.35	746.7
Sycamore	-	194	303	37/3.23	22.61	834.9
Upas	-	226	362.1	37/3.53	24.71	998.6
-	-	258	421.8	37/3.81	26.47	1163
Yew	-	-	479.9	37/4.06	28.42	132

AAAC conductor-BS EN 50182
Code	Stranding	Nominal Area	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
Code	No.xmm	mm^2	mm	kg/km	KN	Ω/Km	A
Box	7/1.85	18.8	5.55	51.4	5.55	1.748	87
Acacia	7/2.08	23.8	6.24	64.9	7.02	1.3828	101
Almond	7/2.34	30.1	7.02	82.2	8.88	1.0926	116
Cedar	7/2.54	35.5	7.62	96.8	10.46	0.9273	129
Deodar	7/2.77	42.2	8.31	115.2	12.44	0.7797	143
Fir	7/2.95	47.8	8.85	130.6	14.11	0.6875	155
Hazel	7/3.30	59.9	9.9	163.4	17.66	0.5494	178
Pine	7/3.61	71.6	10.83	195.6	21.14	0.4591	199
Holly	7/3.91	84.1	11.73	229.5	24.79	0.3913	219
Willow	7/4.04	89.7	12.12	245	26.47	0.3665	228
Oak	7/4.65	118.9	13.95	324.5	35.07	0.2767	272
Mulberry	19/3.18	150.9	15.9	414.3	44.52	0.2192	314
Ash	19/3.48	180.7	17.4	496.1	53.31	0.183	351
Elm	19/3.76	211	18.8	579.2	62.24	0.1568	386
Poplar	37/2.87	239.4	20.09	659.4	70.61	0.1387	416
Sycamore	37/3.23	303.2	22.61	835.2	89.4	0.1095	480
Upas	37/3.53	362.1	24.71	997.5	106.82	0.0917	535
Yew	37/4.06	479	28.42	1319.6	141.31	0.0693	633
Totara	37/4.14	498.1	28.98	1372.1	146.93	0.0666	648
Rubus	61/3.50	586.9	31.5	1622	173.13	0.0567	714
Sorbus	61/3.71	659.4	33.39	1822.5	194.53	0.0505	764
Araucaria	61/4.14	821.1	37.26	2269.4	242.24	0.0406	868
Redwood	61/4.56	996.2	41.04	2753.2	293.88	0.0334	970

Get a free quote by e-mail: info@qingzhou-cable.com

AAAC conductor-IEC 61089
Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm^2	No.xmm	mm	kg/km	KN	Ω/Km	A
16	18.4	18.4	5.49	50.4	5.43	1.7896	86
25	28.8	28.8	6.87	78.7	8.49	1.1453	113
40	46	46	8.67	125.9	13.58	0.7158	151
63	72.5	72.5	10.89	198.3	21.39	0.4545	200
100	115	115	13.9	316.3	33.95	0.2877	266
125	144	144	15.5	395.4	42.44	0.2302	305
160	184	184	17.55	506.1	54.32	0.1798	355
200	230	230	19.65	632.7	67.91	0.1439	407
250	288	288	21.95	790.8	84.88	0.1151	466
315	363	363	24.71	998.9	106.95	0.0916	535
400	460	460	27.86	1268.4	135.81	0.0721	618
450	518	518	29.54	1426.9	152.79	0.0641	663
500	575	575	31.15	1585.5	169.76	0.0577	706
560	645	645	33.03	1778.4	190.14	0.0516	755
630	725	725	35.01	2000.7	213.9	0.0458	809
710	817	817	37.17	2254.8	241.07	0.0407	866
800	921	921	39.42	2540.6	271.62	0.0361	928
900*	1036	1036	41.91	2861.1	305.58	0.0321	992
1000*	1151	1151	44.11	3179	339.53	0.0289	1051
1120*	1289	1289	46.75	3560.5	380.27	0.0258	1118
1250*	1439	1439	49.39	3973.7	424.41	0.0231	1185

Get a free quote by e-mail:info@qingzhou-cable.com

French Sizes

CODE NAME	AREA mm2	NO. OF WIRES	DIAMETER OF WIRES mm	OVERALL DIAMETER OF CONDUCTOR mm	TENSILE STRENGTH OF WIRE hbar	RATED STRENGTH OF CONDUCTOR daN	MAXIMUM DC RESISTANCE AT 20ºC km	LINEAR WEIGHT kg/km	ELASTICITY MODULUS* hbar	COEFFICIENT OF LINEAR EXPANSION */oc
ASTER 22	21.99	7	2	6	32.4	710	1.5	60.2	6200	23.10-6
ASTER 34.4	34.36	7	2.5	7.5	32.4	1105	0.958	94.1	6200	23.10-6
ASTER 54.6	54.55	7	3.15	9.45	32.4	1755	0.603	149	6200	23.10-6
ASTER 75.5	75.54	19	2.25	11.25	32.4	2430	0.438	208	6000	23.10-6
ASTER 117	116.98	19	2.8	14	32.4	3765	0.283	322	6000	23.10-6
ASTER 148	148.01	19	3.15	15.75	32.4	4765	0.224	407	6000	23.10-6
ASTER 181.6	181.62	37	2.5	17.5	32.4	5845	0.183	500	5700	23.10-6
ASTER 228	227.83	37	2.8	19.6	32.4	7340	0.146	627	5700	23.10-6
ASTER 288	288.34	37	3.15	22.05	32.4	9280	0.115	794	5700	23.10-6
ASTER 366	366.22	37	3.55	24.85	32.4	11785	0.0905	1009	5700	23.10-6
ASTER 570	570.22	61	3.45	31.05	32.4	18360	0.0583	1574	5400	23.10-6
ASTER 851	850.66	91	3.45	37.95	32.4	27390	0.0391	2354	5250	23.10-6
ASTER 1144	1143.51	91	4	44	31.9	36260	0.0292	3164	5250	23.10-6
ASTER 1600	1595.93	127	4	52	31.9	50640	0.0206	4425	5050	23.10-6

AAAC Technical characteristics of GB9329
Nominal Area	Stranding Number Diameter	Calculated Area	Overall Diameter	D,C. Resistance	Calculated Breaking Load	Calculated Weight	Continuous Carrying Capacity(A)
mm2	No. mm	mm2	mm	Ω/km	N	kg/km	70 ℃	80 ℃	90 ℃
35	7/2.52	35.3535	8.88	1.11111	10.1010	96.96
50	7/3.02	50.5050	9.99	1.11111	14.1414	137.137	159	191	218
70	7/3.57	70.7070	11.1111	0.00000	20.2020	192.192	195	235	369
95	7/4.16	95.9595	12.1212	0.00000	27.2727	260.260	234	285	328
120	19/2.84	120.120120	14.1414	0.00000	34.3434	331.331	270	330	379
150	19/3.17	150.150150	16.1616	0.00000	42.4242	412.412	308	378	436
185	19/3.52	185.185185	18.1818	0.00000	52.5252	508.508	350	431	497
210	19/3.75	210.210210	19.1919	0.00000	59.5959	577.577	377	466	539
240	19/4.01	240.240240	20.2020	0.00000	67.6767	660.660	409	507	587
300	37/3.21	299.299299	22.2222	0.00000	84.8484	825.825	466	581	675
400	37/3.71	400.400400	26.2626	0.00000	112.112112	1102.1102	553	695	810
500	37/4.15	500.500500	29.2929	0.00000	140.140140	1379.1379	631	798	933
630	61/3.63	631.631631	33.3333	0.00000	176.176176	1742.1742	721	919	1078
800	61/4.09	801.801801	37.3737	0.00000	224.224224	2212.2212	826	1061	1249
1000	61/4.57	1001.10011001	41.4141	0.00000	279.279279	2761.2761	933	1209	1429

Get a free quote by e-mail:info@qingzhou-cable.com

What kind of aaac conductor do you want? Get a free quote by e-mail: info@qingzhou-cable.com

Parameter/Data Sheet

Please click or download below AAAC pdf to check the parameter regard to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201-6 standards.

AAAC_Overhead_Bare_Conductor_Cable_British_BS_3242_Standard.pdf

AAAC_Overhead_Bare_Conductor_Cables_British_BS_EN_50182_Standard.pdf

AAAC_Overhead_Bare_Conductor_Cables_American_ASTM_B399_B399M_Standard.pdf

AAAC_Overhead_Bare_Conductor_Cables_German_DIN_48201-6_Standard.pdf

AAAC_Overhead_Bare_Conductor_Cables_IEC_61089_Standard.pdf

AAAC-This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard.Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium.

Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.

Electrical Properties&Service Conditions

Density:20℃	2.70 kg/dm	Ambient Temperature	-5°C - 50°C	Relative Humidity:5 – 100%
Temperature Coefficient:20°C	0.00360 (°C)	Wind Pressure	80 – 130kg/m^2
Resistivity:20°C	0.0326 Ohms mm^2/m	Seismic Acceleration	0.12 - 0.05g
Linear Expansivity	23 x10-6(°C)	Isokeraunic Level	10 – 18

Matching Products

*Describe Your Buying Requirements in Detail
