Coaxial Cable RG62 A/U 22AWG

RG 62 A/U | Coaxial Cable

Send E-mail Get Price Now

Item descriptions

Application: For indoor installation as well as in industrial areas in conduits and cable ducts, for transmission of high frequency

signals and power.

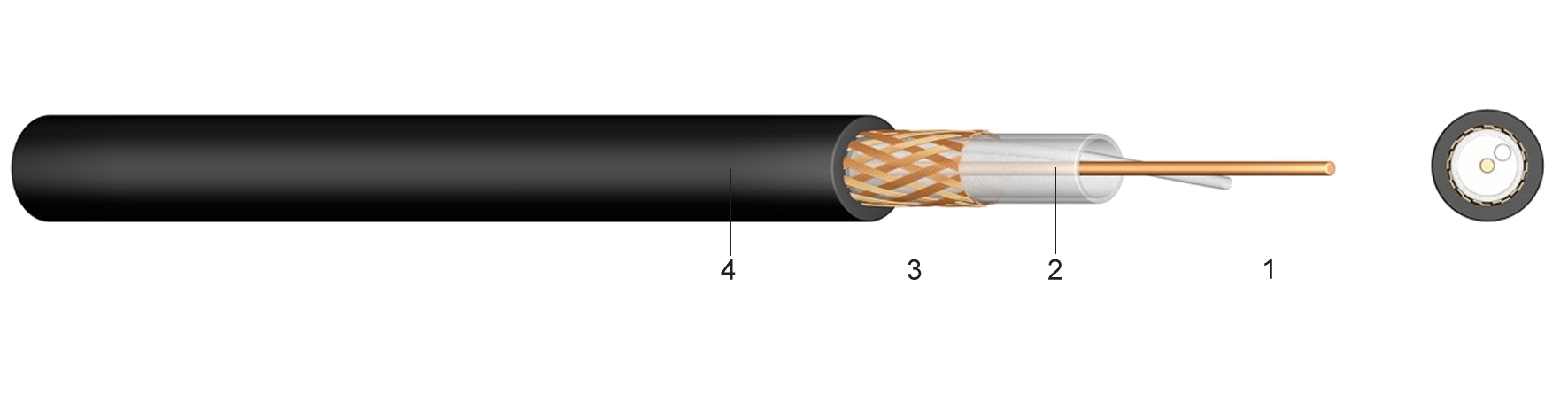

Construction:

Coaxial Cable RG62.jpg

1.....copper-platinate steel (Ø ca. 0,64mm)

2.....core insulation of polyehtylene (Dielectricum) Ø ca. 3,7mm

3.....screen of bare copper braiding

4.....outer sheath of polyvinylchloride (PVC)/XLPE, black

Information: In the halogen-free version the outer sheath consists of a special halogen-free plastic.

Standards: adapted to US Standard MIL - C - 17

Technical data:

No.	Description	Unit	Data
1	Model		Coaxial Cable RG62 A/U 22AWG
2	Manufacturer		HENAN QINGZHOU CO.LTD
3	Country		CHINA
4	Standard		MIL-C-17
5	Rated Voltage	V
6	Conductors
	Material		Bare Copper
	Nominal size	AWG	22
	Number of wires	No.	1
	Conductor diameter	mm	0.64
7	Insulation
	Material		PE with rope tube
	Approx. diameter	mm	3.71±0.2
8	Shielding
	Material		braid bare copper
	Structure of Braiding(Shielding)		144*0.12mm
	Min coverage	%	95
9	Jacket
	Material		Flame-retardent PVC
	Color		black
10	Cable
	Approx. overall diameter	mm	6.1±0.2
	Approx. weight of complete cable	kg/km	55
	Working temp	℃	-5℃/+70℃
	Insulation resistance	MQ.km	≥5000
	lmpedance	Q	93±2
11	Capacitance	nF/km	≤50
