Application

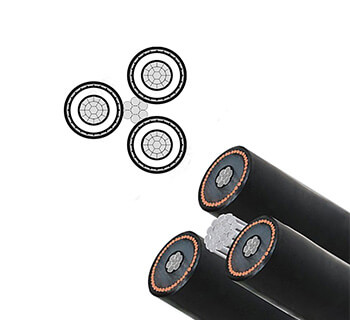

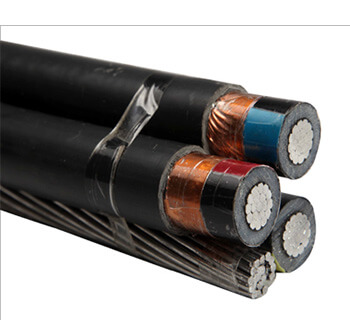

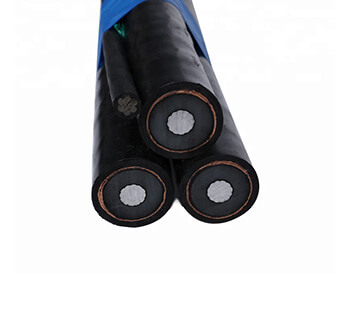

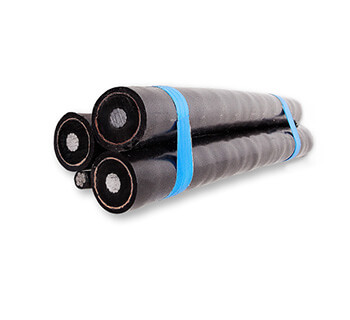

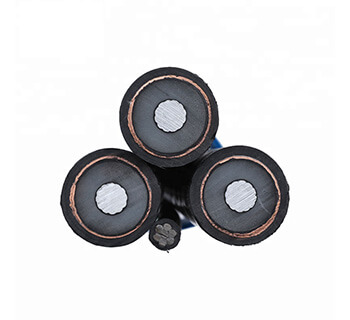

Medium Voltage Aerial bundled cables are mainly used for secondary overhead lines on poles or as feeders to residential premises.

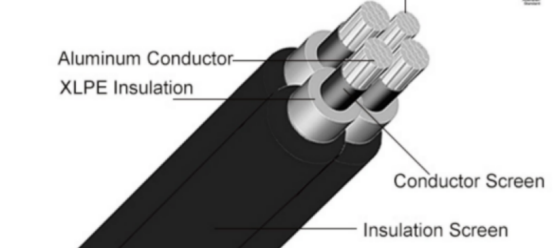

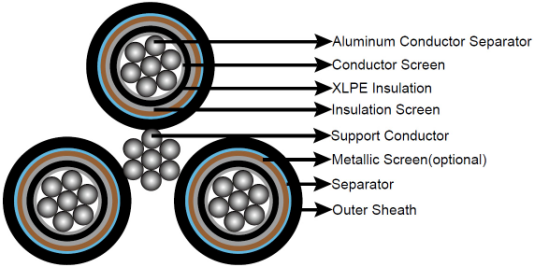

Construction
|
|
Phase Conductor | Circular compacted stranded H68 aluminium to BS2627. |
Conductor Screen | Extruded semi-conductive layer. |
Insulation | XLPE. |
Insulation Screen | Extruded semi-conductive layer. |
Metallic Screen(optional) | Copper wire screen or copper tape screen. |
Separator | Semi-conductive swellable tape. |
Outer Sheath | HDPE. |
Support Conductor | Galvanized steel wires. |
Assembly | Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay. |
| Cross section | No. of wires | Conductor diam. | Overall Diameter | Minimum breaking load | Approx. weight | Max. DC-resistance at 20°C | Ampacity 90°C |
| [mm²] | [mm] | [mm] | [kgf] | [kg/km] | [Ohm/km] | [A] | |
| 35 | 7 | 7.1 | 13.6 | 464 | 190 | 0.868 | 187 |
| 50 | 7 | 8.2 | 14.7 | 663 | 235 | 0.641 | 225 |
| 70 | 19 | 9.7 | 16.2 | 928 | 315 | 0.443 | 282 |
| 95 | 19 | 11.5 | 18 | 1259 | 400 | 0.32 | 345 |
| 120 | 19 | 12.9 | 19.4 | 1591 | 500 | 0.253 | 401 |
| 150 | 19 | 14.2 | 20.7 | 1988 | 580 | 0.206 | 456 |
| 185 | 37 | 16.2 | 22.6 | 2452 | 695 | 0.164 | 525 |
| 240 | 37 | 18.4 | 24.9 | 3182 | 875 | 0.125 | 625 |
| 6.35/11kV & 12.7/22kV ABC Cable-AS/NZS 3599.1 Standard | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| number of cores x nominal cross section | Nominal conductor diameter | Nominal insulation thickness | Nominal insulation screen thickness | Nominal sheath thickness | AAAC/1120 support conductor size | Nominal overall diameter | Weight | Continuous current rating, A | ||
| Still air | 1m/s wind | 2m/s wind | ||||||||
| mm^2 | mm | mm | mm | mm | No/mm | mm | kg/km | A | A | A |
| 6.35/11kV | ||||||||||
| 3x35 | 6.9 | 3.4 | 0.8 | 1.2 | 7/4.75 | 52.4 | 1370 | 110 | 155 | 185 |
| 3x50 | 8.1 | 3.4 | 0.8 | 1.2 | 7/4.75 | 54.6 | 1530 | 130 | 185 | 225 |
| 3x70 | 9.7 | 3.4 | 0.8 | 1.2 | 7/4.75 | 57.8 | 1790 | 160 | 235 | 280 |
| 3x95 | 11.4 | 3.4 | 0.8 | 1.2 | 7/4.75 | 61.3 | 2100 | 195 | 285 | 345 |
| 3x120 | 12.8 | 3.4 | 0.8 | 1.2 | 19/3.50 | 67.3 | 2540 | 230 | 335 | 405 |
| 3x150 | 14.2 | 3.4 | 0.8 | 1.2 | 19/3.50 | 70.1 | 2840 | 255 | 380 | 460 |
| 3x185 | 15.7 | 3.4 | 0.8 | 1.2 | 19/3.50 | 73.1 | 3190 | 295 | 440 | 530 |
| 12.7/22kV | ||||||||||
| 3x35 | 6.9 | 5.5 | 0.8 | 1.2 | 7/4.75 | 61 | 1780 | 110 | 155 | 180 |
| 3x50 | 8.1 | 5.5 | 0.8 | 1.2 | 7/4.75 | 63.3 | 1970 | 130 | 185 | 220 |
| 3x70 | 9.7 | 5.5 | 0.8 | 1.2 | 7/4.75 | 66.5 | 2260 | 160 | 230 | 275 |
| 3x95 | 11.4 | 5.5 | 0.8 | 1.2 | 7/4.75 | 69.9 | 2600 | 195 | 285 | 335 |
| 3x120 | 12.8 | 5.5 | 0.8 | 1.2 | 19/3.50 | 75.9 | 3070 | 225 | 330 | 395 |
| 3x150 | 14.2 | 5.5 | 0.8 | 1.2 | 19/3.50 | 78.7 | 3390 | 255 | 375 | 450 |
| 3x185 | 15.7 | 5.5 | 0.8 | 1.2 | 19/3.50 | 81.7 | 3760 | 290 | 435 | 520 |
Please check the specification, our competitive price will send you in 12 hours.
Please click or download below Medium Voltage ABC Cable pdf to check the parameter regard to IEC 60502 / AS/NZS 3599-1 standards
Australia_Standard_ASNZS_3599_6.35_11kV_Al_XlPE_HdPE_Non-Screened_and_Screened_ABC_Cables.pdf
IEC60502_Standard_6.35_11kV_19_33kV_Standard_MV_Aerial_Bundled_Conductor_(ABC)_Cables.pdf
Above Catalogue include below products details.
AS/NZS 3599 Part 1 6.35/11 kV AL/XLPE /CWS/HDPE Screened Cables
