TTU Electrical Industrial Cable

Voltage Rating Uo/U: 600V, 2 kV
Maximum temperature: 90°C
Conductor: AL/CU
Insulation: PE/XLPE
Material resistant to humidity and heat, on which a polyvinyl chloride (PVC) protective cover
Color: Black

Send E-mail Get Price Now

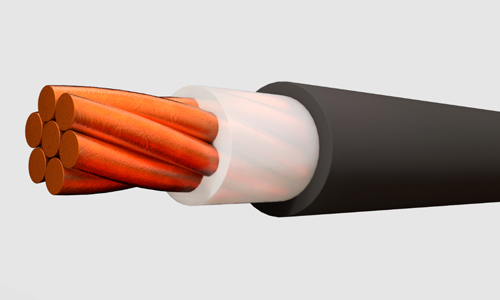

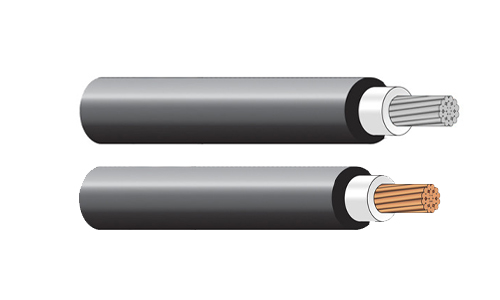

TTU Electrical Industrial Cable

Copper/Aluminum Conductor Electrical Cable For Industry used

Application

The copper conductors type TTU cable are used for power and lighting circuits in industrial and commercial facilities, they are specially suitable for outdoor installations or directly buried, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, its maximum temperature of operation is 90 ºC and its voltage of service for all the applications it is 600 V or 2000V.

Standards

ASTM-B3， ICEA S-95-658/NEMA WC70.

Construction

Conductor: Plain annealed solid or stranded copper wire.

Insulation: Crosslinked polyethylene(XLPE)

Sheath: PVC

Characteristics

Rated voltages: 600V, 2000V.

Maximum conductor temperature：90℃ dry or wet .

Colors: Insulation: Natural , Sheath : Black , color can be changed as order.

Permissible minimum bending radius: 15 x OD

Note : OD=Overall Diameter of Cable

TTU Cable 600 Volt, 75℃, Copper Wire Specification

SIZE, AWG / MCM	CROSS SECTION,AL, mm2	STRANDING, Number of wire x diameter, mm.	INSULATION THICKNESS, mm.	JACKET THICKNESS, mm.	EXTERNAL DIAMETER, mm.	TOTAL WEIGHT, Kg/Km	AMPACITY, Amp.
14	2.06	1×1.62	0.81	0.38	4.14	31.3	20
12	3.3	1×2.05	0.81	0.38	4.54	44.7	25
10	5.26	1×2.59	0.81	0.38	5.1	62.6	35
8	8,37	7 x 1,23	1,14	0,38	6,73	109,0	50
6	13,30	7 x 1,55	1,14	0,76	8,45	170,0	65
4	21,15	7 x 1,96	1,14	0,76	9,68	301,0	85
2	33,62	7 x 2,47	1,14	0,76	11,21	376,0	115
1	42,36	7 x 2,78	1,40	1,14	13,42	461,5	130
1/0	53,49	19 x 1,89	1,40	1,14	14,53	609,0	150
2/0	67,43	19 x 2,12	1,40	1,14	15,68	747,0	175
3/0	85,01	19 x 2,39	1,40	1,14	17,03	915,0	200
4/0	107,20	19 x 2,68	1,40	1,14	18,48	1132,0	230
250	127,00	37 x 2,09	1,65	1,65	21,23	1390,0	255
300	152,00	37 x 2,29	1,65	1,65	22,63	1641,0	285
350	177,00	37 x 2,47	1,65	1,65	23,89	1889,0	310
400	203,00	37 x 2,64	1,65	1,65	25,08	2137,0	335
500	253,00	37 x 2,95	1,65	1,65	27,25	2627,0	380
600	304,00	37 x 3,23	2,03	1,65	29,97	3144,0	420
650	329,00	37 x 3,37	2,03	1,65	30,95	3409,0	440
700	355,00	37 x 3,49	2,03	1,65	31,79	3593,0	460
750	380.99	61×2.82	2.03	1.65	32.18	3854	475
1000	506.04	61×3.25	2.03	1.65	35.94	5045.2	545

TTU Cable 2000 Volt, 90℃, Copper Wire Specification

SIZE, AWG / MCM	CROSS SECTION,AL, mm2	STRANDING, Number of wire x diameter, mm.	INSULATION THICKNESS, mm.	JACKET THICKNESS, mm.	EXTERNAL DIAMETER, mm.	TOTAL WEIGHT, Kg/Km	AMPACITY, Amp.
14	2.06	1×1.62	1,14	0.38	4.67	42	20
12	3.3	1×2.05	1,14	0.38	5.09	56	25
10	5.26	1×2.59	1,14	0.38	5.63	78	35
8	8,37	7 x 1,23	1,40	0,38	7.25	105	50
6	13,30	7 x 1,55	1,40	0,76	9	176	65
4	21,15	7 x 1,96	1,40	0,76	10.2	257	85
2	33,62	7 x 2,47	1,40	0,76	11.73	382	115
1	42,36	7 x 2,78	1,65	1,14	13.92	500	130
1/0	53,49	19 x 1,89	1,65	1,14	15.03	613	150
2/0	67,43	19 x 2,12	1,65	1,14	16.23	751	175
3/0	85,01	19 x 2,39	1,65	1,14	17.53	924	200
4/0	107,20	19 x 2,68	1,65	1,14	18.98	1143	230
250	127,00	37 x 2,09	1,90	1,65	21.73	1405	255
300	152,00	37 x 2,29	1,90	1,65	23.13	1651	285
350	177,00	37 x 2,47	1,90	1,65	24.39	1901	310
400	203,00	37 x 2,64	1,90	1,65	25.58	2130	335
500	253,00	37 x 2,95	1,90	1,65	27.75	2639	380
600	304,00	37 x 3,23	2,29	1,65	30.49	3150	420
650	329,00	37 x 3,37	2,29	1,65	31.47	3400	440
700	355,00	37 x 3,49	2,29	1,65	32.31	3630	460
750	380.99	61×2.82	2.29	1.65	33.26	3878	475
1000	506.04	61×3.25	2.29	1.65	37.13	5080	545
