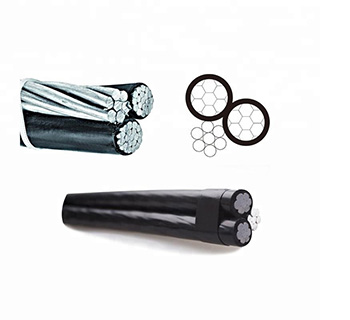

Recline cable Overhead Aluminium conductor Aerial Bounded Cable
Recline cable Overhead Aluminium conductor Aerial Bounded Cable
Phase conductor: Stranded aluminum conduct
Phase conductor insulation: PE or XLPE insulation
Phase cores: 2~4C
Neutral conductor: concentric strand AAC, ACSR, AAAC Messenger wire
Neutral core: 1C
Cable types: Recline cable, ABC cable
Package: wooden drum, or as per requirement
Standard: ASTM B-230, B-231, B-232 and B-399, ICEA S-76-474
Product Appliance:
To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a cond perature of 75℃ maximum for polyethylene insulation or 90℃ maximum for crosslinked insulation.
Note:
Designated sizes are ACSR 6/1 diameter equivalent resistivity per ASTM-B-399 for 6201
Conductor temperature of 75℃, ambient temperatures of 40℃
Packaging: available in 500ft coils and in long lengths on reels.
The data is approximate and subject to normal manufacturing tolerances. To determine current ampacity by conductor size, please consult the National Electric Code, latest edition.
Product parameter:
ACSR Neutral conductor type
| Code name | Phase conductor structure (AWG-No.) | XLPE insulation thi ckness (mm) | Bare conductor struc ture (AWG-No.) | Bare conductor Rat ed strength (kg) | Approx. cable we ight (kg/km) | Ampacity (A) |
| Paludina | 6-solid | 1.14 | 6-6/1 | 540 | 170 | 79 |
| Voluta | 6-7 | 1.14 | 6-6/1 | 540 | 176 | 79 |
| Bolma | 6-7 | 1.52 | 6-6/1 | 540 | 194 | 79 |
| Scallop | 4-solid | 1.14 | 66/1 | 540 | 225 | 138 |
| Strombus | 4-7 | 1.14 | 6-6/1 | 540 | 232 | 138 |
| Carnea | 4-7 | 1.52 | 6-6/1 | 540 | 253 | 138 |
| Whelk | 4-solid | 1.14 | 4-6/1 | 844 | 258 | 138 |
| Periwinkle | 4-7 | 1.14 | 4-6/1 | 844 | 263 | 138 |
| Calma | 4-7 | 1.52 | 4-6/1 | 844 | 284 | 138 |
| Cockle | 2-7 | 1.14 | 4-6/1 | 844 | 335 | 183 |
