Kenyan distributor PVC cable

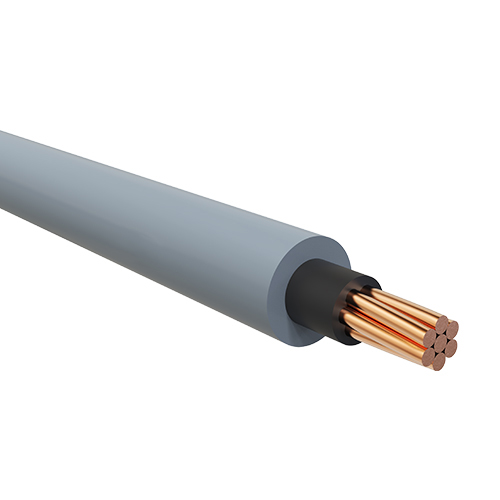

Kenyan distributor 0.6/1KV CU/PVC/PVC cable
PROJECT: Sales of wires and cables in the Kenyan market
PRODUCT: 1) 1.5 mm sq. single core, black and red
2) 2.5 mm sq. single core, red, black and green
3) 4 mm sq. single core , red, black and green
4) 6 mm sq. single core , red, black and green.
SERVICE: The best gold supplier, best price, high quality
HENAN QINGZHOU CABLE CO,.LTD
Add: West Industrial Park, Zhulin Town, Gongyi City, Henan Province, China.
Contact: Chloe E-mail: info@qingzhou-cable.com
Mob & WhatsApp: +86-18625503172 Tel: +86-371-61176830
| TECHNICAL SPECIFICATION | ||||||

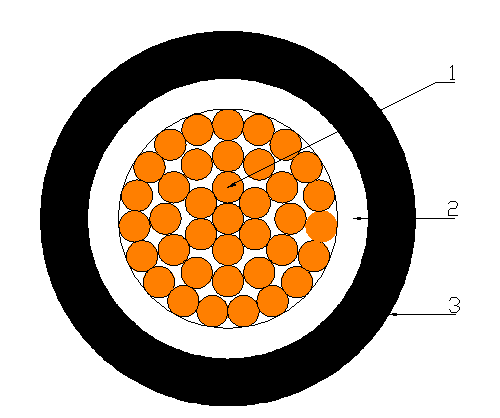

Conductor: Copper Wire(the number of wires for reference only) Insulation：PVC Sheath：PVC | ||||||
| No. | Description | Unit | Data | |||
| 1 | Model | - | 1x1.5mm2 CU/PVC/PVC | 1x2.5mm2 CU/PVC/PVC | 1x4mm2 CU/PVC/PVC | 1x6mm2 CU/PVC/PVC |
| 2 | Manufacturer | - | HENAN QINGZHOU CABLE CO.,LTD | |||
| 3 | Country | - | CHINA | |||
| 4 | Standard | - | IEC 60502-1 | |||
| 5 | Rated Voltage | kV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| 6 | Conductors | |||||
| Material | - | copper | copper | copper | copper | |
| Number of cores | - | 1 | 1 | 1 | 1 | |
| Nominal size | mm2 | 1.5 | 2.5 | 4 | 6 | |
| Number of wires | No. /mm | 6 | 6 | 6 | 6 | |
| Conductor diameter | mm | 1.38 | 1.78 | 2.25 | 2.76 | |
| 7 | Insulation | |||||
| Material | - | PVC | PVC | PVC | PVC | |
| Nominal Thickness | mm | 0.8 | 0.8 | 1.0 | 1.0 | |
| Min. thickness at any point | mm | 0.8 | 0.8 | 1.0 | 1.0 | |
| Approx. diameter | mm | 2.98 | 3.38 | 4.25 | 4.76 | |
| Insulation color | ||||||
| 8 | Filler | / | / | / | ||
| 9 | Over sheath | |||||
| Material | - | PVC | PVC | PVC | PVC | |
| Nominal thickness | mm | 1.4 | 1.4 | 1.4 | 1.4 | |
| Min. thickness at any point | mm | 1.34 | 1.34 | 1.34 | 1.34 | |
| Color | Black | Black | Black | Black | ||
| 10 | Cable | |||||
| Approx. overall diameter | mm | 5.8 | 6.2 | 7.1 | 7.6 | |
| Approx. weight of complete cable | kg/km | 49.21 | 62.11 | 86.39 | 109.75 | |
| Max. DC resistance of conductor at 20°C | Ω/km | 12.1 | 7.41 | 4.61 | 3.08 | |
| AC voltage test | - | 3.5kV/5min，No breaking | 3.5kV/5min，No breaking | 3.5kV/5min，No breaking | 3.5kV/5min，No breaking | |
| 11 | Min. bending radius at laying in terms of cable diameter | D | 15×D | 15×D | 15×D | 15×D |
| 12 | Max. conductor temperature on continuous | °C | 90 | 90 | 90 | 90 |
| 13 | Maximum conductor short time temperature | °C | 250 | 250 | 250 | 250 |
