acsr aw 26 7 stranding 795 kcmil drake single conductor

Date:2020-06-28

acsr aw 26 7 stranding 795 kcmil drake single conductor cable suppliers

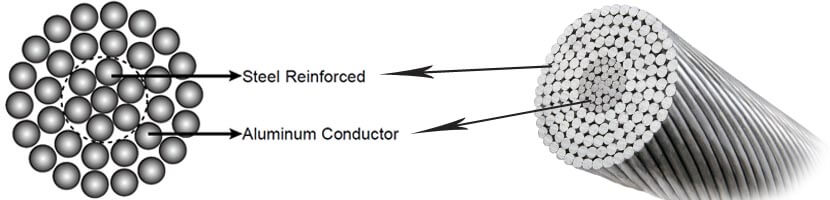

Character：1.Aluminum Conductor； 2.Steel Reinforced； 3.Bare.

Application：
Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Item Drake Mink Details:

Code name			Drake
Area	Aluminum	AWG or MCM	795.000
	Aluminum	mm2	402.84
	Steel	mm2	65.51
	Total	mm2	468.45
Stranding and diameter	Aluminum	mm	26/4.44
Stranding and diameter	Steel	mm	7/3.45
Approximate overall diameter		mm	28.11
Linear mass	Aluminum	kg/km	1116.0
	Steel	kg/km	518
	Total.	kg/km	1628
Rated tensile strength		daN	13992
Maximum D.C. Resistance at 20℃ Ω/km			0.07191
Cuttent Rating		A	614

If you don´t find a suitable cable, we will design it for you acc. to your individual requests. Send Inquiry Now:
