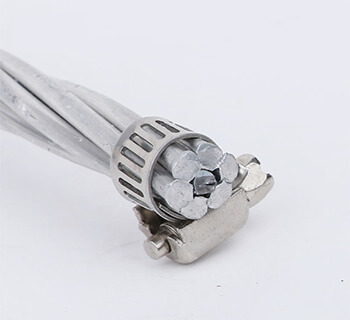

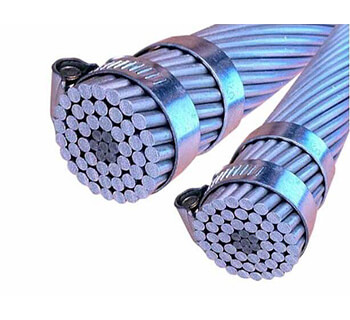

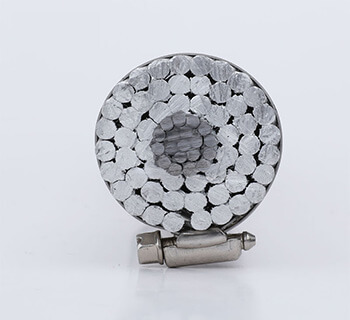

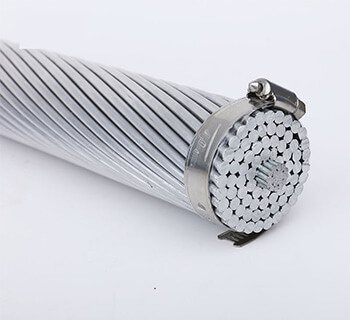

ACSR Overhead Conductor

ACSR for voltage overhead transmission lines
Aluminum Conductor Steel reinforced
ACSR/AS or ACSR/AW for high voltage overhead transmission lines
Aluminum Conductor Aluminum Clad Steel Reinforced
Manufacturer & Supplier in China

Send E-mail Get Price Now

Application

ACSR conductors are widely used for electrical power transmission over long distances.

ACSR/AW ACSR/ASAluminum Conductor Aluminum Clad Steel Reinforced used in manufactured transmission lines

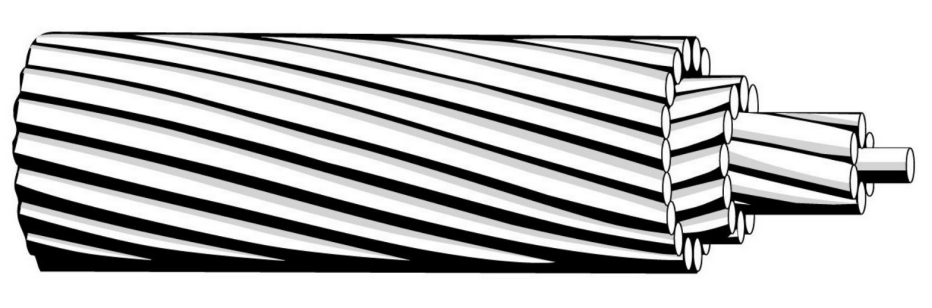

Construction

ACSR manufacturer,ACSR catalogue, ACSR Price, ACSR Parameter

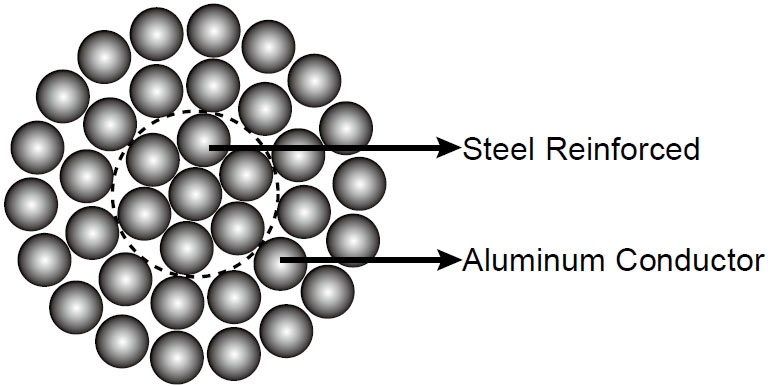

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers.

ACSR/AW ACSR/AS STRUCTURE:

Seal wire : Iron-plated stranded wire / Aluminum-sheathed stranded wire (AW)

Conductor : Standard aluminum cable

Contact us for more include Technical Support, Competitive Factory Price, Fast Delivery Service.

BS 215-2 BS EN 50182

Code	Nominal Area				Stranding		Overall Diameter		Weight(CU)			Rated Strength	Electrical Resistance @20o
	AL		Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	Nominal	Teorical	Steel	Total	AL	Steel	Core	Total	AL	Steel	Total
	mm^2	mm^2	mm^2	mm^2	No.xmm	No.xmm	mm	mm	Kg/Km	Kg/Km	Kg/Km	KN	Ω/Km
Mole	10	10.62	1.77	12.39	6/1.50	1/1.50	1.5	4.5	29	14	43	4.14	2.706
Squirrel	20	20.94	3.49	24.43	6/2.11	1/2.11	2.11	6.33	57	28	85	7.88	1.368
Gopher	25	26.24	4.38	30.62	6/2.36	1/2.36	2.36	7.08	71	35	106	9.61	1.093
Weasel	30	31.61	5.27	36.88	6/2.59	1/2.59	2.59	7.77	87	41	128	11.45	0.9077
Fox	35	36.66	6.11	42.77	6/2.79	1/2.79	2.79	8.37	101	48	149	13.2	0.7822
Ferret	40	42.41	7.07	49.48	6/3.00	1/3.00	3	9	117	55	172	15.2	0.6766
Rabbit	50	52.88	8.82	61.7	6/3.35	1/3.35	3.35	10.05	145	69	214	18.35	0.5426
Mink	60	63.18	10.53	73.71	6/3.66	1/3.66	3.66	10.98	171	84	255	2.18	0.4545
Shunk	60	63.27	37.03	100.3	12/2.59	7/2.59	7.77	12.95	178	287	465	5.3	0.4567
Beaver	70	74.82	12.47	87.29	6/3.99	1/3.99	3.99	11.97	203	99	302	2.57	0.3825
Horse	70	73.37	42.63	116.2	12/2.79	7/2.79	8.37	13.95	203	335	538	61.2	0.3936
Racoon	75	79.2	13.2	92.4	6/4.1	1/4.1	4.1	12.3	216	104	320	27.2	0.3622
Otter	80	83.88	13.98	97.86	6/4.22	1/4.22	4.22	13.98	226	113	339	28.8	0.3419
Cat	90	95.44	15.86	111.3	6/4.5	1/4.5	4.5	15.9	258	128	386	32.7	0.3007
Hare	100	105	17.5	122.5	6/4.72	1/4.72	4.72	17.5	284	141	425	36	0.2733
Dog	100	105	13.5	118.5	6/4.72	7/1.57	4.71	14.15	288	106	394	32.7	0.2733
Hyena	100	105.8	20.4	126.2	7/4.39	7/1.93	5.79	14.57	250	200	450	40.9	0.2712
Leoperd	125	131.3	16.8	148.1	8/5.28	7/1.75	5.25	15.81	310	182	492	40.7	0.2184
Coyotte	125	132.1	20.1	152.2	26/2.54	7/1.91	5.73	15.89	410	112	522	46.4	0.2187
Congar	125	130.3	7.2	137.5	18/3.05	1/3.05	3.05	15.25	361	58	419	29.8	0.2189
Tiger	125	131.1	30.6	161.7	30/2.36	7/2.36	7.08	16.52	365	237	602	58	0.2202
Wolf	150	158.1	36.8	194.9	30/2.59	7/2.59	7.77	18.13	441	285	726	69.2	0.1828
Dingo	150	158.7	8.8	167.5	18/3.35	1/3.35	3.35	16.75	437	69	506	35.7	0.1815
Lynx	175	183.4	42.8	226.2	30/2.79	7/2.79	8.37	19.53	507	335	842	79.8	0.1576
Caracal	175	184.3	10.2	194.5	18/3.61	1/3.61	3.61	18.05	507	80	587	41.1	0.1563
Panther	200	212.1	49.4	261.5	30/3.00	7/3.00	9	21	586	388	974	92.25	0.1363
Jaguar	200	210.6	11.7	222.3	18/3.86	1/3.86	3.86	19.3	580	91	671	46.55	0.1367
Lion	225	238.5	55.7	294.2	30/3.18	7/3.18	9.54	22.26	657	438	1095	100.6	0.1212
Bear	250	264	61.6	325.6	30/3.35	7/3.35	10.05	23.45	728	485	1213	111.1	0.109
Goat	300	324.3	75.7	400	30/3.71	7/3.71	11.13	25.79	894	595	1489	135.7	0.0891
Sheep	350	374.1	87.3	461.4	30/3.99	7/3.99	11.97	27.93	1031	687	1718	155.9	0.077
Antilope	350	373.1	48.4	421.5	54/2.97	7/2.97	8.91	26.73	1040	371	1411	118.2	0.0772
Bizon	350	381.8	49.5	431.3	54/3.00	7/3.00	9	27	1064	380	1444	120.9	0.7573
Zebra	400	428.9	55.6	484.5	54/3.18	7/3.18	9.54	28.62	1185	436	1621	131.9	0.0674

Aluminum Conductors Steel Reinforced DIN 48204

Area				Stranding and wire diameter		Overall Diameter	Linear mass			Nominal breaking load	Maximum resistance at 20 ℃
Nominal	Actual			Stranding and wire diameter			Linear mass
Al/St	Al	St	Total	Al	St		Al	St	Total
mm2	mm2	mm2	mm2	mm	mm	mm	kg/km	kg/km	kg/km	daN	ohm/km
16/2.5	15.3	2.5	17.8	6/1.80	1/1.80	5.4	42	20	62	595	1.8780
25/4.0	23.8	4.0	27.8	6/2.25	1/2.25	6.8	65	32	97	920	1.2002
36/6.0	34.3	5.7	40.0	6/2.70	1/2.70	8.1	94	46	140	1265	0.8352
44/32.0	44.0	31.7	75.7	14/2.00	7/2.40	11.2	122	250	372	4500	0.6573
50/8.0	48.3	8.0	56.3	6/3.20	1/3.20	9.6	132	64	196	1710	0.5946
50/30	51.2	29.8	81.0	12/2.33	7/2.33	11.7	141	237	378	4380	0.5643
70/12	69.9	11.4	81.3	26/1.85	7/1.44	11.7	193	91	284	2680	0.4130
95/15	94.4	15.3	109.7	26/2.15	7/1.67	13.6	260	123	383	3575	0.3058
95/55	96.5	56.3	152.8	12/3.20	7/3.20	16.0	266	446	712	7935	0.2992
105/75	105.7	75.5	181.5	14/3.10	9/2.25	17.5	292	599	891	10845	0.2735
120/20	121.06	19.8	141.4	26/2.44	7/1.90	15.5	336	158	494	4565	0.2374
120/70	122.0	71.3	193.3	12/3.6	7/3.60	18.0	337	564	901	10000	0.2364
125/30	127.9	29.8	157.7	30/2.33	7/2.33	16.3	353	238	591	5760	0.2259
150/25	148.9	24.2	173.1	26/2.70	7/2.10	17.1	411	194	605	5525	0.1939
170/40	171.8	40.1	211.9	30/2.70	7/2.70	18.9	475	319	794	7675	0.1682
185/30	183.8	29.8	213.6	26/3.00	7/2.33	19.0	507	239	746	6620	0.1571
210/35	209.1	34.1	243.2	26/3.20	7/2.49	20.3	577	273	850	7490	0.1380
210/50	212.1	49.5	261.6	30/3.00	7/3.00	21.0	587	394	981	9390	0.1362
230/30	230.9	29.8	260.7	24/3.50	7/2.33	21.0	638	239	877	7310	0.1249
240/40	243.0	39.5	282.5	26/3.45	7/2.68	21.9	671	316	987	8640	0.1188
265/35	263.7	34.1	297.8	24/3.74	7/2.49	22.4	728	274	1002	8305	0.1094
300/50	304.3	49.5	353.7	26/3.86	7/3.00	24.5	840	396	1236	10700	0.09487
305/40	304.6	39.5	344.1	54/2.68	7/2.68	24.1	843	317	1160	9940	0.0949
340/30	339.3	29.8	369.1	48/3.00	7/2.33	25.0	938	242	1180	9290	0.08509
380/50	382.0	49.5	431.5	54/3.00	7/3.00	27.0	1056	397	1453	12310	0.08509
385/35	386.0	34.1	420.1	48/3.20	7/2.49	26.7	1067	277	1344	10480	0.07573
435/55	434.03	59.3	490.6	54/3.20	7/3.20	28.8	1203	450	1653	13645	0.07478
450/40	448.7	39.5	488.2	48/3.45	7/2.68	28.7	1241	320	1561	12075	0.06656
490/65	490.3	63.6	553.9	54/3.40	7/3.40	30.6	1356	510	1866	15310	0.06434
495/35	494.1	34.1	528.2	45/3.74	7/2.49	29.9	1363	283	1646	12180	0.05846
510/45	510.2	45.3	555.5	48/3.68	7/2.87	30.7	1413	365	1778	13665	0.05655
550/70	550.0	71.3	621.3	54/3.60	7/3.60	32.4	1520	572	2092	17060	0.05259
560/50	561.7	49.5	611.2	48/3.86	7/3.00	32.2	1553	401	1954	14895	0.0514
570/40	565.5	39.5	610.3	45/4.00	7/2.68	32.2	1563	325	1888	13900	0.05108
650/45	698.8	45.3	653.49	45/4.30	7/2.87	34.4	1791	372	2163	15552	0.0442
680/85	678.8	86.0	764.8	54/4.00	18/2.40	36.0	1866	702	2570	21040	0.0426
1045/45	1045.58	45.3	1090.9	72/4.30	7/2.87	43.0	2879	370	3249	21787	0.0277

ASTM B 232/B 232M CSA C49

Code word	Size	Nº of wire		Nominal wire diameter				Steel cobre diameter		Overall cable diameter		Aluminum cross section
				Aluminum		Steel
	AWG or kcmil	Aluminum	Steel	mm	mils	mm	mils	mm	in	mm	in	mm²	kcmil
Petrel	101,8	12	7	2,34	92,1	2,34	92,1	7,02	0,276	11,7	0,46	51,6	101,8
Minorca	110,8	12	7	2,44	96,1	2,44	96,1	7,32	0,288	12,2	0,481	56,2	110,8
Leghorn	134,6	12	7	2,69	105,9	2,69	105,9	8,07	0,318	13,5	0,53	68,2	134,6
Guinea	159	12	7	2,92	115,1	2,92	115,1	8,77	0,345	14,6	0,58	80,6	159
Dotterel	176,9	12	7	3,08	121,4	3,08	121,4	9,25	0,364	15,4	0,607	89,6	176,9
Dorking	190,8	12	7	3,20	126,1	3,20	126,1	9,61	0,378	16,0	0,631	96,7	190,8
Brahma	203,2	16	19	2,86	112,7	2,48	97,7	12,4	0,489	18,1	0,714	103	203,3
Dog	207,2	6	7	4,72	185,8	1,57	61,8	4,71	0,185	14,2	0,557	105	207,2
Cochin	211,3	12	7	3,37	132,7	3,37	132,7	10,1	0,398	16,9	0,66	107	211,2
Wren	8	6	1	1,33	52,4	1,33	52,4	1,33	0,052	4,0	0,157	8,30	16,5
Turkey	6	6	1	1,68	66,1	1,68	66,1	1,68	0,066	5,0	0,198	13,30	26,2
Thrush	5	6	1	1,89	74,4	1,89	74,4	1,89	0,074	5,7	0,223	16,80	33,2
Swan	4	6	1	2,12	83,4	2,12	83,4	2,12	0,083	6,4	0,25	21,14	41,7
Swanate	4	7	1	1,96	77,2	2,61	102,8	2,61	0,103	6,5	0,257	21,12	41,7
Swallow	3	6	1	2,38	93,7	2,38	93,7	2,38	0,094	7,1	0,281	26,69	52,7
Sparrow	2	6	1	2,67	105,2	2,67	105,2	2,67	0,105	8,0	0,316	33,64	66,4
Sparate	2	7	1	2,47	97,4	3,29	129,5	3,29	0,13	8,2	0,324	33,65	66,4
Robin	1	6	1	3,00	118,1	3,00	118,1	3,00	0,118	9,0	0,354	42,41	83,7
Raven	1/0	6	1	3,37	132,7	3,37	132,7	3,37	0,133	10,1	0,398	53,55	105,7
Quail	2/0	6	1	3,78	148,9	3,78	148,9	3,78	0,149	11,4	0,447	67,40	133
Pigeon	3/0	6	1	4,25	167,2	4,25	167,2	4,25	0,167	12,7	0,502	85,00	167,7
Auk	203	8	7	4,05	159,3	2,25	88,6	6,75	0,266	14,8	0,584	102,9	203
Penguin	4/0	6	1	4,77	187,8	4,77	187,8	4,77	0,188	14,3	0,563	107,2	211,6
Coyote	260	26	7	2,54	100,0	1,98	78,0	5,94	0,234	16,1	0,634	131,7	260
Waxwing	266,8	18	1	3,09	121,7	3,09	121,7	3,09	0,122	15,5	0,608	135,1	266,8
Owl	266,8	6	7	5,36	211,0	1,79	70,5	5,37	0,211	16,1	0,633	135,4	266,8
Partridge	266,8	26	7	2,57	101,3	2,00	78,8	6,01	0,236	16,3	0,642	135,2	266,8
Phoebe	300	18	1	3,28	129,1	3,28	129,1	3,28	0,129	16,4	0,646	152,1	300,2
Ostrich	300	26	7	2,73	107,4	2,12	83,5	6,36	0,251	17,3	0,680	152,0	299,9
Piper	300	30	7	2,54	100	2,54	100	7,62	0,3	17,8	0,700	152,0	300
Merlin	336,4	18	1	3,47	136,7	3,47	136,7	3,47	0,137	17,4	0,683	170,4	336,4
Linnet	336,4	26	7	2,89	113,7	2,25	88,4	6,74	0,265	18,3	0,720	170,3	336,4
Oriole	336,4	30	7	2,69	105,9	2,69	105,9	8,07	0,318	18,8	0,741	170,5	336,4
Chickadee	397,5	18	1	3,77	148,6	3,77	148,6	3,77	0,149	18,9	0,743	201,4	397,5
Brant	397,5	24	7	3,27	128,7	2,18	85,8	6,54	0,257	19,6	0,772	201,4	397,5

Code word	Size	Nº of wire		Nominal wire diameter				Steel care diameter		Overall cable diameter		Aluminum cross section
				Aluminum		Steel
	AWG or kcmil	Aluminum	Steel	mm	mils	mm	mils	mm	in	mm	in	mm²	kcmil
Ibis	397,5	26	7	3,14	123,6	2,44	96,1	7,32	0,288	19,9	0,783	201,2	397,5
Lark	397,5	30	7	2,92	115,1	2,92	115,1	8,77	0,345	20,5	0,806	201,4	397,5
Pelican	477	18	1	4,14	162,8	4,14	162,8	4,14	0,163	20,7	0,814	241,7	477
Flicker	477	24	7	3,58	141,0	2,39	94,0	7,16	0,282	21,5	0,846	241,7	477
Hawk	477	26	7	3,44	135,4	2,68	105,3	8,03	0,316	21,8	0,858	241,5	477
Hen	477	30	7	3,20	126,1	3,20	126,1	9,61	0,378	22,4	0,883	241,7	477
Heron	500	30	7	3,28	129,1	3,28	129,1	9,84	0,387	23,0	0,904	253,5	500
Osprey	556,5	18	1	4,47	175,8	4,47	175,8	4,47	0,176	22,3	0,879	281,8	556,5
Parakeet	556,5	24	7	3,87	152,3	2,58	101,5	7,73	0,304	23,2	0,914	282	556,5
Dove	556,5	26	7	3,72	146,3	2,89	113,8	8,67	0,341	23,5	0,927	282	556,5
Eagle	556,5	30	7	3,46	136,2	3,46	136,2	10,4	0,409	24,2	0,953	281,9	556,5
Peacock	605	24	7	4,03	158,8	2,69	105,9	8,07	0,318	24,2	0,953	306,7	605
Squab	605	26	7	3,87	152,5	3,01	118,6	9,04	0,356	24,5	0,966	306,5	605
Woodduck	605	30	7	3,61	142,0	3,61	142,0	10,8	0,426	25,3	0,994	306,6	605
Teal	605	30	19	3,61	142,0	2,16	85,2	10,82	0,426	25,3	0,994	306,6	605
Duck	605	54	7	2,69	105,9	2,69	105,9	8,07	0,318	24,2	0,953	306,9	605
Kingbird	636	18	1	4,78	188,0	4,78	188,2	4,78	0,188	23,9	0,94	322,3	636
Rook	636	24	7	4,14	162,8	2,76	108,5	8,27	0,326	24,8	0,977	322,3	636
Grosbeak	636	26	7	3,97	156,4	3,09	121,6	9,27	0,365	25,2	0,991	322,3	636
Scoter	636	30	7	3,70	145,6	3,70	145,6	11,1	0,437	25,9	1,019	322,2	636
Egret	636	30	19	3,70	145,6	2,22	87,4	11,1	0,437	25,9	1,019	322,2	636
Swift	636	36	1	3,38	132,9	3,38	132,9	3,38	0,133	23,6	0,93	322,3	636
Goose	636	54	7	2,76	108,5	2,76	108,7	8,28	0,326	24,8	0,977	322,1	636
Flamingo	666,6	24	7	4,23	166,7	2,82	111,1	8,47	0,333	33,9	1,333	337,8	666,6
Gannet	666,6	26	7	4,07	160,1	3,16	124,5	9,49	0,373	25,8	1,014	337,8	666,6
Gull	666,6	54	7	2,82	111,0	2,82	111,0	8,46	0,333	25,4	0,999	337,3	665,6
Stilt	715,5	24	7	4,39	172,7	2,92	115,1	8,77	0,345	26,3	1,036	362,6	715,6
Starling	715,5	26	7	4,21	165,9	3,28	129	9,83	0,387	26,7	1,051	362,6	715,6
Redwing	715,5	30	19	3,92	154,4	2,35	92,6	11,8	0,463	27,5	1,081	362,4	715,3
Crow	715,5	54	7	2,92	115	2,92	115,0	8,8	0,345	26,3	1,035	361,6	713,7
Cuckoo	795	24	7	4,62	182	3,08	121,3	9,2	0,364	27,7	1,092	402,9	795
Drake	795	26	7	4,44	174,9	3,45	136,0	10,4	0,408	28,1	1,107	402,9	795,2
Coot	795	36	1	3,77	148,6	3,77	148,6	3,8	0,149	26,4	1,04	402,7	794,8
Tern	795	45	7	3,38	132,9	2,25	88,6	6,8	0,266	27,0	1,063	402,8	795
Condor	795	54	7	3,08	121,3	3,08	121,3	9,2	0,364	27,7	1,092	402,6	794,5
Mallard	795	30	19	4,14	162,8	2,48	97,7	12,4	0,489	29,0	1,14	402,9	795,1

Code word	Total mass						Stress at 1% extension of each steel wire		Rated strength ACSR		Nominal d.c. resistance at 20 ºC		Ampacity
	Aluminum		Steel		Total
	kg/km	lb/ kft	kg/km	lb/ kft	kg/km	lb/ kft	Mínimo	Minimum	kgf	kips	W/ km	W/ kft	A*
							MPa	ksi
Ibis	557,9	374,9	256,0	172	812,6	546,0	1275	185	7394	16,3	0,1435	0,0437	587
Lark	559,9	376,2	372,9	250,5	925,3	621,8	1275	185	9208	20,3	0,1437	0,0438	595
Pelican	666,9	448,1	105,0	70,6	769,8	517,3	1172	170	5352	11,8	0,1189	0,0362	646
Flicker	670,2	450,3	245,0	164,6	913,6	613,9	1275	185	7802	17,2	0,120	0,0364	655
Hawk	669,6	449,9	307,3	206,5	977	656,4	1275	185	8860	19,5	0,1196	0,0364	659
Hen	671,9	451,5	440,6	296	1112	747,5	1241	180	10804	23,8	0,1197	0,0365	667
Heron	704,5	473,4	462,0	310,4	1167	783,9	1241	180	11330	25,0	0,1142	0,0348	687
Osprey	777,6	522,5	121,8	81,86	899	604,4	1172	170	6220	13,7	0,102	0,0311	711
Parakeet	781,9	525,4	285,4	191,8	1067	717,2	1275	185	8988	19,8	0,1024	0,0312	721
Dove	781,8	525,3	358,9	241,2	1141	766,5	1275	185	10255	22,6	0,1024	0,0312	726
Eagle	783,5	526,5	513,8	345,3	1297	871,8	1241	180	12600	27,8	0,1027	0,0313	734
Peacock	850,5	571,5	310,7	208,8	1161	780,3	1275	185	9781	21,6	0,094	0,0287	760
Squab	849,7	571	389,6	261,8	1239	832,8	1275	185	11037	24,3	0,094	0,0287	765
Woodduck	852	572,5	558,7	375,4	1411	948,0	1172	170	13118	28,9	0,094	0,0288	774
Teal	852	572,5	546,9	367,5	1399	940,0	1310	190	13592	30,0	0,094	0,0288	773
Duck	850,9	571,8	310,7	208,8	1162	780,6	1275	185	10073	22,2	0,094	0,0287	751
Kingbird	889,4	597,6	139,6	93,81	1029	691,4	1172	170	7117	15,7	0,089	0,0272	774
Rook	893,6	600,5	326,2	219,2	1220	819,6	1275	185	10272	22,6	0,090	0,0273	784
Grosbeak	893,7	600,5	409,8	275,3	1303	875,9	1241	180	11432	25,2	0,090	0,0273	789
Scoter	895,6	601,8	587,3	394,6	1483	996,4	1172	170	13789	30,4	0,090	0,0274	798
Egret	895,6	601,8	575,6	386,8	1471	988,6	1310	190	14299	31,5	0,090	0,0274	798
Swift	889,1	597,5	69,6	46,8	959	644,3	1241	180	6242	13,8	0,089	0,0272	760
Goose	893,2	600,2	327,1	219,8	1220	820,0	1275	185	10588	23,3	0,090	0,0273	775
Flamingo	936,5	629,3	342	229,8	1278	859,1	1275	185	10767	23,7	0,085	0,0261	808
Gannet	936,5	629,3	429,4	288,5	1366	917,8	1241	180	11979	26,4	0,085	0,0261	813
Gull	935,1	628,4	341,5	229,5	1277	857,8	1275	185	10962	24,2	0,086	0,0261	796
Stilt	1005	675,6	367,2	246,7	1373	922,3	1275	185	11560	25,5	0,08	0,0243	844
Starling	1005	675,6	461,2	309,9	1467	985,5	1241	180	12863	28,4	0,08	0,0243	849
Redwing	1007	676,9	646,1	434,1	1653	1111	1275	185	15673	34,6	0,080	0,0243	859
Crow	1003	673,7	366,2	246	1369	919,8	1275	185	11753	25,9	0,080	0,0243	832
Cuckoo	1117	750,6	407,6	273,9	1525	1024	1241	180	12662	27,9	0,072	0,0218	901
Drake	1117	750,7	512,3	344,3	1629	1095	1241	180	14292	31,5	0,072	0,0218	907
Coot	1111	746,6	87,0	58,48	1198	805,1	1172	170	7596	16,7	0,071	0,0217	872
Tern	1117	750,5	217,4	146,1	1334	896,6	1310	190	10012	22,1	0,072	0,0218	879
Condor	1116	750,1	407,6	273,9	1524	1024	1241	180	12780	28,2	0,072	0,0219	889
Mallard	1120	752,4	719,5	483,5	1839	1236	1275	185	17442	38,5	0,072	0,0219	917

ACSR/GZ – Aluminium conductors, galvanised steel reinforced AS/NZS 3607

Product code	Strand/wire		Cross sectional area			Nominal O.D. mm	Approximate mass kg/km	Calculated minimum breaking load kN	Calculated final modulus of elasticity GPa	Coefficient of linear expansion /°C x 10-6
Product code	Alum No/mm	Steel No/mm	Alum mm2	Steel mm2	Total mm2	Nominal O.D. mm	Approximate mass kg/km	Calculated minimum breaking load kN	Calculated final modulus of elasticity GPa	Coefficient of linear expansion /°C x 10-6
QUINCE	3/1.75	4/1.75	7.2	9.6	16.8	5.3	96	12.7	136	13.9
RAISIN	3/2.50	4/2.50	14.7	19.6	34.3	7.5	193	24.4	136	13.9
SUPER SULTANA	3/3.00	4/3.00	21.2	28.3	49.5	9	280	35	136	13.9
SULTANA	4/3.00	3/3.00	28.3	21.2	49.5	9	242	28.3	119	15.2
WALNUT	4/3.75	3/3.75	44.2	33.1	77.3	11.3	379	43.9	119	15.2
ALMOND	6/2.50	1/2.50	29.2	4.9	34.4	7.5	119	10.5	83	19.3
APRICOT	6/2.75	1/2.75	35.6	5.9	41.5	8.3	144	12.6	83	19.3
APPLE	6/3.00	1/3.00	42.4	7.1	49.5	9	171	14.9	83	19.3
BANANA	6/3.75	1/3.75	66.3	11	77.3	11.3	268	22.8	83	19.3
CHERRY	6/4.75	7/1.60	106	14.1	120	14.3	404	33.2	80	19.9
GRAPE	30/2.50	7/2.50	147	34.4	182	17.5	677	63.5	88	18.4
LEMON	30/3.00	7/3.00	212	49.5	262	21	973	90.4	88	18.4
LYCHEE	30/3.25	7/3.25	249	58.1	307	22.8	1140	105	88	18.4
LIME	30/3.50	7/3.50	289	67.3	356	24.5	1320	122	88	18.4
MANGO	54/3.00	7/3.00	382	49.5	431	27	1440	119	78	19.9
ORANGE	54/3.25	7/3.25	448	58.1	506	29.3	1690	137	78	19.9
OLIVE	54/3.50	7/3.50	519	67.3	587	31.5	1960	159	78	19.9
PAW PAW	54/3.75	19/2.25	596	75.5	672	33.8	2240	178	77	20
PEACH	54/4.75	19/2.85	957	121	1078	42.8	3600	284	77	20

ACSR/AC – Aluminium conductors, aluminium clad steel reinforced AS 3607

Product code	Strand/wire		Cross sectional area			Nominal O.D. mm	Approximate mass kg/km	Calculated minimum breaking load kN	Calculated final modulus of elasticity GPa	Coefficient of linear expansion /°C x 10-6
Product code	Alum No/mm	Steel No/mm	Alum mm2	Steel mm2	Total mm2	Nominal O.D. mm	Approximate mass kg/km	Calculated minimum breaking load kN	Calculated final modulus of elasticity GPa	Coefficient of linear expansion /°C x 10-6
SKATING	3/1.75	4/1.75	7.2	9.6	16.8	5.3	83	12.3	119	15.3
SOCCER	3/2.50	4/2.50	14.7	19.6	34.3	7.5	171	24.9	119	15.3
SWIMMING	4/3.00	3/3.00	28.3	21.2	49.5	9	218	28.9	106	16.5
TENNIS	4/3.75	3/3.75	44.2	33.1	77.3	11.3	340	42.6	106	16.5
ANGLING	6/2.50	1/2.50	29.5	4.9	34.4	7.5	113	10.6	79	20.1
ARCHERY	6/3.00	1/3.00	42.4	7.1	49.5	9	163	15.1	79	20.1
BASEBALL	6/3.75	1/3.75	66.3	11	77.3	11.3	254	22.3	79	20.1
BOWLS	6/4.75	7/1.60	106	14.1	120	14.3	385	32.7	76	20.6
CRICKET	30/2.50	7/2.50	147	34.4	182	17.5	636	64.4	82	19.4
DARTS	30/3.00	7/3.00	212	49.5	262	21	913	91.6	82	19.4
DICE	30/3.25	7/3.25	249	58.1	307	22.8	1070	106	82	19.4
DIVING	30/3.50	7/3.50	289	67.3	356	24.5	1240	122	82	19.4
GOLF	54/3.00	7/3.00	382	49.5	431	27	1380	120	75	20.6
GYMNASTICS	54/3.25	7/3.25	448	58.1	506	29.3	1620	139	75	20.6
HURDLES	54/3.50	7/3.50	519	67.3	587	31.5	1880	159	75	20.6
LACROSSE	54/3.75	19/2.25	596	75.5	672	33.8	2150	180	74	20.7
RUGBY	54/4.75	19/2.85	957	121	1078	42.8	3450	288	74	20.7

ACSR/AW – ALUMINUM CONDUCTOR STEEL REINFORCED/AW CORE

Code Word	Size (AWG or kcmil)	Stranding (Al/Aw)	Diameter (ins.)			Weight Per 1000 ft (lbs.)			Rated Strength (lbs.)	Resistance OHMS/1000ft		Allowable Ampacity+ (Amps)
			Individual Wires		Complete Cable	Weight Per 1000 ft (lbs.)				Resistance OHMS/1000ft
			AL	AW	Complete Cable	Al	AW	Total		DC @20°c	AC @75°C
Swan/AW	4	6/1	.0834	.0834	.250	39	16	55	1780	.3917	.4770	145
Swanate/AW	4	7/1	.0772	.1029	.257	39	24	63	2280	.3814	.4642	148
Sparrow/AW	2	6/1	.1052	.1052	.316	62	25	87	2760	.2462	.2997	194
Sparate/AW	2	7/1	.0974	.1299	.325	62	38	100	3510	.2396	.2917	198
Robin/AW	1	6/1	.1182	.1182	.355	78	31	109	3450	.1950	.2373	225
Raven/AW	1/0	6/1	.1327	.1327	.398	99	39	138	4250	.1547	.1884	260
Quail/AW	2/0	6/1	.1490	.1490	.447	124	50	174	5130	.1227	.1494	301
Pigeon/AW	3/0	6/1	.1672	.1672	.502	156	63	219	6300	.09747	.1188	347
Penguin/AW	4/0	6/1	.1878	.1878	.563	197	79	277	7690	.07726	.09422	402
Waxwing/AW	266.8	18/1	.1217	.1217	.609	250	33	283	6820	.06364	.07776	451
Partridge/AW	266.8	26/7	.1013	.0788	.642	251	98	349	10800	.06169	.07541	465
Ostrich/AW	300	26/7	.1074	.0835	.680	283	110	393	12100	.05489	.06712	500
Merlin/AW	336.4	18/1	.1367	.1367	.684	315	42	357	8540	.05044	.06175	522
Linnet/AW	336.4	26/7	.1138	.0885	.721	317	123	440	13500	.04897	.05989	537
Oriole/AW	336.4	30/7	.1059	.1059	.741	318	177	494	16700	.04795	.05861	547
Chickadee/AW	397.5	18/1	.1486	.1486	.743	373	50	422	9780	.04268	.05230	580
Brant/AW	397.5	24/7	.1287	.0858	.772	374	116	490	14100	.04185	.05124	592
Ibis/AW	397.5	26/7	.1236	.0961	.783	374	146	520	15800	.04144	.05072	597
Lark/AW	397.5	30/7	.1151	.1151	.806	375	209	584	19600	.04059	.04965	608
Pelican/AW	477	18/1	.1628	.1628	.814	447	59	507	11500	.03556	04344	651
Flicker/AW	477	24/7	.1410	.0940	.846	449	139	589	16700	.03487	.04273	663
Hawk/AW	477	26/7	.1355	.1054	.858	449	175	624	18900	.03453	.04231	669
Hen/AW	477	30/7	.1261	.1261	.883	450	251	701	23400	.03382	.04139	682
Osprey/AW	556.5	18/1	.1758	.1758	.879	522	69	591	13200	.03050	.03749	715
Parakeet/AW	556.5	24/7	.1523	.1015	.914	524	163	687	19300	.02989	.03667	731
Dove/AW	556.5	26/7	.1463	.1138	.927	524	204	728	21900	.02958	.03627	737
Eagle/AW	556.5	30/7	.1362	.1362	.953	525	293	818	26800	.02899	.03551	751
Peacock/AW	605	24/7	.1588	.1059	.953	570	177	746	21000	.02749	.03377	770
Squab/AW	605	26/7	.1525	.1186	.966	570	222	792	23600	.02588	.03341	777
Teal/AW	605	30/19	.1420	.0852	.994	571	311	883	28500	.02672	.03274	791
Kingbird/AW	636	18/1	.1880	.1880	.940	596	79	675	15000	.02667	.03286	778
Rook/AW	636	24/7	.1628	.1085	.977	599	186	785	22000	.02616	.03216	794
Grosbeak/AW	636	26/7	.1564	.1216	.990	599	233	832	24800	.02588	.03179	801
Egret/AW	636	30/19	.1456	.0874	1.019	601.4	327.5	928.9	29930	—	—	—
Flamingo/AW	666.6	24/7	.1667	.1111	1.000	628	195	823	23100	.02495	.03069	818
Gannet/AW	666.6	26/7	.1601	.1245	1.014	628	245	872	26000	.02470	.03034	825
Starling/AW	715.5	26/7	.1659	.1290	1.051	674	263	939	27500	.02300	.02830	863
Redwing/AW	715.5	30/19	.1544	.0926	1.081	676	368	1044	33400	.02260	.02777	878
Tern/AW	795	45/7	.1329	.0886	1.063	749	124	873	21500	.02135	.02638	896
Cuckoo/AW	795	24/7	.1820	.1213	1.092	749	232	981	27500	.02093	.02582	913
Drake/AW	795	26/7	.1749	.1360	1.108	749	292	1040	30500	.02070	.02549	922
Condor/AW	795	54/7	.1213	.1214	1.093	749	232	981	27800	.02091	.02578	913
Mallard/AW	795	30/19	.1628	.0977	1.140	751	409	1160	37100	.02033	.02500	938
Ruddy/AW	900	45/7	.1414	.0943	1.131	848	140	988	24000	.01886	.02330	970
Canary/AW	900	54/7	.1291	.1291	1.162	848	263	1111	31000	.01849	.02286	986
Catbird/AW	954	36/1	.1628	.1628	1.140	938	6.2	955	19460	—	—	—
Rail/AW	954	45/7	.1456	.0971	1.165	899	149	1047	25400	.01779	.02210	1003
Cardinal/AW	954	54/7	.1329	.1329	1.196	899	279	1177	32900	.01744	.02161	1022
Ortolan/AW	1033.5	45/7	.1515	.1010	1.212	973	161	1134	27200	.01641	.02044	1054
Curlew/AW	1033.5	54/7	.1383	.1383	1.244	973	302	1275	35200	.01609	.01997	1074
Bluejay/AW	1113	45/7	.1573	.1049	1.259	1048	173	1222	29300	.01606	.01905	1103
Finch/AW	1113	54/19	.1436	.0862	1.293	1055	319	1374	37500	—	—	—
Bunting/AW	1192.5	45/7	.1628	.1085	1.302	1125	186	1311	31300	—	—	—
Bittern/AW	1272	45/7	.1681	.1121	1.345	1200	198	1398	33400	—	—	—
Pheasant/AW	1272	54/19	.1535	.0921	1.382	1204	364	1568	42400	.01315	.01646	1216
Bobolink/AW	1431	45/7	.1783	.1189	1.427	1348	223	1571	37600	.01186	.01503	1283
Lapwing/AW	1590	45/7	.1880	.1253	1.504	1498	248	1745	41800	.01069	.01366	1365

High Strength ACSR/AW-Aluminum Conductor Steel Reinforced/AW Core

Code Word	Size (AWG or kcmil)	Stranding (Al/AW)	Diameter (ins.)			Weight Per 1000 ft (lbs.)			Rated Strength (lbs.)	Resistance OHMS/1000ft		Allowable Ampacity+ (Amps)
			Individual Wires		Complete Cable	Weight Per 1000 ft (lbs.)				Resistance OHMS/1000ft
			AL	AW	Complete Cable	Al	AW	Total		DC @20°c	AC @75°C
Grouse/AW	80.0	8/1	.1000	.1670	.367	75.1	62.6	137.7	4,890	.1942	.2357	227
Petrel/AW	101.8	12/7	.0921	.0921	.460	96.0	133.9	229.9	9,910	.1425	.1736	281
Minorca/AW	110.8	12/7	.0961	.0961	.481	104.5	145.8	250.3	10,800	.1326	.1594	297
Leghorn/AW	134.6	12/7	.1059	.1059	.530	127.0	177.0	304.0	13,000	.1078	.1313	335
Guinea/AW	159.0	12/7	.1151	.1151	.576	150.0	209.1	359.1	15,300	.09123	.1112	372
Dotterel/AW	176.9	12/7	.1261	.1261	.631	180.0	251.0	399.5	16,900	.08201	.09988	398
Dorking/AW	190.8	12/7	.1261	.1261	.631	180.0	251.0	431.0	18,300	.07601	.09261	418
Brahma/AW	203.2	16/19	.1127	.0977	.714	191.7	411.0	602.7	21,100	.06570	.07994	464
Cochin/AW	211.3	12/7	.1327	.1327	.664	199.3	278.0	477.3	19800	.06863	.8364	445

+Conductor temperature of 75°C, ambient temperature 25°C, emissivity 0.5, wind 2 ft./sec. in sun.

Parameter/Data Sheet

Please click or download below AAAC pdf to check the parameter regard to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

ACSR_Parameter_British_Europe_BS_EN_50182_Standard.pdf

ACSR_Parameter_American_ASTM_B232_standard.pdf

ACSR_Parameter_British_BS215-2_Standard.pdf

ACSR_Parameter_German_DIN48204_Standard.pdf

ACSR_Parameter_IEC_61089_Standard.pdf

ACSR_Parameter_Japan_JIS_C3110_Standard.pdf

ACSR-Aluminum Conductor Steel Reinforced are also used as a messenger for supporting overhead electrical cables.

ACSR-Aluminum Conductor Steel Reinforced core are made of galvanized steel and the external layer or layers, are of aluminium.

Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ACSR-Electrical Properties

Density:20℃	Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm	Galvanised Steel: 11.5 x10 (1/°C)
Temperature Coefficient:20°C	Aluminium: 0.00403 (°C)
Resistivity:20°C	Aluminium: Should not exceed 0.028264
Linear Expansivity	Aluminium: 23 x10 (°C)

ACSR-Service Conditions

Ambient Temperature	-5°C - 50°C
Wind Pressure	80 – 130kg/m^2
Seismic Acceleration	0.12 - 0.05g
Isokeraunic Level	10 – 18
Relative Humidity	5 – 100%

ACSR-Final Modules of Elasticity-Coeficient of linear Expansion

Numbers of Wires		Final Modules of Elasticity		Coeficient of linear Expansion
AL	Steel	Kg/mm^2	lb/in^2	1/Co	1/Fo
6	1	81	11.5 x106	19.1 x10-6	10.6 x10-6
6	7	77	11.0 x106	19.8 x10-6	11.0 x10-6
12	7	107	15.2 x106	15.3 x10-6	8.5 x10-6
18	1	67	9.5 x106	21.2 x10-6	11.8 x10-6
24	7	74	10.5 x106	19.6 x10-6	10.9 x10-6
26	7	77	10.9 x106	18.9 x10-6	10.5 x10-6
28	7	79	11.2 x106	18.4 x10-6	10.2 x10-6
30	7	82	11.6 x106	17.8 x10-6	9.9 x10-6
30	19	80	11.4 x106	18.0 x10-6	10.0 x10-6
32	19	82	11.7 x106	17.5 x10-6	9.7 x10-6
54	7	70	9.9 x106	19.3 x10-6	10.7 x10-6
54	19	68	9.7 x106	19.4 x10-6	10.8 x10-6

Matching Products

*Describe Your Buying Requirements in Detail
