AWAC Bare Overhead Conductor Price

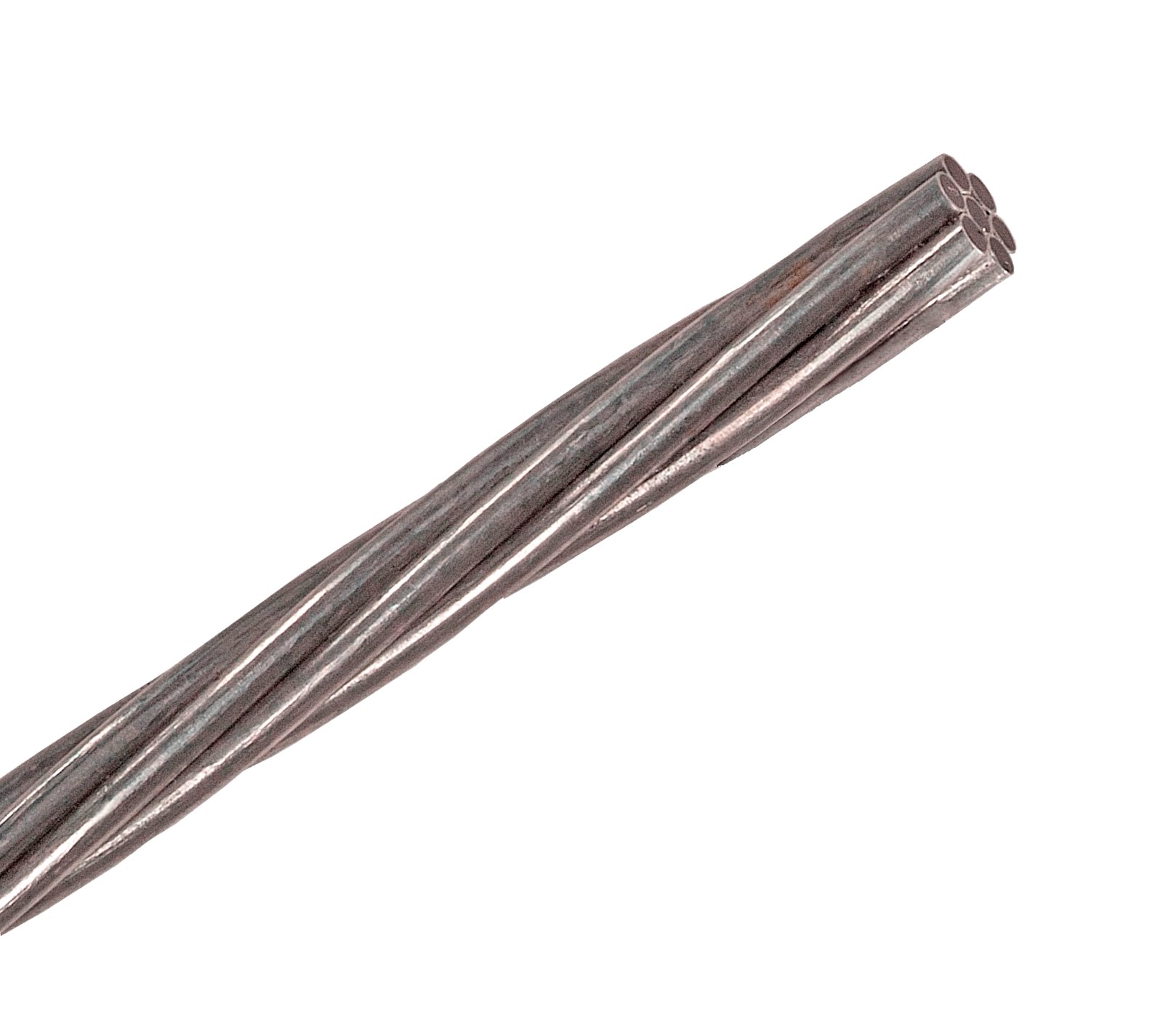

Concentric-lay stranded conductors made from round 1350-H19 Aluminum wires and round Aluminum-clad Steel core wires.
Aluminum clad steel wire / Aluminum Conductors are a concentric-lay-stranded cable made up of a combination of 1350-H19 aluminum and aluminum-clad steel wires. The aluminum is especially important for this wire to extend its useable life and decrease the amount of corrosion, especially because it is a bare wire. AWAC conductors have many different uses. The most common use for AWAC cable is as a phase conductor to increase the amount of distance or clearance covered in a run. One of the most important uses for AWAC cable is as a protector of other cables, specifically against lightning strikes against power lines. The AWAC cable will absorb the voltage surges that would have otherwise caused great damage to power lines.
AS/AC (AWAC) conductors are used as phase conductors to increase span length or clearances, neutral messengers for spacer cables, ground or shield wires, and as self-supporting cables.
AWAC cables are used for guy-wires or guy-lines. These are lines typically found on a structure, and are there to provide support. Common guy wire uses are to help support the mast on a ship, to hold up wind turbines, and utility poles. AWAC is also sometimes used as a shield wire, and may be wrapped around other more important wires, in order to protect them from the elements. AWAC can also be used as a static wire, overhead ground wires, messengers, span wires, etc.
Get quote by email: info@qingzhou-cable.com
ASTM B502 – Round, single end, Aluminum-clad Steel core wire used in the manufacture of AS/AC (AWAC) and ACSR/AS (AW) cables. Two tensile strengths available, AW2 (Normal Strength) and AW3 (High Strength); ASTM B230 – This specification covers aluminum 1350-H19 (extra hard) round wire for electrical purposes; ASTM B549 – This specification covers concentric-lay-stranded conductors made from round aluminum 1350-H19 (extra hard) aluminum wires and round aluminum-clad steel core wires for use as overhead electrical conductors.
| Conductor | Diameter of Conductor Inch | Design of Conductor Aluminum Wires No. Dia. | Design of Conductor Alumoweld Wires No. Dia. | Rated Breaking Load Pounds | Weight (lbs.)/ 1,000 ft. | Weight (lbs.)/Mile | Cross Section Square In. |
|---|---|---|---|---|---|---|---|
| No. 4 Awg Aluminum Equilivant | |||||||
| No. 4-6/1 | .245 | 6-.0187 | 1-.0817 | 1,783 | 52.4 | 276.7 | .03671 |
| No. 4-5/2 | .261 | 5-.0871 | 2-.0817 | 2,300 | 69.7 | 368.0 | .04172 |
| No. 4-4/3 | .281 | 4-.0937 | 3-.0937 | 4,305 | 92.4 | 487.9 | .04381 |
| No. 4-3/4 | .307 | 3-.1022 | 4-.1022 | 6,325 | 123.7 | 653.1 | .05737 |
| No. 4-2/5 | .340 | 2-.1133 | 5-.1133 | 9,314 | 169.4 | 894.4 | .07061 |
| No. 3 Awg Aluminum Equilivant | |||||||
| No. 3-6/1 | .275 | 6-.0918 | 1-.0918 | 2,228 | 66.1 | 349.0 | .04629 |
| No. 3-5/2 | .293 | 5-.0978 | 2-.0978 | 3,551 | 87.8 | 463.7 | .05261 |
| No. 3-4/3 | .316 | 4-.1053 | 3-.1053 | 5,397 | 116.5 | 615.1 | .06092 |
| No. 3-3/4 | .344 | 3-.1147 | 4-.1147 | 7,966 | 155.9 | 823.2 | .07234 |
| No. 3-2/5 | .382 | 2-.1273 | 5-.1273 | 11,730 | 213.5 | 1,127 | .08903 |
| No. 2 Awg Aluminum Equilivant | |||||||
| No. 2-6/1 | .309 | 6-.1030 | 1-.1030 | 2,760 | 83.3 | 439.8 | .05837 |
| No. 2-5/2 | .330 | 5-.1099 | 2-.1099 | 4,336 | 110.8 | 585.0 | .06634 |
| No. 2-4/3 | .355 | 4-.1182 | 3-.1182 | 6,785 | 146.9 | 775.6 | .07682 |
| No. 2-3/4 | .386 | 3-.1288 | 4-.1288 | 9,793 | 196.6 | 1,038 | .09122 |
| No. 2-2/5 | .429 | 2-.1429 | 5-.1429 | 14,060 | 269.3 | 1,422 | .1123 |
| No. 1 Awg Aluminum Equilivant | |||||||
| No. 1-6/1 | .347 | 6-.1157 | 1-.1157 | 3,450 | 105.1 | 554.9 | .07362 |
| No. 1-5/2 | .370 | 5-.1234 | 2-.1234 | 5,539 | 139.7 | 737.6 | .08366 |
| No. 1-4/3 | .398 | 4-.1327 | 3-.1327 | 8,344 | 185.3 | 978.4 | .09687 |
| No. 1-3/4 | .434 | 3-.1446 | 4-.1446 | 11,740 | 247.9 | 1,309 | .1150 |
| No. 1-2/5 | .482 | 2-.1605 | 5-.1605 | 16,800 | 339.6 | 1,793 | .1416 |
| No. 1/0 Awg Aluminum Equilivant | |||||||
| No. 1/0-6/1 | .390 | 6-.1300 | 1-.1300 | 4,246 | 132.6 | 700.1 | .09289 |
| No. 1/0-5/2 | .416 | 5-.1385 | 2-.1385 | 6,712 | 176.1 | 929.8 | .1055 |
| No. 1/0-4/3 | .447 | 4-.1490 | 3-.1490 | 10,020 | 233.5 | 1,233 | .1221 |
| No. 1/0-3/4 | .487 | 3-.1624 | 4-.1624 | 14,000 | 312.6 | 1,651 | .1450 |
| No. 1/0-2/5 | .541 | 2-.1802 | 5-.1802 | 20,030 | 428.0 | 2,260 | .1785 |
| No. 2/0 Awg Aluminum Equilivant | |||||||
| No. 2/0-6/1 | .438 | 6-.1459 | 1-.1459 | 5,135 | 167.1 | 882.3 | .1171 |
| No. 2/0-5/2 | .467 | 5-.1556 | 2-.1556 | 8,040 | 221.1 | 1,173 | .1330 |
| No. 2/0-4/3 | .502 | 4-.1674 | 3-.1674 | 12,000 | 294.6 | 1,555 | .1541 |
| No. 2/0-3/4 | .547 | 3-.1824 | 4-.1824 | 16,750 | 394.3 | 2,082 | .1829 |
| No. 3/0 Awg Aluminum Equilivant | |||||||
| No. 3/0-6/1 | .492 | 6-.1639 | 1-.1639 | 6,305 | 210.7 | 1,112 | .1476 |
| No. 3/0-5/2 | .524 | 5-.1747 | 2-.1747 | 9,705 | 280.6 | 1,482 | .1677 |
| No. 3/0-4/3 | .564 | 4-.1800 | 3-.1880 | 14,380 | 371.4 | 1,961 | .1942 |
| No. 4/0 Awg Aluminum Equilivant | |||||||
| No. 4/0-6/1 | .552 | 6-.1840 | 1-.1840 | 7,685 | 265.7 | 1,403 | .1861 |
| No. 4/0-15/4 | .575 | 15-.1150 | 4-.1150 | 10,870 | 305.4 | 1,613 | .1974 |
