Cable Manufacturers for 2X10mm2 2x16mm2 Copper LV ABC (NF2X) Fully Ribbed for Australia Market

What is LV ABC Cable ?

Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building; from source to machine or device, in duct in the ground…

Aerial Bundle Cables, often referred to as Aerial Bundled Conductors or simply ABC, are cables for overhead line power, so called for combining multiple single core cables together. With applications including temporary power distribution to street lighting and secondary pole-to-pole service cables, they are lightweight stranded aluminium conductors, both single core and multi-cores. Whilst Aerial Bundle Cables are used in rural power distribution in some countries, they are more commonly used in temporary power installations such as on construction sites. As insulated cables they are often preferred to bare conductors which are installed and separated by air gaps but where sparks and shorts in the event of high winds may cause resulting bushfires in dry climates or risk nearby property. The XLPE insulation material, and where relevant the sheathing material, allows the ABC to be tightly bundled together – additional steel wire supports similar to those in ACSR can also be incorporated as catenary wires .

LV ABC Cable Standards

Our Low Voltage ABC Cable are manufactured in accordance with a range of national standards - British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1. They have a voltage rating of 0.6/1kV. With the insulation it also meets Class II according to IEC 61140 in protecting against electric shock. Aerial Bundle Cables have an operating temperature range of -40℃ to +80℃ and can be installed in temperatures as low as -20℃. LV ABC Cable are unscreened and without an additional outer sheath.

The Low Voltage ABC cable have both phase conductors and a neutral conductor - both Class 2 stranded Aluminium - with core identification being provided by ribs on the insulation: Phases by longitudinal ribs (I, II, III), Neutral core by longitudinal ribs (≤ 50 mm2 min.12 ribs; ≥ 50 mm2 min.16 ribs).

Get quote by email: info@qingzhou-cable.com

LV-ABC-Cu 0.6/1kV

Get quote by email: info@qingzhou-cable.com

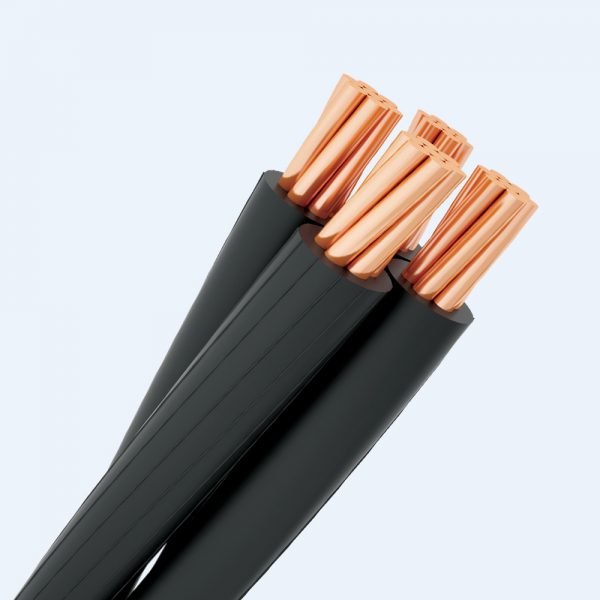

Low voltage aerial bunched cable, 2, 3 and 4 cores, Copper conductor, XLPE insulated

Standards: AS 3560.2

Construction: Cu/XLPE

1. Conductor: Concentric stranded hard drawn copper wires

2. Insulation: XLPE

Cable identification: by ribs on black color insulation

·  For 2 cores cable

· Phase core: 1 rib

· Neutral core: not less than 10 ribs or no rib

· For 3 cores cable

· Phase 1: 1 rib

· Phase 2: 2 ribs

· Neutral core: not less than 10 ribs or no rib

· For 4 cores cable

· Phase 1: 1 rib

· Phase 2: 2 ribs

· Phase 3: 3 ribs

· Neutral core:not less than 10 ribs or no rib

· For 4 cores cable

· Phase 1: 1 rib

· Phase 2: 2 ribs

· Phase 3: 3 ribs

· Phase 4: 4 ribs

· Neutral core: not less than 10 ribs or no rib

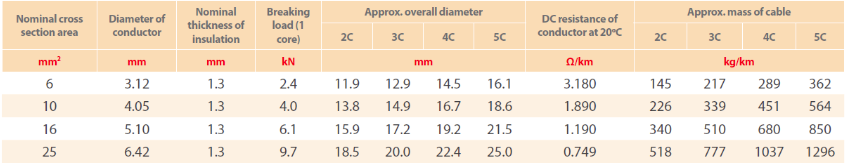

Characteristics:

· Rated voltage (Uo/U): 0,6/1kV

· Max. conductor temperature in normal operation: 90oC

· Max. conductor temperature in short-circuit for 5s max duration: 250℃

· Min. bend radius: 8 x D (D: overall diameter of cable)

More detail Qingzhou Cable details all in :

1. ACSR/AW-OC TR/OC Overhead distribution line

2. Overhead Covered AAC AAAC ACSR Conductor- Tree Wire Systems

3. 0.6/1kV Multiplexed Cables for secondary power distribution

4. LV & MV Aerial Bundle Cable (ABC)

5. Medium Voltage Aerial Bundle ABC Cable

6. Covered AL Line Wire Weatherproof

7. NF2X / NFA2X- Aerial Bundled Conductor , Twisted Cable

8. NFA2X-T-Bundled Aluminium Overhead Cable (Twisted Cable)

9. AAAC/S-All Alloy Aluminium Conductor with XLPE Insulated

Qingzhou Cable as a special LV ABC Cable Cable factory in China, We not only have over 24 years of production experience in Aerial Bundled Cable, but also we have 15 senior engineers, they can free design the LV ABC Cable size according to client’s requirement.

Our ABC Cable Aerial Bundled Cable export such as Australia, South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana, Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
