Neutral Supported Multiplex Cable

Neutral Supported Multiplex Cable Description

Aluminum conductors PE or XLPE insulated twisted together with a neutral supporting Messenger in AAC, AAAC or ACSR.

Neutral Supported Multiplex Cable Construction

Conductor: Concentrically stranded, compressed 1350-H19 Aluminum. Duplex one phase conductor, Triplex two phase conductor, Quadruplex three phase conductors.

Insulation: Cross Linked Polyethylene (XLPE 90°C) or thermoplastic polyethylene (PE 75°C).

Neutral supporting messenger: AAC All Aluminum Conductor, AAAC All Aluminum Alloy Conductor or ACSR Aluminum conductor steel reinforced.

Options

Phase conductor in AAAC. Neutral covered. Additional conductor for Public lighting system. Overall Jacket.

Neutral Supported Multiplex Cable Characteristics

Operating Temperature: 990°C, for XLPE insulation. 75°C, for PE insulation.

Operating Voltage: 600 V.

Neutral Supported Multiplex Cable Applications

Duplex: Overhead Secondary Distribution, street lighting, outdoor lighting or temporally installations.

Triplex: Overhead Secondary Distribution, from pole to service entrance derivation.

Quadruplex: Overhead Secondary Distribution Three-phase system, from pole to service entrance derivation.

Neutral Supported Multiplex Cable Standards

MULTIPLEX Cables are manufactured under the following standards:

ASTM B231, NTC-308. Concentric-Lay-Stranded Aluminum 1350 Conductors

ICEA S-76-474. Neutral supported power cables assemblies with weather resistant extruded insulation rated 600 volts.

Neutral Supported Multiplex Cable Certifications

Qingzhou MULTIPLEX Cables are certified by:

CIDET (Colombia). Certificate No. 01336 ICEA S-76-474.

Note: Other configurations and sizes not specified herein are available upon request.

Manufacturing Standard: ICEA S-76-474. Neutral supported power cables assemblies with weather resistant extruded insulation rated 600 volts.

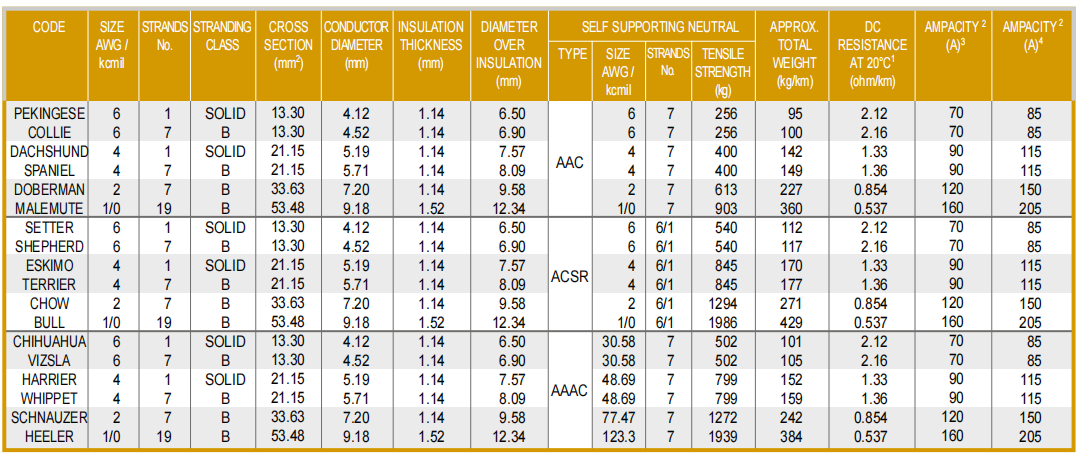

Neutral Supported Duplex 600V

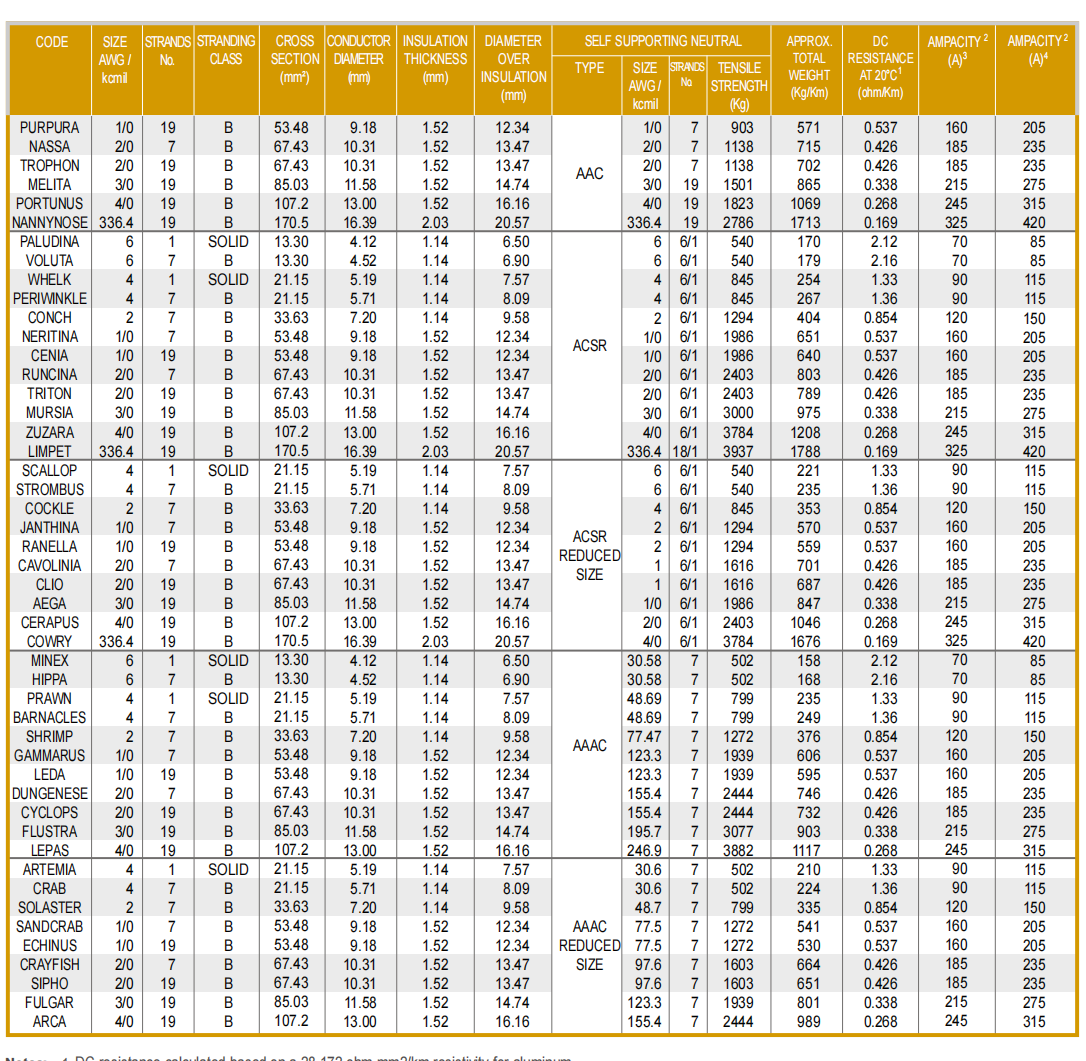

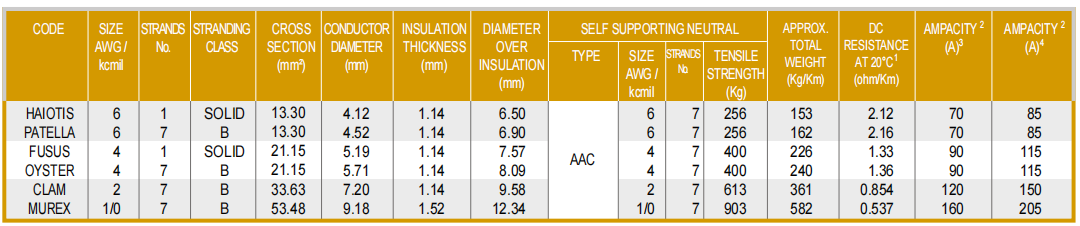

Neutral Supported Triplex 600V

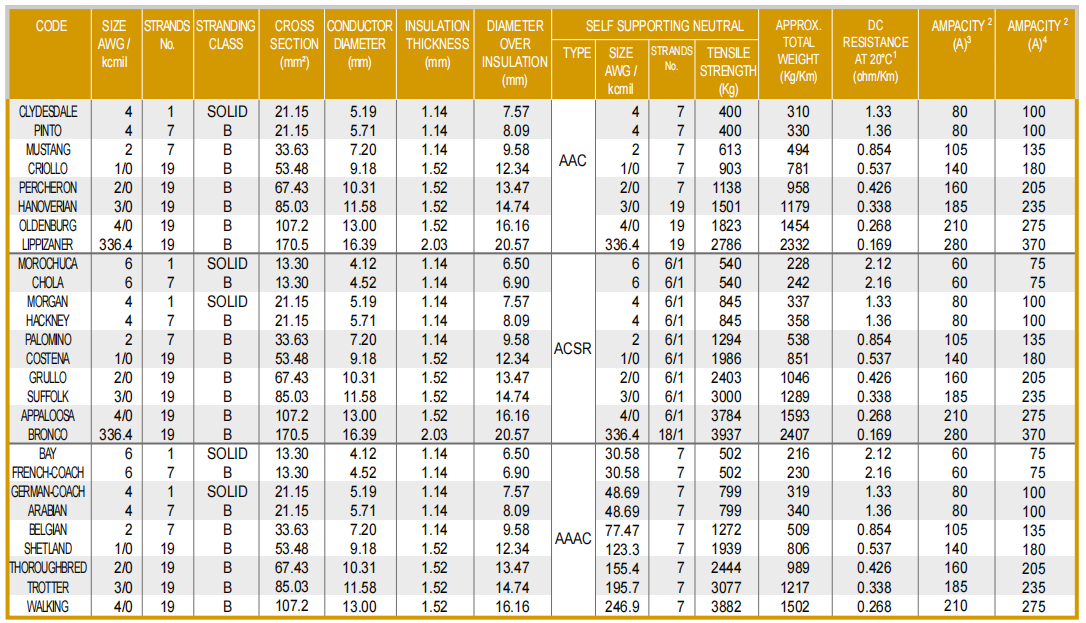

Neutral Supported Quadruplex 600V
