XHHW-2 Cables Cross (X) Linked Polyethylene Insulation, High Heat resistant (90°C),

Single Conductor (600V) XHHW-2 Description

Soft copper conductor, XLPE insulated.

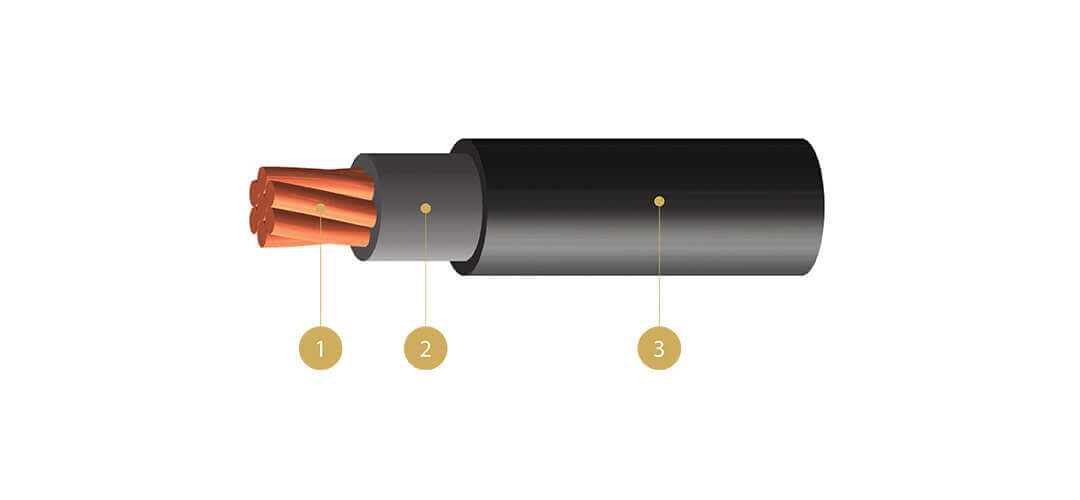

Construction

Conductor: Compressed Stranded Soft copper.

Insulation: Cross Linked Polyethylene (XLPE 90°C).

Options: Aluminum Conductor XLPE SR (Sunlight resistant) insulation.

For sizes greater than 1/0 AWG, Type Tray Cable (TC).

Characteristics

Operating temperature

Dry Locations: 90°C

Wet Locations: 90°C

Operating Voltage: 600 V.

XHHW-2 600V Cables Type Uses and Applications

Overhead distribution of electric energy in low voltage systems. Connection to boards, motors, and building wiring. Installation ducts and raceways. Abrasion and moisture resistant insulation, its dimensions permits optimal filled in tubes and ducts. Pass VW-1 Vertical flame Test.

Cables Type XHHW-2 600V Standards and Specifications

XHHW-2 cables are manufacturing according to the following standards:

ASTM B3, NTC-ICONTEC 359. Soft copper wire.

ASTM B8, NTC-ICONTEC 307. Concentric Lay Stranded copper conductors.

ASTM B787. 19 Wire Combination Unilay Stranded Copper conductors for subsequent insulation

UL 1581, NTC-3203. Reference Standard for Electrical Wires, Cables and Flexible Cords.

UL 44, NTC-3277. Thermo set-Insulated Wires and Cables.

Certifications:

XHHW-2 Cables type, are certified by:UL 44 File E137698.

Note: Other configurations and sizes not specified herein are availableupon request.
