NF2X / NFA2X- Aerial Bundled Conductor , Twisted Cable

0.6/1 (1.2) kV NF2X / NFA2X

Aerial Bundled Conductor , Twisted Cable

Secondary distribution and service drop cable

Send E-mail Get Price Now

Application

Bundle conductor for overhead distribution network without and with public lighting. (between pole to pole)

Construction

Conductor

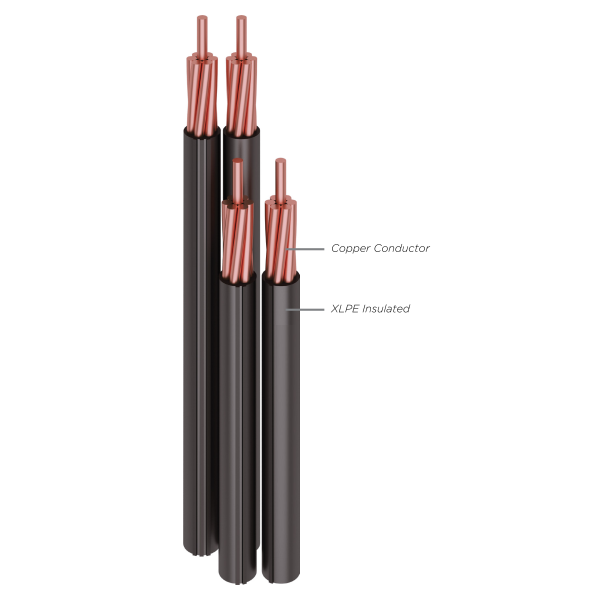

NF2X : Stranded Copper Conductor

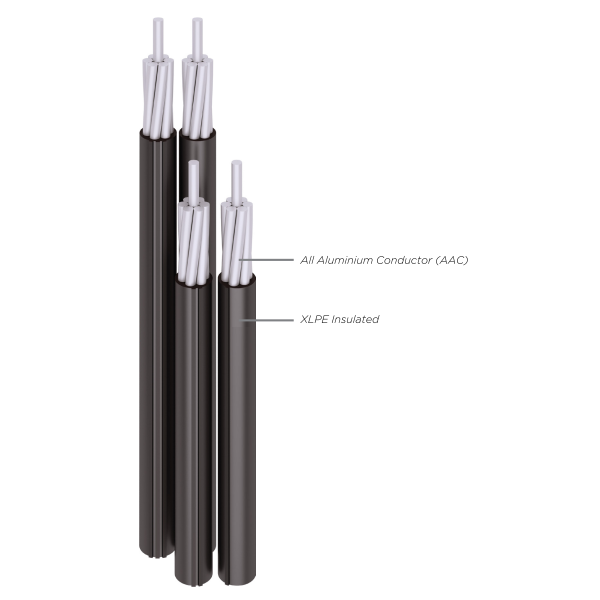

NFA2X : Stranded All Aluminium Conductor (AAC)

Insulation: Extrude of XLPE

Specification

SPLN 42-10 : 1993

(Other specifications are available upon request)

Classification

Low Voltage Cable

PHYSICAL PROPERTIES					ELECTRICAL PROPERTIES
Cable Size	Insulation Thickness	Approx.Twisted Diameter	Approx. Net.Weight	Max. Conductor Resistance at2oC	Current Carrying Capacity at 35℃	Calculated Breaking Force	Standard Length
mm'	mm	mm	Kg/km	ohm/km	A	kg	m
NF2X (COPPER CONDUCTOR)
2x6rm	1.2	13.0	136	3.080	54	394	2.,000
2x10rm	1.2	14.0	211	1.830	73	656	2,000
2x16rm	1.2	16.0	334	1.150	97	1,051	1,000
4x6rm	1.2	15.7	258	3.080	54	788	1.000
4x10rm	1.2	170	422	1.830	73	1,312	1,000
4x16rm	1.2	190	64	1.150	97	2,102	1,000
4x25rm	1.4	240	1,008	0.727	133	3,284	1,000
NFA2X (ALL ALUMINIUM CONDUCTOR)
2x10rm	1.2	14.0	94	3.080	54	322	2,000
2x16rm	1.2	16.0	138	1.910	72	515	1,000
4x10rm	1.2	17.0	187	3.080	54	644	1,000
4x16rm	1.2	19.0	272	1.910	72	1,030	1,000
425 rm	1.4	24.0	423	1.200	102	1.610	1,000
4x35rm	1.6	27.0	564	0.868	125	2.250	1,000
