ACSR/AW-OC TR/OC Overhead distribution line

ACSR-OC ACSR/AW-OC ACSR/AW-TR/OC

Application:

Used for weather-resistant cable for the distribution lines on

normal condition of overhead line service

Send E-mail Get Price Now

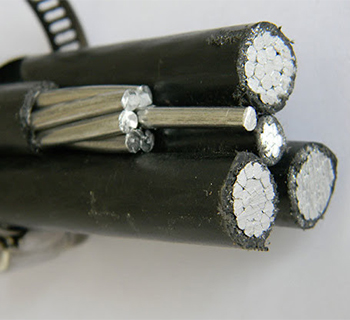

Overhead distribution line

Overhead distribution line safely transports electricity from substations in suburban areas to its final destination at households, commercial buildings and factories etc. This product is mainly installed on steel towers or concrete electric poles

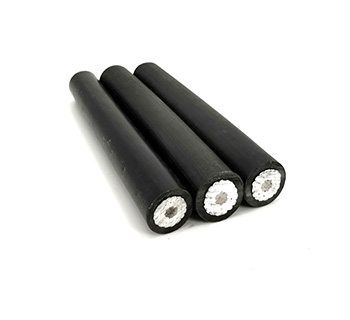

Aluminum Conductor Steel Reinforced Outdoor Cross-linked Insulated Wire (ACSR-OC)

This product is made by stranding aluminum wire around a zinc coated core steel cable and then applying insulation while extruding it. ACSR-OC is used on high-voltage (6.6kV) and special high-voltage (22.9kV) overhead distribution lines.

Aluminum Conductor Steel Reinforced/Aluminum Clad Outdoor Cross-linked Insulated Wire (ACSR/AW-OC)

This product is made by stranding aluminum wire around a core zinc-coated steel cable and then insulating the wire with cross-linked polyethylene. Corrosion resistance has been improved compared to ACSR. Used on high-voltage (6.6kV) and special high-voltage (22.9kV) overhead distribution lines, this product is suitable for areas subject to slight environmental pollution.

Aluminum Conductor Steel Reinforced/Aluminum Clad Tracking Resistant Outdoor Cross-linked Insulated Wire (ACSR/AW-TR/OC)

This is an improved version of ACSR/AW-OC with double insulation and different insulating materials. Together with improved tracking resistance, less current leakage and better insulation, water-blocking was applied to the conductor to prevent stress breaking and thus improve power supply. Used on special high-voltage (22.9kV) overhead distribution lines, this product is suitable for coastal, industrial and mountainous areas.

22.9kV Aluminum Conductor Aluminum Clad Steel Reinforced Outdoor XLPE Insulated Wire (ACSR/AW-OC)

ES-6145-0006

Nominal Sectional Area	Conductor			Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
Nominal Sectional Area	Number & Diameter of Wire	Number & Diameter of Wire	Outer Diameter	Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
mm2	mm	mm	mm	mm	mm	Ω/km	Ω/km	kV	kN(kgf)	kg/km	m
32	6/SB	1/2.6	7.2	3.0	13.2	0.877	2,000	25	10.68(1,090)	210	600, 1000
58	6/SB	1/3.5	9.7	3.0	15.7	0.484	1,500	25	18.62(1,900)	330	600, 1000
95	6/SB	1/3.5	12.0	3.5	19.0	0.302	1,500	25	23.13(2,360)	530	600, 1000
160	18/SB	1/3.2	15.4	4.0	23.4	0.183	1,500	25	30.18(3,080)	730	600, 1000
240	18/SB	1/4.0	18.9	4.0	27.0	0.123	1,000	25	44.10(4,500)	1,040	600, 1000

22.9kV Aluminum Conductor Aluminum Clad Steel Reinforced Outdoor XLPE Insulated Wire (ACSR/AW-TR/OC)

ES-6145-0021

Nominal Sectional Area	Conductor			Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
Nominal Sectional Area	Number & Diameter of Wire	Number & Diameter of Wire	Outer Diameter	Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
mm2	mm	mm	mm	mm	mm	Ω/km	Ω/km	kV	kN(kgf)	kg/km	m
58	6/SB	1/3.5	9.7	3.0	15.7	0.484	1,500	25	1,900	360	600
95	6/SB	1/3.5	12.0	3.5	19.0	0.302	1,500	25	2,360	520	600
160	18/SB	1/3.2	15.4	4.0	23.4	0.183	1,500	25	3,080	750	600
240	18/SB	1/4.0	18.9	4.0	27.0	0.123	1,000	25	4,500	1,040	600

ACSR/AW Polyvinyl Chloride Insulated Outdoor Weather-proof wire

(ACSR/AW-OW)

Usage

– An electrically, physically, and chemically outstanding cable made for pad-mounted use from a 22.9kV-y multiple grounding system.

ACSR/AW-OC Structure

– Seal wire : Aluminum-sheathed stranded wire (AW)
– Conductor : Standard aluminum cable
– Interior semi-conductor layer : Black semi-conductor thermosetting compound
– Insulator : weather resistant cross-linked polyethylene (black)

ACSR/AW-TR/OC Structure

– Seal wire : Aluminum-sheathed stranded wire (AW)
– Conductor : Standard aluminum cable
– Interior semi-conductor layer : Black semi-conductor thermosetting compound
– Insulator : Weather-resistant cross-linked polyethylene (natural color)
– Sheath : Black semi-conductor thermosetting compound (inner tracking)

GS-6145-0064

Voltage	Nominal Sectional Area	Conductor			Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
Voltage	Nominal Sectional Area	Number & Diameter of Wire	Number & Diameter of Wire	Outer Diameter	Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
V	mm2	mm	mm	mm	mm	mm	Ω/km	kVi	kN(kgf)	kg/km	m
450/750V	35	6/SB	1/2.6	7.2	1.2	9.8	0.868	3	1090	175	900

Aluminum Conductor Steel Reinforced Outdoor XLPE Insulated Wire (ACSR/OC)

ES-6145-0008

Voltage	Nominal Sectional Area	Conductor			Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
Voltage	Nominal Sectional Area	Number & Diameter of Wire	Number & Diameter of Wire	Outer Diameter	Insulation Thickness	Overall Diameter	Max. Conductor Resistance at 20℃	Min. Insulation Resistance at 20℃	Test Voltage	Min. Tensile Load	Approx. Weight	Standard Length
V	mm2	mm	mm	mm	mm	mm	Ω/km	Ω/km	kVi	kN(kgf)	kg/km	m
6.6kV	32	6/SB	1/2.6	7.2	2.0	11.2	0.928	1,500	12	1090	185	900
	58	6/SB	1/3.5	9.7	2.5	14.7	0.512	1,500	12	1900	325	600
	95	6/SB	1/3.5	12.0	2.5	17	0.313	1,000	12	2360	445	300
22.9kV	32	6/SB	1/2.6	7.2	3.0	13.2	0.928	2,000	25	2000	215	900
	58	6/SB	1/3.5	9.7	3.0	15.7	0.512	1,500	25	1500	340	600
	95	6/SB	1/3.5	12.0	3.5	19	0.313	1,500	25	1500	540	600
	160	18/SB	1/3.2	15.4	4,0	23.4	0.186	1,000	25	1500	740	600
